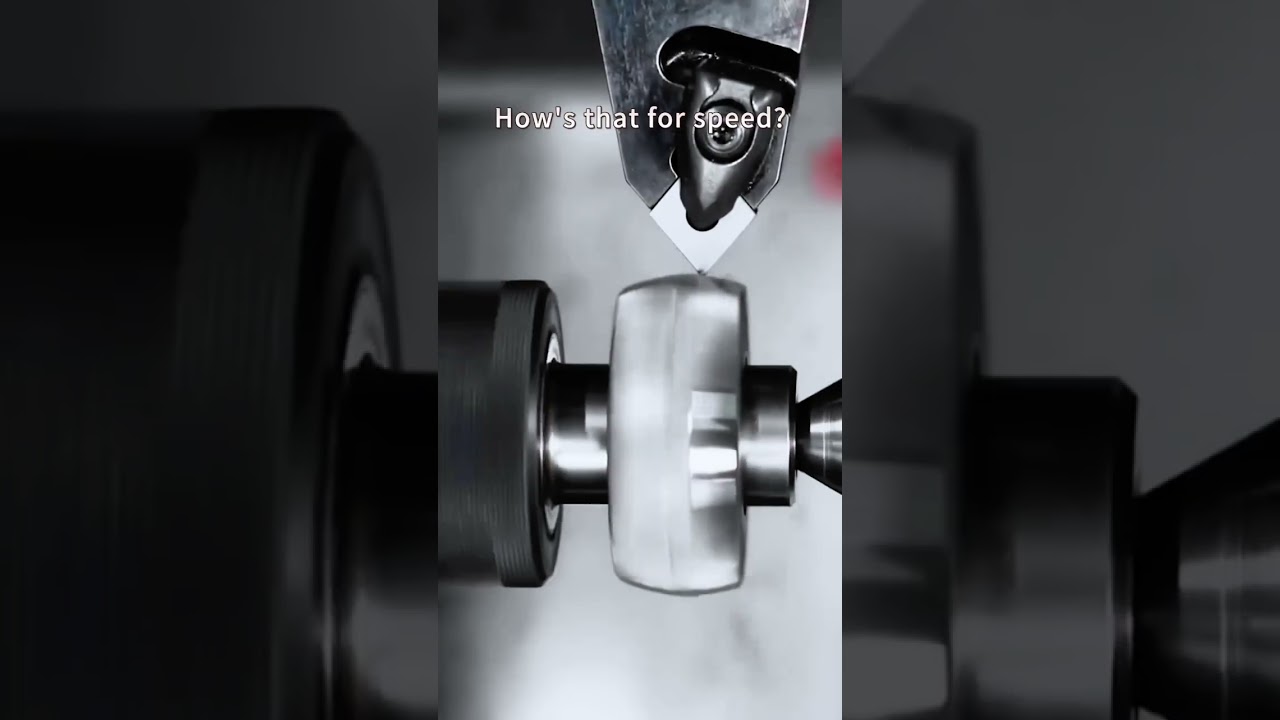

CNC Milling for Speed: Where Cycle Time Actually Comes From

• 1
  What CNC Milling for Speed Really Measures
• 2
  Chip Load, Not RPM, Sets the Removal Rate
• 3
  Why 5-Axis Helps Some Parts and Not Others
• 4
  Workholding and Tool Changes: The Hidden Time
• 5
  Where Speed Stops Being Worth It
• 6
  How to Check a Quote for Real Speed
• 7
  Which Machine Class Fits the Job

Cycle time is the clock from spindle start to spindle stop on one part. It contains three parts: metal cutting, tool and axis movement between cuts, and time lost to setups, probing and rework. Shops often quote the first number and ignore the other two.

Cutting time follows a simple relationship. Feed rate equals spindle speed times chip load times number of teeth. If you want to remove material faster, you raise one of those three, and each one has a ceiling set by the tool, the material and the machine.

Non-cut time is where five-axis machines earn their money. A part that needs six faces machined on a 3-axis mill may need three or four separate setups. Each setup adds clamping, zeroing and a first-article check. On a simultaneous 5-axis center the same part can often be finished in one or two setups.

Rework is the quiet cost. A part that holds ±0.005 mm on the first attempt does not come back. A part that drifts because the fixture moved does. Speed without repeatability is just scrap produced quickly.

So when someone asks how fast a job can run, the honest answer separates these three. The spindle number is the least interesting of them.

• 1
  Cut timeSet by feed, speed, chip load and depth of cut.
• 2
  Non-cut timeSetups, tool changes, indexing, probing.
• 3
  ReworkScrap and re-machining from lost tolerance.

A spindle that turns at 12,000 rpm but takes 0.02 mm per tooth removes less material than one at 8,000 rpm taking 0.08 mm per tooth. The number that matters is cubic material per minute, and it comes from chip load and radial engagement, not from the rpm figure on the spec sheet.

Chip load is limited by tool strength. A 6 mm carbide end mill in 6061 aluminium can run a healthy chip load. The same cutter in 17-4PH stainless needs a much smaller one, because the cutting force per tooth rises with the material's hardness and work-hardening tendency.

Radial engagement, or stepover, changes the picture again. Trochoidal and dynamic paths use a small stepover at full depth. The tool spends most of its time in a shallow arc, so heat leaves with the chip instead of soaking into the cutter. On deep pockets in 4140 steel this often beats a conventional full-width pass.

The practical check is the chip itself. Aluminium should throw short, bright, curled chips. Steel should produce chips that break rather than string out. Grey dust or fine powder means the cutter is rubbing, not cutting, and the cycle time you saved will return as tool wear.

• 1
  Full-width, shallowClassic roughing; simple, but limited by tool deflection.
• 2
  Small stepover, full depthDynamic roughing; better heat removal on deep pockets.
• 3
  High-feed cuttersSmall depth, high feed per tooth; good on hard steels.

Five-axis machining shortens cycle time when the part has features on multiple faces, when the tool has to reach under a lip, or when a short, stiff tool would cut faster than a long one. Those are geometry problems, and more axes solve them.

It does not help a flat plate with holes on one face. A 3-axis machine with a good vise will outrun a 5-axis center on that job, because the extra rotary axes add motion without removing any setup. Picking the wrong machine class can add time, not save it.

The real gain is often tool stiffness. On a 5-axis trunnion or a Ø400 mm rotary table, you can tilt the part so a stub-length cutter reaches the wall. A short tool deflects less, so you can push chip load higher and still hold tolerance. That is where the seconds come from.

Setups matter just as much. A housing with bores on four sides may need three fixtures on a 3-axis line and one on a 5-axis. Each fixture is a clamping error and a first-article check. Fewer setups usually means less scrap, and scrap is the slowest thing in any shop.

• 1
  Good fit for 5-axisMulti-face features, undercuts, deep pockets needing short tools.
• 2
  Poor fit for 5-axisSingle-face plates, simple turned parts, one-op brackets.

A machinist can lose more minutes to workholding than to cutting. Soft jaws, a self-centering vise or a vacuum plate all cut clamp time, but the wrong choice lets the part move under load. A part that moves 0.03 mm during roughing is a part that will need a second pass.

Tool changes are the other hidden cost. A program with 22 tools and no sequence planning spends a long time in the changer. Grouping tools by size and by feature, and using a face mill for the bulk of the stock before switching to smaller cutters, often saves more time than raising the feed rate.

Probing helps here. Touching off each part on the machine catches a fixture shift before the part is cut, not after. The probe cycle costs a few seconds. A scrapped housing costs hours.

For small runs, the setup dominates. A single prototype on a 5-axis center may spend more time in fixture build than in cut. That is normal, and it is why shops separate prototype time from production time when they quote.

• 1
  Group toolsFewer changer trips, fewer chances for a wrong offset.
• 2
  Probe each partCatches fixture drift before the cut, not after.

Speed has a floor set by tolerance. If a feature needs ±0.005 mm, you cannot take a heavy roughing pass and expect the finish pass to fix it. The material moves, the tool wears, and the last cut inherits the error.

Thin walls are the classic case. A 1 mm wall in aluminium will deflect under a heavy cut no matter how rigid the machine is. The answer is often a lighter pass, a support, or a different process, not a faster spindle.

Surface finish sets another limit. A finish of Ra 0.2–0.8 μm usually needs a separate light pass, and that pass has its own feed rate. Pushing the roughing cut harder can leave enough stock variation that the finish pass has to slow down to compensate.

Finally, the material decides. Titanium and Inconel cut at a fraction of the speed of aluminium, and heat builds at the edge. On those jobs, coolant strategy and tool life matter more than any feed number. A cutter that lasts 20 minutes at a moderate feed beats one that fails in 4 minutes at a high feed.

• 1
  Tolerance wallHeavy cuts move the part, so the last pass inherits error.
• 2
  Thin wallsDeflect under load; support or light passes instead.
• 3
  Hard alloysTool life, not feed rate, sets the practical ceiling.

When a shop quotes a lead time, ask what drives it. A 3–5 day ship date on a simple bracket is normal. The same date on a five-face housing means the shop has already planned the setups and the tool list, or it means the schedule is optimistic.

Ask which machine class the part will run on. If the answer is 5-axis for a flat plate, that is a signal the process was not reviewed. If the answer is 3-axis for a multi-face part, expect extra fixtures and extra scrap risk.

Ask how many setups are planned. Fewer setups means fewer chances to lose the datum. On parts with tight positional tolerance between faces, this number tells you more about the outcome than the spindle speed does.

The last question is inspection. Speed is only useful if the part passes. A shop that inspects 100% before shipment is not slower than one that samples. It is usually faster on the second order, because the first order did not come back.

• 1
  Machine classDoes the axis count match the part geometry?
• 2
  Setup countEach setup is a datum and a chance for error.
• 3
  Inspection plan100% before shipment, reports on request.
