CNC Turning and Milling: How 5-Axis Machining Changes the Process

• 1
  What Happens During CNC Turning and Milling
• 2
  What 5-Axis Machining Actually Adds
• 3
  Turning or Milling: How to Read a Part
• 4
  Surface Finish, Tool Access, and the Cost of Rework
• 5
  Matching Process to Part Feature

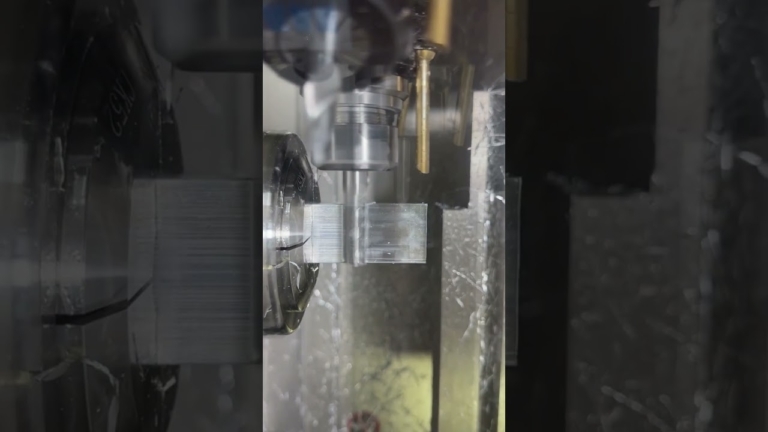

Both processes remove metal with a cutting edge, but the geometry of the motion is different. In turning, the workpiece spins and a single-point tool feeds along X and Z. The result is a surface of revolution: shafts, bushings, pistons, connectors. In milling, the tool spins and the workpiece is indexed underneath it, so you can cut flats, pockets, slots, and profiles that turning cannot reach.

Most real parts need both. A hydraulic manifold starts as a turned blank, then goes to a mill for port faces and bolt patterns. A gearbox housing is milled from a billet, then bored on a lathe to hold a bearing seat. When a shop quotes a single part number across separate turning and milling operations, the risk is not the cutting itself. It is the second setup, where the part is unclamped, turned over, and re-datumed.

Every setup adds a stack of small errors: chuck runout, fixture repeatability, thermal drift between operations. On a 3-axis machine a part with features on five sides may need three or four setups. Each one is a chance to lose 0.01 mm or more. That is why the same drawing can come back at ±0.02 mm from one shop and ±0.005 mm from another without anyone cutting differently.

The cutting parameters matter too. Aluminum 6061 cuts clean at 3,000–8,000 rpm with carbide and light radial depth. Stainless 316 work-hardens if the feed is too low, so we keep the chip load up and never let the tool rub. Titanium Ti-6Al-4V runs slow, around 40–80 m/min surface speed, with flood coolant and sharp edges. Get the parameters wrong and no amount of machine accuracy will save the part.

• 1
  TurningRound features, threads, grooves, faces. Best on shafts and bushings.
• 2
  MillingFlats, pockets, slots, 3D contours. Best on plates and housings.
• 3
  Setup countEach extra setup adds error. Fewer setups mean tighter results.

A 5-axis machining center moves the tool or the workpiece on two extra rotary axes, usually A and C, on top of X, Y, and Z. There are two common layouts. In a trunnion machine, the table tilts and rotates, which suits compact parts up to roughly 500 × 500 × 450 mm. In a swivel-head machine, the spindle tilts while the table rotates, which handles longer parts and deeper cavities.

The gain is not speed. It is access. With the tool able to tilt 45° or more, you can reach undercuts, blend walls, and drill angled holes without moving the part. A part that needed four setups on a 3-axis mill can often be finished in one. That single setup is what holds ±0.005 mm across features, because there is no re-datum between operations.

Simultaneous 5-axis means all five axes move at once, so the tool tip follows a true 3D path. This is how impellers, turbine blades, and contoured mold cores get machined. Positional 5-axis only indexes the part to an angle and then cuts in 3 axes. It is simpler, faster, and enough for angled holes and face features. Many jobs labeled 5-axis only need positional work.

The limits are real. Rotary tables add mass, so heavy parts need slower accelerations. Deep cavities still need long tools, and long tools deflect. On our Ø400 mm rotary tables, a 4,000 mm maximum processing size is available on the large gantry machines, but the two capabilities are separate. Ask which machine will run your part before you assume both apply.

• 1
  TrunnionTable tilts and rotates. Good for compact, complex parts.
• 2
  Swivel headSpindle tilts. Good for long parts and deep pockets.
• 3
  SimultaneousAll five axes move together. Needed for contoured surfaces.
• 4
  PositionalIndex, then cut in 3 axes. Cheaper and often sufficient.

Start with the dominant geometry. If the part is mostly round and symmetric around one axis, turn it. If it is mostly prismatic with flat faces and pockets, mill it. If it is round with cross-holes, flats, or slots, it needs both, and the question becomes how many setups that takes.

Tolerance drives the answer next. Features held to ±0.005 mm that sit on different faces of a prismatic part are a strong signal for 5-axis, because you want them cut in one clamping. If those same features sit on one face, a 3-axis mill with a good vise is fine and cheaper.

Quantity changes the math. One prototype justifies a 5-axis setup because there is no fixture to amortize. A 10,000-part run may justify a dedicated fixture on a 3-axis machine plus a second op. Mill-turn centers split the difference: they turn and mill in one spindle, so round parts with cross-features avoid a second machine entirely.

Material pushes back on all of this. Plastics and aluminum forgive long tools and light setups. Inconel and 17-4PH do not. Hard materials need rigid setups, short tool overhangs, and conservative depths of cut, which usually pushes the job toward fewer setups rather than more. If a part is both hard and complex, 5-axis is often the only route that holds tolerance.

• 1
  Mostly roundTurn it. Add milling only for cross-features.
• 2
  Mostly prismaticMill it. Count the faces you must reach.
• 3
  Tight on many faces5-axis, cut in one setup.
• 4
  High volumeDedicated fixture, 3-axis, amortized.

Surface finish follows toolpath and rigidity more than machine price. A new carbide insert on a rigid setup gives Ra 0.8–1.6 μm on aluminum without any special step. Push for Ra 0.2–0.8 μm and you are talking about a finishing pass with a smaller stepover, a fresh tool, and sometimes a light polish. That costs time, and time is what you pay for.

Tool access decides whether a feature is machinable at all. A pocket with a 3 mm internal radius needs a tool no larger than 6 mm, and that tool must reach the pocket floor without rubbing the shank on the wall. If the depth-to-diameter ratio passes about 4:1, deflection shows up in the wall taper and the corner radius. Designers who keep internal corners at 1× the cutter diameter or larger get cleaner parts at lower cost.

Rework is the quiet cost. A part that fails final inspection on one feature often has to go back through the same setup, which means re-clamping and re-datuming. That is where new errors enter. This is why we inspect in process rather than only at the end, and why 100% inspection before shipment is standard on our jobs.

Every upload goes through a secure and confidential channel, and an NDA is available on request. If your drawing carries tolerances that decide between a 3-axis and a 5-axis process, send it with the critical dimensions marked. We return a quotation and a free DFM analysis within 12 hours, and production can start within 24 hours once the drawing is released.

• 1
  As-machinedRa 1.6–3.2 μm. Standard for most functional faces.
• 2
  Fine finishRa 0.8–1.6 μm. Adds a finishing pass.
• 3
  Mirror rangeRa 0.2–0.8 μm. Slower, may need polishing.
• 4
  Corner ruleInternal radius ≥ cutter radius keeps tools rigid.
