Precision Machining of Brass Parts on CNC and 5-Axis Centers

• 1
  Why Brass Cuts Differently From Steel
• 2
  Speeds, Feeds and the Chip That Tells You
• 3
  What 5-Axis Machining Adds to Brass Work
• 4
  Where the Tolerance Ceiling Actually Sits
• 5
  Deburring, Plating and the Steps After Cutting
• 6
  Brass Grade, Use Case and What to Watch

Brass is copper plus zinc, and the zinc content sets the cutting behavior. Around 35–40% zinc you get the face-centered cubic alpha-beta structure that machines into short, brittle chips. Those chips break and slide off the tool instead of smearing on the rake face. That single property is why a brass part can often run at two to three times the feed of a mild steel part of the same geometry.

The catch is that not all brass is free-machining. C36000 is the reference grade, and its 61.5% copper, 3% lead, 35.5% zinc balance is the reason it machines the way it does. Lead acts as an internal lubricant and chip breaker. C27400, a 63/37 copper-zinc grade with no lead, cuts noticeably stringier and raises built-up edge risk on light finishing passes.

C101 and C110 are the oxygen-free and tough-pitch coppers. They belong in the same conversation because they arrive at the same machines, but they are soft and gummy. Tapping C110 below M3 is where most shops lose parts.

So the first question in precision machining of brass parts is not which machine. It is which alloy, and whether the drawing allows the free-machining version.

• 1
  Short chipsFree-machining grades break chips at normal feeds; no peck drilling needed.
• 2
  Low cutting forceRoughly one third of the specific cutting pressure of 1018 steel.
• 3
  Thermal loadHigh thermal conductivity pulls heat into the workpiece, not the tool.

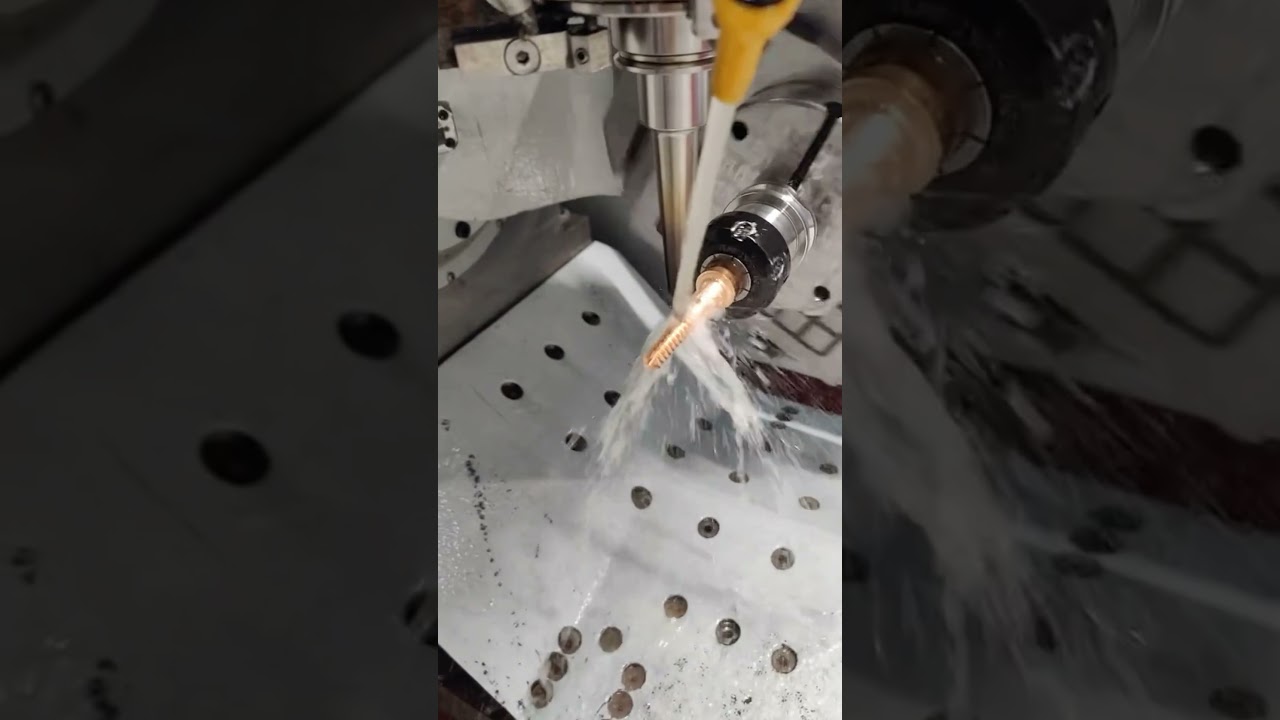

On C36000 with uncoated carbide, a workable band is 200–300 m/min surface speed and 0.10–0.25 mm/rev feed for roughing. Finishing runs higher speed and lower feed, often 300–400 m/min at 0.05–0.08 mm/rev. Cutting fluid matters less than chip form. If you see long ribbons, increase feed before you touch speed.

The chip is the feedback signal. Short comma-shaped chips that fall away mean the parameters are right. Powdery chips mean you are running too fast and rubbing. Long spirals mean too much edge radius or too light a feed. We set roughing to make the chip break and leave the finish pass shallow, typically 0.15–0.3 mm radial engagement.

Workpiece temperature is the other tell. Brass conducts heat away from the cut so fast that the part grows. A 60 mm diameter C36000 shaft can move 0.02–0.04 mm in diameter between a cold first cut and a warm tenth cut. On tight bores, let the part stabilize before the finishing pass, or rough in the morning and finish after a cooldown.

Drilling follows the same logic. Standard 118° jobber drills work on C36000 at 80–120 m/min with 0.15–0.25 mm/rev, no peck cycle. On C27400, add a peck and reduce feed by roughly 30%.

A 5-axis center pays off on brass when the part has features on five sides, when two setups would introduce stack-up error, or when a cross-hole must meet a bore at a true position the drawing calls out. Brass is easy to cut, so the gain is not cutting speed. It is setup count and datum control.

Simultaneous 5-axis lets the tool stay normal to a curved surface, which on brass matters for finish. Tilting the tool off the surface normal by even a few degrees changes the effective rake and raises the risk of a smeared band. Barrel and tapered cutters run at a shallow tilt angle and can replace a long reach into a deep cavity, which reduces chatter on thin brass walls.

The limits are real. Deep pockets with walls under 1.5 mm deflect because brass is not stiff. A Ø6 mm cutter at 3× diameter depth is comfortable; at 8× diameter you need to step down and accept a longer cycle. Thermal growth also changes across a five-sided cycle, so probing between operations is worth the seconds.

We run 16 simultaneous 5-axis machining centers alongside 12 four-axis mills and 27 three-axis machines, with travels from 500 × 500 × 450 mm up to 4,000 × 400 × 150 mm. The right platform is the one that removes a setup, not the one with the most axes.

Brass holds tolerance well because it cuts clean and does not work-harden the way 303 stainless does. We hold ±0.005 mm (±0.0002 in) on critical diameters and bores, and Ra 0.2–0.8 μm on sealing faces. Those numbers are achievable on brass, but not automatically. They depend on the feature, the alloy and the inspection method.

A turned Ø10 mm spigot on C36000 is routine at ±0.005 mm. The same tolerance on a 0.8 mm thin wall is not, because clamping and cutting force move the wall more than the tool moves. A slot 0.5 mm wide and 6 mm deep is another case: tool deflection, not machine accuracy, sets the result.

Lead-free grades shift the ceiling. C27400 and C28000 cut with higher cutting force, so finishing passes need to be lighter and the tool edge sharper. Expect to spend more cycle time to reach the same number. Beryllium copper is a different animal again. It is in our copper-brass material list, but it requires dust control and it machines stronger than C36000.

Inspection closes the loop. We check raw material, monitor in process and inspect 100% before shipment, with reports on request. If a drawing calls for a tolerance we cannot verify with the equipment on hand, the honest answer is to change the callout, not to promise the number.

Brass burrs are soft and ductile, which sounds helpful and is not. They fold over instead of breaking off, so a hole edge can pass a quick visual check and still leave a lip that interferes with a mating part. Tumbling handles most external edges. Cross-drilled holes and internal corners usually need a controlled deburr pass with a chamfer tool or a stone.

Surface finish drives the plating result. Electroless nickel, silver and gold plating all follow the base finish, so a band of Ra 1.6–3.2 μm as-machined surface will show through as a dull patch after plating. When a part will be visible after plating, we specify Ra 0.8–1.6 μm or better on the exposed faces.

Brass tarnishes. That is a chemistry fact, not a defect. Clear lacquer, a plated layer or a passivation step buys time, and the choice depends on whether the part carries current, sits in a humid enclosure or is handled daily.

Laser marking works cleanly on brass with a minimum character height of 1.5 mm. Below that, contrast drops and the mark stops being readable under a shop light. If a part number must be smaller, engraving or a printed label is the better route.
