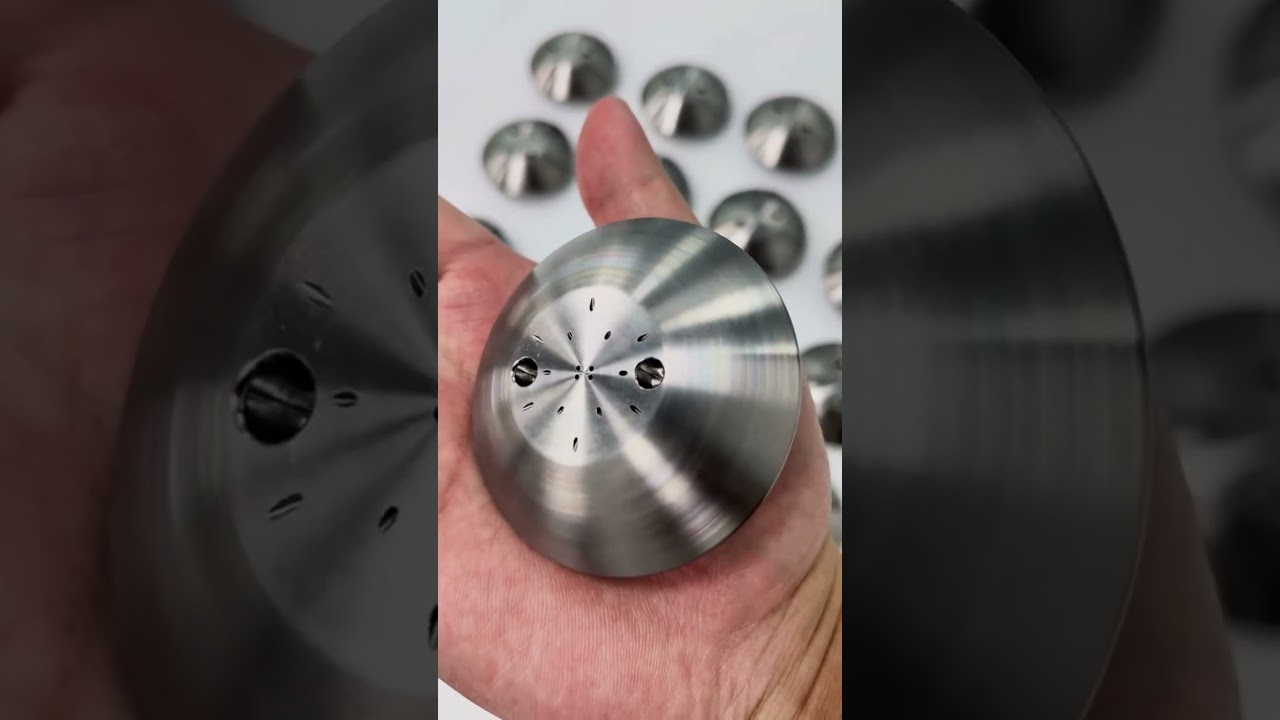

CNC Titanium Parts: How the Machining Process Actually Works

• 1
  Why titanium cuts differently from steel and aluminium
• 2
  Which titanium grade goes into which CNC titanium parts
• 3
  Speeds, feeds and the rules that keep tools alive
• 4
  Where 5-axis CNC machining changes the result
• 5
  Fixturing and thin walls: the part moves before the tool does
• 6
  Titanium grades and where they fit
• 7
  Three-axis, 5-axis or a different process

Titanium has roughly half the thermal conductivity of steel and about one tenth that of aluminium. Heat generated at the cutting edge has nowhere to go. In aluminium, most of the heat leaves with the chip. In titanium, a large share stays in the tool and the workpiece. That single property drives almost every rule that follows: lower surface speed, more coolant, sharper edges, and a shorter path between the cut and the inspection bench.

The second property is chemical. Titanium is reactive at elevated temperature. Above roughly 500 °C it starts to pick up material from the tool, especially from uncoated carbide. This is why a tool that survives steel for hours can fail on titanium in minutes. The failure is not gradual wear. It is a chip welded to the edge, then a sudden break.

The third is stiffness. Titanium's modulus is about 55% that of steel. A thin rib that feels rigid in 4140 will deflect and chatter in Ti-6Al-4V. Springback after the cutter passes is real, and it shows up as an out-of-tolerance wall even when the toolpath was correct.

• 1
  HeatLow conductivity keeps heat at the edge. Cooling and speed control matter more than depth of cut.
• 2
  ReactivityAbove ~500 °C the chip welds to the tool. Coatings and sharp edges delay this.
• 3
  DeflectionLow modulus means thin features move. Support the part, not just the tool.

Commercially pure grades TA1 and TA2 are soft, weld well, and machine closer to stainless 316 than to alloy titanium. They appear in chemical handling parts, brackets, and anything that needs corrosion resistance more than strength. Cutting speeds can run higher, and tool life is predictable.

TC4, also written Ti-6Al-4V, is the workhorse. It gives roughly twice the yield strength of pure titanium and holds it at temperature. Most aerospace brackets, medical instruments, and motorsport components are TC4. It is also the grade that punishes bad setups. Speeds drop, radial engagement drops, and the fixture has to be thought about before the toolpath.

There is a practical test for whether a part belongs in titanium at all. If the only reason is weight and the service temperature stays under 150 °C, aluminium or a 17-4PH stainless part is usually cheaper and faster. Titanium earns its place when you need strength-to-weight plus corrosion resistance, or when the part runs hot.

For TC4 with solid carbide, a surface speed of 40 to 60 m/min is a safe band for roughing with good coolant. Finishing can go slightly higher when the radial depth is small. Aluminium runs at three to five times that, which is why a job moved from aluminium to titanium can need a full re-plan of the cycle time.

The number that matters more than surface speed is radial engagement. In titanium, keep radial depth of cut between 5% and 10% of the cutter diameter and let the axial depth carry the load. This spreads heat over more of the flute and reduces the chance of a welded chip. A 12 mm cutter might take 0.6 to 1.2 mm radial and 1.5 to 2× diameter axial.

Coolant should be high pressure and aimed at the cut, not sprayed over the fixture. Through-spindle coolant above 70 bar is the usual answer for deep pockets. Where through-coolant is not available, pecking and air blast beat a weak flood. Climb milling is standard. Conventional milling on titanium work-hardens the surface and blunts the next pass.

• 1
  Surface speed40–60 m/min for TC4 roughing. Higher only with light radial load.
• 2
  Radial engagement5–10% of cutter diameter. Axial depth carries the load.
• 3
  CoolantHigh pressure at the cut. Flood alone is often not enough.

A 5-axis center earns its cost when the part has features a three-axis setup cannot reach in one orientation, or when the number of setups is the real problem. Every re-fixture on titanium adds risk: the part moves, the datum shifts, and you re-cut an already thin wall. Machining a complex impeller or a contoured bracket in one setup removes that risk entirely.

Short tools are stiffer tools. Five-axis lets the table tilt the work so a short, rigid cutter reaches a face that would need a long, flexing cutter on a three-axis machine. On titanium, that difference shows up directly in surface finish and in whether the wall holds ±0.005 mm.

The cost side is honest too. Programming a 5-axis toolpath takes longer, and simulation is not optional. For a simple plate with holes, a three-axis machine is faster and cheaper. The decision rule is feature count and setup count, not the number of axes a brochure advertises.

Because titanium deflects, the fixture is part of the machining process, not an accessory. A vise on a thin rib lets the part ring. The usual fixes are a dedicated soft jaw that matches the finished contour, a sacrificial support that is machined away in the last operation, or low-melt fixturing for parts with no flat face to hold.

Wall thickness below 1 mm in TC4 needs a deliberate plan. Rough with extra stock, let the part cool and stress-relieve, then finish with light radial passes and a sharp tool. Cutting a thin wall to final size in the roughing pass is the most common way to scrap a titanium part.

Residual stress is the quiet problem. Titanium plate and bar carry internal stress from rolling. Removing material releases it and the part bends. Symmetrical material removal and an intermediate stress relief step cost time but save the finish cut.
