CNC Machining Electronic Parts

• 1
  Why electronic parts are hard to hold in one setup
• 2
  What five simultaneous axes actually change
• 3
  Material behavior on electronic housings
• 4
  Finishes that do not ruin the tolerance
• 5
  How to verify a batch without measuring every part
• 6
  When to use 5-axis, 3-axis, or mill-turn

An electronic part usually carries three or four features that must agree with each other. A connector shell has a bore, a mounting flange, two dowel holes and a sealing face. A heat-sink body has a fin field on one side and a pedestal on the other. If those features are cut in separate setups, every re-clamp adds a positioning error on top of the machine error.

The error is not random. On a vise with soft jaws you might see 0.02–0.05 mm of shift each time the part is turned. On a fixture with hardened stops, 0.005–0.01 mm. Either way the stack grows with the number of setups, and the tolerance band does not.

Electronic housings also tend to be thin. A 1.5 mm wall moves when the cutter pushes it, and a second clamp on that wall can spring it further. So the goal is not only precision. It is precision without re-gripping the part five times.

• 1
  Feature countFour or more related features per part is common.
• 2
  Wall thickness0.8–2.5 mm walls deflect under normal cutting force.
• 3
  Re-clamp error0.005–0.05 mm per setup, depending on workholding.

A 3-axis mill moves the part under a spindle that always points down. The tool axis is fixed, so any feature that faces sideways has to wait for a second op. That is the whole reason electronic housings get machined in two or three stages.

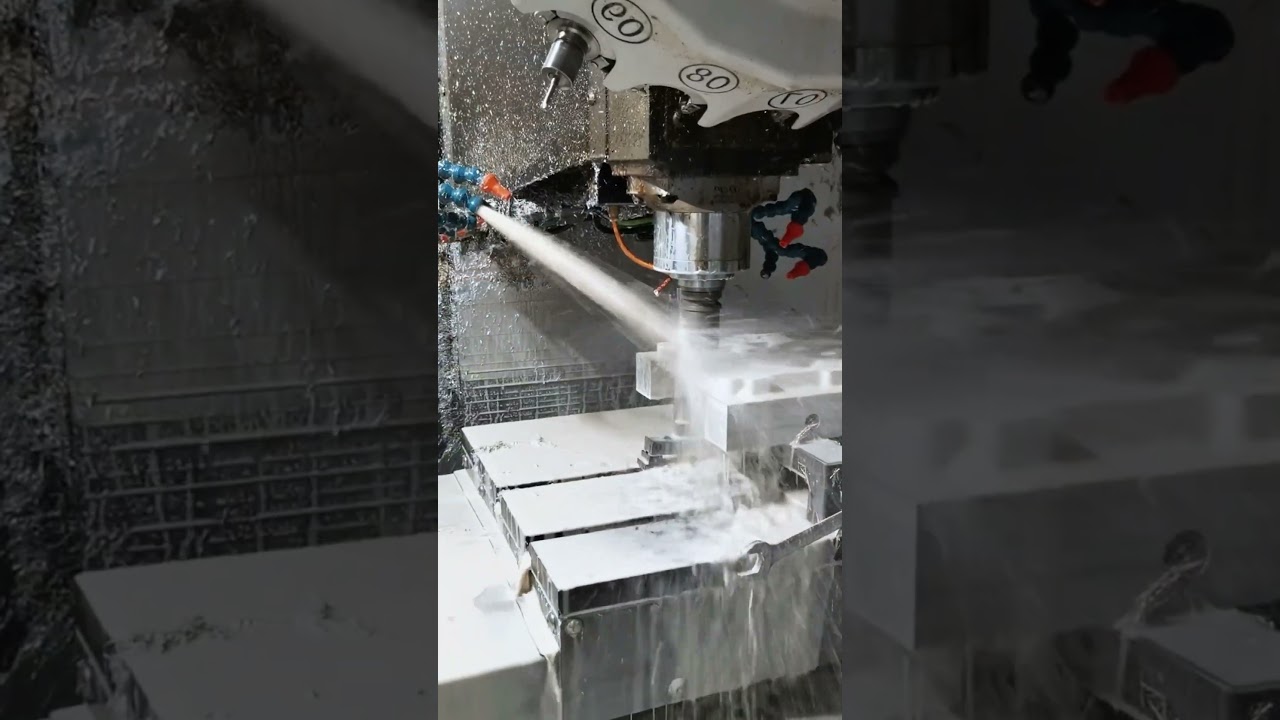

On a simultaneous 5-axis center, two rotary axes tilt the tool or the table while the linear axes cut. The tool can reach a side wall at an angle, then swing to a face and keep cutting without an operator touching the part. Coaxiality between a bore and a flange stops depending on how well the operator re-indicated the datum.

The second gain is tool access. A long thin cutter that has to reach the bottom of a 40 mm deep cavity will chatter. Tilt the tool 15–30° and the same cutter engages a shorter length of flute. You can then raise feed per tooth instead of slowing the spindle down to a crawl.

The third gain is surface texture. When the tool tip stays perpendicular to a curved surface, the scallop height stays even across the part. That matters for RF covers and waveguide parts, where an uneven blend changes the electrical path.

• 1
  One datumBore, flange and dowel holes cut from the same zero.
• 2
  Shorter tool engagementTilt reduces overhang and chatter in deep pockets.
• 3
  Even scallopsConstant tool-tip angle on curved and blended faces.

Aluminum 6061-T6 is the default for enclosures and heat sinks. It cuts fast, anodizes cleanly and holds ±0.005 mm on a stable setup. If the housing sees thermal cycling, 6061 keeps its shape better than a high-silicon die-cast grade, which is why machined prototypes often outlive the casting they replace.

Copper and brass come up in RF work. C110 and C101 conduct well but grab the cutter, so we run sharper geometry and lighter radial engagement. Beryllium copper springs and shield clips need a different approach again: small tools, low feed, and a plan for the burr, because a burr on a shield finger can short a board.

Stainless 303 and 304 show up on connector bodies and sensor shells. 303 machines cleanly; 304 work-hardens if the tool rubs instead of cuts, so we keep the feed per tooth up and never let the cutter dwell.

Plastics behave differently. POM and PC hold tolerance well but move with temperature. PEEK needs sharp tools and a coolant decision made before the first cut, because a melted chip welds to the flute and ruins the finish.

• 1
  6061-T6Default for enclosures, heat sinks, ±0.005 mm capable.
• 2
  C110 / C101RF conductors; light radial engagement, sharp flutes.
• 3
  303 vs 304303 free-cutting; 304 work-hardens if the tool rubs.
• 4
  POM, PC, PEEKWatch thermal growth and chip welding.

Anodizing grows the part. A standard sulfuric anodize builds roughly half in and half out, so a 10 μm coating adds about 5 μm per surface. On a Ø20 mm bore that is 10 μm off the diameter. If the bore is a slip fit, mask it or size the pre-anodize dimension to compensate.

Conductive anodizing and electroless nickel are common on housings that need grounding or corrosion resistance. Electroless nickel deposits evenly, including inside blind pockets, which is why it suits connector shells better than a line-of-sight process.

Laser marking is often the last step, and it has a floor: minimum character height 1.5 mm. Engineers who send a 0.8 mm part number in the drawing usually get a call back, because the mark will not read under the scanner.

Bead blasting and brushing change the surface before coating. Both can round a sharp edge, so any edge that must stay crisp for a seal or a shield contact goes on the mask list.

• 1
  Anodize growthAbout half in, half out; mask critical bores.
• 2
  Electroless nickelEven coverage inside blind pockets.
• 3
  Laser markingMinimum character height 1.5 mm.

We inspect 100% of parts before shipment, but not every dimension on every part. The practical split is between features that can drift and features that cannot. A bore cut with a reamer on a stable setup will not drift. A thin wall next to a deep pocket can.

The first article gets a full dimensional report. After that, in-process monitoring watches the dimensions most likely to move as the tool wears: bore diameters, slot widths, and any face used as a datum. Final inspection confirms them and checks the features that are cheap to gauge.

If you need reports, say so on the PO. A first article inspection report, material certs and a certificate of conformance are all normal requests and we plan the schedule around them. Asking after the parts ship is the expensive version.

For electronic assemblies, flatness is often the dimension that decides whether the board sits correctly. We check it on a surface plate or with a height gauge rather than trusting the machine's own readout.

• 1
  First articleFull dimensional report on the first part.
• 2
  In-processWatch bore and slot sizes as tools wear.
• 3
  FinalConfirm datums and flatness before packing.
