Stable Precision CNC Machining: Where Accuracy Actually Comes From

• 1
  What stable precision CNC machining really means on the floor
• 2
  Thermal drift: the largest single error on a long run
• 3
  Tool wear and the cost of chasing the last micron
• 4
  Fixturing and workholding: where stability is won or lost
• 5
  How 5-axis motion changes the error budget
• 6
  How you prove the process is still stable at part 5,000
• 7
  When a 5-axis setup is the stable choice, and when it is not

Stability is not the same as accuracy. Accuracy is how close one part lands to the nominal dimension. Stability is how little that error moves across the run, across the shift, and across the next lot. A machine that cuts 20.000 mm all day is stable. A machine that cuts 20.000 mm at 8 a.m. and 20.028 mm at 3 p.m. is accurate but not stable, and on a ±0.005 mm callout it will fail.

Three error sources drive that drift. Thermal growth moves the spindle, ballscrew and workpiece as motors and cutting heat warm the structure. Tool wear changes the effective cutting edge radius and pushes cutting force up. Fixturing and clamping shift the part by a few micrometres between loadings. All three are predictable, and all three are manageable once you measure them.

The 5-axis question sits on top of this. Simultaneous five-axis motion removes re-fixturing error because the part is cut in one setup, but it adds rotary axis error, more thermal load, and a longer kinematic chain. That trade only pays off on parts with angled features, deep pockets or contoured surfaces.

• 1
  AccuracyDistance from nominal on a single part.
• 2
  StabilityHow much that distance moves over time and volume.
• 3
  RepeatabilitySpread between consecutive parts in the same setup.

A CNC machine grows as it runs. The spindle cartridge, the Z-axis ballscrew and the bed all absorb heat from bearings, servos and the cut itself. On a 750 × 1,150 × 550 mm travel machine, a 1 °C rise in the bed can move a feature by roughly 10 μm on a 1,000 mm aluminium part. Steel moves about half that.

Shops handle this in two ways. The first is to reach thermal equilibrium before the first cut: run the spindle at working speed for 30–60 minutes, then touch off and set work offsets. The second is to control the environment. A shop floor swinging between 18 °C and 30 °C across a day will never hold ±0.005 mm on a 500 mm part, no matter how good the machine is.

Coolant matters too. Flood coolant at a steady 20 °C stabilises both tool and workpiece. Air blast alone leaves the tool cycling hot and cold, and that shows up as a slow taper in the last 0.01 mm of a deep pocket.

For tight work we keep the finishing passes light, 0.15–0.25 mm radial engagement, and we do not let a machine sit idle for two hours and then restart on a critical feature.

• 1
  Warm-up30–60 minutes at working spindle speed before offsets.
• 2
  CoolantFlood at a controlled 20 °C, not intermittent air blast.
• 3
  EnvironmentA stable room beats a bigger machine every time.

A carbide end mill does not fail suddenly. It wears at the flank and the corner radius, and the cutting force rises. On aluminium 6061 at 12,000 rpm, a 12 mm cutter may hold size for 40–60 minutes of cut time before the corner radius grows enough to push a bore 0.01 mm off. In 17-4PH stainless the same cutter may only last 15–20 minutes.

The practical answer is tool life management, not more inspection. Track cutting minutes per tool, replace on a fixed interval before the size moves, and keep a spare already touched off. For a 10,000-part run this is the difference between a stable process and a nightly rework session.

Tool runout is the quieter problem. A holder with 0.02 mm runout cuts a bore that is out of round and oversized, and no amount of speed and feed tuning fixes it. Measure runout at the tool tip, not the holder taper. If it is over 0.01 mm, change the holder.

This is also where the 5-axis decision bites. Longer reach tools needed to clear a tilted fixture deflect more. A 4 mm cutter at 60 mm gauge length will chatter where a 4 mm cutter at 25 mm will not. Sometimes the right answer is a 3-axis setup with a short tool.

• 1
  Runout limitUnder 0.01 mm measured at the tool tip.
• 2
  Aluminium40–60 minutes of cut per 12 mm carbide tool.
• 3
  Stainless15–20 minutes before size starts to move.

Every time a part is unclamped and reclamped, error enters. A three-jaw chuck or a plain vise can shift a part 0.01–0.03 mm between loadings if chips sit under a jaw or the clamping force varies. Soft jaws bored in place on the machine cut that to a couple of micrometres, because the jaw geometry matches the part in the same spindle.

Thin walls are the classic failure. A 1.5 mm aluminium wall will deflect under clamping and spring back after the cut, so the part measures oversize when it comes off the machine. Support it from inside with a fitted plug or leave a sacrificial web and remove it in a later op.

Vibration is the other half. A part with a long unsupported section will ring during finishing and leave a Ra 3.2 μm surface where Ra 0.8–1.6 μm was specified. Add a support, shorten the tool, or drop the radial engagement to 0.1 mm and accept the slower pass.

On five-axis work the rotary table adds a clamp and unclamp cycle at every index. We verify rotary position with a probe after clamping, not just at setup, because thermal growth in the table bearings shows up as an angular error over a long run.

• 1
  Soft jawsBored in place on the machine to match the part.
• 2
  Thin wallsSupport internally or leave a sacrificial web.
• 3
  Five-axis indexingProbe the rotary position after each clamp.

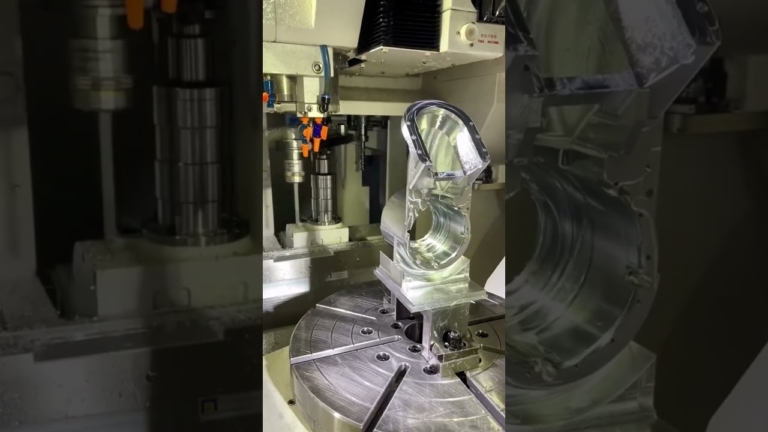

A simultaneous 5-axis cut drives three linear axes and two rotary axes at once. Each axis has its own positioning error, and the errors stack through the kinematic chain. A 0.005° error on a 400 mm rotary table moves a feature about 35 μm at 400 mm from center. That is why the rotary table on tight work is probed and compensated, not trusted at face value.

The payoff is fewer setups. A part with features on five faces machined in one 5-axis cycle avoids four re-fixturings, and each avoided setup removes a 0.01–0.03 mm error contribution. On complex housings and impellers, one setup at slightly higher machine error usually beats five setups at low machine error.

Cutting strategy also changes. Ball nose finishing on a contoured surface uses the tool tip, where surface speed approaches zero. That rubs rather than cuts, and it burns tools. Tilting the tool 10–20° off normal puts the cutting edge at a useful surface speed and can double tool life on Inconel or Ti-6Al-4V.

The limit is reach. A 5-axis setup needs tool and holder clearance from the part and the fixture at every tilt angle. If the only way to reach a feature is a tool with 6:1 length-to-diameter ratio, the deflection will eat the tolerance gain from the single setup.

• 1
  Rotary error0.005° on a Ø400 mm table is about 35 μm at the edge.
• 2
  Setup savingEach avoided re-fixture removes 0.01–0.03 mm.
• 3
  Tool tilt10–20° off normal keeps the edge cutting, not rubbing.

In-process monitoring is what separates a stable process from a lucky one. On a tight run we probe a datum and one critical feature every 20–50 parts, log the value, and watch the trend. If the value drifts 0.008 mm over 100 parts, the tool change interval is wrong, not the operator.

Raw material variation gets missed constantly. Two lots of 6061-T6 from different mills can machine differently because of temper and residual stress. A part hogged out of a stressed billet will move after the clamps come off. We rough, stress-relieve where the geometry allows, then finish, and we keep material lots separated on the traveler.

Final inspection is a check, not a control. Our tolerance is ±0.005 mm (±0.0002 in), and every shipment gets 100% inspection with raw material check, in-process monitoring and final inspection, with reports on request. The reports tell you what happened. The in-process data is what kept it from happening.

For qualification we hold a 99.99% rate across the machines, but that number is the output of the controls above, not a substitute for them. A process that is not measured is not stable, it is just unobserved.

• 1
  Probe intervalEvery 20–50 parts on a critical feature.
• 2
  Drift alarm0.008 mm trend over 100 parts means change the tool.
• 3
  Material lotsKeep mills and heats separated on the traveler.
