An impeller is a set of curved blades that accelerate a fluid and convert shaft work into pressure. The blade surfaces are where the work happens, so their shape and finish matter more than the hub that carries them. Titanium alloy impeller cncmachining is therefore a surface job first and a metal-removal job second.

Titanium alloy Ti-6Al-4V, the grade most impellers are cut from, has a strength-to-weight ratio close to steel at roughly 56% of the density. It also resists corrosion in seawater, chlorides and many process fluids, which is why pumps, compressors and turbochargers use it. Those same properties are what make it hard to cut.

Low thermal conductivity is the first problem. Heat does not move into the chip or the bulk of the part, so it stays at the cutting edge. Edge temperatures climb fast, and a carbide insert that would last an hour in 4140 steel can fail in a few minutes here.

The second problem is chemical reactivity. At cutting temperatures above roughly 500 °C, titanium tends to weld to the tool edge. Each welded fragment is a built-up edge that breaks off and takes tool material with it. Chatter and a rough surface are the visible result.

Elastic modulus runs about 110 GPa, roughly half that of steel. The workpiece deflects away from the tool under cutting force, then springs back. Thin blades deflect the most, and a nominal finishing pass may not remove what the CAM model predicts.

The most common cause of a scrapped titanium impeller is not a broken tool. It is a fixture that squeezed the part out of shape before the first cut. Blades are thin, unsupported at the tip, and easy to push out of position with a vise or a three-jaw chuck.

On a closed or semi-open impeller, the hub is the only rigid feature. Clamp on the hub diameter or on a dedicated bore, and let the blades hang free. If a blade needs support, use a tailstock or a steady rest that contacts the tip on a machined pad, never on a raw surface.

For blades thinner than about 2 mm, a sacrificial web between adjacent blades keeps the set rigid through roughing. Cut the web away in the finishing operation, after the profile is established. It adds one setup and a few minutes of cut time, and it removes most of the springback risk.

Thermal growth matters on long roughing cycles. A 200 mm titanium hub can move 0.02–0.04 mm as the part warms from 20 °C to 45 °C. If the finishing pass runs immediately after roughing without a cool-down, the last blade will not match the first.

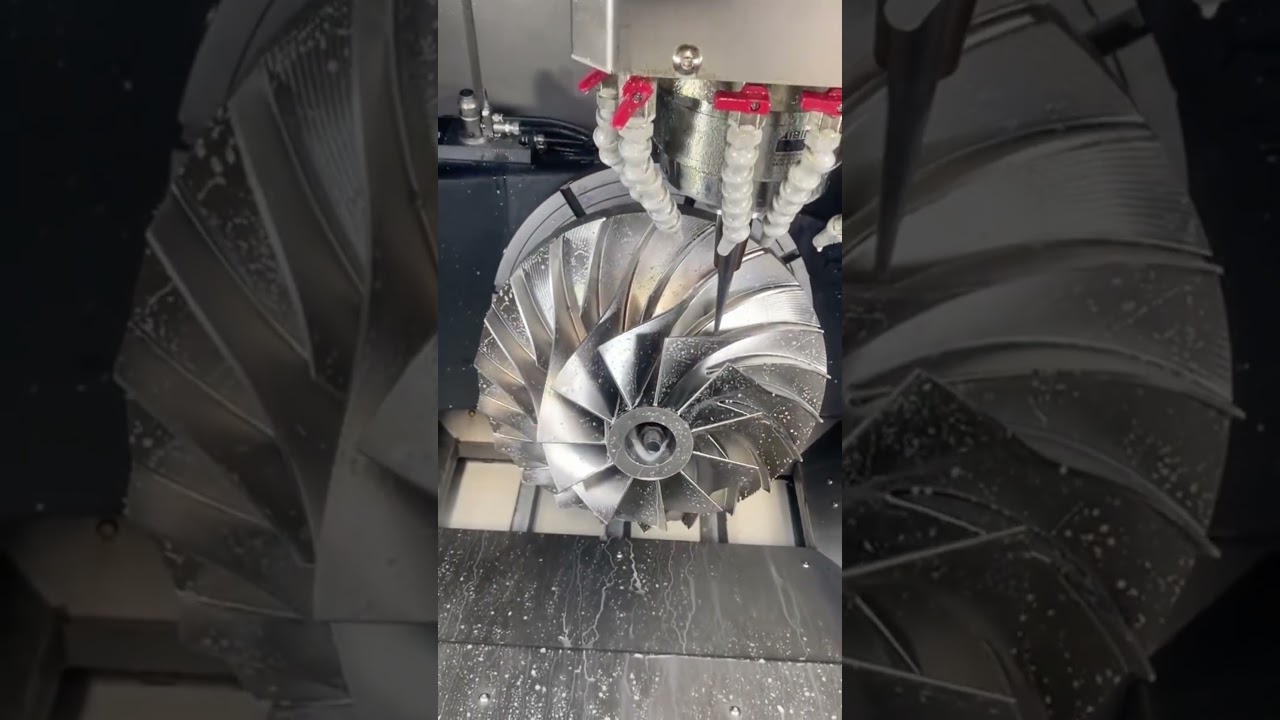

We machine impellers on 16 simultaneous five-axis centers with a Ø400 mm rotary table. That table lets us reach both sides of a blade in one setup, which keeps the datum consistent between the pressure face and the suction face.

Roughing removes 60–80% of the stock. On titanium, use a high-feed or dynamic trochoidal path with a shallow radial depth of cut, typically 5–10% of the cutter diameter, and a deep axial cut. This spreads the heat over a longer edge and keeps the chip load per tooth stable.

A typical roughing window for Ti-6Al-4V with a coated carbide end mill is 40–60 m/min surface speed, 0.05–0.10 mm per tooth, and flood or high-pressure coolant aimed at the cutting zone. Pushing surface speed past 70 m/min usually shortens tool life faster than it shortens the cycle.

Finishing a blade surface is where the tolerance lives. A tapered ball nose cutter with a 3–6 mm tip radius, stepped over 0.05–0.15 mm, holds the surface without leaving visible scallops. Tolerances of ±0.005 mm are achievable on the hub bore and blade root, where the geometry is stiff and the tool is short.

Blade tips are a different story. With an unsupported tip and a long tool, expect ±0.02 mm or worse unless the setup includes a support or the CAM path compensates for deflection. It is better to design a generous tip clearance than to chase a tolerance the setup cannot hold.

Surface finish lands between Ra 0.8 μm and Ra 1.6 μm from a good finishing pass on titanium. If the flow model calls for better, plan a separate vibratory or abrasive flow operation rather than slowing the cutter to a crawl.

An impeller that balances and spins is not automatically an impeller that performs. The measurements that matter are the ones tied to flow: blade angles, tip clearance, hub bore, and the relationship between the bore axis and the blade set.

Blade angle is usually checked with a coordinate measuring machine or an optical scanner against the CAD model. A deviation of 0.5° on a 100 mm blade moves the tip by about 0.9 mm at the outside diameter, which is enough to shift the head curve.

The hub bore carries the shaft, so it sets the running position of the whole rotor. We hold ±0.005 mm there and check roundness on the same setup. A bore that is round but off-axis will still vibrate.

Balance is a separate operation. Material removed by balancing cannot be added back, so run the balance check before final finishing if the part is close to the weight limit. On titanium, drill the correction on the hub, not on a blade.

We inspect 100% of parts before shipment, with raw material checks, in-process monitoring and a final report on request. Certificates such as ISO 9001:2015, IATF 16949:2016, ISO 13485:2016 and ISO 27001:2022 cover the quality and data side of that flow.

Milling wins on low volume, tight hub tolerances and fast iteration. It loses on three specific cases. First, very high blade counts with narrow, deep channels: a 30-blade closed impeller with 4 mm passages leaves no room for a cutter shank, and the tool that fits is too slender to survive titanium.

Second, parts where the internal passage is the functional surface. A closed impeller with integral internal cooling or return channels cannot be reached from outside. Casting or additive builds the passage; milling can only open it.

Third, size beyond the machine envelope. Our largest travel is 4,000 × 400 × 150 mm on the long-bed machines, and the medium envelope is 750 × 1,150 × 550 mm. An impeller that exceeds these limits has to be split, welded or cast.

There is also a cost crossover. Below roughly 50 parts, milling from solid usually beats tooling investment. Above a few hundred identical parts, casting plus finish machining on the critical surfaces is normally cheaper per piece.

The middle ground is a cast or printed near-net body with the hub bore, blade roots and sealing surfaces finish-machined. That keeps the tight tolerances on the features that matter and leaves the free-form blade surfaces as-cast.
