Carbon alloy impeller CNC machining: how the cut actually behaves

• 1
  Why carbon alloy steel fights the cutter
• 2
  How 5-axis motion changes the cut on a curved blade
• 3
  Workholding and the springback problem
• 4
  Measuring a twisted blade without a CMM program
• 5
  When carbon alloy impeller CNC machining is the wrong answer
• 6
  Which process fits which impeller

Carbon alloy steel covers a wide band. A 1045 hub behaves nothing like 4140 or 4340 at the same hardness. The carbon content sets hardenability, and the alloying elements set how the chip breaks. In an impeller, that difference shows up as chatter on the blade tips and as taper in a bore that should be straight.

The core problem is heat. Low-carbon grades smear and build a built-up edge around 150–250 m/min with coated carbide. Medium-carbon 4140 cuts cleaner at 120–180 m/min but work-hardens if the feed is too light. Once the surface hardens, the next pass rubs instead of shears, and the blade thins faster than the program expects.

Thin blades make it worse. A blade 3 mm thick at the tip has almost no stiffness in the radial direction. Cutting force pushes it away from the tool, then it springs back. The result is a blade thicker in the middle than the drawing says, and a surface that reads Ra 3.2 μm instead of the Ra 1.6 μm you planned.

None of this is a reason to avoid the material. It is a reason to plan the sequence so the part is stiff while it is still heavy, and to leave stock on the blades until the hub is finished.

• 1
  Low carbon (1018, 1045)Gummy chips, built-up edge, best cut at higher feed per tooth
• 2
  Medium carbon (4130, 4140)Stable and predictable if heat-treated stock is normalized first
• 3
  High carbon (4340, tool steel)Needs rigid setups and lighter radial engagement, not lighter feed

A three-axis machine can finish a blade only if the surface is ruled, meaning a straight line touches it everywhere. Real impeller blades are not ruled. They twist and lean, so a ball nose tool on three axes leaves witness lines and mismatched stock near the root.

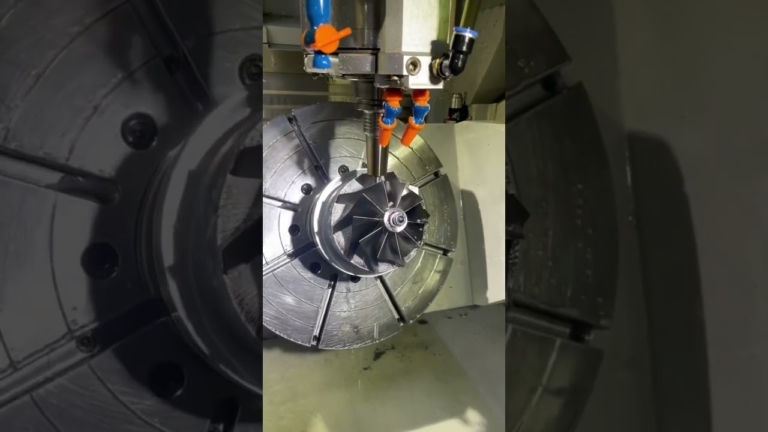

Five-axis machining keeps the tool axis normal to the surface. That single change cuts the effective stepover error and lets a Ø12 mm ball nose leave Ra 0.8–1.6 μm without a second polish pass. It also shortens the tool overhang, because the head tilts instead of the tool reaching around a corner.

The trade-off is rigidity. A tilted head loses stiffness compared with a straight spindle, so depths of cut drop. On 4140 we typically run 0.3–0.5 mm radial and 15–25 mm axial at 8,000–12,000 rpm, then take a 0.1 mm finish pass along the blade.

For open, low-count impellers, three-axis with a long reach tool is still cheaper. It stops making sense once the blade lean passes roughly 20° or the blade count goes above eight.

Most impeller scrap comes from setup, not from the program. A blade that vibrates 0.05 mm during roughing will not clean up in finishing, no matter how good the toolpath is.

The usual fix is to machine the hub first and the blades last, keeping a sacrificial ring on the outside diameter until the final operation. That ring ties the blade tips together and raises the natural frequency of the whole part.

For larger impellers, a fixture that supports the back face and clamps on the hub bore works better than clamping the blades. Clamping on a finished blade surface marks it. If the part gets a NDA-covered fixture, we build it around the datum features on the drawing, not around the stock.

When a blade does sing, the answer is rarely more speed. Reduce radial engagement, shorten overhang, or add a support. Chasing chatter with rpm usually trades one problem for tool wear.

• 1
  Keep a support ringCut it off in the last operation so blades stay tied together
• 2
  Clamp on the hubNever clamp a finished blade face if the finish matters
• 3
  Check the blankBars with residual stress move after the first heavy pass

Blade geometry is hard to measure because the surfaces are freeform. A caliper only touches the edges. A CMM needs a nominal surface, and that means the CAD model has to match the drawing exactly.

In practice we scan the blade on a five-axis machine with an on-machine probe, then compare the point cloud to the model. Deviations above ±0.05 mm on a blade surface get flagged before the part leaves the machine.

Balance matters as much as profile. An impeller that is dimensionally perfect but 15 g out of balance will vibrate at speed. Static balance is checked on a simple arbor for low-speed pumps. High-speed units get a dynamic balance report.

We inspect 100% of impellers before shipment: raw material check, in-process probing, and final dimensional and balance verification. Reports go out on request.

It is the wrong answer when the blade count is high and the passages are narrow. A tool needs clearance to reach the root fillet. If the gap between two blades is 6 mm, a Ø6 mm tool cannot cut the fillet, and the root will have a radius the drawing does not want.

It is also the wrong answer for ductile iron or bronze impellers at high volume. Machining a 12-blade closed impeller from solid can take 20 hours. Casting the same part and finishing the bores and faces takes a fraction of that.

And it is wrong when the material is already hardened past 45 HRC. Carbide will cut it, but tool life drops fast and the surface finish suffers. In that case, machine it soft, then heat treat, then finish-grind the critical bores.

The point is to pick the process from the geometry, not from habit. A shop that quotes every impeller as five-axis from billet is not saving anyone money.
