A three-axis mill moves the tool in X, Y and Z. The workpiece stays put. To reach a second face you stop the spindle, unclamp the part, rotate it, and re-zero. Every one of those moves adds a small error and a lot of time.

A five axis machining product is cut on a machine where two rotary axes tilt either the table or the spindle. The two common layouts are a trunnion table, where A and C rotate the part, and a swivel head, where the spindle tilts. Both let the cutter stay normal to a curved surface while it works.

The practical result is fewer setups. A part that needed four fixtures on a three-axis machine may run in one. That matters more than speed. Each re-clamp is a chance to lose 0.02 mm on a datum that already passed inspection.

Keep the mechanism in mind: the rotary axes do not add stiffness, they remove fixturing. Reach is the real gain. Tolerance is something you have to protect with the new setup.

There are two ways to use the rotary axes. Indexed, or 3+2, means the table tilts to an angle, locks, and the cut happens with three linear axes. Simultaneous means all five axes move together along the toolpath.

Indexed motion keeps the machine rigid. The rotary axes are clamped, so the cutting force goes into a locked structure. You get the reach of 5-axis work with the stability of 3-axis cutting. Surface finish is predictable.

Simultaneous motion is different. The rotary axes are moving while the cutter is in the material, so the stiffness of the whole loop changes through the cut. A trunnion table swinging a heavy part puts torque on the A axis that no three-axis machine ever sees.

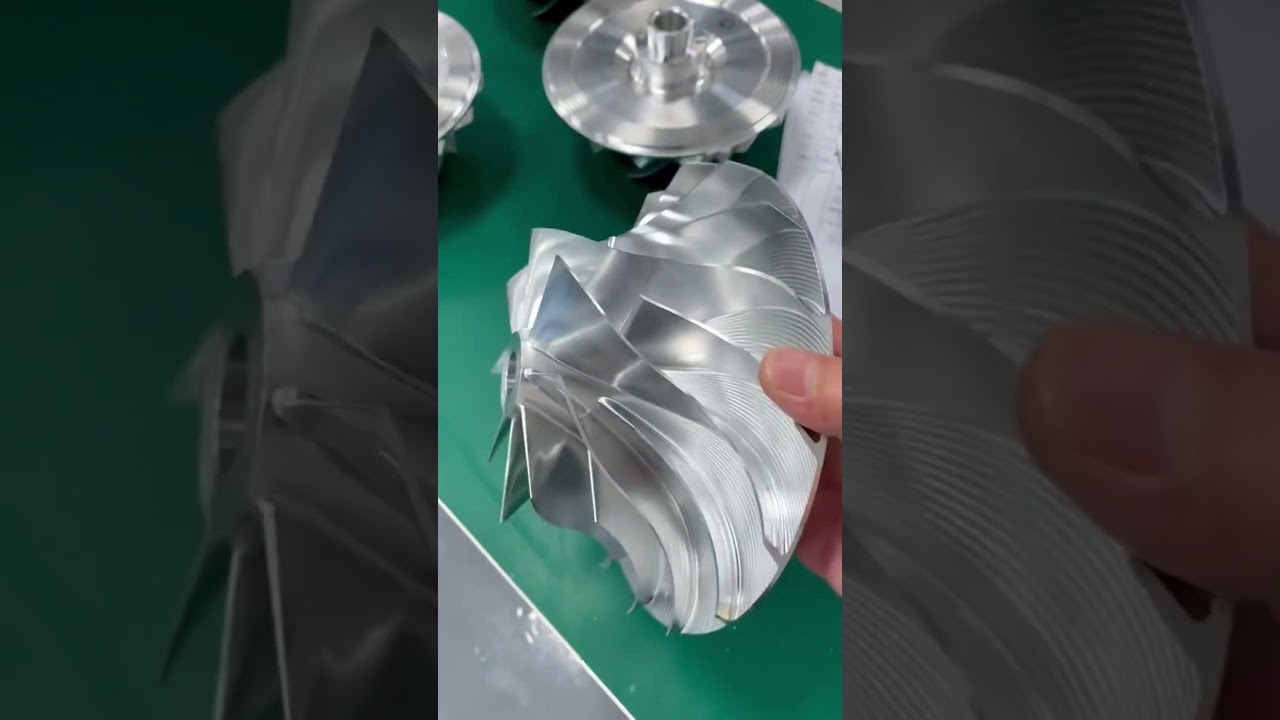

Rule of thumb: if the geometry can be reached with the part locked at a fixed angle, use 3+2. Save simultaneous motion for true curved surfaces, impellers, bladed discs, and ports that no straight tool can enter. That is where the extra cost earns back.

Design for 5-axis work is mostly about tool access and wall stiffness. Start by asking which faces must be machined in one setup, then check that a real cutter can reach them without a long, thin extension.

Keep pockets wider than the cutter plus its corner radius. A deep narrow pocket forces a small tool with a long flute, which deflects. If the pocket is 3× deeper than it is wide, expect to slow down or split the feature across two setups.

Thin walls are the other limit. A wall under 1 mm on aluminum will chatter when the rotary axes swing it past the cutter. Add a rib, leave stock for a finishing pass, or accept a slower feed. There is no trick that beats physics here.

Leave a datum you can trust. On a 5-axis part, the first operation should create a face and two holes that later operations can locate from. Without that, the rotary axes are only repeating someone else's error.

Tolerance on a five axis machining product depends on where the feature sits relative to the rotary center. A hole drilled near the C-axis center of rotation is easy. The same hole 300 mm out on a trunnion table amplifies every small angular error.

That is why we check the machine's rotary positioning first. A 10 arc-second error at a 300 mm radius moves the tool about 0.015 mm. At 100 mm from center, the same error is 0.005 mm. Position matters more than the spec sheet.

Thermal drift is the second factor. A spindle running for hours grows. On long simultaneous cuts we measure a known feature between operations rather than trusting the first setup to hold all day.

We hold ±0.005 mm on production parts and inspect 100% before shipment. If your drawing calls for ±0.002 mm on a feature 400 mm from the rotary center, the honest answer is that it may need a different process or a redesign of the datum.

Aluminum is the easy case. Grades such as 6061-T6 and 7075 cut fast and hold form. The risk is thin walls springing back after the vice releases. Take a light finishing pass and check the part free of the fixture.

Stainless 304 and 316L work-harden. If the tool rubs instead of cutting, the surface gets harder and the next pass is worse. Keep the feed per tooth up and climb-mill where geometry allows.

Titanium TC4 (Ti-6Al-4V) and Inconel are the hard cases. Heat goes into the tool, not the chip. Simultaneous motion helps because the cutter stays engaged at a constant angle, but tool life is short and we plan for it.

Plastics such as POM and PEEK need sharp tools and air blast, not flood coolant. On a 5-axis center the rotary axes can also swing the part into a better chip-clearance position, which reduces recutting on deep pockets.
