Most prototyping searches start the same way. Someone types "rapid prototyping maker needed" into a search bar after a design review, then forwards the first five quotes to a colleague. The quotes look nearly identical: same material callout, same lead time window, same line about tight tolerances. What differs is not on the quote at all. It sits in the machine list, the inspection routine, and the way the shop moves a part from first article to a small run.

A prototyping supplier has to do two jobs at once. The first is turning a 3D model into metal or plastic fast enough to keep a program on schedule. The second is producing that part with enough process control that the geometry you measure matches the geometry you modeled. A shop can be fast and still fail the second job. That is the failure mode engineers describe as the precision gap: a quote promising ±0.001 mm that comes back as a part failing first-article inspection.

So the useful question is not "who is cheapest" or "who is fastest." It is: which supplier can hold the tolerance your design actually needs, on the geometry you actually have, and can prove it with inspection data? Everything below is a way to answer that question from documents and answers, not from a plant visit.

One more thing before the checks. Prototyping and production are not separate disciplines at a good shop. The same fixturing, the same probing routines, and often the same machine family carry a part from one-off prototype into a 10,000-piece run. If a supplier hands the part off between departments with new fixtures and a new setup sheet, expect the second batch to drift. Ask how the handover works. That answer tells you more than the tolerance line.

• 1
  Speed is not the constraintMost delays come from rework after first article, not from machining hours.
• 2
  Tolerance is a system, not a numberMachine, fixture, tool, thermal state and inspection method all set the real limit.

Start with size and access, not tolerance. A 5-axis machine has a working volume, and a part near the edge of that volume behaves differently from a part in the middle. GreatLight runs 16 simultaneous 5-axis machining centers with a 4,000 mm maximum processing size, and the largest travel envelope is 4,000 × 400 × 150 mm. That is a long, shallow window, good for long extrusions, rails and frame members. A 900 mm cube will not go there.

Then look at the other envelopes. Medium travels of 750 × 1,150 × 550 mm and 600 × 600 × 600 mm suit housing and bracket work. Compact travels of 500 × 500 × 450 mm and 500 × 310 × 200 mm cover most sensor bodies, manifolds and small brackets. A Ø400 mm rotary table covers round parts that need features on four sides in one setup. If your part does not obviously land in one of those windows, ask the supplier which machine they plan to run and why.

Access matters as much as volume. A deep pocket with a 3 mm corner radius needs a small tool, and a small tool needs a long reach, and a long reach flexes. On a 5-axis machine the tool can be tilted to reach a wall that a 3-axis setup would need two or three orientations for. That reduces the number of setups, and each setup you remove removes an alignment error too.

Fixture strategy is the last piece. Thin walls, long slender parts and parts with no flat datum all need support during cutting. A shop that quotes the part without asking about datum features has not thought the setup through. Expect questions about which faces are functional, which can be gripped, and where you can tolerate witness marks.

• 1
  Long partsUp to 4,000 × 400 × 150 mm on the large 5-axis platform.
• 2
  Boxy parts600 × 600 × 600 mm and 750 × 1,150 × 550 mm envelopes.
• 3
  Round partsØ400 mm rotary table for multi-face work in one setup.

A published tolerance of ±0.005 mm (±0.0002 in) is a capability statement, not a promise about your specific feature. It is achievable on a rigid part in a stable setup with a sharp tool, measured at a controlled temperature. It is not achievable on a 300 mm long cantilevered wall with a 2 mm thickness, no matter which machine cuts it.

That is because the tolerance stack is additive. Machine positioning contributes one term. Fixture deflection contributes another. Tool deflection during the finishing pass contributes a third. Thermal drift over a long cycle contributes a fourth, and it grows with part length. On a 500 mm aluminum part, a 5 °C shop temperature swing moves dimensions by roughly 0.012 mm before the cutter touches anything.

The practical response is not to demand a tighter number from the supplier. It is to sort your features. Which dimensions are functional, meaning a mating face, a bearing bore, a sealing surface? Those deserve the tight callout and the extra finishing pass. Which are clearance or cosmetic? Give those a sensible ±0.1 mm and let the shop cut them faster. A drawing where every dimension is tight costs more and often measures worse, because the machinist has to slow down and re-fixture.

Surface finish follows the same logic. As-machined aluminum sits around Ra 1.6–3.2 μm. A high-quality finish band is Ra 0.8–1.6 μm, and a fine finish reaches Ra 0.2–0.8 μm. Finer finish comes from smaller stepovers and slower feed, so it belongs on sealing faces and sliding surfaces, not on the whole part.

• 1
  Sort features firstFunctional faces tight, clearance and cosmetic faces loose.
• 2
  Watch lengthThermal error scales with part length, not with tolerance callout.

A prototype rarely ends at the machining center. It gets anodized, bead blasted, laser marked, or assembled with inserts. Each of those steps is a handover, and each handover is a chance for the part to be re-clamped, packed wrong, or finished with a different surface standard than the one you specified.

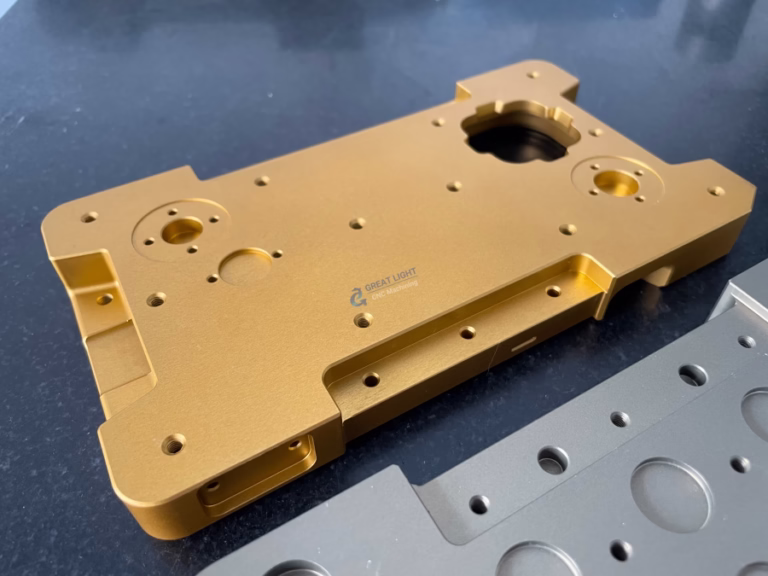

Integrated process chains reduce that. When machining, finishing and inspection sit inside the same quality system, the finish callout on the drawing travels with the part. GreatLight handles anodizing in clear, color, hardcoat and conductive versions, electroless nickel, zinc, silver and gold plating, powder coating and black oxide, plus bead blasting, tumbling, brushing and polishing. Laser marking and engraving hold a minimum character height of 1.5 mm, which is the point where a marked serial number stays readable after finishing.

Consider what happens to a tight bore before and after anodizing. Hardcoat anodizing builds a layer that changes the bore size. If the machinist does not know the part will be hardcoated, the bore will be undersized on arrival. A shop that owns both steps machines to the post-finish dimension. That is a small thing that saves a whole rework cycle.

The same applies to masking. Threads, press-fit bores and electrical contact areas need masking before coating. Ask who decides the mask layout. If the answer is "the finisher," you have a handover. If the answer is "the engineer who programmed the part," you have a process chain.

• 1
  Post-finish dimensionsMachine to the size the part needs after coating, not before.
• 2
  Masking decisionsShould be made by the machining engineer, not a third party.

Certificates are often listed as a wall of logos. What matters is the scope. ISO 9001:2015 covers a general quality management system. IATF 16949:2016 adds automotive production requirements, including traceability and change control. ISO 13485:2016 covers medical device quality management. ISO 27001:2022 covers information security, which is the one that speaks to how your CAD files and drawings are handled.

These are not interchangeable badges. A shop holding all four has been audited against four different sets of requirements. That matters when your program sits in a regulated industry, because the audit trail is part of your own submission package. When your customer asks where the prototype came from, you need a supplier whose quality records survive that question.

Certification also tells you something about process discipline. IATF 16949 requires documented change control, which means a process change on your part gets recorded and communicated rather than quietly applied. ISO 13485 requires design and development controls that map well onto prototype documentation. If your project is heading toward validation, a supplier with the right system already has the paperwork habits in place.

One caveat. A certificate says the system exists. It does not say the system was applied to your job. Pair the certificate with an inspection report request. GreatLight performs a raw material check, in-process monitoring and a final inspection, with 100% inspection before shipment and reports available on request. Ask for the report on the first article and see whether the measured numbers match the drawing.

• 1
  ISO 9001:2015General quality management baseline.
• 2
  IATF 16949:2016Automotive production, traceability and change control.
• 3
  ISO 13485:2016Medical device quality management.
• 4
  ISO 27001:2022Information security for drawings and CAD data.

Not every prototype should be machined. The right method follows from geometry, material and how the part will be tested. Machined prototypes are the choice when the part has to be measured, loaded, or used as a functional test article in the final material. GreatLight cuts aluminum grades 6061, 6061-T6, 2024, 5052, 5083, 6063, 6082, 7075 and ADC12; stainless 303, 304, 316, 316L, 420, 430, 431, 440C and 17-4PH; steel 1018, 1045, 4130, 4140, 4340 and A36; copper and brass including C36000; and titanium grades TA1, TA2 and TC4, plus Inconel and magnesium AZ31B and AZ91D.

Plastics cover ABS, PC, PMMA, POM, PA, PEEK, PP, HDPE and carbon fiber. PEEK and carbon fiber are the ones that punish a light setup, because they are abrasive or stiff and spring back differently than aluminum. A shop that quotes both the same way has not separated them.

Other methods fill gaps. Vacuum casting suits a small batch of urethane parts from one master, useful when you need ten identical housings for a fit check. Sheet metal fabrication covers brackets and enclosures where the geometry is fundamentally flat and bent. Die casting belongs later, when volumes justify tooling. The engineering question is which method matches the test you plan to run, not which one is fashionable.

Ask one direct question of any supplier: which process would you choose for this part, and what would change your mind? A good answer names a specific feature, a wall thickness, or a tolerance band. A vague answer means the quote was priced from a catalog.

• 1
  Machined prototypeFunctional testing in the final alloy, tight tolerances, measurable geometry.
• 2
  Vacuum castSmall batches of urethane parts from a single master pattern.
• 3
  Sheet metalFlat and bent parts, brackets and enclosures.
