A car hub is a stack of concentric features: a bearing bore or bearing seat, an outer flange, a wheel bolt pattern, a spigot or pilot diameter, and often a brake disc register. Every one of those features is measured from one datum, usually the bearing bore axis. If your drawing dimensions the bolt circle from the flange face and the pilot diameter from the bore, the machinist has to pick a datum and you lose control of the stack. Put one datum axis on the print and dimension everything from it.

Start with the loads. A hub that carries the vehicle mass through a bearing seat needs a material with enough stiffness at the bore wall, not the hardest alloy available. For most passenger and light commercial hubs, 6061-T6, 6082 or 7075 aluminium covers the weight target, and 1045 or 4140 steel covers higher load cases. Stainless 17-4PH is the usual answer when corrosion resistance and strength arrive together. Magnesium AZ91D and titanium TC4 (Ti-6Al-4V) are available for motorsport and prototype work.

Check the wall thickness around the bearing bore before you commit to a blank. On aluminium, a 6–8 mm wall is workable and stays stable after machining. Below 4 mm the bore will move when the part is unclamped, and no amount of inspection will fix that. If your layout forces a thin wall, say so on the drawing so the process planner can add a semi-finish pass and let the part cool before the final cut.

Think about how the part will be held. A hub with a through bore and a flat back face is easy. A hub with a closed back, deep internal pocket or undercut flange is not, because the tool has to reach behind the flange without rubbing the shank. Features that a 3-axis machine cannot reach are exactly where 5-axis car hub CNC machining pays for itself, and where a redesign can save a fixture.

• 1
  Datum firstOne axis through the bearing bore, everything else dimensioned from it.
• 2
  Wall rule6–8 mm around an aluminium bearing bore; below 4 mm expect movement.
• 3
  Reach checkIf the tool shank fouls the flange, plan a 5-axis setup or change the design.

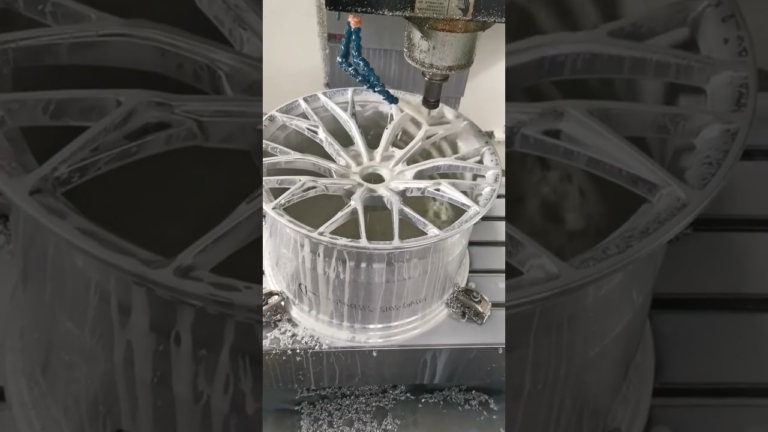

The setup decision drives everything downstream. For a hub with a bore, a flange and a bolt pattern, we normally run it in two operations on a 4-axis or 5-axis mill-turn center: OP1 cuts the back face, the bore pilot and the outer diameter from the raw blank; OP2 holds on the finished bore and cuts the flange face, bolt pattern and any angled features. Splitting it that way keeps the clamping forces on the strongest part of the hub.

When the bore and the flange faces must be truly concentric, a single-setup route on a simultaneous 5-axis center is better. The part stays in one fixture, so the bore, spigot and flange are cut without re-zeroing. Our 16 simultaneous 5-axis machining centers and 16 mill-turn centers handle that pattern often, and the Ø400 mm rotary table covers most passenger-car hub diameters. The trade-off is programming time: a single-setup hub takes longer to program and you cannot start cutting until the toolpath is proven.

Watch the clamping force. A three-jaw chuck closed on a thin aluminium flange will ovalize it by 0.02–0.05 mm, and the part springs back round when you release it. Soft jaws bored to the actual hub diameter, or a dedicated fixture plate with a bolted face, spread the load and keep the bore round. Chuck pressure should be the lowest value that still holds the part against the cut.

For a hub blank cut from plate, face both sides before you do anything else. Plate stock carries residual stress from rolling, and removing one face releases it. Rough the part to leave 0.3–0.6 mm radial stock, then let it sit at room temperature for 30–60 minutes before the finishing pass. That pause costs an hour and saves the bore.

• 1
  Two-operation routeOP1 back face and bore; OP2 flange and bolt pattern held on the finished bore.
• 2
  Single-setup route5-axis cuts bore, spigot and flange concentric in one fixture.
• 3
  Clamp lowSoft jaws or a bolted fixture plate; minimum pressure that holds the cut.

Bolt patterns are where most hubs go wrong. A six-hole pattern on a Ø120 mm bolt circle has a position tolerance that usually runs 0.1–0.15 mm, and it is easy to hold with a drilled pilot plus an interpolated finish. What is not easy is holding it when the pattern is cut in a second setup on a different machine. The bolt circle has to be cut from the same datum as the bore. If it is not, the wheel studs will fight the pilot diameter and the wheel will not seat.

Bearing bores fail in three ways: taper, ovality and size drift. Taper comes from a boring bar that deflects, and shows up as a bore 0.01–0.02 mm larger at the entry than at the bottom. Ovality comes from clamping and appears the moment the part is released. Size drift comes from heat: a bore cut at full speed and measured hot will read small when it cools. Cut the finishing pass at a moderate speed, measure the part at room temperature, and hold the bore in the same fixture it was cut in.

Surface finish on the flange face matters more than it looks. A flange face machined at Ra 3.2 μm can still seal against a brake disc, but a face that is torn or has a raised burr at the bolt hole will not sit flat. Aim for Ra 0.8–1.6 μm on the flange and Ra 0.2–0.8 μm on any sealing or bearing seat. Our finishing range reaches Ra 0.2–0.8 μm when the drawing calls for it.

The scrap causes we see most often are boring a thin wall with too much clamp pressure, cutting the bolt pattern from a re-zeroed setup, and skipping the stress-relief pause after roughing. All three are process errors, not machine errors, and all three are visible on the first part if you measure it properly. Run the first article through full dimensional inspection, then lock the process.

• 1
  Bolt patternCut it from the same datum as the bore, in the same setup if possible.
• 2
  Bore checkMeasure at three depths and two axes, at room temperature.
• 3
  Flange finishRa 0.8–1.6 μm; deburr every bolt hole before assembly.

A hub usually needs more than a machined surface. Anodizing in clear, colour or hardcoat protects aluminium hubs and can carry a wear surface on the flange. Electroless nickel, zinc plating and black oxide cover steel and stainless parts. Bead blasting and tumbling knock down tool marks before coating, and laser marking puts a part number or traceability code on the face. Minimum laser character height is 1.5 mm, so leave a flat land for the mark.

Inspection is where the process proves itself. Every hub we ship goes through raw material check, in-process monitoring and final inspection, with 100% inspection before shipment. Reports are available on request. If your hub is a safety-related wheel-end part, ask for the dimensional report with the bore, spigot and runout values called out separately, not lumped into one pass or fail.

For quoting, send the 3D model, the 2D drawing with the datum and tolerance callouts, the material grade, the finish spec and the annual quantity. Our quotation and free DFM analysis come back within 12 hours, production can start within 24 hours, and parts typically ship in 3–5 days. There is no minimum order quantity, so one prototype and a 10,000-piece run go through the same process. Uploads are secure and confidential, and an NDA is available on request.

If the hub is a prototype for a vehicle program, say so. Prototype hubs often change after the first fit check, and it is cheaper to leave extra stock on a non-critical face than to rebuild the fixture. We hold parts in the sample center when a program is still moving.

• 1
  Send these3D model, 2D drawing, material, finish, quantity.
• 2
  TraceabilityLaser marking from 1.5 mm character height; leave a flat land.
• 3
  ConfidentialitySecure uploads; NDA on request.
