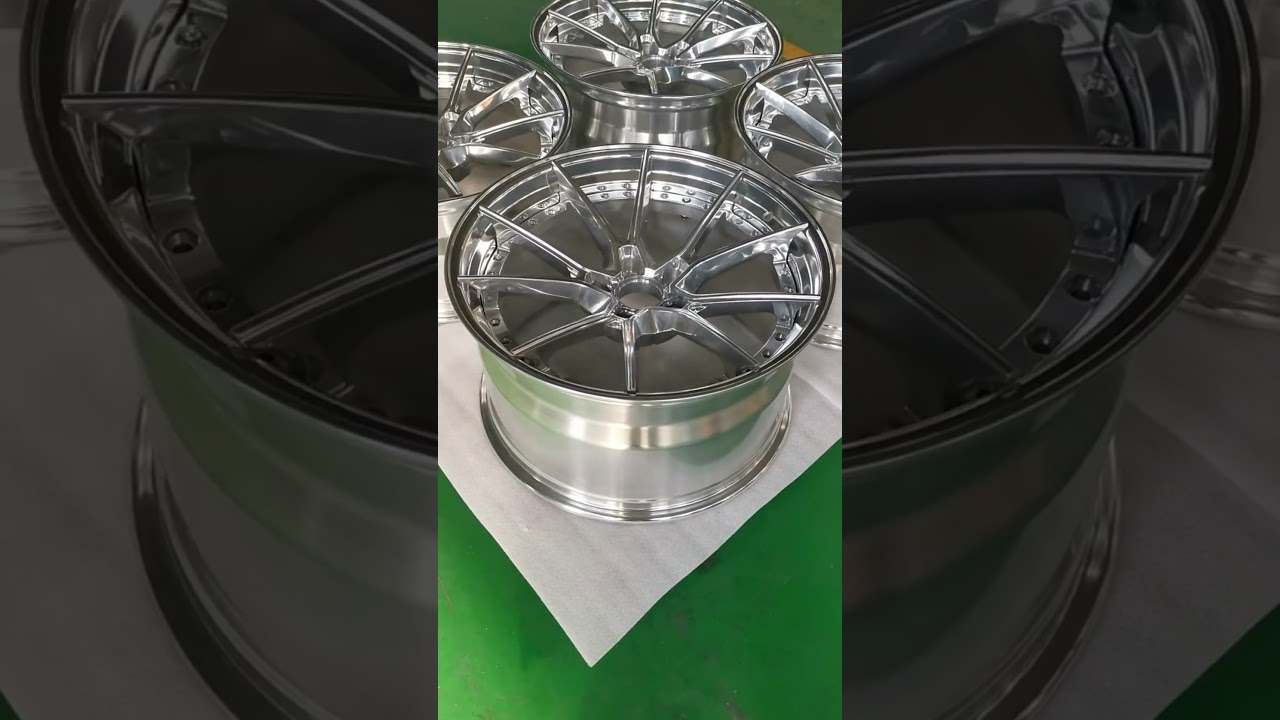

CNC Machining of Customized Car Wheels

• 1
  What a wheel actually asks of the machine
• 2
  One-piece billet versus forged blank versus cast wheel
• 3
  How we hold a wheel without distorting it
• 4
  Toolpaths, speeds and the features that set the tolerance
• 5
  Material choice and what the finish does to size
• 6
  Inspection: what gets measured and why
• 7
  When CNC is the wrong answer for a wheel
• 8
  From file to finished wheel
• 9
  Process and material selection at a glance

A wheel looks like a disc with holes. Structurally it is a hub, a set of spokes and a rim, joined by a continuous load path. When a tire side-loads the rim, force travels inward through the spokes into the hub face and then into the lug seats. Every machined surface in that chain has to sit in the right place, or the load starts finding softer paths.

The rim is the awkward part. Bead seats, the drop well and the flange sit on the outside diameter, while the mounting face sits on the inside plane. Cutting both from one setup means the tool has to reach around the part. That is the reason 3-axis work on wheels tends to be split into two or three fixtures.

Spoke windows are the second constraint. Deep pockets with small corner radii force long, thin tools into the cut. A 6 mm end mill at a 40 mm reach will deflect long before it breaks, so the floor of the window ends up tapered and the wall ends up chatter-marked if speeds are pushed.

The third constraint is mass. Unsprung weight matters, so the design usually pushes wall sections down toward 3–5 mm in the spoke web. Thin walls move under clamping force and under cutting force. Both have to be managed before the first chip.

A cast wheel starts near net shape. The foundry delivers a part that already has spokes and a rim, and machining removes maybe 0.5–1.5 mm from the mounting face, the bead seats and the center bore. Cycle time is short because the tool only touches functional surfaces.

A forged blank starts denser and stronger. The grain flow follows the shape, so a forged wheel tolerates thinner spokes than a casting of the same mass. Machining still only cleans up functional surfaces, but the blank costs more and the forging die fixes the design early.

A billet wheel is cut from a solid plate or a thick round. Almost every surface is generated by the tool, so the designer is free to change spoke shape, offset and window profile without a new die. That freedom is the whole point, and it is also why cycle time runs long.

The trade is straightforward. If the design is frozen and volume is high, casting or forging wins on cost per part. If the design is still moving, or the run is small, a billet removes the tooling lead time entirely.

• 1
  Frozen design, high volumeCast or forged blank, then finish machine.
• 2
  Open design or small runBillet, cut from plate or round stock.
• 3
  Thin spokes with high loadForged blank holds grain flow through the spoke.

A wheel is a ring. Clamping a ring on its outer diameter is the fastest way to hold it and the fastest way to ovalize it. A three-jaw chuck closed on a rim can push the bore out of round by more than the bore tolerance itself.

The usual answer is to clamp on the hub face and drive from the bolt circle or from a machined boss. On the first operation the blank is often held in soft jaws bored to the blank diameter, with the jaws contacting a thick section rather than a rim lip.

For a large one-piece wheel, a fixture plate with a locating bore and six low-pressure clamps spreads the load around the hub. Pressure is kept low enough that the part does not spring when the clamps release. Springback is checked with a dial indicator after unclamping, not before.

The second operation flips the part. Now the mounting face, the lug seats and the center bore are cut relative to the rim that was finished in operation one. This is where runout is decided, and where a bad first fixture shows up as a wheel that wobbles on the balancer.

Roughing removes most of the volume with a large tool and deep axial cuts. On aluminium 6061-T6 we commonly run a 16–20 mm end mill at 8,000–12,000 rpm with a 6–10 mm axial depth, leaving 0.4–0.6 mm of stock for the finishing passes. The goal is to keep heat in the chip and out of the part.

Finishing follows with smaller tools and tighter stepovers. Spoke faces and the mounting face are cut with a 0.2–0.5 mm stepover to hold Ra 0.8–1.6 μm. Bead seats and the center bore are often reamed or bored in a separate pass, because a boring head holds diameter better than an end mill interpolation.

Lug seats are the tightest feature on the wheel. The seat angle and the seat depth control how the nut loads the wheel. A seat that is 0.1 mm shallow lets the nut bottom on the stud instead of clamping the wheel. Seat depth is verified with a depth gauge on every part, not by sampling.

Simultaneous 5-axis work pays off in the spoke windows and the rim flange. Tilting the tool keeps a short, stiff section of flute in the cut, which lets us reach 4:1 depth-to-diameter without a long-reach tool. Tool marks on the window walls come out uniform instead of stepped.

Cutting fluid matters more than most people expect on thin sections. Flood coolant keeps the part near ambient; a dry cut on a 4 mm spoke web will walk the geometry as the part grows. We hold ±0.005 mm on critical diameters and check it at the machine.

6061-T6 is the default for machined wheels. It cuts fast, holds a good finish and takes anodizing evenly. 7075 offers higher strength for the same mass, but it machines slower and anodizes to a darker, less uniform tone on large faces.

For load-critical wheels, 6061-T6 forged stock or a 7075 billet is common. Both are available in the plate thicknesses a one-piece wheel needs, and both hold ±0.005 mm on the hub bore without special handling.

Anodizing is the finish most customers ask for, and it is the one that changes dimensions. A Type II coating adds roughly 10–25 μm per surface, and hardcoat can add 25–50 μm. A 70.00 mm bore becomes a 69.95 mm bore after coating if it was masked wrong.

The fix is to machine bores and lug seats oversize by the coating thickness, or to mask them. Masking is cleaner for the center bore, since the coating there adds nothing. Lug seat angles should never be coated; the seat geometry is what centers the wheel.

Every wheel leaves with a dimensional record. The center bore diameter, the bolt circle, the lug seat depth, the mounting face flatness and the lateral runout are the five values that decide whether the wheel fits and runs true.

Runout is measured on a mandrel or a rotary table, not on a surface plate. A dial indicator on the outer flange shows total indicated runout across one revolution. We hold this well inside what a road wheel needs, and report the number rather than a pass mark.

Bead seat roundness is checked with a bore gauge or a CMM at several heights, because the tire seals on the seat and not on the flange. A seat that is round but tapered will leak air slowly, and that kind of leak is hard to find after the wheel is mounted.

• 1
  100% inspection before shipmentRaw material check, in-process monitoring, final inspection.
• 2
  Reports on requestDimensional records and material certificates.
• 3
  Qualification rate99.99% across shipped parts.

CNC is not always the right route. If the design is final, the volume is above a few thousand units per year, and the wheel is a conventional multi-spoke pattern, a casting will beat a billet on cost with no loss of function.

Very large one-piece wheels hit a size ceiling. Our largest travel is 4,000 × 400 × 150 mm, which covers most passenger and light-truck sizes but not every oversized off-road rim in one piece. Those are usually split into a rim and a center and assembled.

Extreme lightweight designs with 2–3 mm spokes and open lattice geometry start to fight the process. The tool cannot reach into the corners without a long-reach cutter, and the part moves. At that point a forged blank or a two-piece design is the more honest choice.

Finally, a wheel is a safety part. Machining accuracy does not replace structural validation. Any new spoke pattern or offset should go through the load and fatigue testing the application requires before it reaches a vehicle.
