  What a two piece forged wheel actually is
• 2
  Forging first, then CNC two piece forged wheels take shape
• 3
  Where the tolerance budget goes
• 4
  Assembly torque and the joint that has to hold
• 5
  When a two piece design is the wrong answer
• 6
  Material choices and what they change
• 7
  Two piece forged vs one piece forged vs cast

A two piece wheel is built from two machined parts: a forged barrel, usually a spun or forged rim section, and a separate center disc. The center is either bolted to the inside of the barrel flange or, in the welded variant, joined permanently. The bolted version is the one most aftermarket and motorsport buyers mean, because centers can be swapped without buying a new barrel.

The barrel carries the tire bead and the air seal. The center carries the lug pattern, the hub bore, and the spokes. Every load path goes through the joint between them, so that joint is where the machining work concentrates. A cast one piece wheel has no joint at all, which is exactly why it can be cheaper and also why it cannot be re-configured.

CNC two piece forged wheels exist because forging and machining solve different problems. Forging gives a dense, continuous grain structure with high fatigue strength per kilogram. CNC machining gives the bolt circle, hub bore, and spoke windows their final geometry after the forging has already locked in its properties. You get the material behavior of a forging and the dimensional control of a machined part.

The trade is part count. Two parts mean two setups, two inspection records, and a torque specification that someone has to follow at assembly. For a road wheel, that is manageable. For a race wheel that gets rebuilt between events, it is normal practice.

The barrel starts as a forged blank or a flow-formed rim section. Flow forming thins and lengthens the rim wall while keeping the grain aligned around the circumference, which is the direction the wheel sees most of its stress. Wall thickness on a typical passenger barrel lands around 4 mm to 7 mm depending on the load rating the customer is targeting.

The center begins as a forged disc, often 6061-T6 or 7075 aluminum. 6061-T6 is the common choice for street wheels because it welds and anodizes predictably and holds up to road salt. 7075 machines to a higher strength but is more sensitive to stress corrosion, so it suits race and track use more than daily winter driving.

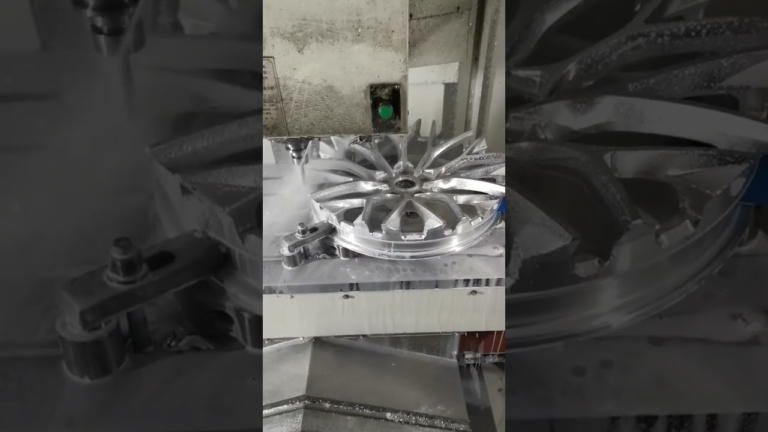

Roughing removes most of the stock. On a 5-axis center, we can tilt the tool and reach the back of the spoke windows and the inner bolt flange in fewer setups, which matters because every re-fixture is a chance to lose concentricity between the hub bore and the bolt circle.

Finishing sets the critical dimensions: hub bore, bolt circle diameter, center bore register, and the mating face that sits against the barrel. Runout on the assembled wheel is largely decided here, not at the forging stage.

A wheel is a rotating assembly, so the numbers that matter are the ones that affect how it spins. Hub bore and center register control how the wheel centers on the hub. Bolt circle diameter and bolt hole position control whether the lug nuts seat evenly. The barrel-to-center mating face controls lateral and radial runout at the rim edge.

We hold ±0.005 mm on critical diameters and mating faces, and Ra 0.8–1.6 μm on sealing and register surfaces. That finish matters on the bead seat area, where a rough surface can promote slow air loss. The outer cosmetic faces are usually finished to Ra 1.6–3.2 μm and then anodized or painted.

Bolt hole position is the one people underestimate. If the holes are off by even 0.1 mm across the pattern, the lug nuts fight each other and the wheel can shift under torque. On a two piece design the center's bolt pattern and the barrel's matching holes both have to land, so the pattern is machined in one setup wherever the geometry allows.

Concentricity between the hub bore and the barrel register is the number to ask about. It is the single best predictor of whether the finished wheel will show runout on a balancer.

A bolted two piece wheel is a preloaded joint. The bolts clamp the center to the barrel flange, and friction between the mating faces carries the shear load. If the preload is wrong, the joint slips and the bolts see shear directly, which is not what they were sized for.

The mating faces should be clean and dry unless the wheel maker specifies a sealant. Any grease or anodizing build-up on the flange changes the friction coefficient and the torque-to-preload relationship. We machine the flange face flat and note the required surface finish on the drawing so the customer's assembly procedure and our machining match.

Bolt grade and thread lubrication matter too. A lubricated bolt reaches the same preload at a lower torque value than a dry one. This is why a torque figure without a lubrication condition is incomplete. We supply the thread condition on the inspection report when the customer asks for it.

After assembly, the wheel should be checked for radial and lateral runout at the rim edge. A typical road wheel target is under 0.5 mm total indicated runout; race wheels are usually tighter. If the assembled number is out of spec, the cause is almost always the mating face or the bolt pattern, not the forging.

Two piece makes sense when the buyer wants size flexibility, center style changes, or repair by replacing one half. It stops making sense when the priority is minimum mass. The joint adds a flange, bolts, and a second part, and that mass cannot be machined away.

It is also a poor fit for very high volume, low cost programs. Two forgings, two machining schedules, and an assembly step cost more per unit than a single cast or forged monoblock once volume is high enough to amortize tooling. A cast one piece wheel will beat it on unit price at volume, though not on fatigue strength.

Very small diameter wheels with deep dish geometry can be awkward too. The barrel flange and the center overlap in a tight space, and the bolt circle may not leave enough material around the hub. In those cases a monoblock is simpler.

Finally, if nobody in the supply chain will control assembly torque, a bolted wheel is a liability. A welded two piece design removes that variable at the cost of losing the swappable center.

Aluminum covers most of the market. 6061-T6 is the default for centers and barrels that will see street use, because it is weldable, anodizes cleanly, and tolerates weather. 7075 gives higher static strength for the same section, which lets a designer thin the spokes, but it is less forgiving of poor anodizing and chloride exposure.

Magnesium alloys such as AZ31B and AZ91D appear in motorsport wheels where mass is the top priority. They machine well and are light, but they need coating and they are not a casual choice for a road car. We machine them, and we tell customers to plan the coating before the drawing is frozen.

Titanium and Inconel are rare in wheels but do show up in motorsport fasteners and hubs. They are worth mentioning because the same 5-axis centers that cut a wheel center can cut a titanium hub adapter in the same program family.

For barrel sections that see brake heat, the alloy choice and the wall thickness work together. A thinner wall saves mass but reduces the heat sink, so the brake-side barrel temperature rises. That is a design decision, not a machining one, but it shows up in the machining spec as a wall thickness callout with a tight tolerance.
