A wheel has one job: hold a tire, hold air, and spin true at speed. Everything else is styling. That single sentence decides which surfaces get machined and which do not. The bead seat, the hub face, the bolt circle, and the center bore carry function. Spoke windows carry airflow and looks.

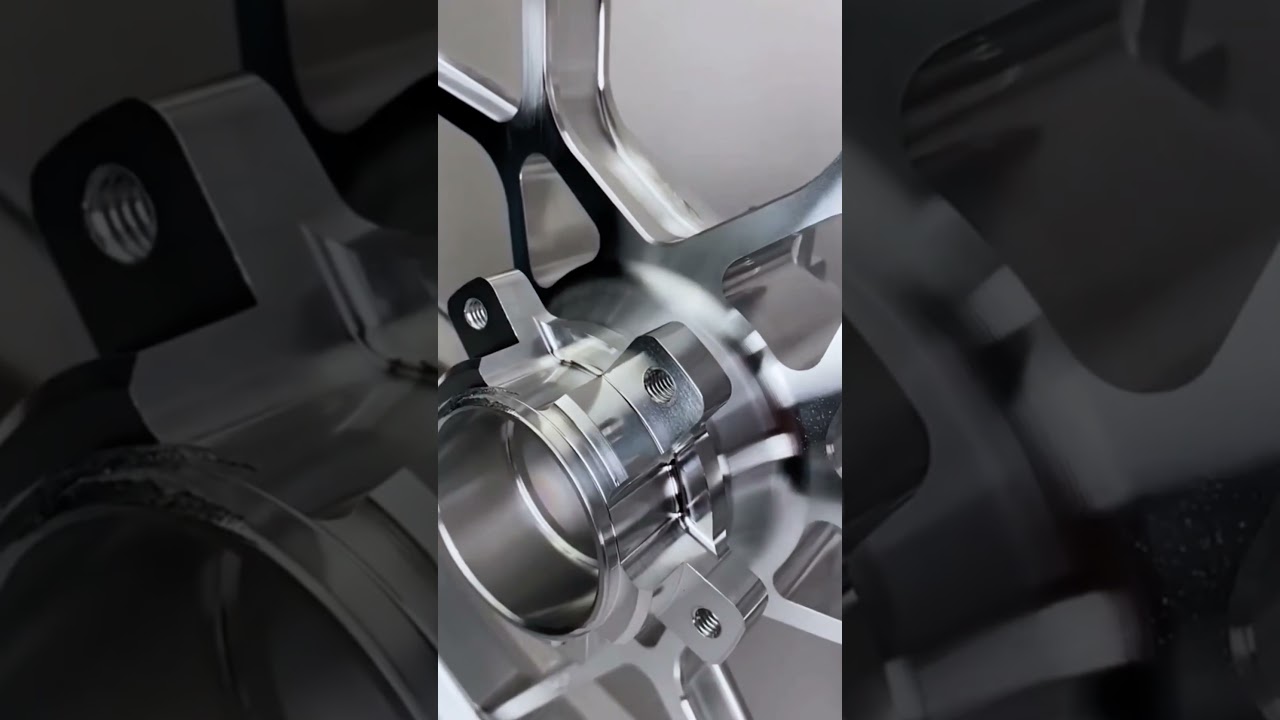

On a machined wheel, the functional surfaces come off a cutting tool, not a mold. The bead seat sees a bored or turned surface with a defined finish. The hub face sees a faced surface flat enough to seat against the rotor. The bolt circle sees drilled or interpolated holes. None of that is new. What matters is that all of it is generated from one datum.

That datum is usually the center bore or a machined chucking spigot. If the datum is wrong, every downstream dimension is wrong by the same amount. A 0.05 mm datum shift on a Ø70 mm bore is not a bore problem. It is a runout problem of 0.05 mm that shows up as a vibration at 120 km/h.

So the question is not whether a wheel can be machined. It can. The question is whether the design needs a turned and milled surface at all, and whether the cost of getting those surfaces right is lower than the cost of a casting or forging that gets close enough. That trade is the whole page.

The blank decides how much metal the tool has to remove. A billet block or bar gives the best grain and the worst cycle time. A forged puck gives better grain than a casting and less stock than a billet. A near-net casting gives the least stock and the most porosity risk.

For aluminum wheels, 6061-T6 is the common machined choice. It cuts clean, takes anodizing well, and holds a bore. 7075 gives higher strength but machines slower and is less forgiving on thin spokes. Forged 6061 blanks are often used where the wheel sees track loads, because the forging closes the grain structure.

Stock allowance is where cost hides. A blank with 6 mm of radial stock on the rim takes multiple passes and leaves more chips on the floor. A blank with 1.5 mm of stock needs a stable casting and a rigid fixture. When a quote looks high, ask what the stock allowance is. That number explains most of the price gap.

• 1
  Billet or barBest structure, most material removed, longest cycle.
• 2
  Forged puckGood grain flow, moderate stock, common for performance wheels.
• 3
  Near-net castingLeast stock, but you inherit porosity and draft.

A wheel is a circular part with features on several faces. The rim face, the spoke windows, and the hub face all live at different angles. On a 3-axis machine you re-fixture between them, and every re-fixture adds error. On a 5-axis machine with a rotary table, you machine the hub face, the windows, and the bead seat without breaking the setup.

That matters most on the bead seat and the spoke windows. If the bead seat is turned on one setup and the bolt circle is drilled on another, the two datums have to agree. They usually do, but the agreement is only as good as the fixture. One setup removes that variable entirely.

A Ø400 mm rotary table with a 5-axis center handles most passenger-car and light-truck wheel sizes in one pass. The tool can tilt to reach under a spoke or into a recessed window without a long, flexible tool. Short tools deflect less, so the finish holds.

Cycle time is longer than a 3-axis run because of the simultaneous motion, but the scrap rate is lower. On a wheel, one bad bore scraps the part. Fewer setups means fewer chances to scrap it.

A wheel is stiff in the hub and thin in the rim. That is a problem for clamping. If you clamp on the rim lip, you squeeze it oval, machine it round, release it, and it springs back oval. The bore measures fine on the machine and fails on the CMM.

The fix is to clamp on the hub or on a dedicated spigot, and to keep the clamping force low and even. Three or four soft jaws with a controlled torque beat a hard three-jaw chuck every time. On thin-wall wheels, we leave a light roughing pass, let the part sit, then finish.

Thermal drift is the other quiet error. Aluminum grows about 23 μm per meter per degree Celsius. A wheel warmed by roughing can move 10–20 μm between rough and finish if the coolant and the room are not stable. That is enough to fail a tight bore.

So the sequence is: rough, relax, semi-finish, measure, finish. It costs a little cycle time and saves the parts that would otherwise be rework.

Machining can hold a bore to ±0.005 mm and a face flatness that seals against a rotor. What it cannot do is fix a design that puts mass in the wrong place. Balance is a mass problem, not a tolerance problem. A wheel with an asymmetric spoke pattern needs material removed opposite the heavy side, and that is a balance operation, not a turning operation.

Runout is the sum of several errors: spindle error, fixture error, datum error, and thermal drift. Hold each one small and the total stays inside the spec. Chase one of them hard and ignore the others, and the wheel still wobbles.

There is also a floor on how thin a machined spoke can go. Below roughly 3 mm of wall on a 6061 spoke, chatter and deflection start to dominate. You can still cut it, but the finish and the fatigue life both suffer.

For load-critical wheels, the honest answer is often forged-and-finished rather than fully machined. The forging gives the grain flow; machining gives the bore and the seat. That combination beats either process alone.
