CNC Machining Automotive Parts: How the 5 Axis Process Actually Works

• 1
  What CNC machining automotive parts on 5 axes really changes
• 2
  Fixturing and datum strategy on automotive parts
• 3
  Tolerances, surface finish and inspection
• 4
  Materials common in automotive machining
• 5
  Cost drivers and lead time on automotive programs
• 6
  When 5 axis beats 3 axis, and when it does not

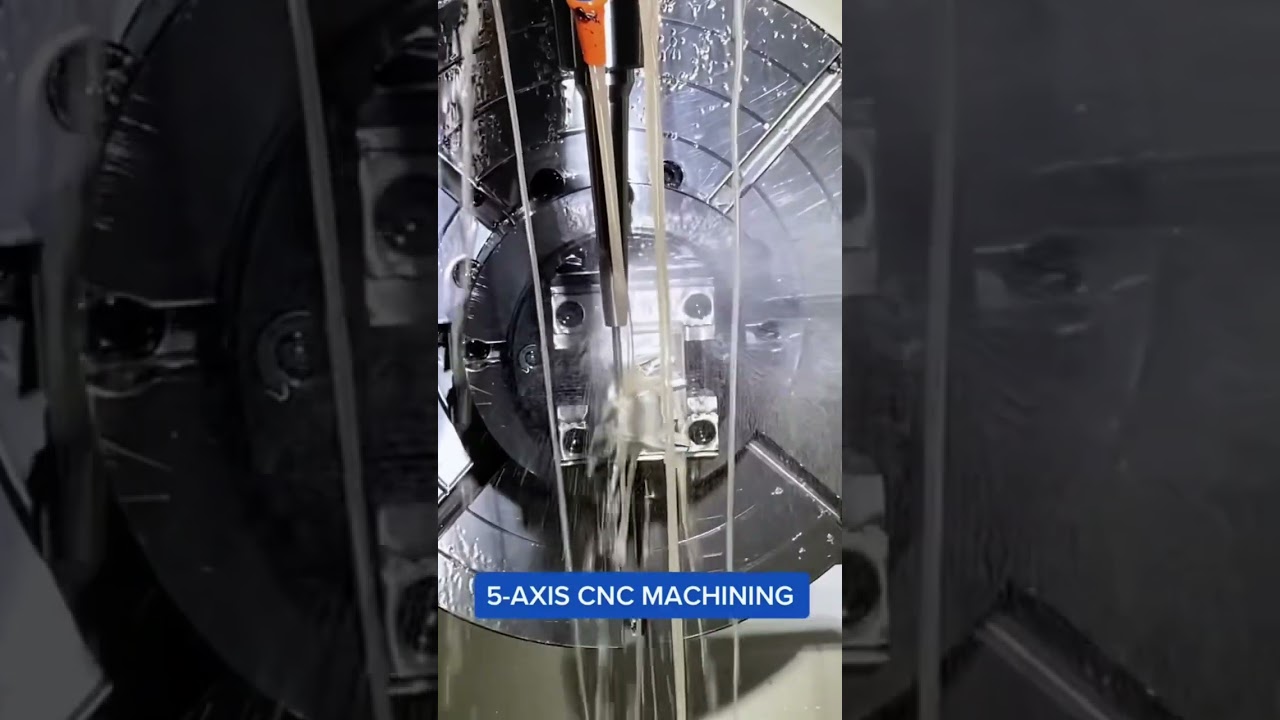

A 3-axis mill moves the tool in X, Y and Z while the part stays still. A 5-axis machine adds two rotary axes, so the tool can approach a face at an angle in one setup. For automotive parts the practical effect is simple: more faces get cut before the part is unclamped.

That matters because every re-clamp introduces a new datum. On a bracket, a knuckle or a cylinder head, the stacked error from five setups often eats more tolerance than the cutting does. Simultaneous 5-axis work collapses those setups into one or two.

The trade is real. Five-axis process planning takes longer, and the machine hour costs more than a 3-axis hour. The payoff shows up in parts with angled faces, deep pockets or tight true-position callouts, where fewer setups is the cheapest way to hold a tolerance.

GreatLight runs 16 simultaneous 5-axis machining centers alongside 12 four-axis mills, 27 three-axis machines and 16 mill-turn centers. That mix matters, because not every automotive part should be cut on five axes.

Datums come first. Before we talk about a machine, we ask which faces the part is measured from on the car. A drawing that dimensions everything from a cast surface will fight the fixture, because a raw casting moves between lots.

The usual answer is a machined primary datum. Cut one flat face and two locating holes early, then use them for every later operation. That single choice removes most of the variation that shows up as a failed true-position check at the end of the run.

Thin brackets and covers are the hard cases. Clamping pressure bends a 3 mm wall far more than the cutter does, so parts get released, measured and re-cut. We often hold them on a sacrificial tab or a soft jaw pocketed to the finished profile.

For high-volume work, a hydraulic or pneumatic fixture pays for itself in load time. For one-offs and prototypes, a modular plate with pins and clamps is usually faster to build and easier to change when the design moves.

GreatLight holds ±0.005 mm (±0.0002 in) on 5-axis work when the drawing and the material support it. That number is a capability, not a promise on every feature. A 400 mm aluminum housing and a 30 mm hardened steel pin do not behave the same way.

Thermal drift is the quiet variable. Aluminum grows about 23 μm per metre per degree Celsius, so a warm shop and a cold inspection room disagree. For tight bores we let the part stabilize before final measurement, especially on thin walls.

Surface finish follows the same logic. As-machined aluminum lands around Ra 1.6–3.2 μm, a fine finishing pass reaches Ra 0.8–1.6 μm, and Ra 0.2–0.8 μm is available where a seal or bearing surface needs it. Finer finish costs cycle time, so specify it only where it does something.

We inspect 100% of parts before shipment, with raw material checks, in-process monitoring and a final inspection. Reports are available on request, and dimensional reports can be tied to the serial or lot you define.

Aluminum covers most of the work. 6061-T6 is the default for brackets and housings, 7075 is chosen when strength per kilogram matters, and ADC12 appears on die-cast parts that need machined interfaces. All are listed in our stock range.

Steel and stainless show up where wear or heat is the constraint. 1045 and 4140 for shafts and hubs, 4340 where toughness is needed, 17-4PH for corrosion resistance with strength. Stainless 303 and 304 machine cleanly; 316L is common on exhaust-adjacent parts.

Titanium and Inconel are the slow ones. TC4 (Ti-6Al-4V) cuts at a fraction of the aluminum feed rate and needs sharp tooling and steady coolant. Inconel is worse. Both are possible, but they change the cycle time and the price, so plan them early.

Plastics matter too. POM and PA for clips and bushings, PEEK where temperature and chemical resistance rule, PC and ABS for prototype housings. Each has its own chip behavior; PEEK in particular needs different speeds than any metal on the same machine.

Three things drive the price: setups, cycle time and inspection. Five-axis work cuts the first and often raises the second. The right question is not which machine is better, it is which combination gets the part to spec at the lowest total cost.

Programming time is easy to underestimate on 5-axis parts. Collision checking, tool reach and post-processor work all happen before a chip is cut. On a 5-off prototype bracket, that time can exceed the cutting time by a wide margin.

Our quotation and free DFM analysis come back within 12 hours, and production can start within 24 hours. Parts usually ship in 3–5 days. Historical late-delivery probability is below 2%, though a new part with a difficult fixture can move that.

There is no minimum order quantity. We machine one prototype or a 10,000+ part run on the same process, which is useful when a design is still moving and the tooling has to follow it.
