CNC for Automotive Wheels: Fixing Runout, Chatter, and Fitment
This guide is for engineers and buyers who machine wheel centers, beadlock rings, and lug bores, then find parts that will not seat, balance, or hold torque. It maps each symptom to a likely cause and a specific fix, so you can tell whether the problem is the program, the fixture, or the material.
In this article
- 1
- 2
- 3
- 4
- 5
- 6
- 7
Wheel Machining Problems: Symptom, Cause, Action
Match the symptom you measured to the cause that actually produces it, then act on that row only.
| Symptom | Likely cause | What to do |
|---|---|---|
| 0.15–0.4 mm radial runout | Fixture repeats off the bore | Rebore soft jaws in place |
| Chirp marks on spoke faces | Tool stickout over 4× diameter | Shorten holder, reduce step-over |
| Lug holes 0.05 mm off PCD | Single-setup indexing error | Probe datum, re-cut in one pass |
| Bore grows after anodizing | Type II coating builds inward | Mask bore, or finish after coating |
| Faces not parallel after heat treat | Stress relief moved the blank | Semi-finish, stress relief, re-fixture |
| Ra worse than 1.6 μm on lip | Dull insert, wrong feed per tooth | New insert, 0.05 mm/tooth finish |
The short version
Fix the fixture before you change the program. Runout, chatter, and fitment on wheels almost always trace back to how the part was held, not how it was cut.

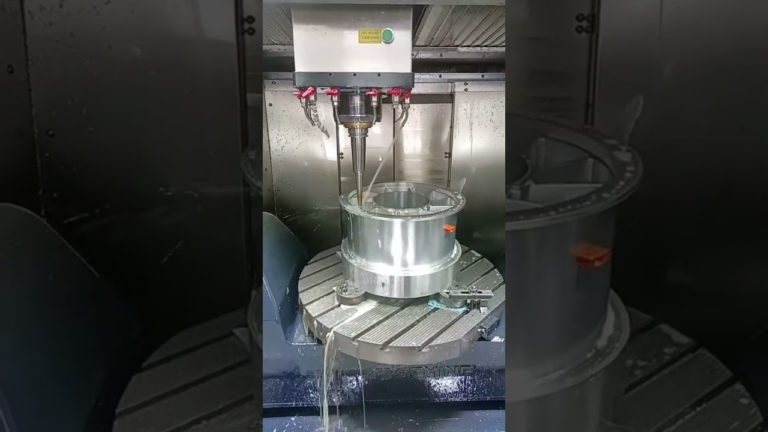

Why CNC for automotive wheels fails on the first run
Most wheel problems show up before the part leaves the machine. A wheel center that reads 0.15 mm of radial runout on the balancing stand was usually machined on a fixture that had runout built in. The cutter repeated what the fixture told it to do. That is the first thing to check, not the program.
Wheel geometry is thin, round, and open. Spokes deflect. Rim lips ring. A 6061-T6 blank cut with a 12 mm end mill at 4× diameter stickout will chatter at almost any feed, because the tool bends more than the part does. Shorten the holder or move to a 10 mm cutter with a 3× stickout. The finish improves before you touch spindle speed.
Heat treated blanks move. A 7075 forging that is roughed, then finished in the same setup, will distort when residual stress releases. The faces come out parallel on the machine and out of parallel on the bench the next morning. Semi-finish, let the part rest, then finish. It costs one extra setup and saves the whole lot.
Tolerances matter here. We hold ±0.005 mm on bores and register faces, with a 99.99% qualification rate across 100% inspection. That number does not come from a good machine alone. It comes from knowing which of the three failure modes above you are looking at.
- 1Check the fixture firstIndicate the jaws, not the part. If the jaws move, nothing downstream is trustworthy.
- 2Shorten tool stickoutKeep it under 4× diameter on spoke pockets, under 3× on rim lips.
- 3Separate rough and finishEspecially on 7075 and 6061 forgings that see heat treat.
Radial and lateral runout after machining
Runout is measured off the bore and the register face, so those two features set the whole wheel. If the bore is bored in soft jaws that were not cut in place, the jaws carry the runout of the chuck. Cut the jaws at the same spindle speed and feed you will use for the part. This takes ten minutes and removes most of the error.
Lateral runout on the rim lip usually comes from clamping. Three-jaw chucks on a thin lip distort it. Use a face driver or a dedicated arbor that locates on the bore and clamps on the face. If you must use jaws, clamp on a thick section and support the lip with a steady rest.
Five-axis work changes the picture. On a trunnion table, the part rotates and the error sources rotate with it. Probe the bore after the first op and set the work offset from that measurement. Do not trust the fixture model. On our 16 simultaneous five-axis centers, we probe every wheel blank before the finish pass for exactly this reason.
A wheel that measures 0.10 mm runout on the machine can measure 0.25 mm on the balancing stand if the mounting face has a burr. Deburr the register face by hand before the final check. It is a two-minute job that prevents a false rejection.
Chatter and surface finish on spoke faces
Chatter has a frequency. If you can hear a tone, the tool is vibrating at a natural frequency of the setup. The fix is stiffness, not speed. Reduce stickout, move to a larger shank diameter, or add a support under the spoke. Increasing spindle speed sometimes helps, but only when the tool is already rigid.
Feed per tooth controls finish on aluminum. For 6061-T6, a 10 mm three-flute carbide cutter at 0.05 mm/tooth and 8,000 rpm gives a predictable Ra 0.8–1.6 μm on spoke faces. Push to 0.12 mm/tooth and you will see scallops. Drop to 0.02 mm/tooth and the tool rubs, which work-hardens the surface and dulls the edge.
Rim lips are different. They are thin, so the part deflects instead of the tool. Reduce radial depth of cut to 0.2 mm and use a finishing pass with a 0.3 mm step-over. If the lip still rings, fill the back with a low-melt wax or support it from the inside with an expanding mandrel.
Coolant matters more than people expect. Aluminum needs flood coolant to clear chips from deep spoke pockets. Air blast alone leaves chips that get recut, and recut chips are the fastest way to a scratched finish. On deep pockets, program a peck cycle to break the chip.
Fitment issues: lug bores, PCD, and center bore
A wheel that will not seat on the hub has a center bore problem, not a bolt pattern problem. The bore must be round within 0.02 mm and the register face flat within 0.03 mm. If the bore is out of round, the wheel rocks on the hub and the lug nuts lose torque. Check roundness with a bore gauge at three depths.
PCD errors come from indexing. If you drill four or five lug holes by rotating the table between holes, every index adds error. Cut all holes in one operation with a rotary table that is locked between positions, or use a live tool on a mill-turn center. We hold PCD within 0.05 mm on a Ø400 mm rotary table.
Lug hole chamfer angle matters for conical seat hardware. A 60° chamfer that is cut too deep reduces the bearing area and the nut bottoms out on the chamfer instead of the seat. Measure the chamfer diameter, not just the angle. It should match the nut seat within 0.1 mm.
Center bore tolerance is usually H7. If you are anodizing after machining, remember that Type II build adds 5–15 μm per surface. A bore that is spot-on before coating will be undersized after. Mask the bore with a plug, or bore it after coating and accept the color break at the edge.
When CNC for automotive wheels is the wrong process
CNC is the right call for one-off wheels, prototype sets, low-volume forged centers, and any part with a feature that cannot be cast or forged to size. It is the wrong call for a 10,000-piece run of a simple cast wheel, where die casting plus a finish pass on the register face costs less per part.
Material drives the decision more than geometry. 6061-T6 machines fast and takes anodizing well. 7075 gives higher strength but moves more after heat treat and is harder to anodize evenly. Magnesium AZ31B cuts beautifully but needs chip control and a fire-safe coolant strategy. If your wheel sees track use, 7075 is worth the extra setup. If it is a street wheel, 6061-T6 is usually enough.
Roll-formed and forged rims are often finish-machined rather than cut from billet. That is still CNC work, but the stock removal is small. The failure modes are the same: fixture runout, tool deflection, and coating build. A 4,000 mm maximum processing size lets us handle large one-piece rims without a splice.
If you are not sure which route fits, send the drawing. We return a DFM analysis with the quote, usually within 12 hours, and flag the features that will drive cost or risk.
Step-by-step: diagnosing a wheel that will not balance
Work in this order. Each step rules out one cause and costs less than the next.
- 11. Measure runout at the boreMount on a mandrel, indicate the bore at three depths. Over 0.02 mm means the bore or the fixture is the problem, not the rim.
- 22. Indicate the fixture jawsWith the part removed, indicate the jaws. Over 0.01 mm runout means rebore them in place at the finishing speed.
- 33. Check the register face for burrsRun a stone or deburring tool across the face. A 0.05 mm burr here reads as 0.2 mm runout on the balancer.
- 44. Re-cut the bore in one passTake 0.1–0.2 mm radial depth, 0.05 mm/tooth, flood coolant. Do not spring-pass; it burnishes instead of cutting.
- 55. Verify PCD on the CMMCheck hole-to-hole distance and the diagonal. A 0.05 mm PCD error is enough to bind on the studs.
- 66. Rebalance and log the resultIf runout is under 0.05 mm and balance is still off, the problem is material density or a missed spoke pocket, not the setup.
Common questions on wheel machining
What tolerance can you hold on a wheel center bore?
We hold ±0.005 mm on bores and register faces, with a 99.99% qualification rate. That applies to the machined feature, not to the whole wheel, which is a stack of tolerances from casting or forging through coating.
If you need the finished wheel to meet a runout spec after anodizing, tell us the spec before we quote. Coating build is 5–15 μm per surface on Type II and more on hardcoat.
Can you machine a wheel from a forged blank?
Yes. We machine forged and billet blanks up to 4,000 mm in the largest travel. Forged blanks usually need a semi-finish, a stress-relief rest, and a finish pass to hold flatness on the register face.
Send the blank drawing and the finished drawing. The difference in stock removal decides how many setups we need.
How do you stop chatter on thin rim lips?
Support the lip from the inside with an expanding mandrel or fill the back with low-melt wax. Reduce radial depth of cut to 0.2 mm and keep tool stickout under 3× diameter.
If the lip still rings, the part is too thin for the setup, not the cutter. Add a support or split the operation.
Do you machine magnesium wheels?
Yes, AZ31B and AZ91D are both in our material list. Magnesium needs chip control, a fire-safe coolant plan, and short cycle times to avoid heat buildup.
We machine it on dedicated equipment with a documented chip-handling procedure.
What is the smallest order you accept?
No minimum order quantity. We run from one prototype to 10,000+ part runs, and the quote covers both ends of that range.
Prototype wheels and short runs usually ship in 3–5 days after the first article is approved.
Can you sign an NDA before I send drawings?
Yes. An NDA is available on request, and all uploads are treated as secure and confidential.
If your wheel design is not public, send the NDA first and we will countersign before any file transfer.
