Why Choose an OEM 3 Axis CNC Machining China Expert: 7 Checks That Prevent Line Stoppages

Most sourcing failures on 3-axis parts are not price failures. They are symptoms: a tolerance that drifts at part 400, a finish that changes between batches, a material cert that never arrives. This page maps each symptom to its likely cause and the practical fix, so an engineer or buyer can tell a real 3 axis CNC machining China expert from a shop that simply owns a mill.

Get Instant Quote Talk to an Engineer

±0.005 mm repeatability27 three-axis machinesNo MOQNDA on request

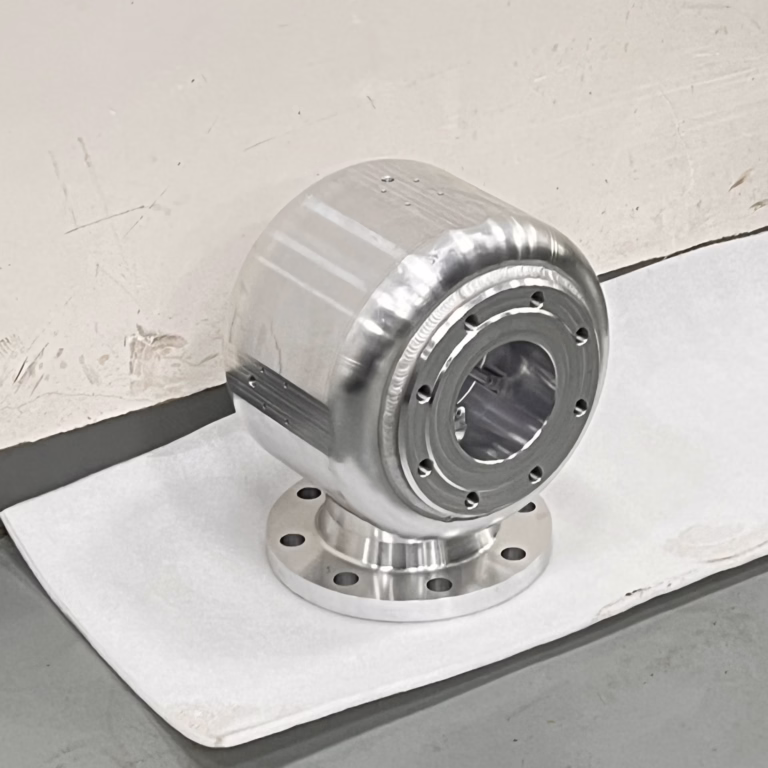

why choose oem 3 axis cnc machining china expert

On this page

1
Seven Failure Symptoms and What They Actually Mean
2
What a 3 Axis CNC Machining China Expert Actually Controls
3
The Precision Black Hole: Why Tolerances Drift at Volume
4
The Communication Vacuum and the Surface Finish Lottery
5
Material Traceability and the "We Can't Hold That" Wall
6
From Prototype to Production, and Keeping Your Drawings Yours
7
Step by Step: Vetting a 3 Axis CNC Machining China Supplier

Symptom → cause → fix

Seven Failure Symptoms and What They Actually Mean

Read the symptom in your own project first. The cause column is where the money is, because most of these problems are set before the first chip is cut.

Symptom on your parts	Most likely cause	Disposition
Tolerance drifts after a few hundred parts	Spindle wear, thermal growth, no monthly calibration	Ask for calibration records and CMM data per lot
Dimensions vary from batch to batch	Fixture rebuilt by eye, no torque spec	Require soft jaws kept on the machine with a setup sheet
Surface finish changes without a program change	Tool wear, coolant concentration, no finish callout	Lock the insert grade and coolant mix in the traveler
Material cert does not match the parts	Stock swapped between jobs, no heat-lot tracking	Track heat number from goods-in to shipment
Shop says the feature cannot be held	Quote written before a DFM review	Request free DFM feedback before the PO is issued
Prototype is fine, production is not	Process not frozen after first article	Freeze speeds, feeds, and fixtures after FAI sign-off
Drawings circulate outside your team	No NDA, files sent by personal email	Sign an NDA and keep uploads on a controlled portal

Start here

What a 3 Axis CNC Machining China Expert Actually Controls

A 3-axis machine moves the table in X, Y, and Z while the spindle stays vertical. That geometry suits prismatic parts: plates, housings, brackets, manifolds, heat sinks, and fixture bodies. When a shop runs 3 axis CNC machining China buyers get a simple pitch, usually a low hourly rate. The rate tells you almost nothing about whether the parts will fit.

The real variable is process control. On a mature 3-axis cell, the machine, fixture, tool, and inspection loop are documented as one system. Spindle runout is measured, not assumed. Fixtures are numbered and stored. Tool life is counted in parts, not in shifts. When one of those links breaks, you see it as a drifting dimension rather than an obvious crash.

GreatLight runs 27 three-axis machines alongside 16 simultaneous 5-axis centers, so a part that outgrows 3-axis work does not need a new supplier. Achievable tolerance on 3-axis work is ±0.005 mm (±0.0002 in) with 100% inspection before shipment. That number only holds when the fixture and the inspection method are agreed before cutting starts.

One boundary worth stating early. Deep cavities, undercuts, and features on five faces usually belong on a 4-axis or 5-axis machine. A supplier that quotes everything as 3-axis work is optimizing its own schedule, not your part.

1
Best fitPrismatic parts with features reachable from one or two setups
2
Poor fitDeep pockets, undercuts, or five-face features needing multiple re-clamps
3
Holds whenFixture, tooling, and inspection plan are frozen before the first article

Precision

The Precision Black Hole: Why Tolerances Drift at Volume

A quote that promises ±0.01 mm means little if the shop cannot repeat it at part 500. Drift comes from three places: spindle and axis wear, thermal growth through a long run, and fixtures that move slightly each time they are re-clamped. None of these show up in a first article.

The fix is boring and effective. Calibrate spindles on a schedule, let the machine reach thermal equilibrium before the first cut, and keep dedicated soft jaws on the machine between runs. Inspection then confirms what the process already does. GreatLight inspects 100% of parts before shipment and can supply raw material checks, in-process monitoring, and final reports on request.

Ask any potential supplier one question: how many parts into a run do you re-check the first dimension? A shop with a real answer has a process. A shop that says the operator watches it has a hope.

Watch the material as well. Aluminium 6061 and 7075 behave differently under the same cutter, and 17-4PH stainless work-hardens if the feed is too light. Process knowledge per material is what keeps a tolerance stable.

1
Ask forSpindle calibration records and CMM data per production lot
2
AvoidFirst-article-only approval with no in-process checks
3
ConfirmSpeeds and feeds documented per material grade

Communication

The Communication Vacuum and the Surface Finish Lottery

Communication failures rarely look like silence. They look like a part that meets the drawing but not the function. A chamfer called out as "deburr" gets a 0.2 mm edge break on one batch and a 0.8 mm one on the next. Nobody is wrong, and the assembly still fails.

Surface finish is the same story. Ra 1.6–3.2 μm as-machined is fine for a bracket and wrong for a sealing face. If the drawing only says "machined finish," each operator decides for you. Specify the band: Ra 0.8–1.6 μm for most functional faces, Ra 0.2–0.8 μm where a seal or bearing sits.

Then decide how the surface is produced. Bead blasting, tumbling, brushing, and polishing all change the number and the edge condition. Anodizing adds a few micrometres and can round a sharp edge. Put the finish sequence in the purchase order, not in a later email thread.

A practical habit: send one physical or clearly photographed reference part with the RFQ. It removes more ambiguity than three paragraphs of notes.

1
For sealing facesSpecify Ra 0.2–0.8 μm and note the measurement direction
2
For cosmetic partsSend a reference sample and name the finish process

Traceability

Material Traceability and the "We Can't Hold That" Wall

Traceability sounds like paperwork until a batch fails a hardness test. If the shop cannot link a finished part back to a heat number, every part in the warehouse becomes suspect. Good practice is simple: record the heat lot at goods-in, keep it with the job traveler, and print it on the inspection report.

The "we can't hold that" wall usually appears after the order, not before. It is a quoting problem. A supplier that reviews the model and returns a short DFM note will flag a thin wall, a deep slot, or a tolerance that needs a different setup. GreatLight returns a quotation and free DFM analysis within 12 hours, which is the cheapest moment to find that problem.

Some features genuinely need a second setup or a 4-axis machine. That is fine. What is not fine is discovering it after the tooling is made. Ask for the setup count in the quote and compare it with your own reading of the part.

For regulated work, the certificates matter as much as the process. Relevant programs here are covered by ISO 9001:2015, IATF 16949:2016, ISO 13485:2016, and ISO 27001:2022. Match the certificate to your industry before you match the price.

1
RequireHeat lot on the inspection report, not just the packing slip
2
CompareSetup count in the quote against the part geometry
3
MatchCertification scope to your industry and audit needs

Volume and IP

From Prototype to Production, and Keeping Your Drawings Yours

The gap between a good prototype and a stable production run is where many projects stall. A prototype can be hand-finished by a senior machinist. Production runs on a frozen process, a numbered fixture, and a written setup sheet that any qualified operator can repeat. Ask when the process gets frozen. The answer should be at first-article approval, not at part 2,000.

Volume flexibility matters too. Some projects need one prototype for a fit check and 10,000 parts a year later. Running both on the same process avoids a second qualification cycle. GreatLight has no minimum order quantity, and production can start within 24 hours once the process and material are confirmed.

Intellectual property is the quiet risk. Drawings sent to personal email accounts, CAD files on a shared laptop, no NDA. For a competitive product, that is the whole program. Keep uploads on a controlled portal and sign an NDA before detailed files change hands.

On timing, treat any schedule as a process output rather than a promise. Parts typically ship in 3–5 days for standard work, and the historical late-delivery probability here sits below 2%. Ask what happens when a tool breaks mid-run: that answer tells you more than the headline lead time.

1
Freeze the processAt first-article approval, with a written setup sheet
2
Protect the filesNDA plus a controlled upload portal, not personal email
3
Plan the transitionKeep prototype and production on one process where possible

How to run the check

Step by Step: Vetting a 3 Axis CNC Machining China Supplier

Work through these in order. Each step produces a document you can compare between suppliers.

1
Send the RFQ with a finish and tolerance bandInclude the 3D model, a 2D drawing with datum scheme, the material grade, and the Ra band per face. Ask for a DFM note, setup count, and lead time in the same reply.
2
Read the DFM note before the priceA useful note names specific features: a 0.8 mm wall, a 6:1 depth-to-diameter pocket, a slot that needs a smaller cutter. A generic reply means nobody looked at the part.
3
Ask for spindle and machine recordsRequest the calibration interval and a recent CMM report on comparable work. For 3-axis work, confirm which of the 27 three-axis machines would run the job and its travel size against your part.
4
Confirm the fixture planAsk whether soft jaws are cut per job and stored with a job number. Reused generic vises are the most common source of batch-to-batch variation on prismatic parts.
5
Lock the finish sequenceState whether bead blasting, anodizing, or plating happens before or after final machining. Note the minimum laser marking character height of 1.5 mm if you need part IDs.
6
Agree the inspection packageDecide up front what ships with the parts: dimensional report, material cert with heat lot, finish measurement. 100% inspection before shipment is the baseline.
7
Sign the NDA and set the upload pathUse a controlled portal rather than personal email. Confirm who inside the shop can open the files and how long they are retained.
8
Run a small first lot and compareOrder a small batch, measure it against the drawing yourself, and compare the results with the supplied report. This is the cheapest way to find a fixture or inspection gap before volume.

FAQs

Common Questions

What tolerance can 3-axis machining actually hold in production?

On well-fixtured prismatic parts, ±0.005 mm (±0.0002 in) is achievable and is the figure used here. That applies to critical features measured with the agreed method, not to every dimension on the drawing.

The limit usually comes from the fixture and the material, not the machine. Thin walls deflect, and some stainless grades move after roughing. For those features, a stress-relief step between roughing and finishing is often the difference between holding and chasing the number.

When should a part move from 3-axis to 4-axis or 5-axis machining?

Move when features sit on more than one face and re-clamping would introduce error, or when a deep cavity or undercut cannot be reached from the spindle direction. A part that needs three setups on a 3-axis machine may need one on a 5-axis center.

The trade-off is cost per hour against setup count and accuracy. Simple plates with one or two setups stay cheaper on 3 axis. Complex housings usually win on 5 axis once you count fixtures and re-work.

How do I check that the material is what I ordered?

Require the heat lot number on the inspection report and match it to the mill certificate. For critical parts, ask for a hardness or composition check on the finished batch, not just the incoming stock.

Colour and weight are not evidence. 6061 and 7075 look similar after anodizing, and 304 against 316 needs a chemical check. If the application is regulated, put the test method in the purchase order.

What does surface finish Ra mean for my drawing callout?

Ra is the arithmetic mean roughness of the profile. Lower values mean smoother. As-machined work typically lands around Ra 1.6–3.2 μm, functional faces are usually specified at Ra 0.8–1.6 μm, and sealing or bearing surfaces at Ra 0.2–0.8 μm.

State the value and the face. A blanket note across the whole drawing forces the shop to guess, and guessing is where batch variation starts.

How is confidentiality handled on production files?

A mutual NDA before detailed files are exchanged, plus a controlled upload portal instead of personal email. Ask who can open the files, where they are stored, and when they are deleted after the order closes.

Programs that handle regulated or competitive work are covered by ISO 27001:2022 for information security. Ask for the certificate scope if your own compliance team needs it on file.

Can a prototype and a production run use the same supplier?

Yes, and it usually saves a second qualification cycle. The condition is that the process is frozen after first-article approval: same fixture, same tool grades, same speeds and feeds, written down.

There is no minimum order quantity here, so a single prototype and a 10,000-part run can go through the same route. Production can start within 24 hours once the process and material are confirmed.
