When Metal AM Fails: Why an ODM Metal 3D Printing China Expert Fixes It
Most metal additive problems are process problems, not design problems. This page maps the symptoms engineers see on the shop floor to the causes behind them, and the fixes an ODM metal 3d printing china expert applies under one roof. Read it before you send the next build.
In this article
- 1
- 2
- 3
- 4
- 5
- 6
Metal AM Failure Modes and What They Mean
Use this table before you scrap the build. Each row pairs what you see with what it usually means.
| Symptom on the part | Likely cause | Fix that holds |
|---|---|---|
| Warping or curl at the base | Thermal gradient too steep during first 20 layers | Preheat build plate; drop scan speed 15–20% |
| Layer delamination mid-build | Inert gas flow disturbed or oxygen above 1,000 ppm | Seal chamber; recheck gas inlet and filter |
| Porosity after HIP | Keyhole mode from excessive laser power | Reduce power 10%; increase hatch overlap |
| Dimensional drift on bore | Residual stress released during support removal | Stress relief before cutting supports |
| Cracks in IN718 after heat treat | Wrong solution temperature and ramp rate | Two-step age at 720 °C then 620 °C |
| Rough as-built surface on channels | Downskin angle below 40° with no support | Reorient part; add volume supports on downskin |
| Support scars on sealing face | Support contact too dense on critical surface | Move support to non-sealing side; tooth contact 0.2 mm |
| Batch-to-batch variation above 0.1 mm | Powder reuse without sieve or chemistry check | Sieve at 45 μm; log oxygen and particle size |
What an ODM Metal 3D Printing China Expert Does Differently
The phrase odm metal 3d printing china expert gets used loosely. In practice it describes a supplier that takes engineering ownership of the build instead of printing whatever file you send. A print bureau runs your CAD through a slicer and ships the blank. An ODM partner reads the design intent first, then decides orientation, support strategy, alloy, and the secondary operations the part will need.
That difference shows up when something goes wrong. A bureau tells you the print met the file. An ODM partner tells you the bore drifted 0.08 mm because stress released when the supports were cut, and proposes stress relief before wire EDM. One answer ends the conversation. The other ends the problem.
China's advantage here is not cheaper labor. It is the density of the supply chain around Dongguan and the Pearl River Delta. Powder suppliers, heat treat shops, wire EDM houses, and precision machining floors sit within a short drive of each other. When a build needs vacuum impregnation on Tuesday and five-axis finishing on Wednesday, that density compresses the schedule in a way a remote broker cannot.
GreatLight has run this model since 2011 from Dongguan, with a second plant in Singapore. Three wholly-owned plants cover 7,600 m², staffed by 150 technicians and 127 high-precision CNC machines. Metal AM parts come off the printer and go straight into the same building for heat treat coordination, support removal, and machining.
- 1Design intent reviewAlloy trade-offs, build orientation, and tolerance stack reviewed before the first layer.
- 2Print plus finishing under one roofHeat treat, support removal, machining, and surface finishing handled in sequence, not shipped out.
- 3Inspection you can auditRaw material check, in-process monitoring, and 100% inspection before shipment, with reports on request.
Why Metal AM Fails: Process Mechanics, Not Bad Luck
Every defect in the table traces back to one of three physical conditions: heat leaving the melt pool too fast, gas flow that is not uniform, or stress that gets locked in and released at the wrong moment. Warping is the first condition. Delamination is the second. Dimensional drift after support removal is the third.
Take warping. The first layers sit on a cold plate, so heat drains downward faster than the rest of the part. The contraction that follows pulls the edges up. Preheating the plate to 100–200 °C and slowing the first 20 layers by 15–20% usually solves it. If it does not, the part is too tall and thin for the chosen orientation, and the orientation is the real problem.
Delamination is a gas problem, not a laser problem. When oxygen climbs above roughly 1,000 ppm in the chamber, the melt pool oxidizes and the next layer does not bond. Engineers often turn up laser power to compensate. That makes it worse by driving keyhole porosity. Fix the gas seal and the filter first, then revisit the parameters.
Residual stress is the one that surprises people. A part can measure perfectly on the plate and drift 0.1 mm after supports are cut. The fix is a stress relief cycle before support removal, not tighter machining tolerance. If your supplier skips that step, no amount of final inspection recovers the part.
Matching Alloy and Geometry to the Application
Alloy choice drives both the defect risk and the finishing route. Ti-6Al-4V (TC4) is common for aerospace brackets and medical instruments, but it is reactive and needs tight oxygen control throughout the build. Inconel 718 handles high-temperature impellers and turbine hardware, yet it is prone to cracking if the solution treatment ramp is wrong. Aluminum alloys print faster and cheaper but lose strength at temperature and machine with a gummy chip.
Geometry sets the rules too. Internal conformal cooling channels, lattices, and topology-optimized ribs are the reason to use metal AM at all. Those same features are where support removal gets hard. A channel with a 5 mm diameter and a 40° overhang prints cleanly. Push the overhang below 40° without downskin support and the channel roof sags into the flow path.
Know when metal AM is the wrong call. A simple prismatic bracket with no internal features is cheaper and faster on a five-axis mill. Metal AM earns its place when the geometry cannot be reached by a cutter, when weight matters more than stock cost, or when the part count is too low to justify tooling. A good ODM partner will say so instead of taking the order.

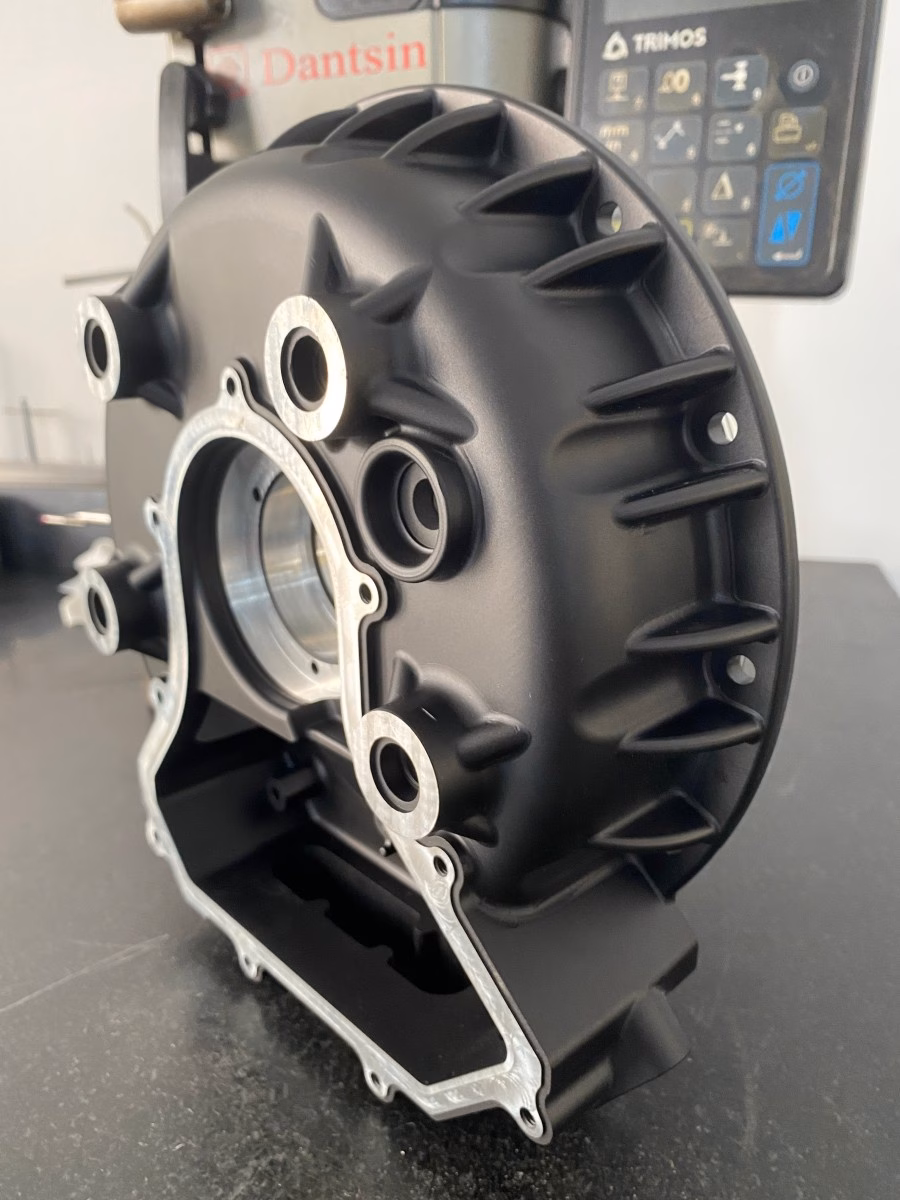

For parts that need both, the hybrid route works well: print the complex geometry, then machine the critical interfaces. GreatLight runs 16 simultaneous 5-axis machining centers, 16 mill-turn centers, and a Ø400 mm rotary table, so sealing faces, bearing bores, and threads get cut to ±0.005 mm after the print. Surface finish lands between Ra 0.8 and 1.6 μm on functional faces, or Ra 0.2–0.8 μm where a seal demands it.
- 1Titanium and InconelGood for high temperature and weight-critical parts, but oxygen and heat treat control decide the outcome.
- 2Aluminum alloysFast to print, easy to machine, limited at elevated temperature.
- 3Stainless and tool steelPredictable for tooling inserts and wear parts; 17-4PH responds well to aging.
Certification and Scope: Where Cheap Quotes Break
A quote that covers printing only is not comparable to one that covers a finished part. Secondary operations are where most metal AM projects lose time. Heat treatment, support removal, wire EDM, threading, surface finishing, and inspection each add a handoff. When those handoffs cross company lines, nobody owns the tolerance stack.
GreatLight holds ISO 9001:2015, IATF 16949:2016, ISO 13485:2016, and ISO 27001:2022. That matters in different ways. IATF 16949 governs automotive and EV work, where process control and traceability are audited. ISO 13485 covers medical devices, where documentation follows the part. ISO 27001 covers how your CAD files and drawings are handled, which is often the first question a procurement team asks.
Confidentiality is part of the scope, not an add-on. Uploads are handled as secure and confidential, and an NDA is available on request. For defense-adjacent or unreleased product work, that paperwork should be signed before the first DFM review, not after the PO.
The practical test is simple. Ask the supplier which operations happen in their own building and which are outsourced. Then ask who signs the inspection report when the outsourced step fails. If the answer is vague, the schedule risk is yours.
How to Evaluate an ODM Metal 3D Printing China Expert
Six steps, in order. Each one produces a document or a measurement you can compare across suppliers.
- 1Send a part that already failedGive them the scrap part plus the drawing. A real ODM partner will identify the failure mode from the fracture surface or the dimensional report, not from a guess. Ask for a written cause and a proposed parameter change.
- 2Request the DFM before the quoteExpect orientation, support strategy, alloy recommendation, and the secondary operation list. GreatLight returns quotation and free DFM analysis within 12 hours. If the DFM is a one-line email, the engineering depth is not there.
- 3Pin down the heat treat and stress relief sequenceAsk for the exact cycle: temperature, ramp rate, hold time, and whether it runs before or after support removal. For IN718, a two-step age at 720 °C then 620 °C is standard. For Ti-6Al-4V, stress relief before cutting supports prevents bore drift.
- 4Confirm who machines the critical featuresSealing faces, bearing bores, and threads should be cut after the print, not left as-built. Ask for the machining tolerance and the finish range in writing. ±0.005 mm and Ra 0.8–1.6 μm are reasonable targets for functional interfaces.
- 5Ask for the inspection plan and a sample reportThe plan should name raw material check, in-process monitoring, and final inspection, with 100% inspection before shipment. Reports on request. Compare the report format across suppliers; a CMM report with datum callouts tells you more than a pass/fail stamp.
- 6Run a small batch before the production orderThere is no minimum order quantity, so start with one prototype and then a run of 10 to 20 parts. Track dimensional spread across the batch. Variation above 0.1 mm usually points to powder reuse without sieving at 45 μm or a drifting gas supply.
Questions Engineers Ask Before Committing
How do I know the defect is a process problem and not my CAD?
Send the same file to a second supplier with a different machine and parameter set. If the defect disappears, the CAD was not the cause. If it repeats in the same location, look at wall thickness, overhang angle, and support contact points in that region.
A DFM review should catch this before printing. Wall thickness under 0.4 mm on a downskin and overhangs below 40° without support are the two most common geometry-driven failures.
Can a China-based ODM partner hold tolerances comparable to a local machine shop?
On the machining side, yes, because the print is only the blank. GreatLight cuts critical features on 5-axis centers to ±0.005 mm (±0.0002 in) with finishes between Ra 0.8 and 1.6 μm.
On the AM side, tolerance depends on orientation and stress relief, not geography. Ask for the inspection report from the first batch and compare it to your drawing.
What lead time is realistic for a metal AM part with finishing?
Production can start within 24 hours of a released order, and parts typically ship in 3–5 days. That assumes the DFM is approved and no new geometry changes arrive mid-build.
Parts needing HIP, vacuum impregnation, or hardcoat anodizing take longer because those steps run on their own schedules. Build that into the plan rather than treating it as a delay.
How is my design protected if I send CAD files overseas?
Uploads are handled as secure and confidential, and an NDA is available on request. GreatLight holds ISO 27001:2022, which covers information security management.
For unreleased products, sign the NDA before the DFM review. That keeps the design intent discussion inside the agreement instead of after it.
When should I skip metal AM and just machine the part?
If the part is prismatic, has no internal channels or lattices, and the annual volume justifies tooling or a long mill run, subtractive is cheaper and faster.
Metal AM pays off when geometry cannot be reached by a cutter, when weight reduction matters, or when the quantity is too low for tooling. A supplier that argues against AM when it does not fit is usually the one worth keeping.
What does a finished ODM part include beyond the print?
Heat treatment, support removal, wire EDM or saw cut from the plate, precision machining of interfaces, threading, and surface finishing. Anodizing, plating, powder coating, black oxide, bead blasting, and laser marking are all part of the finishing scope.
Inspection closes the loop: raw material check, in-process monitoring, and 100% inspection before shipment, with reports on request.
Send the Failed Part. Get the Real Cause.
Upload the drawing and the scrap part. We return a quotation and a free DFM analysis within 12 hours, with the failure mode named and the parameter change proposed.
12-hour quoteNDA on requestNo minimum order quantity
