Professional ODM CNC Milling: How Design and Machining Fit Together

• 1
  What the ODM and OEM Sides Actually Do
• 2
  Why Milling and Turning Are Usually One Decision
• 3
  What a Real DFM Review Covers Before Cutting
• 4
  Machine Width Determines Which Jobs Fit
• 5
  Material Choice Changes the Milling and Turning Plan
• 6
  How Tolerance and Inspection Hold Across a Batch
• 7
  Where the Integrated Model Does Not Help
• 8
  When to Keep Milling and Turning Under One Roof

In everyday language, professional ODM CNC milling gets used as one label for two different jobs. The ODM half is design ownership: the supplier reviews your 3D model, questions wall thickness, chooses a material grade, and writes the tolerance scheme. The OEM half is execution: the same supplier mills and turns parts to an agreed drawing, then inspects them.

That split matters because the two halves fail in different ways. A weak ODM review shows up late, when a thin rib cracks during clamping or a deep pocket needs a tool that cannot reach it. A weak OEM run shows up in the inspection report: bores out of round, flatness drifting across a batch, threads that gauge tight.

So the phrase is not marketing padding. It describes who owns the engineering risk. If your supplier only quotes from a drawing and never comments on it, you have an OEM job with a design review you did yourself. That is fine for simple brackets. It is expensive for a housing with five intersecting bores.

The practical test is simple. Send a model with one deliberate weak spot and see whether anyone writes back about it before the quote. Silence means you are buying machine time, not engineering.

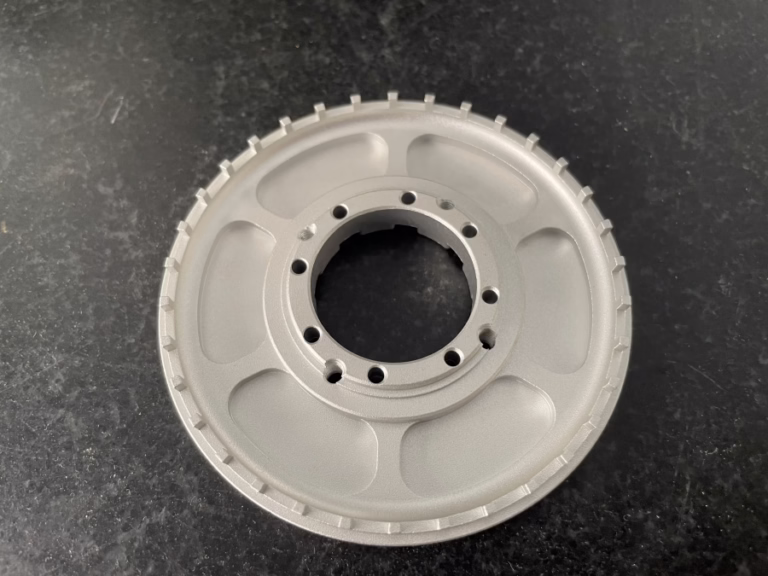

Milling removes material with a rotating cutter; the workpiece stays still. Turning spins the workpiece against a stationary tool. Most real parts need both. A valve body might start as a turned Ø60 mm blank, then get milled flats, ports and a mounting face.

When one shop runs both, the datum carries across operations. The turned bore becomes the zero for the milled face. Flip the part and the concentricity still holds, because the same fixture and the same operator set it up.

Split the work between two shops and you inherit two datum schemes. Each shop optimizes its own side. Nobody owns the stack-up between them. On a part with a 0.02 mm true position callout, that gap eats the whole tolerance band.

Mill-turn centers reduce the handoff further. A part can be turned, milled and parted off in one cycle, with no re-chucking. That is where a ±0.005 mm tolerance is realistic rather than hopeful.

• 1
  One datum chainTurned bore becomes the zero for milling.
• 2
  One setup sheetNo argument about who moved the feature.
• 3
  One inspection reportDimensions trace back to one drawing revision.

A DFM review is not a politeness. It is a list of decisions that get cheap before the first cut and expensive after. Wall thickness is first. Aluminum below 0.8 mm bows under clamping pressure; steel below 1.0 mm can chatter on a long face.

Next is tool access. A pocket deeper than four times its width needs a long, thin cutter that deflects. Either the pocket gets wider, the corner radius grows, or the tolerance loosens. All three are design changes, not machining tricks.

Then come datums and callouts. A position tolerance applied to a feature that no one can measure in production is a drawing defect. We would rather flag it in the review than argue about it at final inspection.

Finally, material and finish. Anodizing adds roughly 5–15 μm per surface, which matters on a Ø10 H7 bore. Hardcoat builds more and changes the fit. These are the items worth discussing before the quote is signed, not after.

A shop's machine list sets hard boundaries. A 4,000 mm travel handles long frames and rails; a 500 mm compact machine does not. A Ø400 mm rotary table allows full contour work on a round part; a three-axis mill needs multiple setups.

This is where suppliers over-promise. A quote that lists 5-axis capability but only owns three-axis machines will farm the part out, and the schedule slips. Ask which machine will run the job, not which machines exist.

For most turned parts, live tooling and a sub-spindle matter more than axis count. They let a part come off complete, with cross-holes and a back-side chamfer already in place. That removes a second op and a second chance to lose concentricity.

GreatLight runs 127 high-precision CNC machines across three plants in Dongguan and Singapore, including 16 simultaneous 5-axis centers, 16 mill-turn centers and a Ø400 mm rotary table. That spread is what lets a prototype and a 10,000-part run use the same process.

The same geometry behaves differently in 6061-T6 and 17-4PH. Aluminum cuts fast and holds a fine finish, but it scratches easily and moves when you remove a lot of stock. Stainless work-hardens at the cut, so a light finishing pass at the wrong feed dulls the tool and tears the surface.

Titanium TC4 (Ti-6Al-4V) needs low cutting speed, rigid fixturing and plenty of coolant. It also springs back, so a boring pass that measured 0.01 mm under may come back oversize after the tool clears.

Plastics bring their own rules. POM and PEEK hold tight tolerances well; ABS and PP deflect under clamping. A vacuum fixture or soft jaws are worth the setup time when the wall is 1.5 mm.

This is why material selection belongs in the ODM phase. Choosing 303 stainless over 316L for a turned fitting can cut cycle time without touching the function, as long as corrosion and weldability allow it. That is a design call, not a purchasing one.

A single part at ±0.005 mm is a machinist's achievement. Ten thousand parts at ±0.005 mm is a process. The difference is thermal drift, tool wear and fixture repeatability, and none of them show up on the first article.

In-process monitoring catches the drift. A bore checked every twenty parts tells you when the tool is wearing before the dimension leaves tolerance. Waiting until final inspection means scrapping a batch instead of adjusting an offset.

Finish is the same story. Ra 1.6–3.2 μm is a normal as-machined surface. Ra 0.8–1.6 μm needs a controlled finishing pass. Ra 0.2–0.8 μm usually means a separate operation, and the drawing should say which surfaces actually need it. Blanket finish callouts cost money for no benefit.

We inspect 100% of parts before shipment, with raw material checks, in-process monitoring and a final report on request. Certifications held are ISO 9001:2015, IATF 16949:2016, ISO 13485:2016 and ISO 27001:2022.

An integrated shop is not automatically better. For a family of simple turned spacers in 303 stainless, a dedicated turning house with bar feeders will beat a general machine shop on price and cycle time. The ODM side adds nothing when the design is fixed and simple.

Very large parts are another boundary. If a part exceeds a 4,000 mm travel, no amount of process integration helps. The job goes to whoever owns the machine, and the sourcing decision is already made.

Specialty processes sit outside the chain too. Heat treatment, HIP, and some coating specifications go to licensed outside vendors regardless of who machines the part. The value of an integrated shop is that it manages that queue for you, not that it performs every step.

So the honest rule is this: integrate when the part has coupled features or the design is still moving. Split when the part is simple, the drawing is frozen, and one process dominates.
