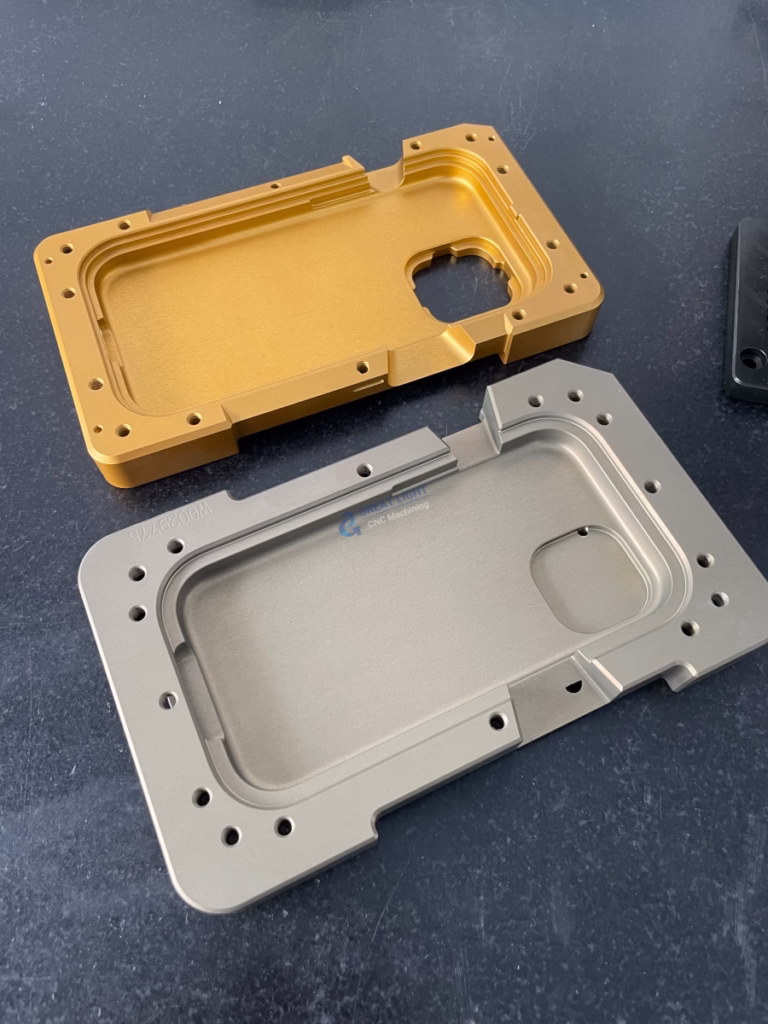

A standard job shop quotes what you send. A chinese cnc milling turning odm reads the drawing first and quotes what the part should be. That difference shows up in the first reply, usually as a marked-up PDF with notes on datums, wall thickness and finish callouts. The engineer is not trying to sell you extra work. They are looking for the features that will drive cost and scrap before the quote locks the price.

Take a bracket with a 0.4 mm wall next to a Ø8 mm bore. On a 3-axis mill the wall will chatter and the bore will drift. A design-driven partner flags this at quote stage and proposes either a thicker wall at 0.8 mm or a change to 5-axis access so the bore is cut in one setup. Neither change is cosmetic. Both cut cycle time and reduce the chance of a rejected batch.

The same logic applies to turned parts. A shaft with a 0.005 mm concentricity callout between two diameters is easy on a mill-turn center and hard on a lathe with a separate mill op. The partner who owns the equipment will say so. The one who does not will quote the tight tolerance and hope.

This is the practical meaning of design driven. The machining plan comes before the price, not after. Feed and speed, workholding and inspection method are chosen against the drawing, and the quote carries the assumptions in writing.

• 1
  DFM firstComments land on the drawing before the quote is finalized.
• 2
  Process matchThe proposed machine list is named in the quote.
• 3
  Assumptions writtenTolerances and finishes are stated, not implied.

Every tolerance has a cost curve. From nominal to ±0.05 mm, a mill or lathe will hold the size with normal tooling and a standard in-process check. Between ±0.05 mm and ±0.02 mm, you start paying for better workholding, temperature-stable coolant and a slower finishing pass. Below ±0.02 mm the process changes shape: pre-finish stock is left on, the part is measured on the machine, and the last cuts are compensated against the reading.

GreatLight holds ±0.005 mm (±0.0002 in) on qualified features. That number is not a blanket capability. It applies to features with a clean datum, a rigid setup and a material that behaves. A thin aluminum fin or a deep bore in 304 stainless will not reach it, and a partner who promises otherwise is quoting a number instead of a process.

Surface finish follows the same rules. As-machined parts land at Ra 1.6–3.2 μm. A high-finish callout of Ra 0.8–1.6 μm is a normal step up for sealing faces and bearing bores. Ra 0.2–0.8 μm needs a dedicated finishing pass, often with a smaller tool and a longer cycle, and it is usually cheaper to reach by lapping or polishing the finished part than by cutting it.

The engineering question is not how tight the shop can go. It is which features actually need the tight number. Marking a whole part ±0.005 mm when only two bores mate with anything else adds cost to every surface and hides the features that matter.

• 1
  Free zone±0.05 mm and looser with standard tooling.
• 2
  Cost zone±0.05 to ±0.02 mm needs tighter process control.
• 3
  Process zoneBelow ±0.02 mm needs in-process measurement.
• 4
  FinishRa 0.2–0.8 μm is often cheaper by polishing than by cutting.

Setup count is the quiet cost driver. A part machined in one 5-axis setup has no re-fixturing error between features, so a 0.01 mm position callout between two faces is realistic. The same part split across three 3-axis setups accumulates datum error at each move, and the inspector has to chase it. When a drawing has features on four or five faces, ask how many setups the quote assumes.

Material choice moves the boundary as much as the machine does. Aluminum 6061 and 7075 cut clean and hold size well, which is why prototypes and housings live there. Stainless 316L and 17-4PH work-harden at the cut, so feeds must stay aggressive enough to get under the hardened layer, and deep pockets need more passes. Titanium TC4 (Ti-6Al-4V) and Inconel add heat and tool wear, so a tight tolerance on a thin titanium wall is a different problem from the same tolerance on aluminum.

Inspection closes the loop. A tolerance is only as good as the method that verifies it. Calipers and micrometers cover outside diameters and lengths. Bores and positions need a coordinate measuring machine or a bore gauge set, and small radii need an optical comparator or vision system. GreatLight inspects 100% of parts before shipment and can supply raw material check, in-process monitoring and final inspection reports on request.

Put together, these three factors explain why two shops quote the same drawing at very different prices. The cheaper quote often assumes fewer setups, a friendlier material and a lighter inspection plan. That is not always wrong. It is only wrong when the assumptions are not written down.

• 1
  One setup5-axis access removes re-fixturing error between faces.
• 2
  Material behaviorWork-hardening alloys need different feeds and passes.
• 3
  Inspection matchThe gauge must resolve the tolerance it checks.

The model pays off on parts with real geometry: multi-face housings, mating bores, sealing faces, thin walls, prototypes that will become production. It pays off less on simple flat plates and spacers where the drawing is already optimal and the only variable is price. If a part has two holes and a chamfer, DFM feedback has little to add.

It also needs a partner with the machines to back the advice. A shop that offers design review but outsources 5-axis work is passing the problem down the chain. Ask which machines are in-house. GreatLight runs 127 high-precision CNC machines across three wholly-owned plants, including 16 simultaneous 5-axis machining centers, 12 four-axis mills, 27 three-axis machines and 16 mill-turn centers, with a maximum processing size of 4,000 mm.

Volume matters too. Design review is most valuable at the transition from prototype to batch, where a small change to a fillet or a tolerance saves setup time on every part that follows. On a 10,000-piece run the same review is mandatory, because a process error multiplies. On a single cosmetic part, the review is quick and the savings are small.

Finally, the model assumes you want the feedback. Some programs have a frozen design and a fixed supplier list. In that case, ask for a straight quote against the released drawing and skip the review. It is faster and it avoids opening changes you cannot accept.

• 1
  Good fitMulti-face parts, mating features, prototype-to-batch transitions.
• 2
  Weak fitSimple plates where the drawing is already optimal.
• 3
  Check firstConfirm the critical machines are in-house.
