Professional Bulk Metal Die Casting: How to Judge a Vendor
This page explains what happens inside the die during professional bulk metal die casting, where the process hits its limits, and which vendor capabilities actually change the outcome. It is written for design engineers and sourcing engineers who compare quotes on more than price.
In this article
- 1
- 2
- 3
- 4
- 5
- 6
- 7
Five things that decide the run
What happens when metal fills the die
Hot-chamber and cold-chamber machines do the same basic thing. Molten alloy is forced into a steel cavity at high velocity, held under pressure while it solidifies, then the die opens and ejector pins push the part out. Aluminum and magnesium alloys run cold-chamber because they attack the shot sleeve at hot-chamber temperatures. Zinc runs hot-chamber because it melts near 390 °C, which lets the plunger sit in the melt and cycle faster.
Fill time is measured in milliseconds. A 2 mm wall can freeze in under 40 ms, so the metal has to arrive before the gate seals. That is why gate area, runner layout and injection velocity matter more than the nominal machine tonnage on the quote sheet. A 400-ton machine with a well-placed gate will fill a bracket that a poorly gated 800-ton machine leaves short.
Once the cavity is full, intensification pressure packs the remaining shrinkage. Aluminum shrinks roughly 1.3% linearly as it cools. If pressure is released too early, that shrinkage shows up as a void near the thermal center, usually in a boss or a thick rib junction. This is the origin of most porosity arguments between buyer and foundry.
The die itself is a heat exchanger. Cooling lines run 25–40 mm apart in high-wear areas, and cycle time is often limited by how fast the die can shed heat, not by the machine. A die with poor cooling will run hot, flash, and wear at the parting line. This is why die design review belongs before the first shot, not after the first rejection.
Where professional bulk metal die casting stops working
Die casting is a near-net process. It gives you complex geometry, thin walls and integrated bosses at a low piece price once the tool is amortized. It does not give you tight tolerances on every surface. As-cast linear tolerance on a 100 mm aluminum feature typically lands around ±0.1 to ±0.3 mm depending on alloy, wall and die wear. Anything tighter goes to a machining step.
Wall thickness is the first limit. Below about 1.0 mm, aluminum struggles to fill long flow paths, and the die sees higher thermal shock. Above about 6 mm, shrinkage porosity becomes hard to control because the center of the wall cools far behind the skin. The practical band for most commercial parts is 1.5–4 mm with gradual transitions.
Undercuts need slides or lifters. Each slide adds die cost, maintenance and cycle time, and each one can flash or gall. A part with three undercuts on one axis is normal. A part with undercuts on four axes may be cheaper as a machined part or a casting plus a weldment.
Draft is the third limit. Zero-draft walls drag on ejection, score the die and eventually crack it. Plan 1–2° on as-cast walls and up to 3° on textured surfaces. Small text and fine knurling survive casting only if they are drafted and placed on a face the ejector system can release cleanly.
- 1Good candidatesHousings, brackets, heat sinks, motor end bells, gearbox covers, structural nodes.
- 2Poor candidatesOne-off parts, heavy sections over 6 mm, sharp internal corners, optical surfaces.
- 3Mixed casesThin cosmetic panels that need a Class A finish, which usually means added polishing.
Alloy choice and what it does to the part
ADC12 is the workhorse aluminum die casting alloy. It flows well, fills thin walls, and machines to a decent finish. Its downside is lower ductility, so it is a poor choice for parts that see impact or bending loads. A356 and similar heat-treatable alloys give better strength and elongation, but they are harder to cast and often need a T6 treatment after the fact.
Zinc alloys such as Zamak 3 and Zamak 5 cast at lower temperature, hold tighter as-cast tolerance, and take plating and chromate well. They are heavier and less corrosion-resistant than aluminum, so they tend to show up in small precision parts, hardware and decorative components rather than large structural ones.
Magnesium AZ91D is roughly 35% lighter than aluminum and casts thin walls well. It needs a protective atmosphere and careful chip handling during any secondary machining, because fine magnesium swarf ignites easily. That is a real cost item. If your program does not need the weight saving, aluminum is simpler.
Alloy selection is a joint decision, not a catalog pick. The vendor should be able to say which alloy they run most often, what their scrap rate looks like on it, and what happens to the part after 50,000 shots. A vendor who quotes every alloy at the same price is not tracking their own process.
How to read a professional bulk metal die casting quote
Quotes diverge because vendors make different assumptions. One assumes the die runs 100,000 shots before replacement; another assumes 300,000. One includes trimming in the cycle; another lists it as a separate operation. Before comparing numbers, ask for the shot count assumed in the tooling price and the piece price at 10,000, 50,000 and 100,000 parts.

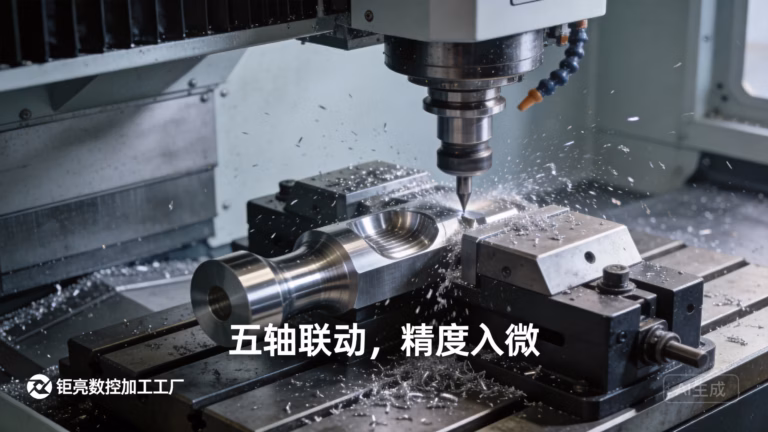

Look at what is in-house. If the vendor casts but sends parts out for CNC machining, deburring and anodizing, every handoff adds a week and a chance for the defect to be discovered late. GreatLight runs die casting, 3-axis, 4-axis and 5-axis CNC machining, surface finishing and inspection under one roof, so a casting that needs a machined sealing face moves to the next machine instead of to a truck.
Ask about process control on the shop floor. A vendor tracking cavity pressure, die temperature and cycle time per shot can tell you why a batch shifted. A vendor checking only final dimensions will find the problem after the parts are made. That difference shows up in your incoming inspection rate, not in the quote.
Finally, check the certifications against your industry. ISO 9001:2015 covers general quality systems. IATF 16949:2016 is what automotive and EV programs expect. ISO 13485:2016 applies to medical device components. ISO 27001:2022 matters if you are sending CAD files and drawings that you do not want leaving the building.
Where the money actually goes
Tooling is a one-time cost and it is visible. The hidden costs are scrap, secondary operations and late changes. A die that needs three rounds of correction before it runs at rate can add weeks. A die that runs but produces porosity in a boss forces a design change after the customer has already approved the sample.
Piece price drops with volume, but not linearly. At low volumes the cycle time dominates. At high volumes the die life and maintenance schedule dominate. Around 50,000 to 100,000 shots, a vendor should be telling you when the die will need refurbishment and what that costs per part.
Secondary machining is often the largest variable. A casting with one machined face and two drilled holes might add 20% to the piece price. A casting that needs full 5-axis contouring on six faces can double it. Designing the machined features to be reachable in one setup keeps that number down.
There is no universal price advantage to a large vendor or a small one. What matters is whether the vendor's equipment matches your part. A 4,000 mm maximum processing size matters if your housing is large. A Ø400 mm rotary table matters if your part needs multi-face work in one setup. Match the capability to the geometry.
What to check before you place a die casting order
Read each row as a question to ask the vendor, and the two columns as what a weak and a strong answer sound like.
| Check | Weak answer | Strong answer |
|---|---|---|
| Die design review | Quotes from your 3D file only | Returns a DFM report with gate and draft notes |
| Alloy control | Buys whatever is in stock | Spectrometer check on every melt |
| Porosity testing | Visual check after trimming | X-ray or sectioning on critical features |
| Secondary machining | Subcontracted with no process data | In-house 3, 4 and 5-axis, ±0.005 mm |
| Die maintenance | Replaces dies on failure | Logs shots and schedules preventive work |
| Inspection records | Certificate of conformance only | Dimensional reports on request, 100% pre-ship |
| Confidentiality | No stated policy | NDA available, ISO 27001:2022 controls |
When to choose casting, and when to choose something else
If your part is a complex, thin-walled metal housing needed in thousands per year, professional bulk metal die casting is the right process. If it is a one-off, has walls over 6 mm, or needs ±0.01 mm on every surface, machine it from billet or cast it and plan for CNC finishing on the critical faces.
Die casting questions engineers ask
What is the smallest wall thickness we can cast in aluminum?
For ADC12-type alloys, 1.0 mm is achievable on short flow paths and small parts. On a large housing with a long runner, plan for 1.5–2.0 mm as the practical floor.
Walls below 1.0 mm increase short-shot risk and raise die wear, so the cost per good part usually goes up even though the part is lighter.
How much machining allowance should we add to a casting?
0.3–0.5 mm per machined face is typical for a first pass. It covers as-cast variation without adding cycle time on the CNC.
On a face that must be flat and sealed, add 0.5 mm and specify it as a machined datum so the fixture is repeatable.
Can die casting hold ±0.005 mm as-cast?
No. As-cast tolerance on aluminum features is typically ±0.1 to ±0.3 mm depending on size and alloy.
±0.005 mm is a CNC machining tolerance. GreatLight reaches it on machined features after casting, not on the raw cast surface.
What causes porosity in a die cast part, and can it be eliminated?
Gas entrapment during fill and shrinkage during solidification are the two sources. Vacuum assist, better gate placement and controlled intensification pressure reduce both.
It cannot be eliminated entirely. The goal is to keep voids out of sealing faces, threads and structural sections. X-ray or sectioning confirms where they land.
Do we need a new die if we change the part slightly?
Sometimes. Moving a boss or adding a rib can often be welded and re-cut into an existing die. Changing the parting line or adding a slide usually means a new die.
Send the revised model early. A die modification quoted in the design stage is far cheaper than one quoted after the die is cut.
What volume makes die casting cheaper than CNC machining from billet?
It depends on part complexity. Simple parts with low machining time often justify tooling somewhere between 2,000 and 5,000 pieces per year.
Complex housings with a lot of material removal can break even earlier, because casting brings the shape close to final and the CNC only touches critical faces.
Send the model before you commit to a die
Our engineers review gate placement, draft, wall thickness and machining allowance, then return a DFM analysis with the quote. No minimum order quantity, from one prototype to 10,000+ part runs.
DFM within 12 hours±0.005 mm on machined faces100% inspection before shipmentNDA on request
