Five Axis Machining Small Parts: How Tool Axis Control Changes the Job

• 1
  What matters most
• 2
  Why five axis machining small parts behaves differently
• 3
  Which small geometries justify five axis machining
• 4
  Where five axis machining small parts stops paying off
• 5
  Holding ±0.005 mm on a small five axis part
• 6
  Material behavior on small five axis cuts
• 7
  What to send us for a small five axis quote
• 8
  Small part routing: 3-axis, indexed 5-axis or simultaneous 5-axis

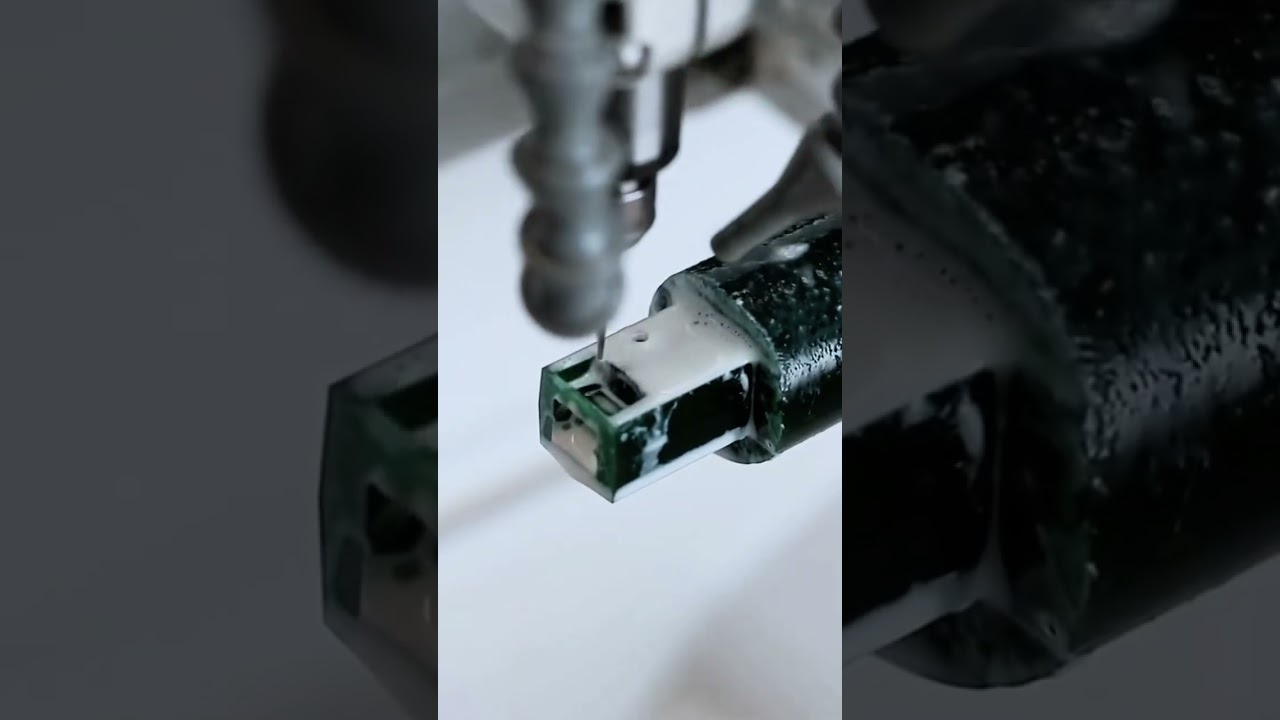

On a 3-axis mill the tool axis is fixed and vertical. The part must be repositioned every time a new face needs cutting. On a small part, that repositioning is the expensive part of the job, not the metal removal. A 30 mm aluminum housing might take six minutes of cutting and forty minutes of fixture work across three setups.

Five axis machining small parts changes the order of operations. Two rotary axes, usually a trunnion carrying an A or B axis and a table carrying C, let the tool approach from any direction in one clamping. The same housing comes off the machine complete, with the bores, the side ports and the top face all cut against one datum.

The word simultaneous matters here. Indexed 5-axis work is really 3-axis cutting with faster repositioning between faces. Simultaneous work keeps all five axes in motion through the cut, which is what lets a short tool follow a curved wall without leaving witness marks where the passes meet.

For small parts the payoff is not speed. It is the ability to hold position between features. When every face is cut from the same zero, the perpendicularity between a bore and a mounting face stops depending on how well a fixture was reset.

• 1
  One clamping, many facesBores, slots and faces cut from a single datum instead of three.
• 2
  Stub tool advantageTilted approach lets a shorter, stiffer cutter reach deep pockets.
• 3
  Fewer fixtures to buildSoft jaws and custom plates drop out of the routing.

The clearest candidate is a part with features on four or more faces that must stay in relation to each other. A manifold block with intersecting internal bores, a sensor housing with a sealing face perpendicular to a connector axis, or a robot wrist component with angled mounting pads all fall into this group. The geometry itself is what forces the extra axes.

Curved surfaces are the second group. Impeller blades, turbine-like vanes, medical instrument jaws and lens housings have walls that change direction continuously. A ball nose cutter on a 3-axis machine can produce the shape, but the tool tip speed drops to near zero at the center of the cut, which leaves a poor finish and slow feed rates.

Undercuts and re-entrant pockets are the third. If a feature cannot be reached from above or from one side, no amount of clever fixturing will help on a 3-axis machine. A tilted tool can swing into the cavity from an angle the spindle cannot normally reach.

Then there are the parts where the requirement is not shape but access. A deep bore with a cross hole at the bottom, or a slot that must be milled without a tool mark at the entry, usually needs the tool axis to sweep through the cut rather than sit still.

• 1
  Multi-face datumsFour or more faces with features that must stay related.
• 2
  Continuous curvatureBlades, vanes and housings where the wall keeps turning.
• 3
  Re-entrant featuresUndercuts and side entries a vertical spindle cannot reach.
• 4
  Deep narrow pocketsShort tools reach further when the head tilts.

Small and five-axis are not the same thing. A flat plate with a bolt pattern and one milled pocket is a 3-axis part. Fixturing it on a trunnion adds rotary positioning error and a longer setup without removing any operation. The cheapest route is still a vise and a vice-stop.

Very small features bring their own problem. Below roughly Ø1 mm, the cutter is fragile and the rotary axes may not have the resolution to hold position without chatter. At that scale, rigid workholding and a stable 3-axis spindle often give a better surface finish than tilting the part.

Rotary tables also lose stiffness as they grow. A Ø400 mm table is generous for a 60 mm part, but the trunnion stack is still in the force path. Heavy interrupted cuts on hardened steel can shake the part even when the machine is technically capable. For small hard parts, a dedicated fixture on a rigid 3-axis mill sometimes holds tolerance better.

Finally, programming and verification cost time. A simultaneous tool path needs collision checking, a verified post-processor and a proven setup. For a one-off part with a simple shape, that overhead can exceed the savings from fewer setups.

• 1
  Prismatic platesOne face of features means the rotary axes add nothing.
• 2
  Micro featuresBelow Ø1 mm, cutter fragility outweighs the reach benefit.
• 3
  Hard interrupted cutsTrunnion stack flexes under heavy interrupted loading.

Tolerance on small work is dominated by thermal drift and datum error, not by machine resolution. A part that measures 0.008 mm out of position at 9 a.m. may measure within tolerance after the spindle has warmed. That is why in-process checks matter more than a final CMM report on these jobs.

Tool length and runout are the next lever. A 0.003 mm runout on a 6 mm cutter turns into a visible step when the tool tilts into a wall. Presetting every tool and checking runout before the first cut is routine on tight work.

The rotary axes need to be zeroed against the same datums the part is cut from. If the trunnion center is measured once a month and the part datum is set per job, the two drift apart. Re-probing the rotary center at the start of a tight job is cheap insurance.

Coolant strategy also shifts. High-pressure through-spindle coolant clears chips from deep small pockets. Flood coolant alone tends to recirculate chips in a pocket not much wider than the cutter, which causes recutting and a rough floor finish.

• 1
  Warm-up before tight cutsLet the spindle and axes reach steady state first.
• 2
  Preset and check runoutA tilted tool magnifies any runout error.
• 3
  Re-probe rotary centerPer-job zeroing keeps the two datums aligned.

Aluminum is the easy case. 6061-T6 and 7075 cut cleanly at high spindle speeds, and the light cutting forces suit a trunnion that carries a small part. Thin walls down to 0.5 mm are workable if the tool path keeps the cutter engaged rather than rubbing.

Stainless grades behave differently. 304 and 316 work-harden at the tool tip, so a tilted cutter that dwells in the cut will glaze the surface and blunt the edge. 17-4PH in the H900 condition machines well but demands a rigid setup. Small stainless parts on a five axis machine need constant feed and enough coolant to keep the edge cool.

Titanium TC4 (Ti-6Al-4V) is the hardest routine job. It conducts heat poorly, so the edge runs hot. The five-axis advantage is real here: a tilted tool keeps the engagement angle steady and spreads wear along the flute instead of concentrating it at the nose.

Plastics and composites are the opposite problem. PEEK and carbon fiber need sharp edges and high surface speed. On a small part, the limiting factor is usually chip evacuation, not cutting force, and a tilted tool can help clear the pocket.

• 1
  Aluminum6061-T6, 7075; light forces suit small trunnion work.
• 2
  Stainless304, 316, 17-4PH; avoid dwelling in the cut.
• 3
  TitaniumTC4; constant engagement spreads edge wear.
• 4
  PlasticsPEEK, carbon fiber; chip evacuation is the limit.

The fastest quotes come from a STEP file plus a short note on function. Tell us which faces mate with other parts and which dimensions are critical. A drawing that marks two datums is more useful than one that tolerances every dimension equally.

Say what the part does. A bracket that holds a sensor and a bracket that holds a 2 kg load look similar on a print but need different answers on wall thickness and fillet size. Function tells us where to spend tolerance.

Include the material and the finish if they are fixed. If they are open, say so. Machining 6061 and anodizing it is a different routing from machining 7075 and leaving it as-machined, and the cost difference on a small part can be significant.

If the part is a prototype, mention the next step. A design that will be die cast at 10,000 units should be machined with draft and wall thickness in mind so the prototype and the production part behave the same way.

• 1
  STEP file plus a noteMark mating faces and critical dimensions.
• 2
  State the functionLoad, sealing and fit decide the tolerances.
• 3
  Name material and finishOr tell us they are open for DFM feedback.
