Five Axis Machining Automobile Engine Gearboxes

• 1
  Why gearbox geometry pushes past 3-axis work
• 2
  What simultaneous 5-axis actually does to the cut
• 3
  Aluminum and cast iron behave differently on the same machine
• 4
  How we prove bore alignment before parts ship
• 5
  Where 5-axis is the wrong answer
• 6
  When 5-axis beats 3-axis on gearbox parts

A manual or DCT gearbox housing is a box with five or six machined faces that all reference each other. The input shaft bore, the output shaft bore, the differential bore and the shift rail holes sit at different angles on different faces. A 3-axis mill can reach each face, but only after the operator re-fixtures the part and picks up a new datum.

Every re-fixture adds a small stack-up error. On a housing that is 300 mm across, a 0.02 mm shift at the second datum can move the far bearing bore by 0.03 mm or more once you add the angle. Bore-to-bore center distance is what sets gear mesh and shaft alignment, so that error shows up as noise and wear later.

Five axis machining automobile engine gearboxes solves this by rotating the part or the spindle instead of the fixture. The housing stays clamped once, and the machine indexes to each face. Datum error stays at the first setup only.

The trade is not free. A simultaneous 5-axis move costs cycle time versus a fast 3-axis face mill. For a housing with one critical face and three simple bolt faces, 3-axis plus a good fixture is often cheaper.

• 1
  One setupAll bores cut from the same zero point.
• 2
  Short toolsTilt the head to reach deep pockets without long reach.
• 3
  Fewer fixturesNo second op plate per face.

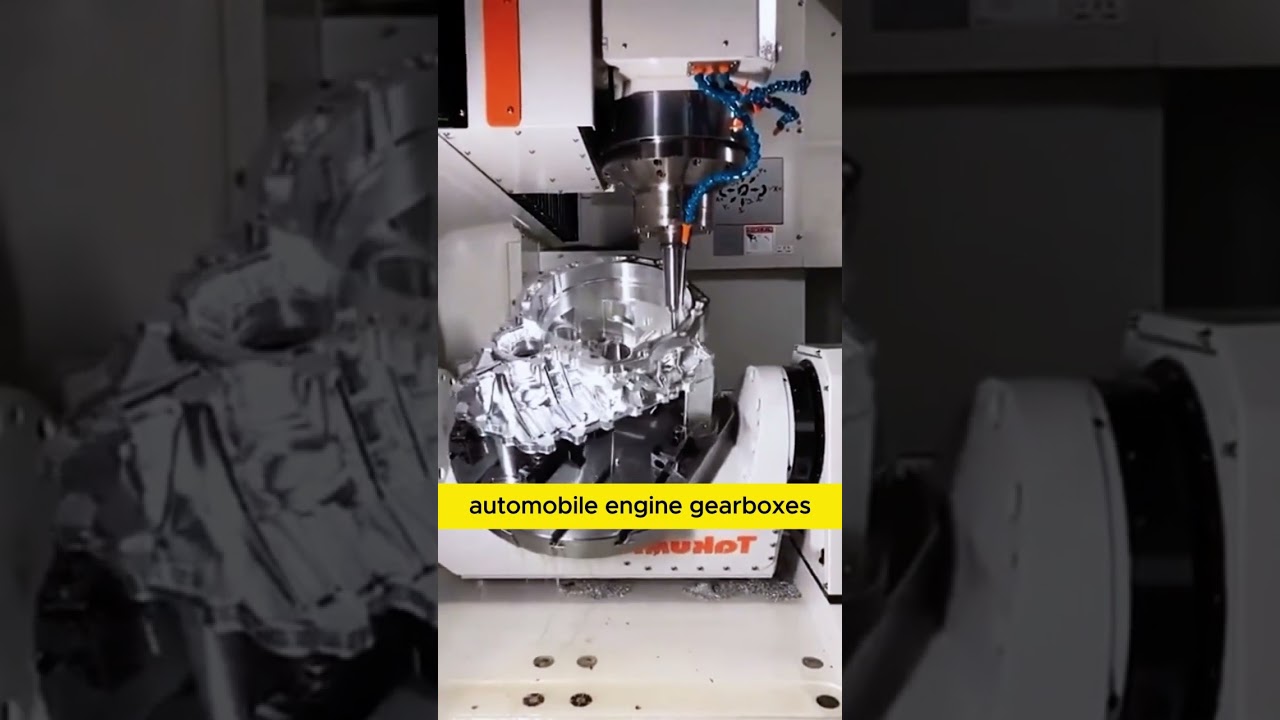

Two extra rotary axes sit on top of X, Y and Z. On a trunnion machine the A axis tilts and the C axis spins the table. On a swivel-head machine the spindle does the tilting. Either way, the tool tip can be kept normal to a curved or angled surface while it moves.

That matters for bearing bores. A boring bar that enters at an angle to the bore axis cuts an ellipse, not a circle. With 5-axis the head tilts so the bar enters on the bore axis, and the bar runs on its full length. Roundness stays inside the tolerance band, and the bar does not rub.

It also lets the tool use its full flute length. Long overhang is the main source of chatter in deep housing pockets. Tilting the head by 15° to 30° lets a shorter, stiffer tool reach the same floor. Less chatter means better surface finish and longer insert life.

The machine still needs the right post-processor and a clean CAM model. A 5-axis path with a bad rotary solution will gouge a wall or over-travel. We simulate every rotary move before it goes to the floor.

• 1
  Tool axis controlKeeps the cutter normal to angled faces.
• 2
  Shorter overhangLess deflection, tighter finish.
• 3
  Full 5-side accessNo manual re-clamp mid-cycle.

Most passenger gearbox housings are die-cast or gravity-cast aluminum. ADC12 and A356 cut fast. Spindle speed runs 8,000 to 12,000 rpm with carbide, and the chip clears easily. Thermal growth is the enemy: a warm aluminum housing can move 0.02 mm between the first and last bore if coolant is not managed.

Cast iron housings, common on truck and heavy-duty transmissions, behave the opposite way. They are stable but abrasive. Tool life drops and the machine works harder. Feed rates come down, and we plan a roughing pass plus a separate finishing pass to protect bore size.

Steel covers and bearing plates are a third case. 4140 and 4340 need lower surface speed and a rigid setup. On a thin cover plate, clamping force can distort the part more than the cut does, so we use soft jaws or vacuum fixturing.

The takeaway is that the machine is only part of the answer. Material grade, casting quality and stock allowance set the process window more than the axis count does.

The measurement that matters is bore-to-bore center distance and bore axis parallelism. A CMM with a rotary table can reach each bore in the same program, so the numbers trace back to one datum. We check the first part fully, then sample through the run.

On housings with a tight parallelism call, we also check with a mandrel and indicator at the bench. It is not a replacement for CMM data, but it catches a bad setup in minutes instead of hours.

Surface finish on seal faces and bearing bores is checked against the drawing. A finish of Ra 0.8–1.6 μm is typical for a bearing seat. Too rough and the bearing spins; too smooth and the press fit loses grip.

Every part gets a raw material check, in-process monitoring and a final inspection before it leaves the floor. Reports go out on request. We hold ±0.005 mm on critical bore features when the drawing calls for it.

A simple end cover with one flat face and four bolt holes does not need five axes. A 3-axis machine with a plate fixture will run it faster and cheaper. The same goes for a housing where only one face is machined and the rest is as-cast.

Very large gearbox housings are also a limit. Our largest 5-axis travel reaches 4,000 × 400 × 150 mm. Beyond that, a large gantry or a dedicated boring line makes more sense than a tilting spindle.

Thin-wall parts are a third case. When the wall is under 2 mm, cutting force pushes the wall more than the tool deflects. A 5-axis pass does not fix that. The answer is lighter passes, better support or a different process.

The honest rule: 5-axis earns its cost when the part has three or more angled features that share a datum, or when a single setup removes a fixture that was causing scrap.
