  5 Axis vs 3 Axis vs 3+2 for Automobile Parts

A 3 axis mill moves the cutter in X, Y and Z. The part sits still. To reach a face on the side of the part, you unclamp it, turn it, and clamp it again. Every reclamp adds a small error, and a small error that repeats across five setups is how a transmission housing ends up out of true.

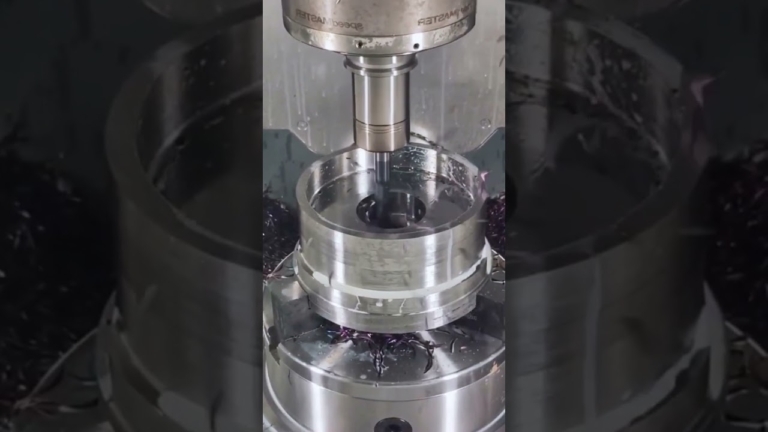

A 5 axis machine adds two rotary axes, usually A and C or B and C. The tool or the table tilts, so the cutter can approach a surface from an angle instead of straight down. On a simultaneous 5 axis center, all five axes move at once along a single toolpath. On a 3+2 machine, the rotary axes index to a position and lock, then the cut runs like a 3 axis job.

That distinction matters more than the machine count on a brochure. A 3+2 setup removes most of the reclamping, but each locked position still needs clearance for the holder and the tool shank. A simultaneous setup follows a continuous curve, which is what you want on a port, a turbine blade, or a sculpted intake runner where the surface is defined by airflow rather than by flat faces.

The practical gain is positional consistency. When six faces come off one setup, the bore-to-bore distance is set by the machine geometry, not by how carefully an operator tapped the part against a stop. On automotive parts that bolt to something else, that consistency is usually the whole reason the part is quoted on a 5 axis center.

GreatLight holds ±0.005 mm (±0.0002 in) on 5 axis work, but that number is a capability, not a default. It only holds when the feature is reachable in one setup, the material is stable, and the tool is short enough to resist deflection. A long reach into a deep pocket will move the number, no matter what the machine can do on a test block.

Surface finish follows the same logic. As-machined faces land around Ra 1.6–3.2 μm. Bumping to Ra 0.8–1.6 μm usually means a finishing pass with a smaller stepover, which adds cycle time. Below that, Ra 0.2–0.8 μm, you are looking at a deliberate finishing strategy, sometimes a different tool, and it should be justified by the function of the face.

Automotive drawings often call out a tight tolerance on one datum and a loose one everywhere else. That is fine. We would rather spend the cycle time on the two bores that locate the part and leave the cosmetic faces at Ra 3.2 μm. Blanket tight tolerances across a drawing raise cost without changing how the part works.

Thermal drift is the quiet variable. Aluminum moves with the shop temperature, so a part measured right off the machine and a part measured the next morning can read differently. For anything held under ±0.01 mm, we let the part settle before final inspection and record the temperature with the report.

Aluminum covers most automotive work: 6061, 6061-T6, 2024, 5052, 5083, 6063, 6082, 7075 and ADC12. 6061-T6 is the default for brackets, housings and mounts. 7075 gives higher strength for suspension and motorsport parts, but it machines slower and does not anodize to the same even color. 2024 behaves well on high-strength panels and needs a protective finish.

Steel enters when wear or load rules aluminum out. 1018 and 1045 are common for shafts and simple machined parts. 4130, 4140 and 4340 show up in roll cages, driveline parts and anything heat treated after machining. Tool steel is for fixtures and forming dies rather than production vehicle parts.

Stainless 303, 304, 316, 316L, 420, 430, 431, 440C and 17-4PH cover exhaust-adjacent parts, trim, fasteners and valve components. 303 is the free-machining grade and the easiest to quote; 316L resists corrosion better but galls more. 17-4PH gives high strength after aging and is common on motorsport hardware.

Titanium and nickel alloys, including TA1, TA2, TC4 (Ti-6Al-4V), Inconel and magnesium AZ31B / AZ91D, are available but change the cutting strategy. Titanium runs hot and work-hardens, so we cut it slower with more coolant and accept longer cycle times. Magnesium needs chip control attention because fine chips are a fire risk.

A flat aluminum bracket with three holes does not need five axes. The setup cost, the programming time and the machine rate all go up, and the part gets no better. If a 3 axis machine can reach every feature in two setups, quote it there.

Thin walls are another limit. A 5 axis toolpath often approaches at an angle, which can push a flexible wall away from the cutter. If the wall is under about 1 mm on aluminum, expect to add support, reduce the depth of cut, or plan a semi-finish and a light finish pass.

Deep cavities with small corner radii are hard for any milling process. A long, thin tool has to reach in, and it deflects. Sometimes the honest answer is wire EDM for the corners, or a design change to open the radius. We would rather tell you that at the DFM stage than after the first part.

Part size also decides. Our 5 axis travel covers 4,000 × 400 × 150 mm on the large frame, 750 × 1,150 × 550 mm and 600 × 600 × 600 mm on the medium machines, and 500 × 500 × 450 mm or 500 × 310 × 200 mm on the compact ones. A Ø400 mm rotary table sets the practical limit for parts that need continuous rotation.

Automotive buyers usually need a paper trail, not just a good part. GreatLight runs raw material checks, in-process monitoring and a final inspection on every job, with 100% inspection before shipment. Reports are available on request.

The four certifications that matter here are ISO 9001:2015 for quality management, IATF 16949:2016 for automotive quality, ISO 13485:2016 for medical device work, and ISO 27001:2022 for information security. IATF 16949 is the one automotive program managers ask about first, because it adds production and service requirements on top of ISO 9001.

For prototypes and low-volume runs, the sequence is usually a 12 hour quotation with a free DFM analysis, production start within 24 hours, and parts shipping in 3–5 days. No minimum order quantity applies, so a single prototype and a 10,000 part run go through the same first step.

Uploads stay confidential, and we sign an NDA on request. That matters when the part is an unreleased intake manifold or a bracket for a vehicle that has not been shown yet.
