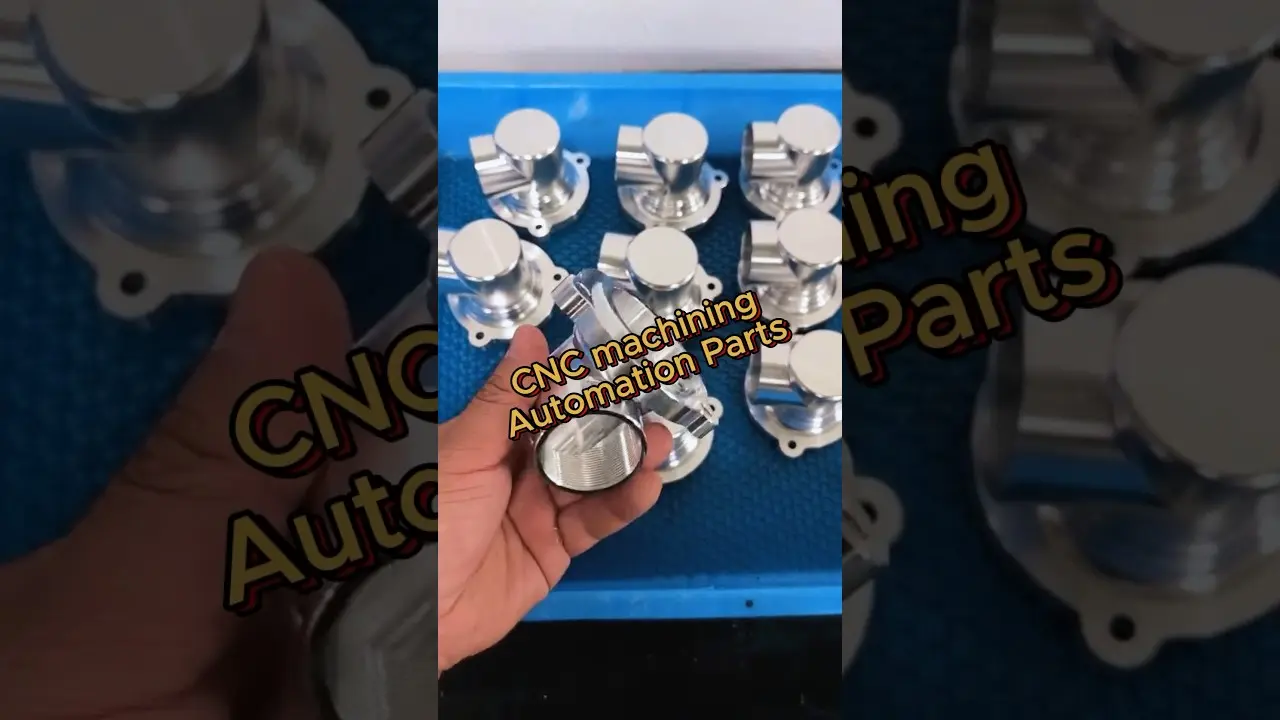

A CNC machining automation part is a machined component whose job is to hold position, transmit motion, or register another component inside an automated system. It is not defined by shape. It is defined by function. A bracket that only carries static load behaves differently from a bracket that has to seat a robot end effector to ±0.02 mm after 200,000 cycles.

Typical examples include robot mounting plates, gripper jaws, linear rail pads, tooling plates, sensor housings, locating pins, and servo motor adapters. Most run in aluminum or stainless steel, with some tool steel jaws and hardened inserts. Volumes range from one prototype to 10,000+ part runs.

The engineering meaning is simple. On an automation part, geometry error does not just change the fit. It changes repeatability, cycle time, and the wear rate of everything downstream. A 0.05 mm error on a static bracket is harmless. The same error on a jaw that clamps a shaft can throw the whole cell out of position.

Automation hardware moves. Every acceleration puts a bending moment into the part. A mounting plate that looks fine on a static drawing can flex enough under 1 g of axis acceleration to shift the tool center point. The fix is rarely thicker material. It is usually a shorter load path and a rib placed where the force actually travels.

Mass matters as much as stiffness. On a moving gantry or a robot wrist, extra mass lowers the achievable acceleration. A 6061-T6 plate with a machined pocket often beats a solid 1018 steel plate of the same stiffness, because the moving mass is lower. We machine the pockets to a controlled wall so the part stays stiff without becoming heavy.

Damping is the third factor. Cast iron and some filled polymers absorb vibration better than aluminum, which matters on high-speed pick-and-place heads. When a customer reports ringing at the end of a move, changing from aluminum to a damped material, or adding a bolted steel insert at the joint, is often more effective than tightening the tolerance.

We check these three factors before quoting. If the customer asks for ±0.005 mm on a long, unsupported steel beam, the tolerance is not the problem. The design is.

Every automation part needs to be located the same way in the machine, in the inspection room, and in the assembly cell. That is a datum strategy. If the drawing datums do not match the way the part sits on the fixture, the machined dimensions will be correct on paper and wrong in the cell.

The 3-2-1 rule is the practical starting point. Three points on the primary plane stop translation along one axis and rotation about two. Two points on the secondary plane stop the remaining rotation. One point on the tertiary plane locks the last degree of freedom. On a 500 × 500 × 450 mm travel machine, we usually hold the part on a fixture plate and cut the locating bores in the same setup as the mounting face.

This matters because tolerance stacks add up. A part with two ±0.02 mm features that locate against two ±0.02 mm features on a mating part can drift 0.08 mm worst case. Cutting both locating features in one setup removes one link from that stack. On 16 simultaneous 5-axis machining centers, we can reach five faces without re-fixturing, which is why most of our automation parts are quoted on 5-axis rather than 3-axis.

The trade-off is cost. A one-setup 5-axis part costs more per hour than a three-setup 3-axis part. It is cheaper overall when the part has tight datum relationships, because it removes a second operation, a second fixture, and the re-clamping error that comes with it.

Not every dimension on an automation part needs precision. The useful question is which dimensions control fit, function, or wear. Those get the tight tolerance. The rest get a general tolerance and a lower cost.

A locating bore for a dowel pin is a functional dimension. It usually runs at H7, which on a 10 mm bore is +0.015/0 mm. A clearance hole for a cover screw is not functional. It can run at ±0.2 mm. Putting a general ±0.005 mm block tolerance on the whole drawing adds cost without adding function, and it makes the part harder to inspect.

Our standard achievable tolerance is ±0.005 mm, or ±0.0002 in, on critical features. Surface finish for a sliding or sealing surface usually lands at Ra 0.8–1.6 μm. As-machined finish runs Ra 1.6–3.2 μm, and fine finishing can reach Ra 0.2–0.8 μm when a seal or bearing surface needs it. These numbers apply to the features that need them, not to the whole part.

One common mistake: calling out a tight tolerance on a feature that is measured from a datum created in a different setup. The machine can hold the number. The setup cannot. We flag these during DFM analysis and suggest a datum change or an extra operation.

Material choice on automation parts is driven by three things: load, wear, and environment. Aluminum covers most brackets, plates, and housings. 6061-T6 is the default. 7075 offers higher strength when weight is critical. 2024 machines well but has lower corrosion resistance, so it usually gets anodized.

Stainless steel comes in when the part sees washdown, coolant, or a food and medical environment. 303 and 304 cover general work. 17-4PH (SUS630) is the choice for shafts and pins that need strength plus corrosion resistance. 316L shows up on medical and cleanroom hardware.

Wear surfaces need more than a base material. Gripper jaws, locating pins, and cam followers often run 4140 or 4340 with a hardened insert, or 440C stainless when corrosion matters. Hardcoat anodizing adds a wear layer to aluminum. Electroless nickel adds both wear resistance and corrosion protection to steel parts.

For medical device automation, we work to ISO 13485 and keep material certificates on file. For automotive and EV lines, IATF 16949 covers the process controls. Titanium grades like TC4 (Ti-6Al-4V) and Inconel appear on high-temperature or high-strength fixtures, but they cost more and machine slower, so we only suggest them when the load or temperature data supports it.

Inspection on automation parts has to match the datum strategy used in machining. If the part was cut from datum A, it should be measured from datum A. Otherwise the inspection report proves nothing about how the part will sit in the cell.

Our process runs three stages. Raw material is checked on arrival for grade and condition. In-process monitoring catches drift before the run finishes. Final inspection covers 100% of parts before shipment. Reports are available on request, including dimensional reports and material certificates.

For high-repeat parts, we build a first article inspection report and compare it to the drawing before running the rest. On a 10,000-part run, this catches a datum error once instead of 10,000 times. Our qualification rate sits at 99.99%.

The limit is metrology, not machining. A ±0.005 mm callout needs a controlled temperature room and a calibrated CMM to prove. If a drawing asks for a number below that, we say so before quoting rather than after.
