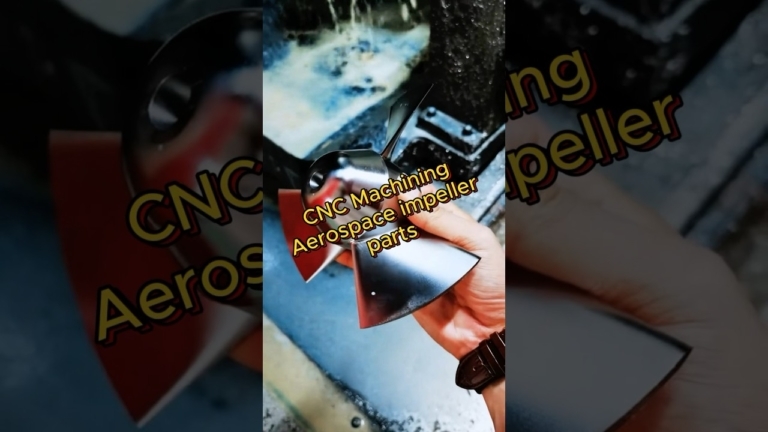

CNC Machining Aerospace Impeller: How Blades, Hub and Balance Drive the Process

• 1
  Why an Impeller Is Not Just a Milled Part
• 2
  5-Axis Setup and Tool Access Rules for Blade Passages
• 3
  Material Choice Changes the Cutting Strategy
• 4
  Tolerance, Balance and Inspection Limits
• 5
  When to Machine an Impeller and When Not To
• 6
  Which Machining Route Fits Which Impeller

Strip away the applications and an impeller is simple to describe: a hub with blades rising from it, arranged around an axis. The blades may be radial, swept back, or split into a main blade and a short splitter. They are thin, they twist, and they sit close together. That combination is what makes CNC machining aerospace impeller parts a different problem from milling a bracket or a manifold.

The reason is tool access. Every cut needs a shank and a holder behind it, and blade passages are narrow and deep. On a closed impeller with a cover disc, the channel between two blades is bounded on three sides. A cutter can only enter from the open side, and it must reach the hub fillet without rubbing the blade flanks on the way in. Tool reach and tool stiffness set the real limit here, not the machine's positioning accuracy.

On an open or semi-open impeller the blades stand free, so a ball nose cutter can approach from outside and follow the blade surface. Even then, the fillet where blade meets hub is the hard spot. It is a small concave radius, it sits at the bottom of a pocket, and it usually carries the highest stress in the part. A tool small enough to fit that radius is also flexible enough to deflect, which shows up as chatter and a poor surface finish.

So the first question is not which machine to use. It is whether the passage geometry leaves room for a cutter and holder. If the answer is no, the design moves to a different process, or the impeller is split and later joined. That decision belongs early in the project, before tooling and fixtures are quoted.

• 1
  Open impellerBlades stand free; the easiest geometry to machine in one setup.
• 2
  Semi-open impellerBlades on a hub with a partial shroud; access is still workable.
• 3
  Closed impellerCover disc on both sides; cutter entry is limited to one side.

A three-axis machine can cut an impeller only if the blade surfaces are reachable from one direction, which rules out most twisted blades. Adding a trunnion and a rotary table lets the part tilt so the cutter stays normal to the surface. That is the practical reason 5-axis work dominates this part family. The tool stays short and stiff, and the blade flank is cut in one continuous pass instead of being patched from several directions.

Simultaneous 5-axis means all axes move at once, and it is what allows a single ball nose cutter to sweep a ruled or curved blade surface. Positional 5-axis, where the table indexes and locks, works for hub bores, mounting faces and bolt patterns. Mixing both on one part is normal. We run 16 simultaneous 5-axis machining centers alongside 27 three-axis machines, 12 four-axis mills and 16 mill-turn centers, so a job can move to whichever setup suits the feature.

Tool length is the parameter that decides success. A cutter held in a long extension will deflect under load, and on thin blades that deflection becomes a dimensional error. A practical rule: keep the tool gauge length below four times its diameter for finishing cuts. If the passage is deeper than that, expect to rough with a larger tool and finish with a smaller one, accepting a longer cycle.

For blade surfaces, a Ø6 mm or Ø8 mm ball nose cutter is a common finishing choice. For a fillet of R1.5 mm, the cutter must be Ø3 mm or smaller, which usually means a necked tool and light depth of cut. Feeds drop in step with tool stiffness. This is where most of the cycle time in an impeller quote comes from.

• 1
  RoughingLarger cutter, high material removal, leave 0.3-0.5 mm on blade surfaces.
• 2
  Semi-finishReduce stock to a uniform 0.1-0.2 mm before the finishing pass.
• 3
  FinishingBall nose, small stepover, constant surface speed along the blade.

Aluminium is the default for impellers that spin at moderate temperature. Alloys like 6061, 7075 and 2024 cut fast, hold a good finish and keep the part light. They also move when material is removed. A thin blade released from a thick blank can spring, so roughing and finishing are often separated by a stress-relief step or simply by time on the bench.

Titanium is where the process gets slow. Ti-6Al-4V (TC4) has low thermal conductivity, so heat stays at the cutting edge instead of leaving with the chip. Surface speed drops to roughly a quarter of what aluminium allows, and the tool needs constant coolant. Blades thinner than 1 mm in titanium are a real risk: cutting force plus residual stress can bend them past recovery. We flag that in DFM rather than discovering it on the machine.

Stainless steels such as 17-4PH (SUS630) sit between the two. They work-harden, so a cutter that rubs instead of cutting will glaze the surface and shorten tool life. Consistent feed per tooth matters more than spindle speed here. Inconel is used for hot sections, and it is the most demanding of the group: low speeds, ceramic or carbide tooling, and generous cycle time.

For each of these, the material is specified by the engineer for temperature, strength and corrosion reasons, not for machining convenience. The job of the shop is to say what the geometry costs in that material, and where the design could relax without losing function.

• 1
  Aluminium 6061 / 7075Fast cutting, good finish, watch thin-blade distortion.
• 2
  Titanium Ti-6Al-4VLow speeds, high coolant flow, avoid blades under 1 mm.
• 3
  Stainless 17-4PHControl feed per tooth to avoid work hardening.
• 4
  InconelHot-section parts, longest cycle, specialist tooling.

Blade profile tolerance and balance are separate requirements, and they are checked in different ways. Profile is about the surface: the blade should follow the CAD model within the stated band. On a machined impeller we hold ±0.005 mm on critical features, with a finish in the Ra 0.8-1.6 μm range for flow surfaces and Ra 0.2-0.8 μm where a finer surface is called out. Those numbers only mean something if the drawing says which surfaces they apply to.

Balance is about mass distribution. A small weight difference on one blade becomes a large force at running speed, and the force grows with the square of RPM. Machining tolerance alone will not guarantee balance, because material density varies and the hub may not be perfectly symmetric. Impellers are usually balanced as a separate operation after machining, and sometimes again after assembly onto the shaft.

Inspection of twisted blades is harder than inspection of a turned diameter. A coordinate measuring machine can touch a blade surface, but the probe tip has a radius and the blade is curved, so the software must compensate. Optical scanning captures the whole blade in one pass and is often used alongside touch probing. Either way, the report is only as good as the alignment datums, so the drawing should name the datum features clearly.

Every part is inspected before shipment at our plants, with raw material checks, in-process monitoring and a final inspection. Reports are available on request. Thin blades and deep passages are the two features that most often need extra measurement, so tell us at quoting stage if either is safety-critical.

• 1
  ProfileCompare blade surface to CAD within the stated band.
• 2
  BalanceSeparate operation, often repeated after assembly.
• 3
  Surface finishFlow surfaces typically Ra 0.8-1.6 μm.

Machining wins when the impeller is large, when the lot is small, when the material is hard to cast, or when the schedule does not allow tooling. A five-axis shop can produce one impeller in a few days with no pattern or mold. That is the reason prototypes and low-volume spares are almost always machined.

Casting wins when the blade count is high and the passages are too narrow for any cutter. A cast impeller can have complex internal channels and a wall thickness that no end mill can reach. The trade is tooling cost and lead time up front, and porosity risk that has to be managed by the foundry.

There is a middle route: machine the impeller from a near-net forging or a cast blank, then finish the blade surfaces and the critical bore. This keeps the difficult internal geometry from the casting while holding tight tolerance where it matters. It also reduces the volume of material removed, which shortens cycle time in titanium and Inconel.

A useful test when reading a drawing: measure the narrowest passage and compare it with the smallest cutter that can reach the fillet without collision. If the cutter cannot get in, the part is a casting or a printed part, not a milled part. That check takes a few minutes and saves weeks.

Impellers rarely travel alone. A rotor assembly may also include a shaft, a housing, a diffuser and a set of fasteners, and those parts often come from other processes. We run rapid prototyping, sheet metal fabrication, die casting, vacuum casting and 3D printing alongside machining, so a program can be sourced in one place.

• 1
  MachineLarge size, low volume, hard material, short schedule.
• 2
  CastHigh blade count, internal channels, higher volume.
• 3
  HybridCast or forged blank, then finish critical surfaces.
