A three-axis mill moves the tool in X, Y and Z. The workpiece sits still, so the tool can only reach surfaces that point up toward it. A five-axis machine adds two rotary axes, usually a tilting head and a rotating table. Now the part can be tilted and spun while the cutter is in motion. That single change decides which surfaces are reachable in one setup.

The rotary axes are named A, B and C depending on which linear axis they rotate around. A trunnion machine tilts around X (A) and rotates around Z (C). A swivel-head machine tilts around Y (B) and rotates around Z (C). Both arrangements give the same result: the tool axis can be pointed at a surface instead of approaching it from one fixed direction.

This matters because most complex parts are not made of flat faces. A turbine blade, an impeller, a bone plate or a hydraulic manifold has surfaces that lean, twist and undercut. On a three-axis machine those surfaces need multiple fixtures or long-reach tools that chatter. On a five-axis machine the table or head simply rotates and the same short, rigid tool reaches the surface at the correct angle.

Simultaneous five-axis means all five axes move together under one toolpath. Positional five-axis, sometimes called 3+2, locks the rotary axes and then cuts with three axes. Positional work is easier to program and cheaper to run. Simultaneous work is what produces a continuous, blended surface. The distinction between them is often the real cost driver, not the machine itself.

• 1
  Three linear axesX, Y, Z. The tool moves, the part stays put.
• 2
  Two rotary axesA, B or C. The part tilts, spins, or both.
• 3
  3+2 positionalRotaries lock in place, then cut on three axes.
• 4
  Simultaneous 5-axisAll five axes interpolate through the same toolpath.

The common claim is that five axis cnc machined parts come out faster. That is only half true. The gain comes from cutting in one setup instead of four or five. Every time a part is unclamped and re-fixtured, it loses position and gains a chance for error. A five-axis machine keeps the part in one vise from the first roughing pass to the last finishing pass.

Fewer setups also mean shorter tools. A deep pocket on a three-axis machine forces a long end mill, and a long end mill deflects. Deflection shows up as taper in the wall, chatter marks on the floor and a surface finish that needs hand polishing. Tilting the part lets a stubby tool reach the same pocket. Short tools deflect less, so the cut holds tolerance and the finish comes off the machine closer to spec.

There is a second benefit that buyers notice on the quote. Fixture cost drops. A complex part that needs four custom fixtures on three-axis machines may need one soft jaw or a simple tombstone on a five-axis machine. For prototypes and low-volume runs, that fixture savings often covers the higher hourly rate of the five-axis center.

The limit is reach, not magic. A Ø400 mm rotary table on a trunnion machine constrains how large and how heavy the part can be. Deep internal cavities still need long tools no matter how the part is tilted. And if a feature is a simple through hole on a flat face, five-axis adds nothing except cost.

• 1
  One setupDatums stay fixed from roughing to finishing.
• 2
  Shorter toolsLess deflection, tighter wall taper, better finish.
• 3
  Less fixturingOften one soft jaw replaces four dedicated fixtures.
• 4
  Real limitsTable size, part weight and deep cavities still bound the process.

The work starts in CAD, but the CAM stage decides whether the part is practical. The programmer builds a stock model, chooses a tool library, and generates a toolpath that keeps the tool axis normal to the surface. On simultaneous paths, the post-processor has to convert that path into machine coordinates without letting the rotary axes spin faster than the machine allows. A bad post can produce a toolpath that looks fine on screen and stalls on the floor.

Setup comes next. The operator probes the stock to establish the work offset, then checks that the rotary axes are trammed. On a trunnion machine, a small error in the C-axis center shows up as a mismatch between the top and bottom of a tilted face. We verify with a test cut or a probe cycle before running the production path.

Roughing removes most of the material with a large tool at high feed. Semi-finishing brings the surface within 0.2–0.5 mm of the final shape. Finishing uses a smaller stepover, often 0.05–0.2 mm, to hit the surface finish the drawing calls for. On aluminum, a well-tuned finishing pass lands between Ra 0.8 and 1.6 μm without extra work. A mirror finish below Ra 0.8 μm usually needs a polishing step afterward.

Inspection closes the loop. We check the first part against the drawing before releasing the run, then monitor dimensions through the batch. Final inspection covers 100% of parts before shipment, and dimensional reports are available on request. For parts with true position callouts, a CMM report is the cleanest way to show that the rotary axes held their geometry across the whole batch.

• 1
  CAM checkConfirm the post-processor handles rotary limits before cutting.
• 2
  Probe and tramVerify work offset and C-axis center on tilted faces.
• 3
  Rough to finishLarge tool at high feed, then 0.05–0.2 mm stepover for finish.
• 4
  Inspect first partRelease the batch only after the first part passes.

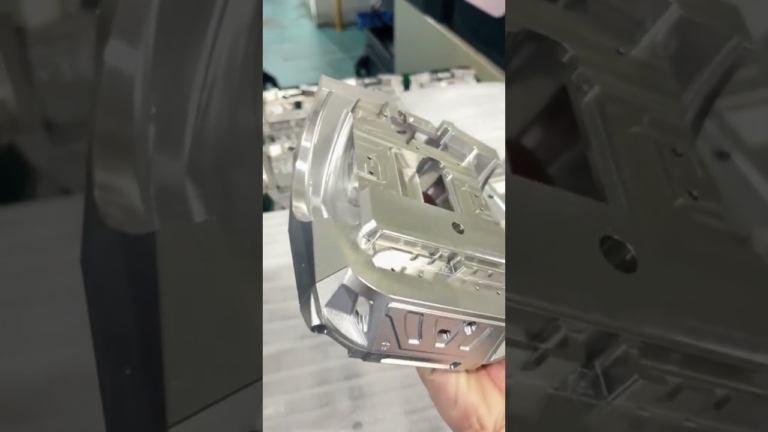

Five axis cnc machined parts earn their cost on contoured surfaces, angled features and tight true-position relationships. An impeller with twisted blades is a classic case. So is a manifold with ports drilled at compound angles, or a bracket whose mounting faces must stay parallel to a datum that is itself tilted. When several features must hold position to one another, one setup is the cleanest way to guarantee it.

Thin-wall parts also benefit. A wall 1.0 mm thick will move if it is clamped and unclamped four times. Holding it in one setup with light finishing passes keeps the wall where the model says it should be. The same logic applies to parts with a finished bore that must stay round: fewer setups mean fewer chances to distort it.

The process is a poor fit for simple geometry. A flat plate with a grid of holes, a shaft turned from bar stock, or a rectangular housing with pockets on two faces will run faster and cheaper on three-axis or mill-turn equipment. Adding rotary motion to those parts just adds programming time and machine hours.

Size and weight set the other boundary. Our five-axis centers cover travels from 500 × 310 × 200 mm up to 4,000 × 400 × 150 mm, with a Ø400 mm rotary table on the trunnion machines. Parts beyond that envelope go to a different process or get split into assemblies. It is better to find that out at the DFM stage than after the stock is cut.

• 1
  Good fitContoured blades, compound-angle ports, tilted datums.
• 2
  Good fitThin walls and round bores that must survive handling.
• 3
  Poor fitFlat plates, simple shafts, two-face pockets.
• 4
  Hard limitPart size and weight against the machine envelope.
