Automotive & EV

CNC Machining of Motor Cases for EV and Industrial Drives

Motor cases hold a stator, a rotor, a bearing stack and a cooling path in one rigid body. This page covers the geometry that decides whether your housing machines cleanly, the tolerances that matter, and where 5-axis work pays off.

±0.005 mmØ400 mm rotary table16 five-axis centersISO 9001 / IATF 16949

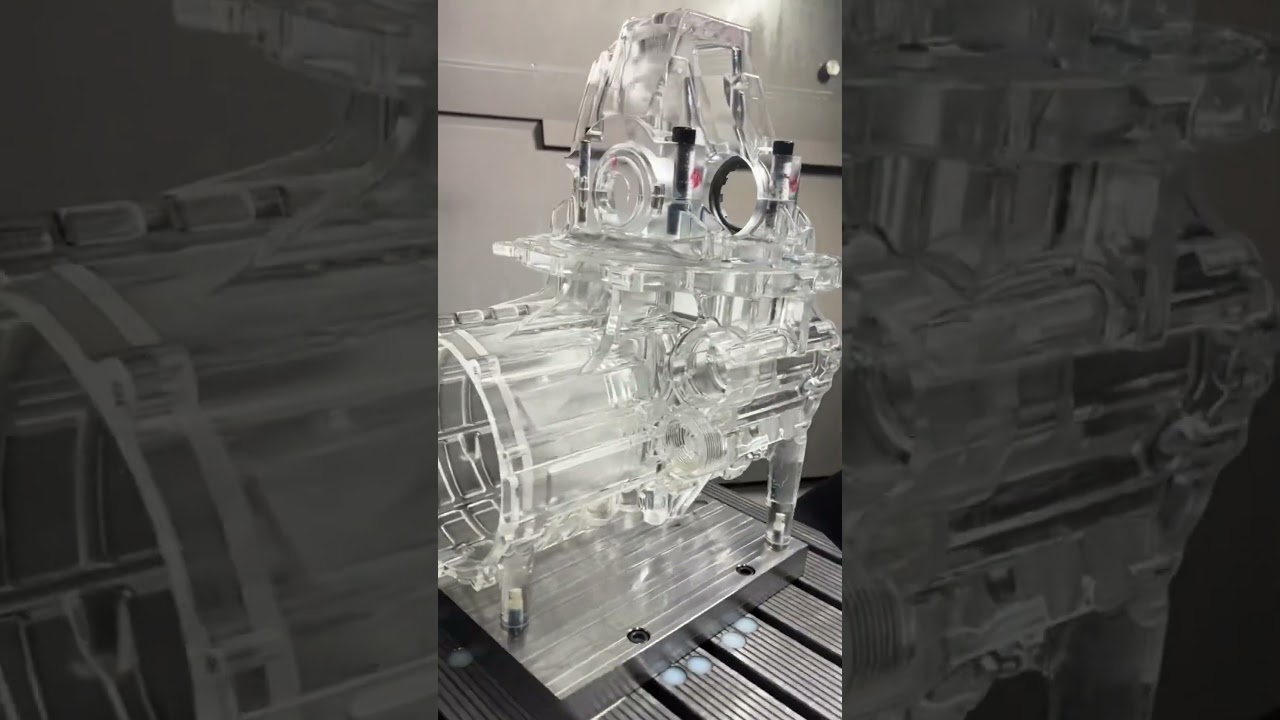

5-axis CNC machining of motor cases and engine housings
Quick read

Key takeaways

Wall thickness drives everythingUnder 2 mm on a Ø200 mm housing, chatter and distortion show up long before the cutter wears out.
One setup beats three5-axis cuts the bore, end face and mounting pads without re-datuming, so coaxiality holds.
Bore and bearing seats set the classStator bore and bearing bores usually sit at ±0.005 mm; the rest of the case is far looser.
Cooling jackets are the hard partThin internal walls and deep channels decide cycle time more than the outer profile.
Material choice changes the planA356 and ADC12 castings machine fast; 6061 billet holds better threads but costs more stock.
Geometry

What makes a motor case machinable

A motor case is a thin-wall tube with two precision ends. The stator sits inside the bore, the rotor spins in the bearing bores, and the whole assembly has to shed heat without losing alignment. That combination is what makes CNC machining of motor cases different from ordinary housing work. The wall is thin, the datums are far apart, and every cut moves the part.

The first thing we look at in a drawing is the ratio of wall thickness to bore diameter. A Ø200 mm housing with a 4 mm wall is comfortable. The same housing at 1.5 mm is not. Cutting forces push the wall away from the tool, the tool bounces, and the bore comes out lobed instead of round. If the design needs a thin wall for weight, plan a roughing pass, a stress-relief pause and a light finishing pass.

The second thing is where the tolerances actually live. On most housings, the stator bore and the two bearing bores carry the tight numbers. Mounting flanges, covers and sensor bosses usually sit at ±0.05 mm or looser. Knowing this lets us spend cycle time only where it buys function.

Third, look at the cooling path. Cast-in jackets can have internal walls down to 3 mm, and the water channels may be 6–8 mm wide with a curved centerline. Those channels are cut with a long, small-diameter tool, so deflection is real. A drawing that keeps channel depth under 4× tool diameter machines far more predictably.

  • 1
    Round, not ovalBore roundness is set by fixturing stiffness, not by the machine's positioning accuracy.
  • 2
    Keep datums on one faceIf the stator bore and the bearing seat share a datum, coaxiality is easy to hold.
  • 3
    Avoid interrupted boresSlots and windows through the stator bore make the finish cut chatter.
Process

How we set up and cut a motor housing

For a cast or billet housing up to Ø400 mm, we normally start on a 5-axis machining center with a Ø400 mm rotary table. The part is located on the raw bore or a cast boss, clamped from the outside with soft jaws, and the first operation cuts a clean datum face plus the stator bore. Everything after that references those two features.

From there the same setup reaches the mounting pads, the sensor boss and the cooling jacket ports. On a 3-axis machine this would be three or four setups, and each re-clamp adds error. On a 5-axis machine the part stays put. We hold ±0.005 mm on the bore and bearing seats, and Ra 0.8–1.6 μm on the sealing faces.

Cutting parameters matter less than people expect. For 6061-T6 we run carbide end mills at 3,000–6,000 rpm with 0.5–1.0 mm radial engagement on finishing passes. For A356 or ADC12 castings we slow down to 1,500–3,000 rpm because the material smears. The finishing pass on a stator bore is light: 0.2–0.3 mm radial, high spindle speed, sharp tool.

We check the bore with an inside micrometer or a bore gauge, and the bearing seats with a dial indicator on the machine. Final inspection happens after the part has cooled to room temperature. A housing measured hot will read smaller than it is.

  • 1
    Rough, rest, finishLeave 0.5 mm on the bore, let the part sit, then finish. It removes most distortion.
  • 2
    Clamp on the outsideInternal clamping on a thin wall ovalizes the bore before the first cut.
  • 3
    Coolant through the toolDeep jacket channels need through-spindle coolant or the chips pack in.
Materials

Material and finish choices that hold up

Most EV motor housings we machine are aluminium: 6061-T6 from billet for prototypes, A356 or ADC12 when the part is cast. Aluminium moves with temperature, so a housing that measures perfectly at 20 °C can drift out of tolerance on a hot test bench. If the application runs hot, say the tolerance stack is tight, the design should allow for that growth rather than fight it.

Stainless 304 or 17-4PH shows up on smaller industrial motor cases and on high-corrosion drives. It machines slower, about half the spindle speed of aluminium, and tool wear is the main cost driver. Titanium TC4 is rare on motor cases but appears in aerospace drives where weight dominates.

Surface finish is usually functional, not decorative. Anodizing adds 5–15 μm per surface, which closes up a bore if you are not careful. If the stator bore is anodized, the drawing should call out the pre-anodize dimension. Electroless nickel and black oxide are common on steel housings; both are thin enough to ignore on most tolerances.

For sealing faces we aim at Ra 0.8–1.6 μm. That is smooth enough for an O-ring or a gasket without the cost of a lapped surface. If a customer asks for Ra 0.2–0.8 μm on a large face, we quote it, but it rarely changes how the housing performs.

  • 1
    Billet vs. castingBillet gives better threads and no porosity; castings cut faster and waste less stock.
  • 2
    Anodizing moves the boreHardcoat can add 20 μm or more. Specify pre-plate dimensions.
  • 3
    Watch the thread classAluminium threads pull out. Use inserts on anything that sees repeated torque.
Limits

When CNC machining is the wrong call

CNC machining of motor cases makes sense from one prototype up to a few thousand units a year, and it is the only sensible route when the geometry is still changing. It is not the right process for every housing. If the annual volume is above roughly 10,000 units and the shape has been frozen, die casting or investment casting will beat machining on unit cost every time.

Machining also struggles with certain features. Very deep cooling channels with a curved centerline, internal ribs that a tool cannot reach, and hollow sections with no tool access are better handled by casting or additive processes. We can machine the critical bores on a casting and leave the rest as-cast, which is often the best of both.

Size is another limit. Our largest travel is 4,000 × 400 × 150 mm, and the medium envelope is 750 × 1,150 × 550 mm. A housing outside those envelopes needs a different plan, not a bigger claim. We will say so at the quote stage rather than after the first article.

Finally, consider the testing burden. Motor housings usually need a leak test on the cooling jacket and a dimensional report. We provide inspection reports on request, and we run 100% inspection before shipment, but the leak test fixture is normally the customer's design. Plan for it early.

  • 1
    High volume, frozen designAbove about 10,000 units, casting wins on cost.
  • 2
    No tool accessClosed internal cavities and curved deep channels belong in a casting.
  • 3
    Beyond the envelopeCheck travel before you quote. 4,000 mm is our maximum.
Selection guide

Which route fits your motor case

Volume, geometry and tolerance decide the process more than material does.

ScenarioBest routeWhy
1–50 prototypes, design still moving5-axis CNC from billetNo tooling cost, changes absorbed in the CAM file
500–3,000 units, tight boresCNC from castingCast blanks cut stock, machining holds the bore
Above 10,000 units, frozen shapeDie casting + finish machiningUnit cost drops; only critical faces are cut
Wall under 1.5 mm on Ø200 mmRedesign or castChatter and distortion make the bore unreliable
Deep curved cooling channelsCast-in jacketA long tool cannot reach without deflection
Housing above 4,000 mmSplit or fabricateOutside our machine travel envelope
Stainless or 17-4PH housingCNC, slower feedsTool wear drives cost, not machine time
Anodized stator boreCNC + pre-plate sizingCoating adds 5–20 μm and closes the bore

The short version

If your housing is still changing or the bores are tight, machine it on 5 axes and skip the tooling. If the shape is frozen and volume is above 10,000 units, cast it and machine only the critical faces.

FAQs

Questions we get on motor housings

What tolerance can you hold on a stator bore?

On a rigid housing we hold ±0.005 mm on the stator bore and bearing seats, with roundness inside that band. The wall thickness decides whether that is realistic.

Below about 2 mm wall on a Ø200 mm part, we will quote a looser bore or ask for a redesign. A number on a drawing does not make a thin wall stiff.

How do you stop a thin-wall housing from warping?

Three things. We leave 0.5 mm of stock on the bore for a separate finishing pass, we clamp on the outside with soft jaws, and we let the part come back to room temperature before the finish cut.

For aluminium castings we sometimes do a light stress-relief pause between roughing and finishing. It adds a day to the schedule and usually saves the part.

Can you machine the cooling jacket as well as the bore?

Yes, on 5 axes in the same setup. Jacket ports, O-ring grooves and channel entries are cut while the part is still on the same datum as the bore.

Cast-in channels are a different matter. If the channel centerline is curved and the depth is more than four times the tool diameter, we would rather the channel be cast and only the ports machined.

What does anodizing do to my bore dimensions?

It adds material. Clear anodizing adds roughly 5–15 μm per surface; hardcoat can add 20 μm or more on a side. A Ø80 mm bore can lose 0.03 mm of clearance after hardcoat.

Specify pre-anodize dimensions on the drawing and tell us the coating thickness. We size the bore to match.

How long does a motor housing take?

Quotation and a free DFM review come back within 12 hours. Production can start within 24 hours of approval, and parts typically ship in 3–5 days.

A housing with a cast jacket and a tight bore may take longer than a simple billet part. We tell you the real date at the quote stage.

Do you sign an NDA on motor designs?

Yes. Uploads are handled as secure and confidential, and we sign an NDA on request before drawings are shared.

We are certified to ISO 9001:2015, IATF 16949:2016, ISO 13485:2016 and ISO 27001:2022.
