CNC Machining Black Plastic: What Holds Up and What Fails

• 1
  Why Black Plastic Cuts Differently From Aluminium
• 2
  Which Black Plastics Machine Well, and Which Do Not
• 3
  Wall Thickness, Ribs and Radii for a Black Plastic Shell
• 4
  Tolerance and Surface Finish Limits on Machined Plastic
• 5
  When CNC Is the Right Route for a Black Plastic Shell
• 6
  How We Machine a Black Plastic Shell Without Burning It
• 7
  Black Plastic Grade Comparison for CNC Shells

Plastic does not carry heat away the way metal does. Cut aluminium at 8,000 rpm and the chip takes most of the heat with it. Cut ABS at the same speed and the heat stays in the tool tip and the cut edge. The edge softens, smears, then re-hardens into a rough line. That single fact drives most of the decisions on a black plastic shell.

Black is the second issue. Carbon black pigment is a filler, and fillers change how the material behaves under a cutter. A black PC/ABS blend can cut cleanly at moderate feed, while a black glass-filled PA6 will chip at the same setting because the glass fibers fracture instead of shearing. We treat pigment loading and glass content as separate variables, not one label called black plastic.

The third variable is internal stress. Extruded or injection-molded black stock already carries locked-in stress from cooling. Remove one side of a plate and the part can bow, sometimes 0.3 mm over 200 mm. Roughing both sides before finishing keeps that movement balanced. Skip that step and the shell will not sit flat on a fixture during a second operation.

So the honest framing is this: CNC machining black plastic is a thermal and stress problem before it is a cutting problem. Get the heat and the balance right and the cut is easy. Get them wrong and no tool geometry will save the edge.

• 1
  Heat stays in the partPlastic conducts heat slowly, so the cutter must evacuate chips fast.
• 2
  Pigment is a fillerCarbon black and glass content both change chip formation.
• 3
  Stock carries stressBalance material removal on both faces to control bow.

ABS is the default for black enclosures. It machines dry, holds a thread reasonably well, and takes bead blasting or a matte vapor finish. Its weakness is heat: keep surface speed low and use two passes on the finish cut. ABS also absorbs moisture and can leave a fuzzy edge if the stock sat in a humid room for weeks.

PC and PC/ABS are stiffer and tougher. A black PC shell survives drop impact far better than ABS, which matters for handheld instruments. The trade is edge quality. PC is notch-sensitive, so a sharp internal corner becomes a crack starter. We add a radius of at least 0.5 mm at every internal corner and avoid thread-forming screws into thin PC walls.

POM is the choice when the shell has sliding features, snap fits or a worm drive inside it. It machines to a shiny surface and holds ±0.02 mm without much effort. POM does not glue well, so joints should be mechanical. It also has poor resistance to strong acids, though that rarely matters for an enclosure.

PEEK and PA with glass or carbon fill sit at the other end. They are stiff, heat-resistant and expensive. Glass-filled grades are abrasive; tool life drops and the cut edge can show fiber pull-out. For a black plastic shell with a cosmetic face, unfilled PEEK or a PC grade usually gives a better surface than a 30% glass-filled one.

PMMA is the clearest option and machines to an optical finish with a diamond fly cutter. Black PMMA looks deep and glossy, but it stress-cracks around tight fasteners. If the shell is cosmetic and low-load, it works. If it carries a load, use PC.

• 1
  ABSGeneral enclosures, easy to finish, watch the heat.
• 2
  PC / PC-ABSImpact parts; radius every internal corner.
• 3
  POMSliding and snap features; glues poorly.
• 4
  PEEK, filled PAHeat and stiffness; abrasive, rough edge.

A machined wall does not have the same support as a molded wall. For a black plastic shell held in a fixture, keep the floor at 1.5 mm minimum and side walls at 1.0 mm minimum. Below that, clamping pressure alone can deflect the part and the finishing pass will cut unevenly. If the design needs 0.6 mm somewhere, plan for a support fixture and tell us before quoting.

Ribs should be about 60% of the wall they stiffen. A rib equal to the wall thickness creates a thick junction that cools at a different rate and can show a sink mark or a stress line on the outside face. Rib spacing of 2–3 times the wall keeps the part light and stiff without that junction problem.

Corner radii matter more in plastic than in aluminium. An internal sharp corner concentrates stress three to four times higher in plastic because there is no yielding to spread the load. A 0.5 mm radius on a PC corner can be the difference between a part that survives a drop and one that splits from the corner outward.

Depth-to-width ratio sets the tool. A pocket deeper than 4 times the cutter diameter needs a long, thin tool that deflects. We can still cut it, but expect to run at reduced feed, which adds time. If the pocket can be opened to 3 times the diameter, the same feature comes off the machine faster and cleaner.

For threaded holes in plastic, use coarse threads and avoid fine pitch. A metal screw threaded directly into a black plastic shell will strip on the second or third assembly. Brass inserts or a through-bolt with a nut are the durable options.

• 1
  Wall minimums1.0 mm side wall, 1.5 mm floor as a working rule.
• 2
  Rib thicknessAround 60% of the adjacent wall.
• 3
  Internal radii0.5 mm or more on notch-sensitive grades.
• 4
  Pocket depthStay under 4× cutter diameter where possible.

Plastic moves with temperature and humidity. A black POM part measured at 20 °C in our inspection room can be 0.05 mm different after a week in a humid warehouse. We hold ±0.005 mm on metal routinely, and we can hold tight numbers on plastic too, but the measurement has to be defined. State the temperature and the conditioning time on the drawing.

For most black plastic shells, ±0.05 mm on critical features is realistic and ±0.1 mm on general dimensions is comfortable. Pushing plastic to metal tolerances on a long dimension usually costs more than the feature is worth. If one bore needs ±0.02 mm, keep that bore short and reference the rest of the part from it.

Surface finish lands between Ra 0.8 μm and Ra 1.6 μm on a good finish pass for POM and PC. ABS tends to sit a little rougher because it smears. A Ra 0.2–0.8 μm finish is achievable on acrylic with a fly cutter, but only on flat faces. Inside pockets always come out rougher than the outside face.

Black plastic shows every mark. A tool change line or a small chip mark that would disappear on anodized aluminium stays visible on a matte black PC face. If the outer face is cosmetic, we cut it last, from one direction, with a fresh tool. Bead blasting afterward hides light tool marks and gives an even matte black.

Color consistency across a batch is a purchasing issue, not a machining one. Pigment lots vary. If two shells must match, buy one lot of stock for the whole run.

• 1
  Realistic general tolerance±0.1 mm; ±0.05 mm on critical features.
• 2
  Finish rangeRa 0.8–1.6 μm typical; Ra 0.2–0.8 μm on flat acrylic.
• 3
  Cosmetic facesCut last, single pass, fresh tool, then bead blast.

CNC wins when the shell is needed in days, when the quantity is low, or when the geometry has undercuts and pockets a mold cannot pull. It also wins when the material itself is the requirement. A PEEK or carbon-fibre shell that must survive 200 °C is not going to come from a cheap mold in ABS.

CNC loses on unit cost at volume. Once a black plastic shell passes a few thousand pieces a year, injection molding spreads the tool cost and drops the piece price. Machining is the wrong answer there, and we say so.

There is a middle path. Machine the first ten shells for fit checks and field trials, then move to a molded part once the design stops changing. That sequence avoids paying for a tool before the geometry is settled, which is the most common way money gets wasted on a new enclosure.

One more fit case: a shell that needs a metal insert, a machined thread or a tight bore. A molded part can do those, but the tolerance stack is harder to control. Machined plastic holds the bore and the insert pocket in one setup, which keeps the alignment.

We run 3-axis, 4-axis and 5-axis machining on the same floor, so a shell with angled faces and a deep pocket can often be finished in two setups instead of four. Fewer setups means fewer chances to lose position.

• 1
  Choose CNC whenLow volume, fast turnaround, high-temperature resin, undercuts.
• 2
  Choose molding whenThousands of parts per year and a frozen design.
• 3
  Bridge bothMachined pilot run first, then tool up.

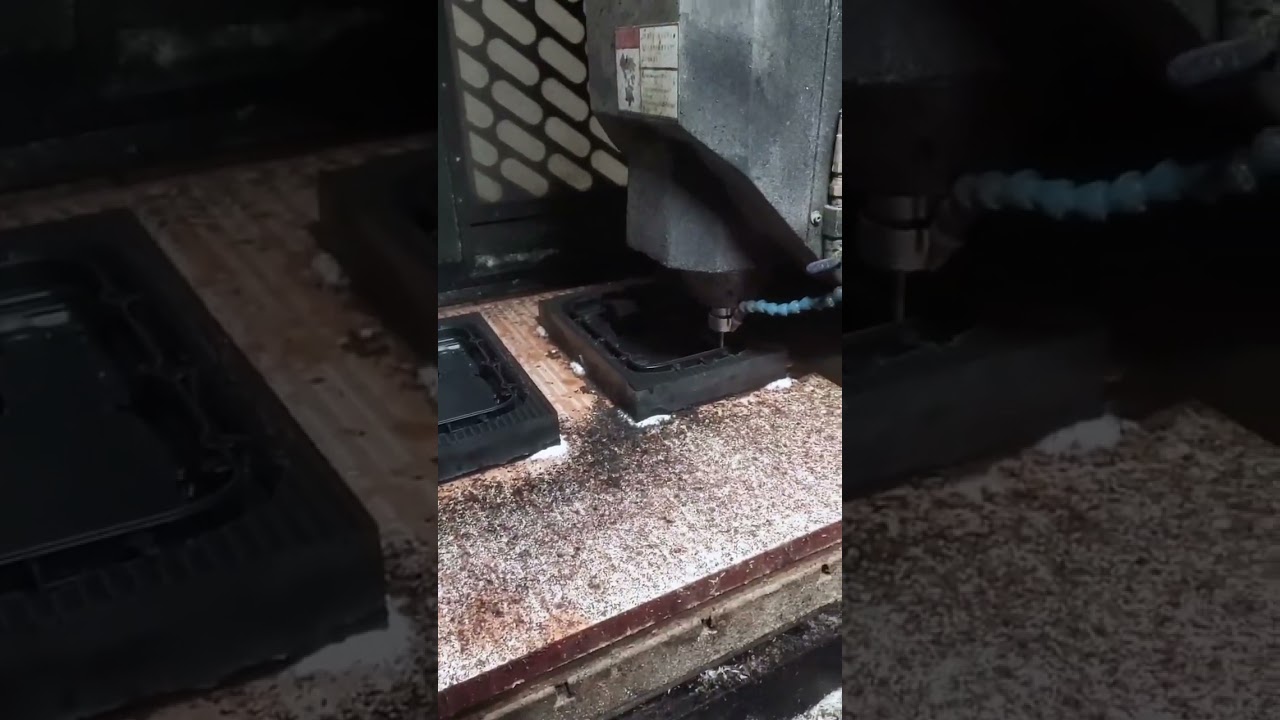

The sequence starts with the stock. We check the plate for flatness before it goes on the table and let it sit in the shop overnight if it came from a cold truck. A warped plate clamped flat will spring back when the clamps come off, and the shell will not be flat.

Roughing removes most of the material with a two-flute cutter and a high helix. Two flutes give a bigger chip channel, which matters because plastic chips are stringy and clog a three-flute tool. We leave 0.3 mm on the finish faces and rough both sides before any finishing pass.

Finishing runs at higher spindle speed and lower feed per tooth than metal. The goal is to shear the plastic, not rub it. A sharp, polished tool with a small nose radius cuts POM and PC cleanly. Dull tools rub and melt, and the melted material re-deposits on the edge.

Cooling is air, not flood coolant. Most black plastics absorb oil and swell, and the residue is hard to remove from a matte surface. Compressed air with a mist of chilled air keeps the edge cool without wetting the part.

Deburring is done by hand with a scraper rather than a file for cosmetic edges. A file leaves a white line on black plastic that shows up under any light. A sharp scraper leaves a clean edge that matches the surrounding surface.

• 1
  Two-flute cuttersWider chip channel for stringy plastic chips.
• 2
  Balance the roughingRemove from both faces before finishing.
• 3
  Air cooling onlyOil coolant swells most plastics.
• 4
  Scrape, do not fileFiles leave white marks on black surfaces.
