  Why Plastic Turbine Parts Behave Differently at the Cutter
• 2
  Which Plastics Suit Turbine and Impeller Geometry
• 3
  Wall Thickness, Blade Count, and Radius Rules
• 4
  Workholding Without Crushing the Part
• 5
  Step by Step: Machining a Plastic Impeller
• 6
  Plastic Impeller Materials at a Glance

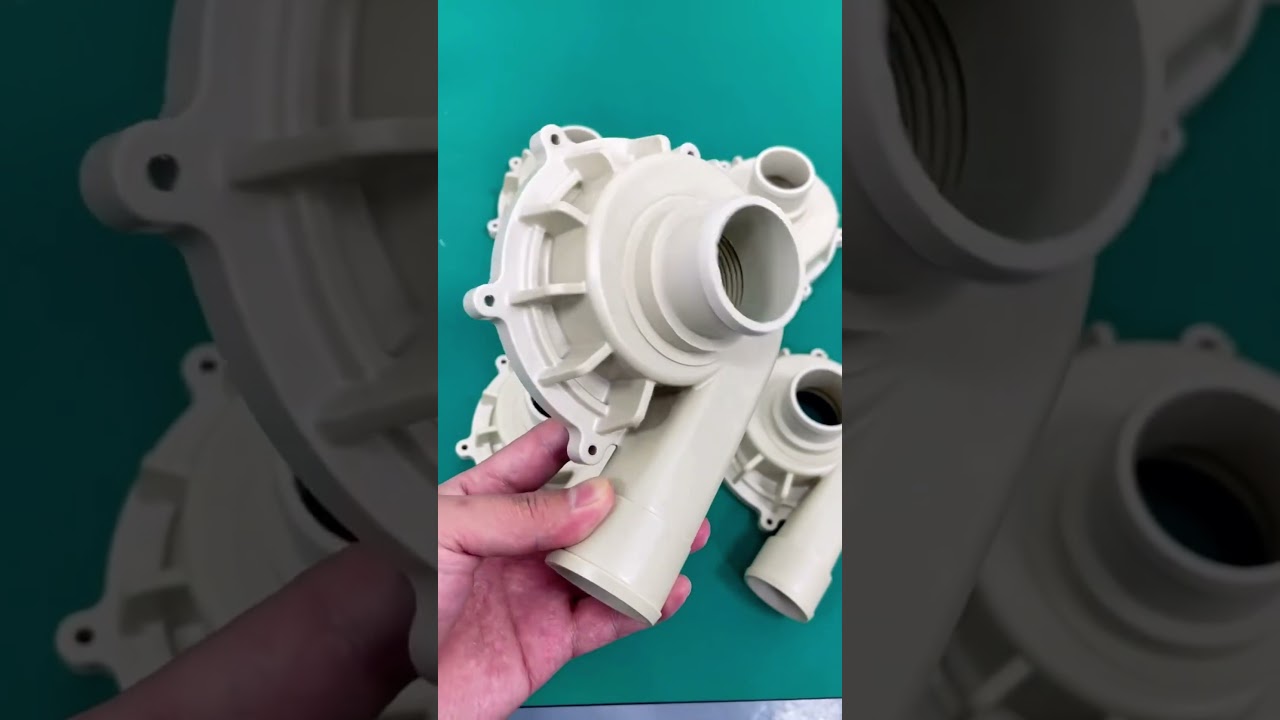

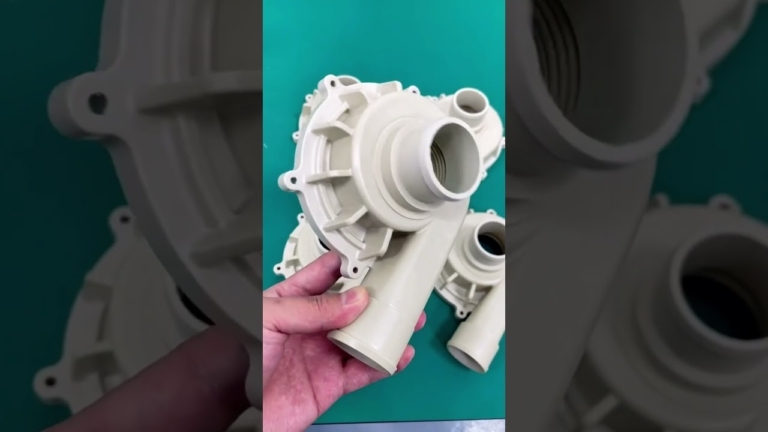

A plastic turbine part is usually an impeller, a rotor disc, a volute housing, or a small turbine wheel with curved blades. These shapes are not flat plates. The blades are thin, the hub is thick, and the two sections cool and spring back at different rates. That mismatch is where most dimensional trouble starts.

Metals conduct heat away from the cut zone. Plastics do not. Nearly all the heat generated by the tool stays in the chip and in the workpiece surface. The material softens, the cutting edge rubs instead of shearing, and the finished surface tears. Feed per tooth matters more than spindle speed for this reason.

The elastic recovery of the material also pushes back on the flank of the tool. A sharp, polished cutter with a high rake angle reduces that force. A worn cutter rubs, heats the wall, and leaves a smear. On a blade 1.5 mm thick, that difference shows up as a bowed profile.

Thermal expansion is large. A PA or POM blank can grow 0.1 mm over 100 mm of length when the surface warms by 20 °C. Rough the part, let it cool, then finish. Cutting to final size in one pass locks in the warm dimension and the part shrinks after it leaves the machine.

Material choice decides whether the part is machinable at all. Unfilled ABS, PC, PMMA, and PA cut cleanly and hold thin walls well. They are the right pick for air-moving impellers, fan rotors, prototypes, and low-temperature housings. Glass or carbon filled grades wear the tool fast but hold stiffness at higher temperatures.

PEEK and carbon fibre composites are common in high-temperature or chemically aggressive service. Both are abrasive. Carbide tooling with a diamond coating lasts longer, and the cut strategy changes: lighter radial engagement, higher feed, no dwelling in the cut. Heat builds quickly if the tool rubs.

POM machines to a fine finish and holds tight tolerances, which makes it a good fit for small pump impellers and metering rotors. It does not bond well to adhesives and it is hard to paint, so plan the assembly method before you commit to the design.

PP and HDPE are tough and cheap, but they are gummy. They deflect under clamping pressure and they fuzz at the edges. Use sharp tools, climb milling, and light clamping. For a large volute housing in PP, expect to leave 0.3–0.5 mm of finishing stock and take two light passes.

A blade that is too thin will chatter and then deflect away from the cutter. As a working rule, keep blade thickness at 1.5 mm or more for unfilled plastics, and 2 mm or more for filled grades. Below that, the cutting force pushes the wall instead of cutting it, and you lose the profile.

Internal corners need a radius larger than the cutter radius. If you draw a 2 mm corner and the smallest cutter available is Ø3 mm, the shop either leaves a 1.5 mm radius or cuts it with a smaller tool in a second operation. Design a 3 mm radius and you save a setup.

Blade count drives tool access. A six-blade impeller with wide channels is straightforward on a 3-axis mill with a rotary table. A twelve-blade closed impeller with narrow, twisted channels needs simultaneous 5-axis motion, because the tool shank hits the next blade before the tip reaches the root.

Shrouded or closed impellers are the hardest case. The channel is bounded on both sides, so the tool reaches the blade root only at an angle. If the channel width is under 4 mm, ask whether an open impeller with a separate cover would work. It usually machines faster and inspects better.

Plastic compresses. A vise closed to a metal feel will flatten a thin rotor and leave the hub oval after release. Use soft jaws bored to the actual blank diameter, torque the vise lightly, and check the hub with a micrometer before and after clamping.

For a disc-shaped rotor, the best method is to face and turn the hub first, then grip on that turned diameter for the second operation. The grip surface is round and concentric, so the blades come out evenly spaced. Gripping raw extruded stock means the runout of the bar becomes the runout of the blades.

Thin blades need support, not force. A sacrificial plug or a wax-filled cavity holds the blade during the roughing pass. Vacuum chucks work well on flat cover plates. For a tall impeller, a tailstock center on a drilled hub bore adds stiffness without clamping the blades.

Release the part and let it sit before final measurement. A plastic impeller can move 0.05 mm in the first hour after unclamping as internal stress relaxes. Measure after the part reaches room temperature, not straight off the machine.
