A plastic hand plate is the part a person grips, presses or rests a hand on. It shows up as a handle shell on a medical cart, an interface plate on a control panel, a cover over a machine guard, or a grip section on a portable instrument. The functional job is always the same: spread finger load, survive repeated contact, and hold whatever sits inside it.

The part is rarely a simple flat sheet. Most designs carry a curved palm profile, counterbored holes for fasteners, a pocket on the back for a PCB or a battery, and a lip or boss that locates against the housing. Those features are what push the part toward milling rather than a flat cut.

Material choice follows the load, not the datasheet headline. ABS and HDPE take impact and stay cheap. PC and PMMA give stiffness and clarity. POM machines cleanly and holds a sliding fit. PEEK and carbon fibre filled grades handle heat and wear, but they cost more and dull tools faster.

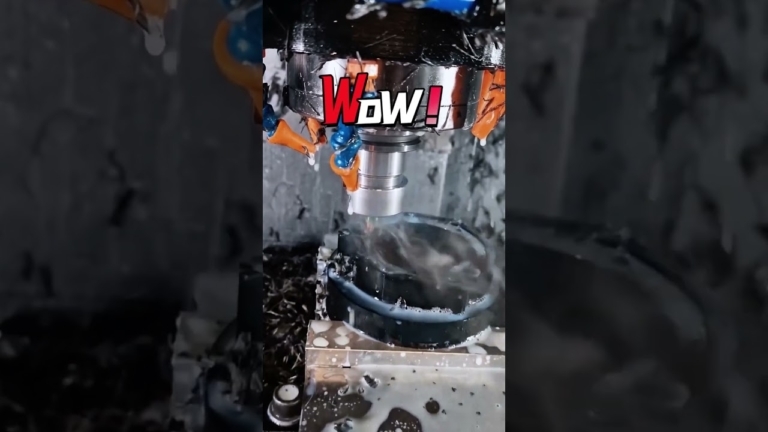

CNC machining is subtractive. A rotating cutter travels along toolpaths generated from a CAD model and shears away material in chips. On plastic, the failure mode is heat, not hardness. Plastic conducts heat poorly, so friction at the cutting edge stays in the chip and the part instead of escaping.

That single fact drives every parameter. If the chip carries the heat away, the part stays cool and dimensionally stable. If the chip melts and smears, the cutter rubs, the edge builds up, and the wall deflects under load. The bore that measured Ø10.02 mm on the first pass can read Ø9.96 mm on the tenth.

So the rules are short. Keep the chip thick enough to carry heat, keep the spindle fast, keep the feed aggressive rather than timid, and use sharp tooling with high rake angles. A light finishing pass at Ra 0.8–1.6 μm is fine as a last step, but a whole program of light passes is how plastic parts drift.

Toolpath strategy sets the outcome before the spindle turns. Rough with an adaptive path that keeps radial engagement steady, so the cutter never buries itself in a corner. Leave 0.3–0.5 mm of stock for finishing on load-bearing walls. Cut pockets as open as the drawing allows, because a deep narrow slot in plastic is where chatter starts.

Workholding is the quiet risk. Plastic is soft and flexible, so a vise or clamp can flatten a cavity or bow a thin plate without leaving a mark. Vacuum fixtures, soft jaws machined to the part profile, and tabs that hold the plate to a carrier all avoid that. Support the underside of any wall thinner than 1.5 mm.

Run the first article and measure it while the setup is still hot. Check hole diameters, flatness across the grip face, and wall thickness at the thinnest point. When the numbers hold, the rest of the run follows. When they do not, the fix belongs in the setup, not in the inspection report.

Thin walls cut cleanly if they are supported. Keep load-bearing walls at 2–3 mm for PC and ABS, and up to 4 mm where the plate takes a bending load. Under 1 mm, expect the cutter to push the wall away from the tool instead of cutting it, especially near the end of a pass.

Bosses and ribs should be fed from the outside in. A boss standing on a 2 mm floor will flex if the cutter plunges straight down its center. Step the tool down gradually, or cut the boss from the side, so cutting force pushes toward the floor rather than across it.

Internal corners need a radius. A sharp inside corner forces a small cutter into a tight arc, where it chatters and leaves a witness mark. If the drawing calls for a square corner, the part still gets the radius of the smallest tool that can reach it. Tell the designer early, not at inspection.

Deep, narrow pockets are the first limit. A pocket 40 mm deep and 3 mm wide needs a long, thin cutter that deflects under load. In plastic the deflection shows up as a tapered wall. If the pocket is that deep, machining the plate in two halves and joining them is often the better route.

Material movement is the second limit. PA and some PC grades absorb moisture from the air and change size after machining. A plate cut to ±0.005 mm on a dry day can grow past that window in a humid room. For close fits, anneal the stock first and control the shop environment.

Cost is the third. A single plate is cheap because there is no tooling. Ten thousand identical plates are not. Past a few thousand units, molding wins on unit price. The crossover point depends on geometry and finishing, so ask for both numbers before committing.
