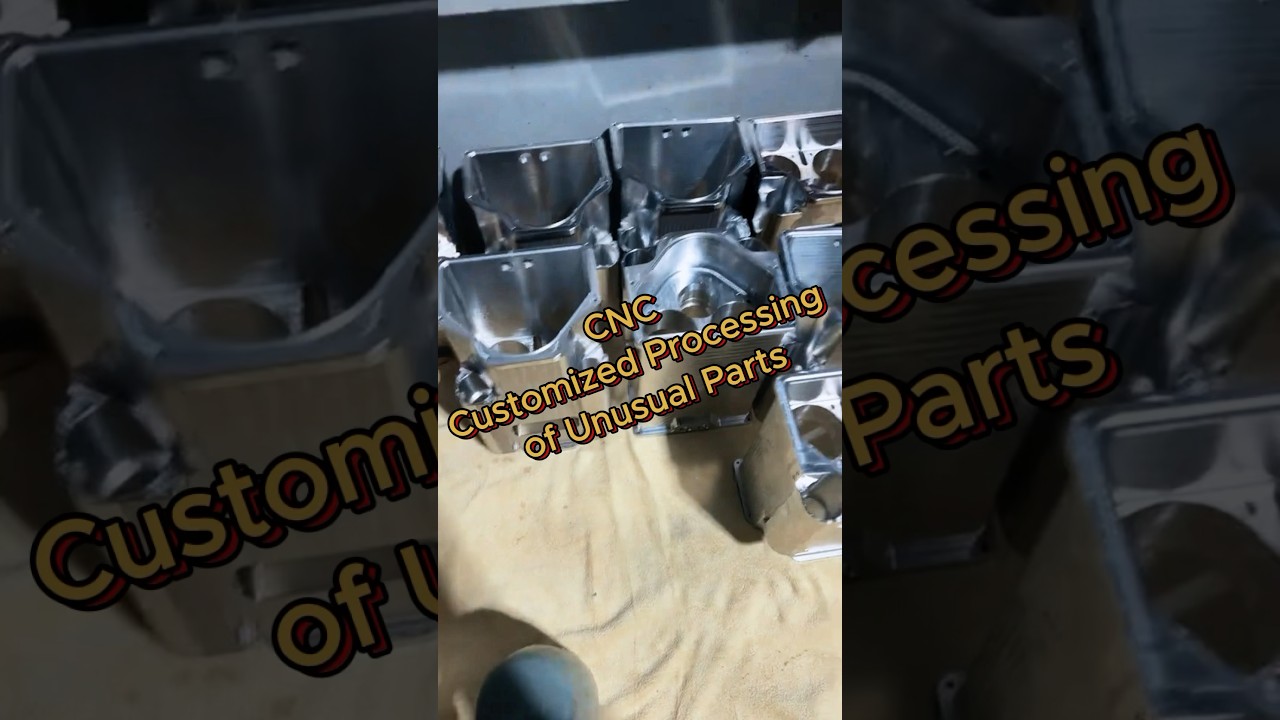

CNC Customized Processing of Unusual Parts

• 1
  Why odd geometry breaks a normal setup plan
• 2
  Workholding decides the process before the toolpath does
• 3
  Tool reach and the L/D ratio: where vibration starts
• 4
  Unusual materials change the cutting window
• 5
  Tolerance stacking on multi-face parts
• 6
  Which setup fits which unusual feature

Most parts in a shop look alike: a plate, a shaft, a bracket. A part becomes unusual when its shape stops matching the way a machine holds and reaches it. A tilted boss on a long arm, a bore that opens into a thin floor, a housing with five faces carrying tolerances. The drawing may be simple. The setup is not.

Two things decide everything. First, can the part be held while the cut is taken, without the fixture pushing it out of tolerance. Second, can the tool reach the cut surface at an angle that leaves a usable finish. When either answer is no, the process has to change, not the drawing alone.

That is where the cost sits. Extra setups, soft jaws, shimmed blocks and a probe routine add hours before the first chip. On a one-off part those hours never get amortized. On a 500-part run they vanish into the cycle time.

So the question is never "can this be machined." Almost anything can. The question is which of the available setups gives a stable part at a tolerance the customer can use, without a fixture that costs more than the parts.

On a normal part, the vise or the chuck is an afterthought. On an unusual part it is the design constraint. A casting with draft on every face has no parallel surfaces to clamp. A frame with a 2 mm wall will crush under 4 kN of vise pressure. A part with a 0.5 mm floor will bow the moment the cutter pushes down.

The fix is usually to hold on something the part will not miss. A bolt-hole pattern becomes a fixture plate. A sacrificial boss gets added on the stock and cut off later. Sometimes we flip the part and machine the datum after the geometry that needs the datum exists.

Vacuum chucks work well for thin plates where you cannot clamp the edge. They hold across the whole face and leave no marks, but the part must be flat enough to seal and the cutting forces must stay low. Light radial passes with a 6 mm end mill at 0.3 mm depth of cut are fine. A 20 mm face mill is not.

For long, slender parts, support matters more than clamping. A travelling steady, a tailstock or a jack under the overhang keeps the part from singing. If the part rings, the finish goes first and the tolerance follows.

A cutter that hangs out 4 times its diameter is already in trouble. At 6 times, the finish starts to chatter on stainless. At 10 times, you are regrinding the wall, not cutting it. The rule of thumb on our floor is L/D 4:1 for a safe rougher, 6:1 with a reduced depth of cut, and beyond that only with a dedicated long-reach tool and a light step-over.

Deep pockets force this decision. If a pocket is 80 mm deep and 30 mm wide, a Ø16 mm tool with 90 mm of gauge length is the only way in. Then the cut has to be gentle: 0.2–0.4 mm radial engagement, 8–12 mm axial, high spindle speed and a feed that keeps the chip thin. Trying to run the same parameters as a stub cutter will snap the tool or scrap the wall.

The alternative is to tilt the part. A 5-axis setup with the part swung 30–45° lets a shorter, stiffer tool reach the same surface. The cycle is longer because of the rotary moves, but the tool is four times stiffer. For a deep, tight feature that is usually the cheaper route.

Sometimes neither works and the feature has to be split. Two halves machined separately and bolted or bonded are more reliable than one deep pocket with a tool that screams.

Aluminium 6061 and 7075 are forgiving. You can push a 12 mm carbide cutter at 8,000 rpm and 3,000 mm/min and the chips fly. Most unusual parts are not aluminium. They are 17-4PH at 40 HRC, or Inconel, or a magnesium casting that catches fire if the chip sits too long.

Inconel 718 cuts at roughly one-tenth the speed of 6061. Surface speed sits around 25–35 m/min with coated carbide, and the tool wears by notching at the depth-of-cut line. You need a rigid setup, a climb cut, and a constant feed so the tool never rubs. Any dwell in the cut work-hardens the surface and the next pass has to cut through a harder skin.

Magnesium AZ31B and AZ91D machine beautifully but demand chip control. Fine dry chips ignite easily. We run them with a mineral-oil mist, no water, and clear the chips continuously. Never let magnesium fines accumulate in a tray.

Titanium Ti-6Al-4V sits in between. It cuts at 40–60 m/min, generates high heat at the edge, and needs flood coolant aimed at the tip. A sharp, uncoated or AlTiN-coated tool with a positive rake works better than a heavy hone.

A ±0.005 mm callout on a single bore is routine. The same callout on a bore measured from a face that was machined in a different setup is a different problem. Every setup adds a locating error, and every flip adds a re-datum. Three setups can easily consume 0.01 mm before the cutter touches metal.

The way out is to reduce the number of datum transfers. Machine all tight features in one setup where possible, even if that means a 5-axis cycle instead of three 3-axis cycles. On our 16 simultaneous 5-axis centers, a part can be finished on five faces with one clamp. That removes two flips and two chances for error.

When a flip is unavoidable, cut the datum on the same setup that establishes the tight feature. Then the second setup references a surface that already lives in the same coordinate frame. This is basic, and it is the most common thing we see missed on incoming drawings.

For parts with a true position callout, the fixture and the machine geometry both matter. We probe the fixture before the run and log the result. If the probe drifts more than 0.003 mm, the run stops.
