CNC Machining Mold Insert Parts: How They Are Cut, Fitted and Finished

• 1
  What a Mold Insert Does Inside the Tool
• 2
  How the Insert Is Cut: Roughing to Finishing
• 3
  Which Steel Suits a CNC Machining Mold Insert
• 4
  Tolerances That Decide Fit and Flash
• 5
  When CNC Milling Is the Wrong Route
• 6
  Milling vs EDM vs Hard Milling for Mold Inserts

A mold insert is a removable block set into a mold base. It carries the geometry that shapes the part: the cavity that forms the outside surface, the core that forms the inside, and the shutoffs where the two meet. The base stays in the press; the insert can be swapped when a feature changes or when it wears out.

That split is the reason inserts exist. A large base is expensive and slow to replace. An insert is small enough to be re-cut, re-polished or replaced on its own. On a family tool, several inserts sit in one base so different versions of a part can run without rebuilding the whole frame.

When engineers ask about cnc machining mold insert work, they usually mean cutting those blocks: the cavity detail, the core, the runner, the cooling channels and the mounting fits. The machining route decides whether the insert drops into its pocket with the right preload and whether the parting line closes clean.

Insert size varies widely. A small electronics insert may be 80 × 80 × 40 mm. A bumper or large housing insert can run past 1,000 mm. GreatLight cuts inserts up to 4,000 mm on the largest frame, so both ends are routine.

• 1
  Cavity insertForms the outer surface of the molded part.
• 2
  Core insertForms internal geometry, bosses and ribs.
• 3
  Shutoff facesWhere insert meets insert or base; controls flash.
• 4
  Cooling channelsDrilled or milled into the insert for cycle control.

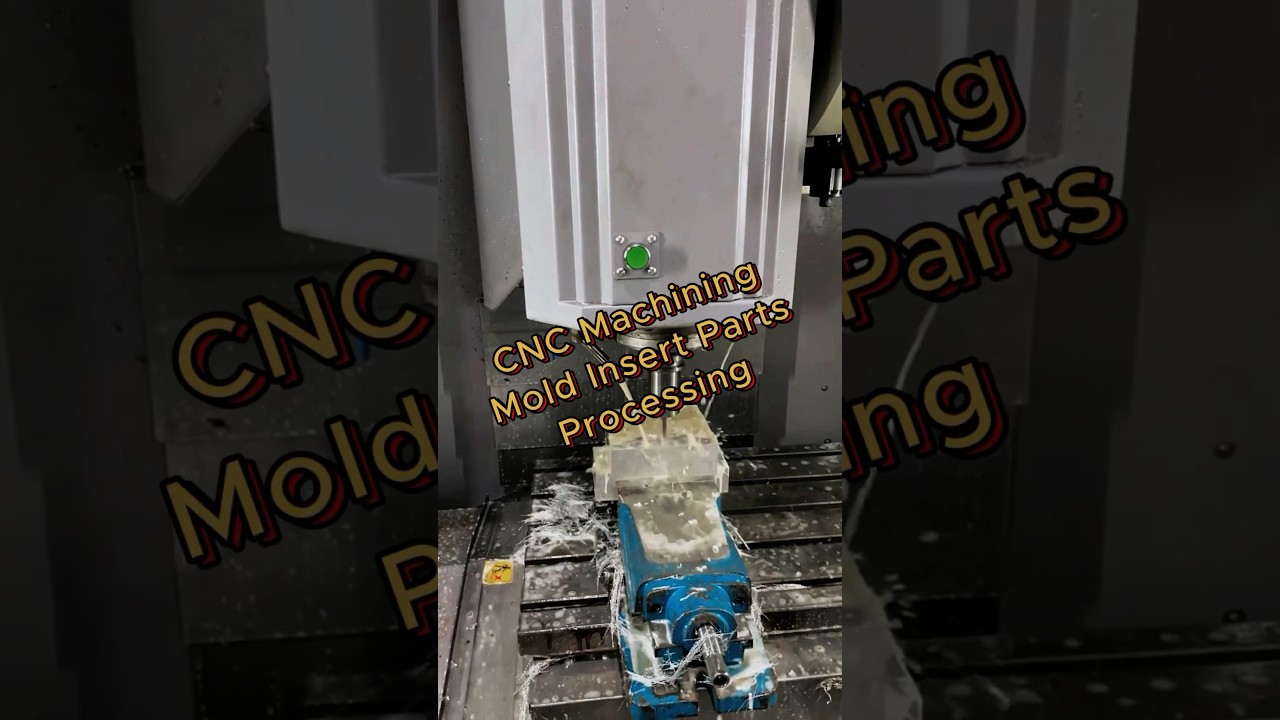

Insert machining starts with stock removal, not detail. On a pre-hardened block, a 3-axis machine takes the bulk out with a Ø16–Ø25 mm end mill, leaving 0.3–0.5 mm of stock on the cavity floor and walls. Roughing fast and leaving even stock matters more than hitting size at this stage.

Semi-finishing follows with a Ø8–Ø12 mm cutter to even out the stock left by roughing. Uneven stock is the main cause of chatter later. If the cavity has deep ribs, this is where a 4-axis setup with a rotary table saves repositioning, because the part can be indexed instead of re-clamped.

Finishing cuts the actual surface. A Ø6–Ø10 mm ball nose cutter at 0.05–0.15 mm stepover gives Ra 0.8–1.6 μm on mold steel, which is enough for many technical parts. Optical and medical surfaces often need Ra 0.2–0.8 μm, so a smaller stepover plus hand polishing is scheduled in.

Five-axis simultaneous cutting is what allows steep walls, undercuts and deep pockets to be finished in one setup. GreatLight runs 16 simultaneous 5-axis centers. For a cavity with a draft angle under 3°, 5-axis keeps the cutter normal to the surface and avoids the faceting a 3-axis route leaves behind.

• 1
  Stock allowance0.3–0.5 mm after roughing.
• 2
  Finishing stepover0.05–0.15 mm for Ra 0.8–1.6 μm.
• 3
  Draft angleBelow 3° usually needs 5-axis or EDM.

Material decides the machining route before any cutter touches the block. P20 and 718 pre-hardened steels machine well at 28–34 HRC and are common for low to medium volume tools. They cut with carbide tooling at normal speeds and hold a good polish, which is why they are the default for prototype and bridge tooling.

For higher volumes, H13 and 1.2344 are used at 48–52 HRC after heat treatment. Machining is then split: rough in the annealed state, heat treat, then finish by hard milling or EDM. Hard milling at 48–52 HRC requires light radial engagement and rigid setups, but it removes the need for a second EDM pass on many surfaces.

Stainless grades such as 420 and 440C come into play where corrosion or abrasive filled resin is a factor. They polish to a high gloss but work-harden during cutting, so feeds and speeds need to stay aggressive enough to cut under the hardened layer rather than rub on it.

For very small inserts, copper alloys like beryllium copper are used for their heat transfer rather than their wear resistance. They machine quickly and are often placed in hot spots to pull heat out of the cavity. The trade-off is lower hardness and a shorter service life.

• 1
  P20 / 71828–34 HRC, prototype and medium runs.
• 2
  H13 / 1.234448–52 HRC after heat treatment, high volume.
• 3
  420 / 440CCorrosion or abrasive resin, high polish.
• 4
  Beryllium copperHeat transfer in hot spots, lower wear life.

Not every surface on an insert needs the same tolerance. Spending ±0.005 mm on a cooling channel boss wastes money; missing it on a shutoff face causes flash. The practical split is between forming surfaces, shutoffs and mounting fits.

Shutoff faces and parting lines are the tightest. A mismatch of 0.02 mm between two inserts shows up as visible flash on the part. These faces are usually ground after milling, and they are checked against the mating insert rather than against the drawing alone.

Mounting fits control how the insert sits in its pocket. A typical insert-to-pocket fit is 0.01–0.02 mm clearance on the sides, with the bottom face seated flat. If the pocket is too tight, the insert can bow when clamped; too loose and it shifts under injection pressure.

Forming surfaces sit in the middle. For most technical parts, ±0.02 mm on the cavity profile is enough. Where wall thickness is critical, the cavity and core are matched to each other so the difference, not the absolute size, is controlled. GreatLight holds ±0.005 mm on critical features and inspects 100% of inserts before shipment, with reports on request.

• 1
  Shutoff facesMatched to the mating insert, not the drawing.
• 2
  Pocket fit0.01–0.02 mm side clearance.
• 3
  Cavity profile±0.02 mm typical for technical parts.

CNC milling has limits, and knowing them early saves a scrapped block. Sharp internal corners are the clearest case. A rotating cutter always leaves a radius equal to its corner radius, so a true 90° internal corner cannot be milled. If the part needs a square internal corner, that detail goes to EDM or is redesigned with a small radius.

Deep, narrow ribs are another boundary. A rib 60 mm deep and 2 mm wide needs a cutter long enough to reach the bottom, and long small-diameter cutters deflect. The result is taper, chatter marks or a broken tool. Below roughly a 10:1 depth-to-width ratio, milling is comfortable; past 15:1, EDM or a split insert design is usually cheaper.

Very hard material changes the economics too. Above about 55 HRC, carbide milling becomes slow and tool life drops sharply. At that point, graphite electrode EDM or wire EDM is the normal route for detail work.

Textures are the last one. Fine leather grain, deep engraving and sharp logos are often better cut into an EDM electrode or added by laser texturing than milled directly. Milling a texture means many small stepovers, which adds hours and can still leave visible tool marks after polishing.

• 1
  Square internal cornersMove to EDM or add a radius.
• 2
  Rib depth above 15:1Deflection risk; consider split insert.
• 3
  Above 55 HRCEDM is usually faster than milling.
