With the progress of the Chinese manufacturing industry, the demand for grinding internal teeth increases!

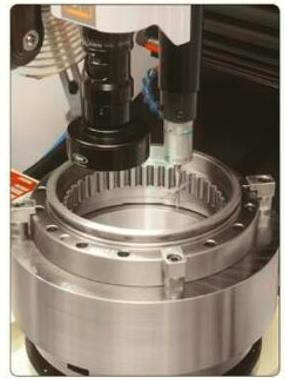

The internal integration crusher, also known as internal teeth grinding, is the only process of treatment of internal teeth after thermal treatment.
The grinding of internal teeth is usually the last treatment step after the heat treatment of speed and is the last high precision treatment method! Internal teeth, including straight teeth, helical teeth, etc., are relatively easy to treat straight teeth, and helical teeth are more difficult to treat.
Internal treatment of teeth is not like an external dental treatment, and there are many methods of treatment! The treatment of internal teeth in the tooth manufacturing process includes teeth insertion, teeth scratching, teeth, cold formation and teeth grinding after hot.
The grinding of internal teeth is also subject to many constraints, as the diameter exceeding18 mmis a great challenge.30 mmThe above is easy to treat;15 mm。
There are not many companies that produce internal teeth grinders now, and the few listed below are among the best!
For more information on internal teeth treatment technology, please pay attention to:158Network of machine tools, information on!
For internal teeth crushers, please refer to the following:
1Taiwan Jianwei Company
Suitable for grinding internal teeth, minimum diameter30 mmwidely usedVRReducing industry. Taiwan Jianwei Company is a manufacturer of professional grinders.VRReducer, electric spindle, bearing, military industry and other industries;
Maximum moduleM5Indexing disk (fourth axis) segmentation precision20Second/secondPositioning precisionX、YThe axis is ±0.0015 mm；
Jianwei’s internal teeth crusher is limited to the treatment of straight teeth.
Consultation phone:135 0128 2025
2Klinberg, Switzerland
Klinberg is a manufacturer of world renown crushers. other industries;
Klinberg composite crusherViper 500 MFMThe tool-tool has the machining function of internal teeth, external teeth and coordinate holes.VRReducing industry.
Klinberg’s internal teeth grinding can treat spur and helical teeth.
Consultation phone:135 2207 9385
3Capanils, Germany
The company is merged by CAPA and NIELS, mainly producing machine tools for processing equipment;
VInternal and external teeth grinding machines can be treated separately after different configurations of grinding units./ /External push shape.
Consultation phone:010-51663382
4Sanpo, Italy
It is a well-known Italian company, and its products include: Gear Grinders, Gear Hobbers, Gear Pirchs, internal and external composite grinders and other products;
S375G / G500H The form to form grinds the interior and exterior gears of the cycloid. Depending on the interior diameter of the part and the size of the production batch, determine if you need to use a terminable grinding wheel to grind or electropulse.CbnGrowing wheel grinding.
Install external dental grinding accessories and grind cycloid equipment.
S375G The maximum diameter of the machine-tool part is375Millimeter
Consultation phone:135 2207 9385
5Mitsubishi Japan
Mitsubishi Company is an important manufacturer of machine tools in Japan, producing products such as lobing, insertion of teeth, gantry and machining centers;
Mitsubishi Company has developed an internal tooth crusher for the development method, namely the internal teeth grinder of what is called a diameter of treatment of treatment100-200 mmbetween.
Use an internal ring crusherZi20aCanStableget:
Precision of the shape of the tooth and the direction of the teeth:ISO3class;
Precision of the pitch and the ring precision of the jump:ISO5class;
It can effectively and considerably correct the quantity of deformation generated during heat treatment;
Consultation phone:010-51663392
