Bulk Rapid Prototyping Fabrication Process

A single machined prototype tests fit and function. A bulk rapid prototyping fabrication run tests whether your design survives repetition. The quantities are usually 50 to 2,000 pieces, enough for clinical trials, vehicle builds, field pilots, or a soft launch. Too many for a manual one-off workflow, too few to justify hard tooling and the months it takes to cut it.

That middle ground changes the constraints. Fixturing has to be repeatable. Setup sheets have to be written down. Inspection has to sample the same features on every part, not just the first one. If a shop treats 500 units as 500 separate one-offs, the part count goes up but the process discipline does not.

The practical goal is to hold the same critical dimensions, surface finish, and material condition from the first article to the last. Everything in this article points back to that.

• 1
  Usually 50–2,000 unitsEnough for trials and pilots, below the volume that pays for hard tooling.
• 2
  Repeatability, not just accuracyThe first part and the 400th part must measure the same.
• 3
  Mixed routes are normalCNC housings, printed lattice, formed brackets, cast covers in one build.
• 4
  Documentation travels with the partsSetup sheets, material certs, inspection reports.

Most bulk prototyping programs start with CNC because machined aluminum, stainless, and engineering plastics give near-net shape plus real mechanical properties. For functional testing and early field trials that combination is hard to beat. A 5-axis setup also removes the need to split a part into features that must later be joined, which matters when a bracket carries load or a housing must seal.

CNC is not always the right answer. A thin cosmetic cover with no load path is cheaper as a vacuum cast urethane part pulled from a 3D-printed master. Flat brackets and chassis plates are faster on a laser or a press brake than on a mill. A lattice or internal channel that no cutter can reach belongs in SLM or another metal printing route.

The mistake is committing the whole bill of materials to one technology. In a real bulk order you may machine the aluminum housing, vacuum cast the polyurethane cover, laser cut the sheet metal brackets, and print the titanium lattice, then finish and assemble all of it under one quality system. That is what full-chain integration means in practice.

• 1
  CNC machiningPrismatic parts, tight tolerances, load-bearing geometry, metals and plastics.
• 2
  Vacuum castingCosmetic covers and low-stress housings in polyurethane, from a printed master.
• 3
  Sheet metalFlat brackets, panels, and enclosures where thickness is uniform.
• 4
  Metal printingLattices, conformal channels, and organic shapes a cutter cannot reach.

A shop that quotes ±0.005 mm on a single part is not automatically able to hold it across 500. Tolerance is a system output: machine condition, thermal drift, fixture repeatability, tool wear, and the order in which features are cut. Change any one and the distribution shifts.

The most common cause of drift is fixture rework between batches. If a vise is re-clamped by eye for each setup, the datum moves a few hundredths of a millimeter. That is invisible on a cosmetic part and fatal on a mating face. Good practice is a dedicated soft jaw or plate that is indicated in once and re-used for the whole run.

Thermal effects are the second cause. Aluminum grows roughly 23 μm per meter per °C. A shop floor that swings 8 °C between the morning and the afternoon shifts a 300 mm part by about 0.055 mm. That is ten times the tolerance band on a critical bore. Temperature-controlled finishing rooms and in-process gauging with a known reference are how this gets managed.

Tool wear is the third. A cutter that has cut 40 parts will not leave the same surface as a new one. Ra drifts, burrs grow, and thread gauges start to drag. Tracking tool life per operation, and changing inserts on a count rather than on a squeal, is basic discipline that many shops skip.

• 1
  Fixture repeatabilityIndicate the datum once per run, not once per part.
• 2
  Thermal control23 μm/m/°C for aluminum; measure at a stable temperature.
• 3
  Tool life trackingChange inserts on a count to protect Ra and thread fit.

You approve 20 pieces. Two months later the 500-piece run shows a different surface finish, a color shift in the anodize, or a thread that feels tighter. This almost always traces to one decision: the supplier subcontracted a critical step to an outside vendor and lost end-to-end control.

Anodizing is the clearest case. Coating thickness depends on current density, bath temperature, and time. If the anodizer changes any of those between the sample and the bulk run, the color moves and the coating thickness changes with it. Hardcoat at 25 μm and hardcoat at 40 μm will not match visually, and a press fit sized at 25 μm will not assemble at 40 μm.

The fix is boring but effective. Keep finishing in-house or with a named, audited partner. Freeze a process sheet that lists bath parameters and target coating thickness. Keep a golden sample from the approved first article and compare every subsequent batch against it under the same lighting. Record material heat numbers and keep them with the inspection report so a later discrepancy can be traced to a specific lot.

• 1
  Freeze the process sheetBath chemistry, current density, time, and target thickness on one page.
• 2
  Golden sampleA signed first article kept for visual and dimensional comparison.
• 3
  Traceable lotsHeat numbers on the cert, linked to the parts they produced.
• 4
  Single quality systemMachining and finishing under one audit umbrella.

Material decides more than strength. It sets the cutting parameters, the achievable finish, the finishing options, and how much the part moves after machining. Pick the grade before you fix the tolerance callouts, not after.

For aluminum, 6061-T6 is the default for functional prototypes: it machines cleanly, welds, and anodizes well. 7075 gives higher strength for brackets and structural parts but is less friendly to thin anodize colors. 2024 machines well and is common in aerospace work, though corrosion protection needs more attention. For die-cast housings, ADC12 covers most electronics enclosures.

Stainless covers a wide band. 303 is free-machining and good for fittings and shafts. 304 and 316L handle corrosion and, in the case of 316L, medical and food-contact work. 17-4PH (SUS630) can be aged to high strength and is a common choice for surgical instruments and aerospace hardware. Titanium TC4 (Ti-6Al-4V) and Inconel are reserved for cases where weight or temperature rules out steel.

Plastics behave differently. POM is dimensionally stable and good for sliding parts. PEEK holds up to high temperature and chemical exposure but is expensive and abrasive on tooling. PC and ABS are fine for housings and covers. Carbon fiber composite is worth considering when stiffness-to-weight matters more than surface cosmetics.

• 1
  Aluminum6061-T6 default, 7075 for strength, 2024 for aerospace, ADC12 for castings.
• 2
  Stainless303 free-machining, 304/316L corrosion, 17-4PH for high strength.
• 3
  Titanium and superalloysTC4 for weight, Inconel for temperature.
• 4
  PlasticsPOM for sliding, PEEK for heat and chemistry, PC/ABS for housings.

A bulk prototyping run without documentation is a run you cannot repeat. When the next build comes around, the shop that made your parts should be able to open the same setup sheet, the same tool list, and the same inspection plan and produce a matching batch.

Ask for the first article inspection report on the parts you approved, with the actual measured values, not just pass/fail. Ask for material certificates with heat numbers. Ask for the finishing process sheet if a cosmetic or protective coating is involved. These are the documents that let you answer a customer complaint eighteen months later.

Confidentiality matters too. Prototype geometry is often the most valuable data a company owns. Uploads and drawings should be covered by an NDA when requested, and file access should be limited to the people who actually need it.

• 1
  First article reportMeasured values on the approved sample, not a checkbox.
• 2
  Material certificatesHeat number and standard, tied to the batch.
• 3
  Setup and finish sheetsThe recipe for reproducing the run later.
• 4
  NDA on requestCovers drawings, models, and any test data shared.

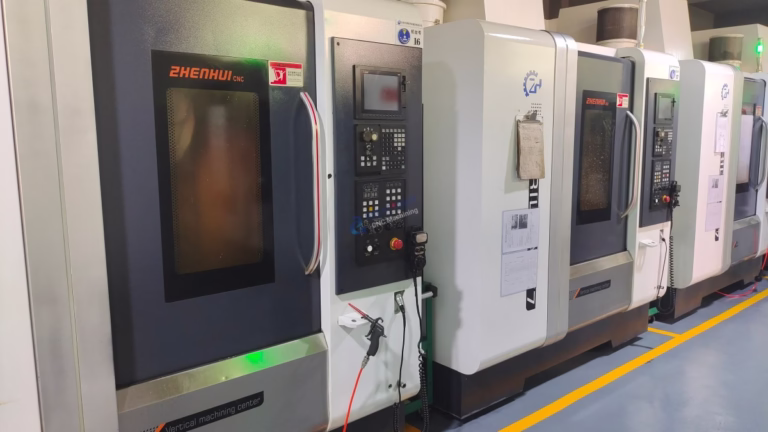

Bulk prototyping capacity is really a question of how many setups a shop can run in parallel and how large a part each setup can hold. Our floor runs 127 high-precision CNC machines, including 16 simultaneous 5-axis centers, 12 four-axis mills, 27 three-axis machines, and 16 mill-turn centers. That mix matters because a mill-turn center finishes a shaft in one operation instead of three, which removes two datum transfers from the tolerance stack.

Size range runs from compact work at 500 × 310 × 200 mm up to a 4,000 mm maximum processing size on the long-travel machine, with a Ø400 mm rotary table for parts that need radial features. Large parts are not just a table-size question. Thin walls on a 4,000 mm part deflect under cutting force, so support and light finishing passes decide whether the tolerance holds.

Volume is flexible. There is no minimum order quantity, so a single prototype and a 10,000-piece run sit on the same process sheet. Between 50 and 2,000 units we normally run on soft tooling and fixtures rather than hard tooling, which keeps the change cost low if the design moves after the first build.

• 1
  127 CNC machines16 five-axis, 12 four-axis, 27 three-axis, 16 mill-turn.
• 2
  Up to 4,000 mmLong-travel machining with Ø400 mm rotary table for radial features.
• 3
  No minimum order quantityOne prototype through to 10,000+ part runs.
• 4
  3 plants, 7,600 m²Dongguan and a Singapore site at No.3 Joo Koon Circle.

Inspection is where a bulk run is proven. Our flow checks raw material on receipt, monitors dimensions in process, and performs a final inspection before shipment, with 100% of parts inspected before they leave. Reports are issued on request. The qualification rate we track against is 99.99%.

Certification is not a badge on a wall. ISO 9001:2015 sets the quality management baseline. IATF 16949:2016 adds the automotive discipline that matters when a prototype is a step toward a production vehicle. ISO 13485:2016 covers medical devices, where traceability and process validation are audited rather than assumed. ISO 27001:2022 governs how drawings and other customer data are protected.

For a bulk order, ask which system covers the specific process steps your parts go through. A certificate held at the company level means little if the anodize line or the casting cell sits outside the audited scope.

• 1
  ISO 9001:2015Quality management baseline across the plant.
• 2
  IATF 16949:2016Automotive-grade process control and traceability.
• 3
  ISO 13485:2016Medical device manufacturing requirements.
• 4
  ISO 27001:2022Information security for customer files and data.
