Uncover the Secret of 5-Axis CNC: Why It Cuts Differently

• 1
  Symptom, Likely Cause, and What to Do
• 2
  Why 5-Axis CNC Cuts Differently From 3-Axis Work
• 3
  Chatter and Surface Finish: Where the Vibration Comes From
• 4
  Tolerance Drift: Thermal Growth and Rotary Axis Error
• 5
  When 5-Axis CNC Is the Wrong Choice
• 6
  Step by Step: Diagnosing a 5-Axis Problem on the Floor

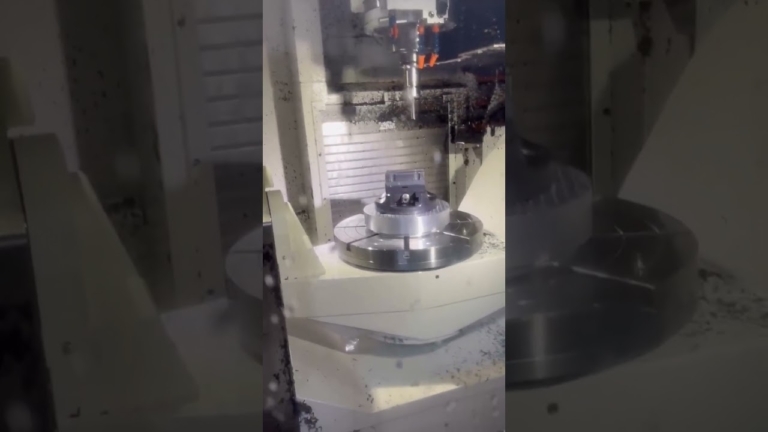

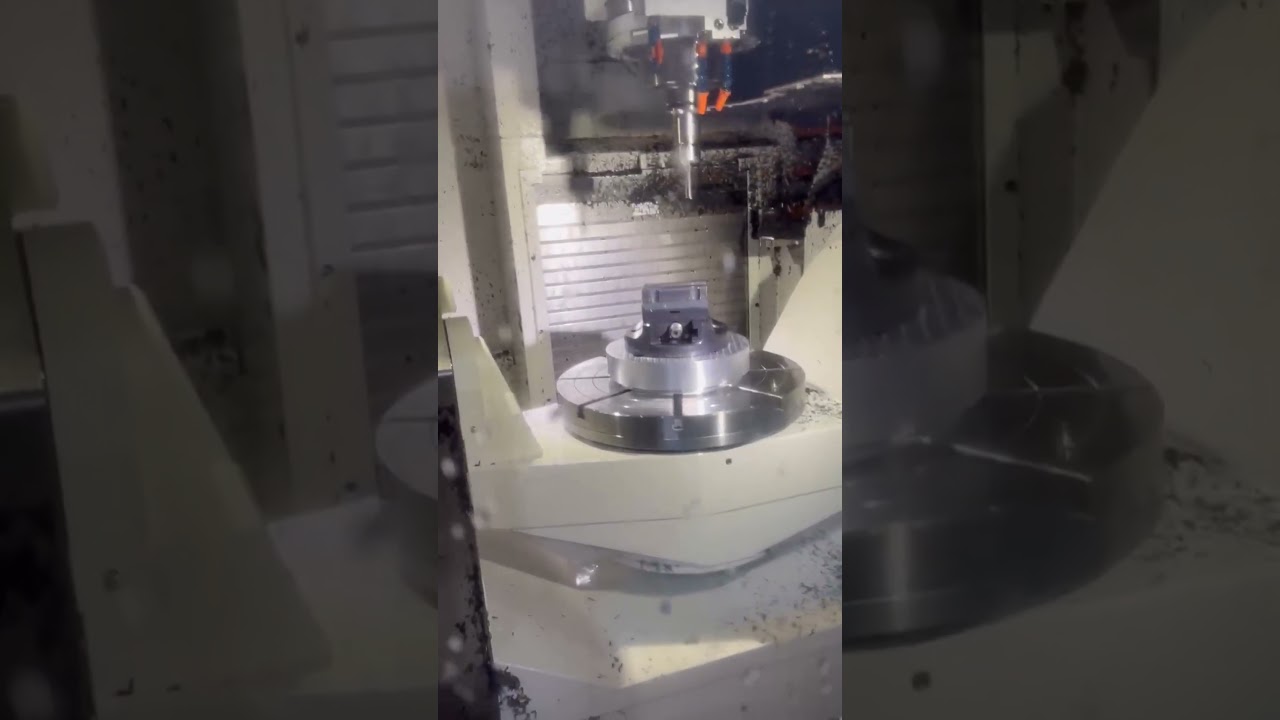

A 3-axis machine moves the part past a fixed tool. A 5-axis CNC machine also tilts the tool or the table, so the contact point between cutter and material keeps changing. That is the whole secret, and it is also the source of most problems. When the tool axis tilts, the effective cutting diameter changes, the chip load changes with it, and a program that looked safe in simulation can chatter on the floor.

The second difference is rigidity. Rotary axes add stacked joints. Each joint has its own clearance and its own thermal behavior. A trunnion table that is warm after two hours of roughing will not hold the same position it held at 8 a.m. On a short run nobody notices. On a 500-part run, the last 50 parts can drift outside tolerance while the first 50 were perfect.

The third difference is programming. In 3-axis work the tool axis is a constant. In 5-axis work the axis is a variable you control, and how you control it decides surface quality. Fast axis swings between passes leave witness marks on blends. Slow swings add cycle time. There is a working band, and most of the troubleshooting on this page comes down to finding it.

• 1
  Contact point changesEffective diameter and chip load shift as the tool tilts.
• 2
  Stacked jointsRotary axes add clearance and thermal drift.
• 3
  Tool axis is a variableAxis swing speed drives both finish and cycle time.

Chatter is rarely a machine fault. On 5-axis CNC work it usually starts with tool overhang. A Ø10 mm end mill held 60 mm out of the holder has roughly four times the deflection of the same cutter held 30 mm out. If a deep pocket forces that overhang, reduce radial engagement instead of pushing feed. On aluminium, 8–12% of tool diameter radial and full axial depth is a stable starting point. On 4140 steel, drop to 5–8% radial and expect to slow down.

The second source is tool holder runout. Measure it with a dial indicator on the cutter shank, not on the holder body. Anything above 0.01 mm TIR will show up as a two-flute pattern on the wall and as uneven wear on the edges. Replace the holder or re-seat the collet before you touch speeds and feeds.

The third source is the tool axis itself. When the rotary axes reverse direction, they unload and reload the cut. If the reversal happens inside the material, you get a mark. Keep reversals in air where the geometry allows, and slow the axis feed near the reversal point. A cap around 3,000 mm/min on the rotary feed is a practical starting point for finishing passes on aluminium.

Finish targets matter here. If the drawing calls for Ra 0.8–1.6 μm, a single finish pass can usually reach it with a sharp tool and stable setup. If it calls for Ra 0.2–0.8 μm, plan a separate finishing strategy with light radial steps, and expect to spend more time on the machine. Trying to hit the finer band with a roughing tool path will cost more in rework than the extra pass would have cost in cycle time.

If the first parts measure in tolerance and part 200 measures out, the cause is almost always thermal. A spindle grows 20–40 μm over the first two hours of running. The table grows too, and on a trunnion the growth shows up as a tilt error that a 3-axis operator would never see. Warm up the machine for 20 minutes with a warm-up program, then re-probe the datum. On runs longer than four hours, re-probe every two hours.

Rotary axis backlash is the second cause. Check it by commanding a small move and reading the actual position with a dial indicator on a test bar. If the reversal error exceeds your tolerance budget, the machine needs compensation or service. Do not try to program around backlash with cutter compensation. It hides the problem on one feature and doubles it on the next.

The third cause is fixture movement, not machine movement. Parts that are clamped on a soft material, or clamped on a surface that was just machined, can shift when the clamp pressure changes. Mark the part and the fixture with a witness line before the run. If the lines separate, the problem is the setup, not the machine. That check takes one minute and saves a scrap run.

Tolerance on our 5-axis work is held to ±0.005 mm (±0.0002 in) on features that the setup can support. Not every feature can. A thin wall 0.8 mm thick, 40 mm tall, will move when it is released no matter how good the machine is. If a drawing demands that tolerance on that wall, the conversation should be about the design, not the machine.

Prismatic parts with features on three faces do not need 5-axis. A 3-axis machine with two setups, or a 4-axis machine with one, will often be faster and cheaper. The setup time you save by cutting all faces in one pass is real, but it is only worth it when the part actually has features on five faces or a contoured surface that needs a tilted tool.

Very large parts can also fall outside the useful range. Our largest 5-axis travel is 4,000 × 400 × 150 mm. Beyond that envelope, the part moves to a large gantry machine or gets split into sub-assemblies. Splitting a part changes the design, so this decision belongs early in the project, not after the model is frozen.

Simple turned parts belong on a lathe. A mill-turn center handles both, but if the part is a shaft with one cross-hole, a 3-axis mill plus a lathe is the economical route. We run 16 mill-turn centers, so we are not avoiding the work. We are pointing out that the routing should match the geometry, not the marketing.

Finally, prototypes with unknown geometry can waste 5-axis time. If the design is still moving, cut a 3-axis proof first. Confirm the shape, then switch to 5-axis for the surfaces that need it. That sequence has saved more schedule than any single machine upgrade.
