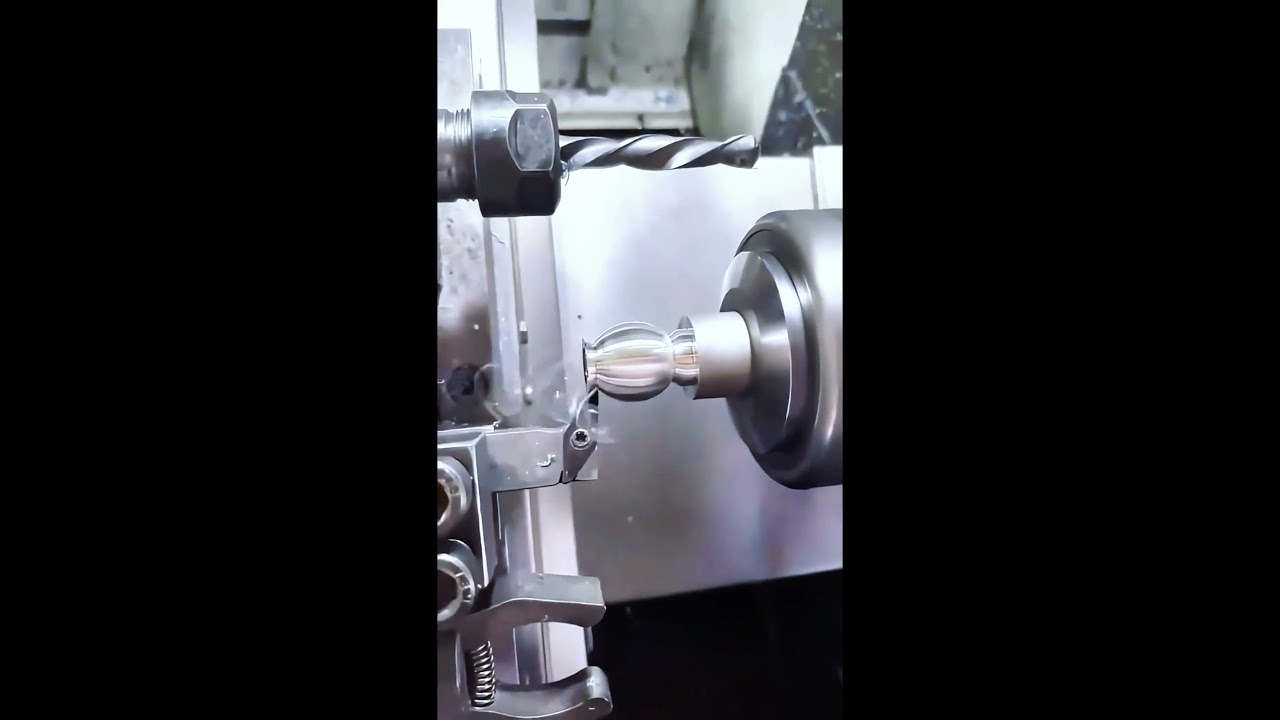

Turning precision into performance is not a slogan about machine accuracy. It is the point where a dimensional decision on the drawing changes how a component behaves under load, heat and vibration. A brake caliper piston, a transmission valve body, an EV motor housing and a turbocharger bearing housing are all round parts, and all of them fail for mechanical reasons that trace back to geometry.

Take a shaft running in a needle bearing at 8,000 rpm. Radial runout of 0.02 mm sounds harmless on a drawing. On the road it becomes a preload variation, then a temperature variation, then a wear pattern that is no longer circular. No inspection step after the fact recovers that. The geometry has to be right at the spindle.

This is why we treat roundness, concentricity and surface finish as one decision rather than three. A turned surface at Ra 0.8–1.6 μm with a controlled radius supports a bearing film. The same diameter with a torn surface and a 0.05 mm taper will not, even if the micrometer reading is perfect at the point you measured.

For automotive work, the useful question is never "how tight can you hold?" It is "which features carry the function, and what does the tolerance stack look like around them?" Answer that first, and the machining plan follows.

A single ±0.005 mm callout is easy to quote and often meaningless. What matters is the stack from the functional datum to the feature that does the work. Consider a housing with a bearing bore, a seal counterbore and a mounting face. Three features, three datums, one assembly.

If the mounting face is the datum and the bore is machined in a second operation on a different fixture, you inherit the fixture's repeatability. Turn the whole part in one setup on a mill-turn center and the stack shrinks to the machine's positioning error. That is a process choice, not a tolerance choice.

The practical rule we use: features that share a functional axis get machined in the same setup. Mounting faces, bores and seal grooves on the same centerline belong on the same spindle. Features that only need to be close to a bracket can live on a looser stack.

This is also where over-tolerancing shows up as cost. Turning a Ø400 mm rotary table feature to ±0.005 mm when the assembly only needs ±0.05 mm adds fixturing time, probing time and scrap risk for no functional gain. Engineers who can defend the stack get better parts and better prices.

Aluminium, stainless and titanium do not respond to the same cutting parameters. 6061-T6 machines cleanly at high surface speed and holds a fine finish. 7075 is stronger but gummier at the same feed, so chip evacuation and coolant aim matter more than spindle speed.

Stainless 303 and 316 behave differently again. 303 is free-machining; 316 work-hardens if the tool rubs instead of cuts. On a thin-wall sleeve, that work hardening shows up as a bowed wall that springs back after the chuck releases. The fix is a lighter radial engagement and a support, not a tighter tolerance callout.

Titanium TC4 (Ti-6Al-4V) is a heat problem. Most of the cutting energy leaves with the chip in aluminium; in titanium a large share goes into the tool and the part. Without high-pressure coolant and a sharp edge, the part grows, the finish tears, and the last diameter you cut is not the diameter you measured.

Heat-treated steels add another step. 17-4PH (SUS630) and 4140 move during heat treatment and again as residual stress relaxes. If a bore is critical, leave stock, heat treat, then finish. Machining to final size before heat treat is a common and expensive mistake.

Plastics deserve their own note. POM and PEEK hold good tolerances but move with temperature; ABS and PA are better left for prototypes and covers than for load-bearing round parts.

Surface finish is not cosmetic on a moving part. Ra 0.2–0.8 μm on a seal running surface helps the lip hold a film instead of wearing a groove. Ra 0.8–1.6 μm suits most bearing seats and hydraulic spools. Ra 1.6–3.2 μm is fine for brackets, covers and non-sealing faces.

The number alone is not enough. A turned surface has a directional lay. A seal that runs across the lay behaves differently from one that runs along it. On shafts with a lip seal, we usually specify a plunge or a light axial pass at the seal land so the lay follows the sealing direction.

Burrs are the other half of the story. A 0.05 mm burr at a cross-hole edge in a hydraulic passage can shed into the system. Vibratory tumbling, brushing and controlled edge breaks handle this better than a deburring pass at the machine, because the burr is removed after the part has relaxed.

Finish also interacts with coating. Anodizing builds roughly half the coating thickness into the surface and slightly changes the dimension. On a hardcoat bore, plan the pre-plate size accordingly. Electroless nickel is more uniform on complex geometry than electroplated zinc, which tends to build on edges.

Inspection sorts good parts from bad. Process control prevents bad parts from being made. The difference matters at volume, and it matters more on safety-related automotive components where a single escape has consequences far beyond the order.

A capable process starts with a first article that is measured feature by feature against the drawing, not just checked for fit. From there, in-process monitoring watches the features that drift first: bore diameter, face runout, and any dimension affected by tool wear.

Our quality flow runs raw material check, in-process monitoring, then final inspection, with 100% inspection before shipment and reports on request. That structure exists because dimensional drift in turning is usually gradual and directional, not random. A trend chart catches it long before a go/no-go gauge does.

Certification supports this but does not replace it. IATF 16949:2016 adds automotive-specific requirements on top of ISO 9001:2015, including traceability and change control. ISO 13485:2016 and ISO 27001:2022 cover the medical and data-security sides of the same shop floor. None of them machine a part. The setup does.

Prototype phase is about geometry and fit. One-off housings, sensor bodies and brackets come off a 3-axis or 4-axis machine in days, usually from 6061 or ABS, so the team can validate an assembly before tooling money is spent.

Validation phase tightens the material and the finish. This is where 5-axis and mill-turn work earns its place: complex port geometry, angled faces and concentric bores in one setup. Surface finish and heat-treat sequence get locked here.

Production phase is about repeatability and cost per part. Some parts stay machined for the whole program because volume is low or the geometry is complex. Others move to casting or molding once the design freezes. Both paths are normal, and the decision should be made on volume and geometry, not on habit.

EV programs shift the mix. Motor housings, inverter cold plates, battery module brackets and reducer shafts are round or mostly round, and many are machined from billet or near-net stock. Machining a cold plate from a solid block wastes material; machining it from an extrusion or a casting and finishing the sealing face is the usual answer.
