Automobile GLCNCmachining CNC: How One Component Is Really Made

• 1
  Key takeaways
• 2
  How Automobile GLCNCmachining CNC Starts With Geometry
• 3
  Material Choice Changes The Cutting Window
• 4
  Reading The Tolerance Budget On The Drawing
• 5
  Choosing 3-Axis, 4-Axis, 5-Axis Or Mill-Turn
• 6
  Machine Class Vs Part Geometry

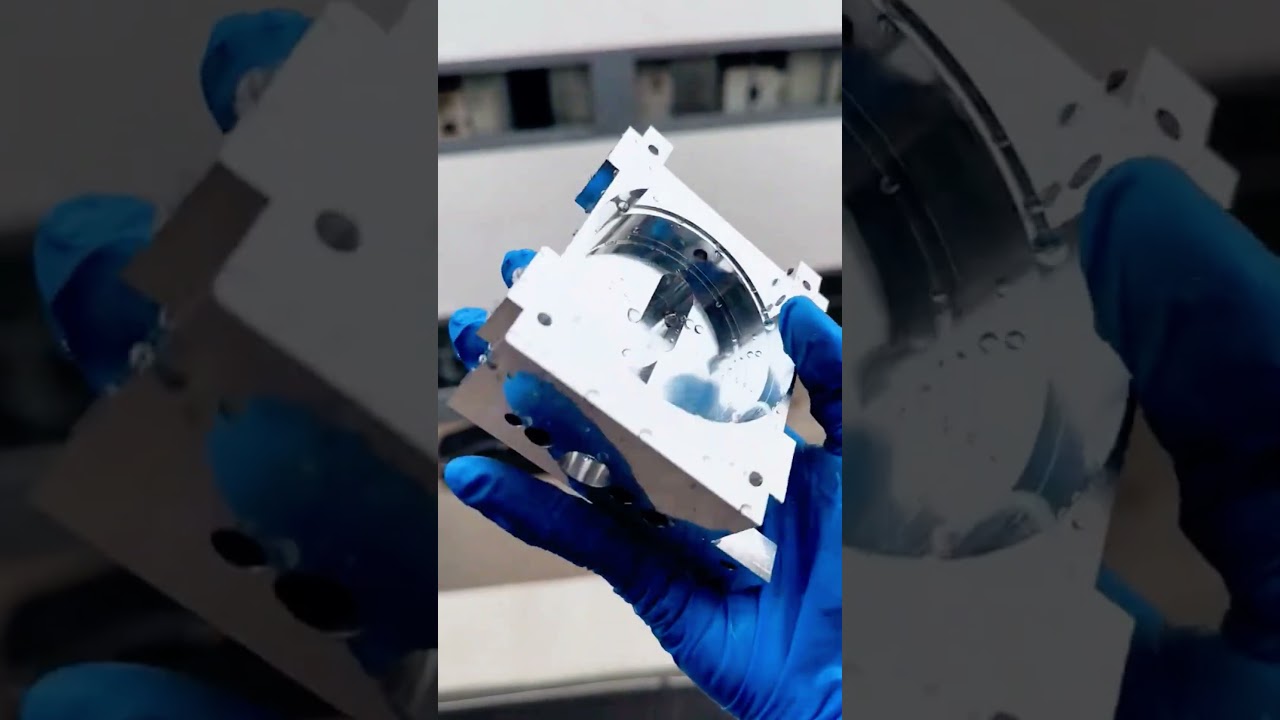

A machined automotive part begins as a solid model, not as a block of metal. Before anyone touches a machine, the engineering team reads the model for three things: which faces are functional, which dimensions carry a tolerance, and which surfaces only need to look right. That reading decides almost everything downstream, including how many setups the part needs and how much of the tolerance budget is left for machining.

Functional faces drive the datum scheme. If a bearing bore and a mounting face must sit parallel to each other, both should come from the same setup so the machine holds the relationship directly instead of relying on two fixtures to agree. Each extra setup adds a small positional error, often 0.01 mm or more, and that error eats into the total allowance before the part is even cut.

Tool reach is the second constraint. A pocket deeper than about four times the cutter diameter forces a longer tool, and a longer tool deflects more under load. The deflection shows up as taper in the wall or chatter on the floor. Designers who keep pocket depth near 3× the diameter, and corner radii at least one third of the pocket depth, get a part that machines in fewer passes and holds size better.

Wall thickness matters just as much. Thin ribs under 1 mm in aluminium tend to move when the clamps release, because the material springs back after the cutting load is gone. Adding a light finishing pass with small radial engagement, typically 5% to 8% of the cutter diameter, removes most of that spring-back and leaves a stable wall.

• 1
  Datum firstPick functional faces as datums before choosing the setup order.
• 2
  Reach ruleKeep pocket depth near 3× the cutter diameter where the design allows.
• 3
  Wall stabilityHold ribs above 1 mm in aluminium, or plan a light finishing pass.

The same part shape behaves differently in each material family. Aluminium 6061-T6 machines fast, runs at high spindle speeds and tolerates aggressive roughing, which shortens cycle time. Stainless 316 and 17-4PH work-harden at the cut, so a tool that dwells in the cut for even a fraction of a second can raise the surface hardness and dull the next pass. Feed per tooth stays high enough to keep the cutter biting instead of rubbing.

Titanium TC4 (Ti-6Al-4V) adds heat problems. Its low thermal conductivity pushes cutting heat into the tool edge rather than the chip, so coolant delivery and edge geometry decide tool life more than spindle speed does. Inconel behaves the same way but harder, and it usually needs a slower path with a stiffer setup to avoid rubbing.

Plastics sit at the other end. POM and PEEK cut cleanly but hold heat, so a trapped chip can weld to the finished surface. ABS and PC are softer and more prone to burrs on exit edges. For these materials we often leave 0.1–0.2 mm of stock for a finishing pass and use sharp, polished flutes.

Material also decides the finish you can realistically hold. As-machined aluminium lands around Ra 1.6–3.2 μm without extra work. Stainless and titanium reach Ra 0.8–1.6 μm with a controlled finishing pass, and Ra 0.2–0.8 μm is available when the drawing calls for it. Asking for a mirror finish on a part with deep pockets usually costs more than the function requires.

• 1
  Aluminium6061-T6, 7075 and 6082 run fast with light tool wear.
• 2
  Stainless303, 304, 316L and 17-4PH need positive feed to avoid work-hardening.
• 3
  TitaniumTC4 and Inconel shift heat into the tool, so coolant and edge geometry matter.

A drawing with ±0.005 mm on every dimension is not a stricter part, it is a more expensive one. The tolerance budget is shared across the whole chain: the machine, the fixture, the tool wear, the thermal state of the part, and the measurement itself. If the sum of those errors already approaches the printed tolerance, the part becomes a coin flip at inspection.

A practical split puts the machine and fixture at roughly half the total band and leaves the rest for tool wear and thermal drift. That means a ±0.005 mm callout needs a process that repeats within about ±0.0025 mm before tool wear starts. Machines that hold this repeatability are the reason we run 16 simultaneous 5-axis centers alongside 16 mill-turn centers for parts that need one setup across several faces.

Measurement is part of the budget too. A caliper cannot verify a ±0.005 mm bore; it needs a bore gauge, a micrometer or a CMM, and the measurement uncertainty has to sit well below the tolerance. When the uncertainty is comparable to the tolerance, two inspectors can disagree on the same part.

There is also a thermal rule that is easy to forget. A 100 mm aluminium part grows about 0.0023 mm per degree Celsius. A part that is warm from roughing and measured immediately can read oversize, then shrink back into tolerance an hour later. Stabilising the part before final inspection removes that argument.

• 1
  Split the bandRoughly half to machine and fixture, half to wear and thermal drift.
• 2
  Match the gaugeMeasurement uncertainty must sit well below the printed tolerance.
• 3
  Let it coolAluminium grows about 0.0023 mm per 100 mm per degree Celsius.

The setup count usually decides the machine class. A part with features on one face only, such as a flat bracket or a cover plate, runs on a 3-axis machine and finishes in one or two operations. Add features on the side walls and a 4-axis mill indexes the part without releasing the clamps, which keeps the side features related to the top face.

Parts with angled faces, contoured ports or undercuts push toward 5-axis. Simultaneous 5-axis motion tilts the tool so a short, stiff cutter can reach a feature that would otherwise need a long tool or a second fixture. That is the real benefit: not the axis count itself, but the shorter tool and the fewer setups it allows.

Mill-turn suits round parts with milled details, such as a shaft with a cross-hole, a flange with slots, or a fitting with a drilled port pattern. Turning and milling happen in one cycle, so concentricity between the turned diameter and the milled pattern is held by the machine rather than by a second fixture.

Size sets the outer limit. Our largest platform handles parts up to 4,000 mm with travels of 4,000 × 400 × 150 mm. Medium platforms cover 750 × 1,150 × 550 mm and 600 × 600 × 600 mm, and compact platforms handle 500 × 500 × 450 mm and 500 × 310 × 200 mm. A Ø400 mm rotary table covers round work that needs indexing.

One rule of thumb: count the features that must be related to each other. If they sit on one face, 3-axis is enough. If they wrap around the part, 4-axis usually wins. If they sit on angled faces or need a short tool, go to 5-axis.

• 1
  One face3-axis, one or two operations, simplest fixturing.
• 2
  Wrapped features4-axis indexing keeps side features tied to the top face.
• 3
  Angled or deep features5-axis lets a short cutter reach what a long tool cannot.
• 4
  Round plus milledMill-turn holds concentricity in a single cycle.
