5 Axis Part Machining for Automotive Components

Most automotive parts are not five-axis parts. A flat bracket, a spacer plate, a simple cover: three axes cut it faster, and the second setup costs less than the extra machine time. We move a job to simultaneous five-axis when the part has features on four or more faces, when a bore and its mating face must stay perpendicular to each other, or when the wall is thin enough that re-clamping will distort it.

Engine hardware is the clearest case. Cylinder head ports, intake and exhaust runners, turbo housings, and oil pump bodies all have curved surfaces that meet at compound angles. On a 3-axis machine you either accept a stepped surface or you build an angled fixture. Five-axis contouring keeps the tool normal to the surface, so the step marks go away and the hand-blending step goes away with them.

EV work shifted the mix. Motor housings, inverter enclosures, and battery tray nodes are often one large pocket with ribs and a sealing face. The sealing face has a flatness callout that a three-setup process struggles to hold, because each re-clamp introduces a new reference. Cut the pocket and the face in one setup and that error disappears.

• 1
  Good fitFour or more machined faces, compound-angle ports, thin ribs, sealing faces tied to bores.
• 2
  Poor fitFlat plates, simple shafts, prismatic parts with one machining direction.

Every re-clamp adds a datum shift. On a tolerance of ±0.005 mm, a 0.01 mm shift between setups is enough to push a bore out of position. Five-axis machining does not make the machine more accurate than a good 3-axis mill. It removes the setups that create the error in the first place.

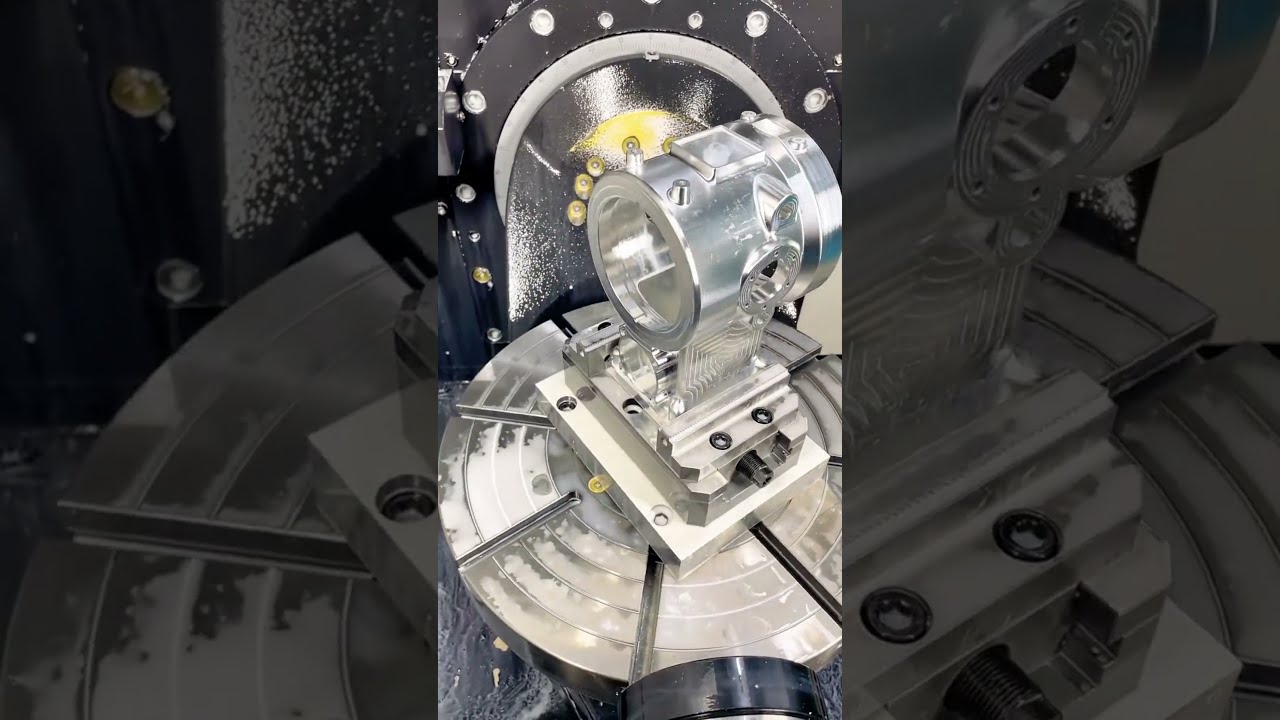

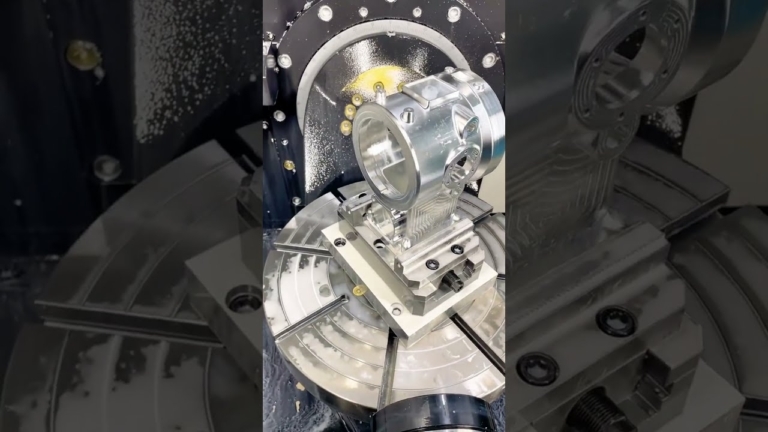

A typical engine cover might run as three operations on three machines. One fixture on a trunnion table does the same work with two setups: load the blank, cut five faces, flip once for the back face. Fewer touches means fewer fixtures, less work-in-process sitting between stations, and a shorter path from raw stock to finished part.

There is a tradeoff. Five-axis cycles are usually longer per part than a dedicated 3-axis cycle, because the machine moves more slowly through simultaneous motion and the tool sometimes reaches at an angle that limits feed. When the volume is high and the geometry allows it, a 3-axis line with hard fixtures still wins on unit cost. We quote both when the part sits near that line.

Thin-wall parts distort when the vise closes. For those we use soft jaws machined to the part profile, or a vacuum plate, or we leave the wall heavy and take a finishing pass after stress relief. Aluminium 6061 and 7075 both move after roughing, so on tight parts we rough, let the part rest, then finish. The rest step is not optional on a wall under 2 mm.

Bores are the other half of the job. A bore that carries a bearing or a shaft needs roundness, not just diameter. We bore and ream in the same setup as the face it sits on, which keeps the perpendicularity callout inside the tolerance band instead of splitting it across two operations.

Inspection follows the drawing. Raw material certificates come in with the stock. In-process checks catch a drift before the run continues. Every part is inspected before shipment, and we send dimensional reports on request. For automotive programs that need traceability, we keep the records tied to the lot.

• 1
  FixturesSoft jaws, vacuum plates, custom trunnion tombstones.
• 2
  Stress controlRough, rest, finish on thin walls and high-strength aluminium.
• 3
  MetrologyCMM and bore gauges; reports issued on request.

Aluminium carries most automotive work. 6061-T6 is the default for housings and brackets. 7075 machines well but moves more after roughing, so we plan the rest step. ADC12 shows up on die-cast blanks that need finish machining on sealing faces and bores. For castings, the first operation is often to establish a datum, because the raw casting surface is not reliable enough to locate from.

Steel parts go to 1045, 4140, or 4340 for shafts and stressed hardware. 17-4PH stainless appears where corrosion resistance and strength both matter, such as exhaust-adjacent brackets and sensor housings. Titanium TC4 (Ti-6Al-4V) is rare in production automotive but common in motorsport and prototype drivetrain work, and it needs slower speeds and more tool changes.

Surface finish follows function. A sealing face usually lands at Ra 0.8–1.6 μm. Bearing bores go finer, Ra 0.2–0.8 μm, when the drawing calls for it. Anodizing, black oxide, and electroless nickel are the common automotive finishes, with laser marking for traceability codes. Minimum character height for laser marking is 1.5 mm, so plan the marking area before the drawing is frozen.

Our working tolerance is ±0.005 mm on features that need it. Not every feature should carry that number. If a clearance hole is called at ±0.005 mm, the inspection time goes up and the price follows, with no benefit to the assembly. Put the tight tolerance only on the features that mate.

Position tolerance on a bolt pattern is a different animal from size tolerance. A pattern of eight holes at ±0.05 mm true position is normal work. Tightening it to ±0.01 mm usually means a CMM check on every part rather than a sample. That is a real cost, and it is worth asking whether the joint needs it.

Angular callouts on five-axis work deserve a note. A compound angle that is defined only by two surfaces meeting is hard to inspect and hard to cut. If you can dimension that angle from a datum, the machinist and the inspector read the same number, and the first-article report is cleaner.
