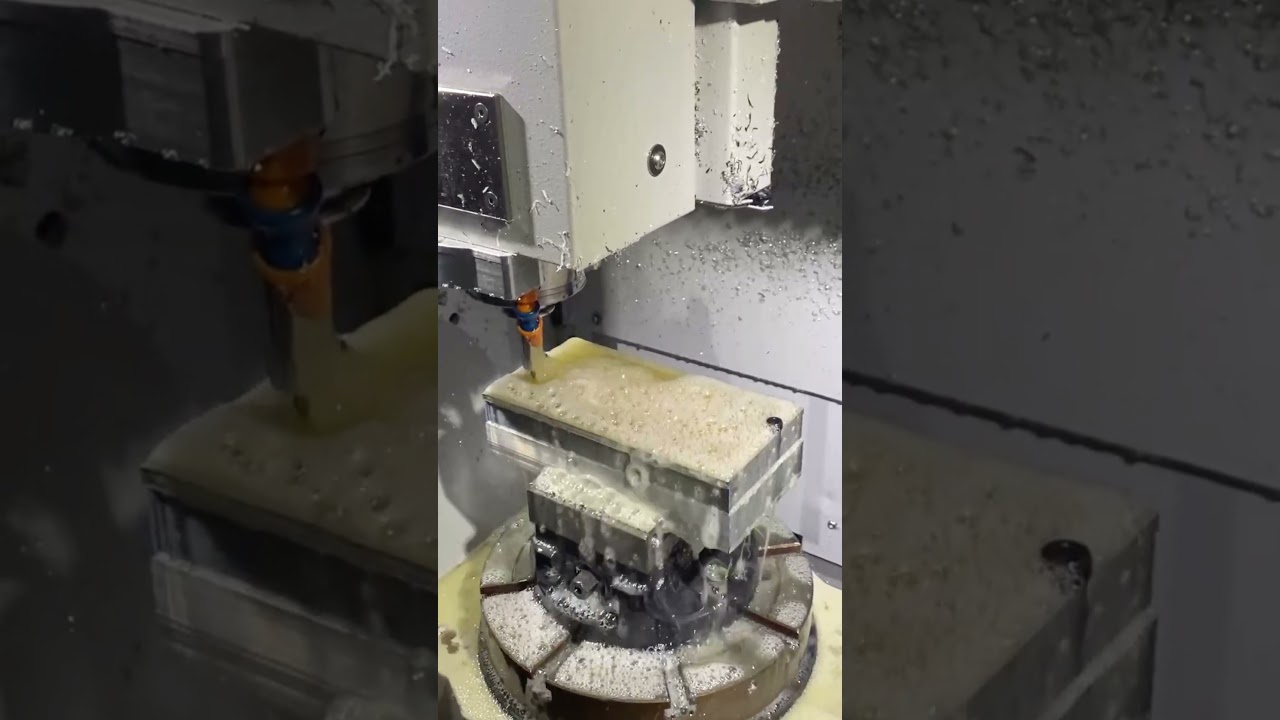

A machined housing starts as a solid block of aluminium, stainless or engineering plastic. The tool removes material until what remains is a shell with walls, bosses, a gasket groove and a lid interface. Nothing about the part depends on a mold, so the first article and the last part come off the same program.

That matters most before a design freezes. Wall thickness can change between revision A and B without new tooling. Ports can move 2 mm. A heat sink boss can grow. In sheet metal work the same change means a new punch or brake setup, and in injection molding it means a new tool.

The trade is cycle time. A pocket that takes 40 minutes to rough and finish on a 3-axis mill is not a problem at 50 units. At 50,000 units the same pocket is better die cast and then skimmed on the sealing faces only. Machining wins on the front end of a program, die casting wins on the back end.

CNC machining of electronic housing components also keeps the material homogeneous. There is no weld line, no porosity from a shot of molten metal, and no draft angle forced onto a vertical wall just so the part can eject. For RF and sensor housings, that consistency shows up in the measurements.

Wall thickness is the first number to fix. On aluminium enclosures, 1.5 to 2.0 mm walls hold up to normal handling and still leave room for a thread. Below 1.0 mm the wall deflects under clamping and chatters during finishing. Plastic housings run thicker, typically 2.0 to 3.0 mm, because the material is less stiff.

Bosses for self-tapping screws or inserts need a wall around them. A common rule is a boss diameter of twice the screw diameter and a supporting rib or gusset if the boss stands more than three diameters tall. A free-standing boss that is 12 mm tall and 4 mm across will flex during assembly and crack at the root.

Reach is the second limit. A tool has a length-to-diameter ratio, and past about 4:1 it starts to push off the wall. Deep pockets, narrow slots and internal ribs all need the cutter to get in and out without rubbing. This is where a 5-axis setup with a short, stiff tool beats a long 3-axis tool every time.

Sharp internal corners are the third limit. Every end mill leaves a radius equal to its own corner radius, so a 6 mm cutter cannot produce a 0.5 mm internal corner. Design the corner radius at least one third of the pocket depth, or accept that the corner will be cut by a smaller tool in a second operation.

An aluminium housing shields by default because the metal is conductive. The weak point is not the wall, it is the seam. Two lid halves bolted together only make electrical contact where the surfaces actually touch. Anodizing is an insulator, so a hardcoat or clear anodized lid can float unless a conductive path is left.

The usual fix is a masked grounding pad. Anodizing is stopped on a defined area around each screw hole or along a gasket land, so bare aluminium meets bare aluminium when the lid closes. Conductive anodizing is the other route, and it keeps corrosion resistance while bringing surface resistance down.

Gasket grooves do double duty. A conductive elastomer gasket or a finger-stock strip sits in a machined groove and both seals against water and bridges the seam. Groove depth and width have to match the gasket cross-section, usually with 20 to 30 percent compression. A groove that is too shallow will not close the gap electrically.

For plastic housings there is no shielding unless it is added. Conductive paint, electroless nickel plating or a pressed-in metal liner are the options. Plating a plastic housing is practical, but the plated layer is thin and the contact resistance at screw points still has to be checked in the final assembly.

A sealed enclosure lives or dies on the flatness and finish of two surfaces. The gasket land is usually the machined rim of the housing and the matching face on the lid. Surface finish on a gasket land should be Ra 0.8–1.6 μm. A rougher face, around Ra 1.6–3.2 μm, can work with a thick molded gasket, but it leaks with a thin one.

O-ring grooves are a different problem. The groove width and depth must match the cord diameter, and the groove floor needs a finish fine enough that the elastomer does not drag during assembly. A typical machined O-ring groove runs at Ra 0.8–1.6 μm with a corner radius of 0.2 to 0.4 mm, which means a small-diameter tool and a slower feed.

Flatness matters more than average roughness. A land that is Ra 0.4 μm but bowed by 0.05 mm across its length will not seal. Machining a housing in one setup keeps the rim and the mating face parallel. If the part is flipped, the second setup has to reference the first face or the two faces will not agree.

Screw torque is the hidden variable. A 3 mm stainless screw into an aluminium boss strips at low torque, and an over-torqued lid bows the land. Specifying thread depth at 2 to 2.5 times the screw diameter and using a defined torque value keeps the seal repeatable across a production run.

General tolerances on a machined housing can sit at ±0.1 mm and still be fine. The tight numbers belong to the features that mate. Connector cutouts, board mounting holes, gasket lands and bearing bores are the ones worth controlling, and they are usually called out at ±0.05 mm or better. Our floor on critical features is ±0.005 mm.

A datum scheme decides whether the inspection means anything. If the drawing calls the bottom face as datum A and two dowel holes as datum B and C, the CMM operator can reproduce the same coordinate system the machinist used. Without that, two inspectors will report two different true positions for the same hole.

Feature-to-feature relationships are where housings fail first. A connector cutout that is 0.15 mm off in X will not line up with the PCB connector, even if every individual dimension is in tolerance. Position tolerance on the hole pattern, referenced to the same datums as the board, is the control that prevents this.

Inspection for a housing is not only dimensional. Wall thickness at the thinnest point, thread depth, and surface finish on the gasket land all get checked. We run raw material verification, in-process monitoring and a final inspection before shipment, with reports available on request.

Aluminium 6061-T6 is the default for enclosures. It machines fast, takes a thread, anodizes cleanly and is light. 7075 is stronger but harder to anodize evenly and costs more. 5052 is a good choice when the housing also gets bent or formed, because it resists cracking better than 6061.

Stainless 304 and 316L show up in washdown and medical enclosures. They hold a finish and resist corrosion, but they cut slowly and the tool wear is real. A 316L housing with deep pockets may cost two to three times the same part in 6061. Use stainless where the environment demands it, not by default.

Plastics cover the rest. POM and ABS machine well and are common for prototype enclosures. PEEK and PC handle heat and impact but need sharp tooling and light cuts. Carbon fibre reinforced plastic machines into a fine dust that has to be managed, and the cut edges can fray.

Surface finish is part of the function, not a cosmetic afterthought. Anodizing adds 5 to 15 μm per surface depending on the type, which moves a tight bore. Hardcoat anodizing adds more and is an insulator, so it must be masked at grounding points. Electroless nickel gives a conductive, corrosion-resistant layer that keeps a tighter dimensional window.
