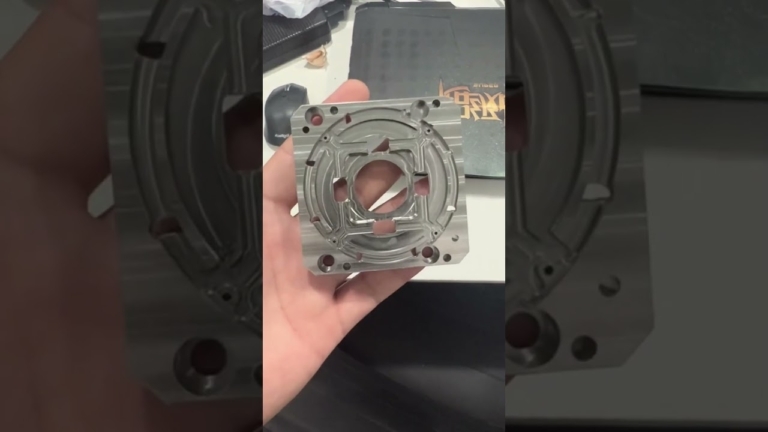

Small precision parts machining covers parts where most features are smaller than a thumb and the tolerance band is measured in microns. Think fuel injector bodies, gearbox sensor housings, bone screws, and connector shells. The part may be only 15 mm across, but it still needs flat sealing faces, coaxial bores, and threads that assemble without force.

What separates this work from ordinary milling is the ratio of tool size to feature size. A Ø3 mm end mill cutting a 6 mm pocket is normal machining. The same cutter trying to reach a 1.5 mm slot at 12 mm depth is a different problem. The tool is now the weak link, not the machine.

Tolerance is only half the story. A small part usually has three or four functional surfaces that must sit in the right place relative to each other. A bore that is round on its own can still fail if it sits 0.02 mm off the mating face. That is why small precision parts machining is planned around datums before it is planned around cutters.

The practical result: on our 127 high-precision CNC machines we treat small parts as a fixturing and metrology problem first. The spindle does the cutting, but the fixture and the inspection plan decide whether the parts pass.

• 1
  Feature scaleMost walls, slots and holes land between 0.2 mm and 20 mm.
• 2
  Tolerance band±0.005 mm is our working limit for critical features.
• 3
  Functional surfacesTypically 3–5 surfaces carry the assembly fit.

Every cutter bends under cutting force. On a Ø10 mm tool the deflection is small enough to ignore on most jobs. On a Ø1 mm tool with 8 mm of stick-out, the same force bends the tip several times more. The cut goes shallow, the wall springs back, and the finished slot comes out undersize.

The usual fix is to reduce radial engagement and raise spindle speed. Running a small cutter at 30–40 percent radial width of cut keeps the force down. Chip thinning then lets you feed faster per tooth than the diameter suggests. This is why small parts often run on high-speed spindles rather than heavy ones.

Heat matters too. A 0.5 mm cutter has very little mass to carry heat away, so it heats up fast and dulls. Air blast or a light oil mist usually works better than flood coolant here, because flood coolant can bend a thin tool with its own pressure. On aluminium we often run air blast plus a short peck cycle.

Tool runout is the quiet killer. A holder with 0.01 mm runout means one flute does most of the cutting. It wears first, the cut wanders, and the bore drifts. Checking runout at the tool tip before a run costs two minutes and saves a batch.

• 1
  Keep stick-out shortAim for 3× diameter or less where geometry allows.
• 2
  Reduce radial engagement30–40 percent of cutter diameter keeps force predictable.
• 3
  Control runoutCheck at the tip, not at the holder taper.
• 4
  Match cooling to tool sizeAir blast or mist for cutters under Ø2 mm.

A 3-axis mill handles small parts well when all critical features are reachable from one direction. Flat plates, covers, and simple housings fit this pattern. The advantage is simple: one setup, one datum, no re-fixturing error. If your part allows it, this is the cheapest and most repeatable route.

Four-axis work makes sense when a part has features on several sides of a rotating body, such as a cylindrical sensor housing with cross-drilled ports. The rotary table keeps the part on one datum while the table indexes. That removes the error that comes from unclamping and re-clamping a part.

Five-axis machining earns its place when the part has compound angles, deep pockets on multiple faces, or undercut features. Tilting the tool also lets a short cutter reach a deep area that a 3-axis machine could only reach with a long, flexible tool. On our 16 simultaneous 5-axis centers we use this to keep tool stick-out short.

The decision rule is straightforward. If two setups on a 3-axis machine would still hold the tolerance, stay with 3-axis. Move to 4-axis when rotation solves the access problem. Move to 5-axis when the tolerance depends on never releasing the part.

• 1
  3-axisAll features reachable from one direction.
• 2
  4-axisFeatures on the sides of a rotating part.
• 3
  5-axisCompound angles or tolerance that forbids re-fixturing.

Material choice changes the cutting strategy more at small scale than at large scale. Aluminium 6061 and 7075 cut freely, hold a good finish, and forgive a slightly aggressive feed. They are the default for small housings and brackets. The risk with aluminium is burrs on thin edges, so we plan a light finish pass rather than a heavy one.

Stainless 303 and 316 behave differently. They work-harden at the cut, so a cutter that rubs instead of cutting will harden the surface and dull itself within a few parts. The answer is a constant feed that stays in the cut, plus a sharp tool changed before it dulls. Stainless also moves more with heat, so small stainless parts need steady temperature during inspection.

Titanium Ti-6Al-4V and Inconel push the limits. Both hold heat in the cut, and small cutters cannot survive that for long. We slow the surface speed, keep the feed per tooth up, and accept shorter tool life. These materials suit small parts only when the design really needs their strength or heat resistance.

Plastics bring their own rules. POM and PEEK cut cleanly with sharp, polished tools and high rake angles. ABS and PC soften if the cutter dwells, so we keep the tool moving and clear chips with air. Carbon fibre needs diamond-coated tooling because the fibre abrades a standard cutter in minutes.

• 1
  AluminiumFast, forgiving, watch edge burrs on thin walls.
• 2
  StainlessNever rub; keep feed constant to avoid work hardening.
• 3
  Titanium and InconelLower speed, higher feed per tooth, shorter tool life.
• 4
  PlasticsSharp polished tools, air blast, no dwell.

Small parts are hard to measure because the measuring force can move them. A touch probe or CMM stylus applies a small load, and on a thin wall that load is enough to bend the feature. The reading then describes the deflection, not the part. The fix is to support the part, reduce stylus force, and measure at a controlled temperature.

Optical measurement avoids contact altogether. A vision system or profile projector reads edges without touching the part. That suits thin walls, small holes, and delicate features. The trade-off is that optics read the edge as it appears, so burrs and edge break can shift the result by a few microns.

For critical dimensions we combine both. Optical checks give fast coverage of many features. Contact metrology confirms the two or three dimensions that actually control assembly. Then we compare the two readings; if they disagree, the edge condition or the fixture is the first thing to check.

In-process probing is the strongest tool for small batch work. Probing a datum between operations catches drift before the rest of the batch follows it. We inspect 100 percent of parts before shipment and provide reports on request, with raw material checks, in-process monitoring, and final inspection as the three checkpoints.

• 1
  Support thin wallsMeasuring force bends unsupported features.
• 2
  Use optics for coverageFast, non-contact, sensitive to edge condition.
• 3
  Confirm with contactProbe the few dimensions that control fit.

Machining is subtractive, so it removes material one pass at a time. When a small part has a complex internal channel with no straight-line access, no cutter can reach it. That geometry belongs to additive manufacturing or casting, not milling. Forcing it into a CNC plan just adds cost and risk.

Very high volumes change the math too. If a small part will run in the millions and the shape is stable, die casting or injection molding pays back the tooling cost quickly. CNC stays competitive from one prototype to 10,000+ part runs, but a million identical plastic clips is a molding job, not a milling job.

Some materials simply do not suit small features. Soft, gummy plastics smear instead of cutting. Very brittle ceramics chip at the edges. We will say so at the quote stage rather than run a process that cannot hold the drawing.

The honest boundary is this: small precision parts machining wins when the part needs tight tolerance, a modest quantity, and geometry a cutter can reach. Outside those three conditions, another process usually wins on cost, and we will tell you which one.

Our own limits are published for this reason. Maximum processing size is 4,000 mm on the large travel machines, and small work runs on the compact travels down to 500 × 310 × 200 mm. If a part falls between those, we route it to the right machine rather than stretch a setup.

• 1
  No cutter accessComplex internal channels belong to additive or casting.
• 2
  Millions of identical partsMolding or die casting usually wins on unit cost.
• 3
  Unsuitable materialGummy plastics and brittle ceramics fight small cuts.
