Small Lot Parts CNC Machining for Automotive Builds

• 1
  Why small lot parts CNC machining is priced by setup, not by volume
• 2
  How fixture strategy changes the cost of a small batch
• 3
  Material choice and how it behaves at low volume
• 4
  Holding tolerances across one, five or fifty parts
• 5
  When small lot CNC machining is the wrong answer
• 6
  Choosing a process for small automotive lots

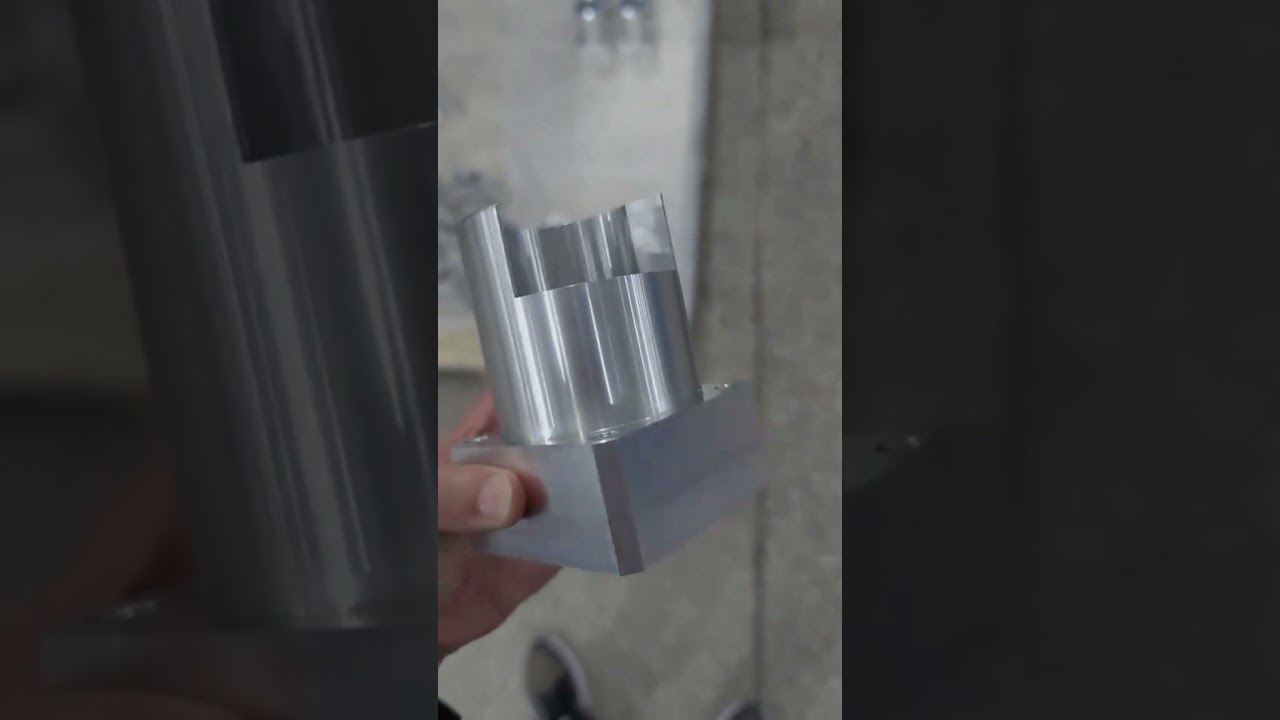

In a 5,000-piece run, the machine runs almost all day and the setup disappears into the average cost. In a 20-piece run, the machine runs for two hours and the setup still costs the same. That single fact explains almost every surprise on a small-batch quote.

Small lot parts CNC machining is therefore an exercise in attacking fixed cost. Fixture design, tool selection, probing strategy and even the order of operations are chosen to reduce the number of times a part has to be touched.

A useful mental model: think of the quote as setup hours plus cycle hours. At 20 pieces, setup is usually 60 to 80 percent of the total. At 500 pieces, cycle time takes over. The crossover point for most automotive brackets and housings sits somewhere between 150 and 400 pieces.

This is why the same part can look expensive at quantity 10 and cheap at quantity 200. Nothing about the geometry changed. The fixed block simply spread out.

• 1
  Setup dominates below ~100 piecesFixture, first-article check and tool proving are the cost.
• 2
  Cycle time dominates above ~500 piecesTool life and chip-to-chip time decide the price.
• 3
  The crossover moves with part complexityA 5-axis part with 12 setups crosses later than a 2-op bracket.

A dedicated fixture is a fixed cost you pay once. For 10 parts it is hard to justify. For 300 parts it pays for itself many times over. The decision is not about quality, it is about arithmetic.

Soft jaws machined in place are the default for small lots. They cost one setup to cut, hold the part within ±0.02 mm repeatability, and can be re-cut if the design changes. For prismatic automotive brackets in 6061 or 4140, this is usually the right answer.

When a part has a free-form surface or needs five faces in one setup, a modular zero-point system changes the math. A pallet with a Ø400 mm rotary table and pinned locations lets the same tombstone carry three or four different small-lot parts across a week of production. Setup per part drops even though the pallet itself cost more.

Vacuum and magnetic workholding suit thin plates and flat covers where clamping would distort the part. They are poor choices for anything with a deep pocket or interrupted cut, because the holding force is low and the part can move under load.

• 1
  Soft jawsOne setup, ±0.02 mm repeatability, easy to revise.
• 2
  Zero-point palletsHigher upfront cost, pays back across mixed small lots.
• 3
  Vacuum / magneticGood for thin flat parts, poor for deep pockets.

Material availability often decides the schedule more than the machine does. A small lot of 7075 or 17-4PH may need to be ordered in, while 6061 and 303 stainless are usually on the shelf.

Aluminium 6061-T6 cuts fast and holds tight tolerances without stress relief. For automotive brackets and sensor housings it is the first choice. 7075 gives higher strength but machines more slowly and can move after heavy material removal, so rough and finish passes are separated.

Stainless 303 is free-machining and works well for small fittings. 304 and 316L work-harden if the tool rubs, so feeds must stay aggressive and coolant must reach the cut. 17-4PH in the H900 condition is strong but abrasive on tooling; expect shorter tool life in a 50-piece run.

Plastics behave differently again. POM and PEEK hold dimensions well but clamp marks show up easily, so softer jaws and lighter clamping pressure are needed. Carbon fibre needs diamond tooling and dust extraction.

• 1
  Stay on shelf stock for speed6061, 303, 1045, ABS, POM.
• 2
  Plan for stress relief7075, 4140, 17-4PH after heavy roughing.
• 3
  Watch work-hardening304, 316L, Inconel need constant feed.

A tolerance of ±0.005 mm is achievable on a rigid machine with the right tooling, but it is not free. It requires temperature stability, sharp tooling, and a measurement loop that confirms the first part before the rest of the lot runs.

The first-article check is the cheapest quality control you will ever buy. If the first part is in tolerance and the process is stable, parts two through fifty usually follow. If the first part drifts, the whole lot drifts with it.

On small lots, in-process probing matters more than on large ones. There is no statistical trend to rely on, so each part is effectively its own sample. A touch probe that re-datums the part after each op removes the accumulation error from stacked setups.

Surface finish follows the same logic. As-machined Ra 1.6–3.2 μm is normal for a finishing pass. Ra 0.8–1.6 μm needs a lighter stepover or a wiper insert. Ra 0.2–0.8 μm usually means a separate finishing operation or a secondary process.

• 1
  Prove the first partMeasure before releasing the rest of the lot.
• 2
  Re-datum between opsProbing kills stacked-setup error.
• 3
  Match finish to functionSealing faces need finer Ra than brackets.

CNC is flexible, but flexibility costs money per part. If the geometry is fixed and the volume is high, a casting or forging with a finishing cut will beat solid-billet machining on both price and lead time.

If the part is a thin-walled cover with a simple profile, laser-cut sheet metal plus a few bends is usually faster and cheaper than milling from plate. The exception is when the cover needs machined sealing faces or tight flatness.

Very large parts are another boundary. Our machines reach a maximum processing size of 4,000 mm and travels of 4,000 × 400 × 150 mm, 750 × 1,150 × 550 mm, or 600 × 600 × 600 mm depending on the machine. Anything outside that envelope needs a different process or a split design.

Finally, if the design is still moving, machining every revision is wasteful. A prototype route first, then a production route once the drawing freezes, is almost always cheaper overall.

• 1
  High volume, fixed designCasting or forging plus finishing wins.
• 2
  Simple thin partsSheet metal is usually faster.
• 3
  Outside machine envelopeSplit the design or change process.
