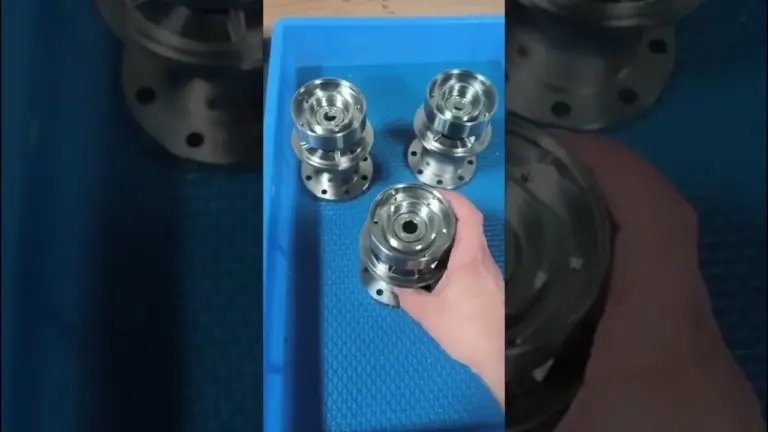

A non-standard part is one that no catalog covers. There is no stock number, no equivalent off-the-shelf item, and no standard blank you can order from a distributor. The geometry comes from your assembly, and someone has to cut metal until the drawing is satisfied. That is the whole definition.

The practical difference is not difficulty. It is the setup. A standard bushing runs on a lathe with one program and one fixture, and the machine earns money for hours. A non-standard bracket may need three setups, a soft jaw cut to match an existing casting, and a probe check before the first good part appears.

So the cost of non-standard parts CNC machining sits mostly in the hours before the spindle turns. Programming, workholding and first-article inspection dominate a small batch. Once those are done, the second part is cheap and the hundredth is cheaper still.

This is also why quoting a non-standard part from a sketch rarely works. Without a 3D model and a tolerance callout, the shop is guessing at setup count, and the guess usually lands high.

It starts with the model. We check wall thickness, tool reach and whether every feature is reachable from some direction. A pocket 4 mm wide and 30 mm deep needs a tool long enough to reach the floor, and long tools deflect. That single ratio decides whether the part is cheap or painful.

Then comes workholding. The first operation usually grips raw stock in a vise or on a fixture plate. The second operation has to hold the semi-finished part without crushing a finished surface, so we cut soft jaws or a dedicated nest. On a part with five exposed faces, that nest may take longer to make than the part itself.

Toolpath comes next. Roughing clears material with a large cutter, leaving 0.3–0.5 mm of stock for finishing. Finishing runs smaller stepovers to hit the surface callout. If the drawing says Ra 0.8–1.6 μm, we plan for it in the finishing pass rather than polishing afterward.

Finally the part is measured. Every first article gets checked against the drawing before the run continues. If a dimension is drifting, we adjust the offset and cut again rather than shipping a part that is merely inside a loose band.

Tolerance is a cost driver, not a difficulty rating. A ±0.1 mm feature on an aluminum bracket is nearly free. The same feature at ±0.005 mm means a temperature-stable setup, a finish pass with a sharp tool, and a CMM check. The number on the drawing, not the shape, sets the price.

Material matters just as much. Aluminium 6061 and 7075 cut cleanly and hold a good finish. Stainless 316 work-hardens if the tool rubs, so feeds and speeds need to stay aggressive. Titanium TC4 and Inconel move under heat, which means more passes and more measurement.

Surface finish and tolerance are separate line items. A part can be tight on dimensions and rough on the surface, or the reverse. Specifying Ra 0.2–0.8 μm on a face that only touches air adds cost for no function. Put the fine finish only where it seals, slides or is seen.

Geometry adds its own penalty. Thin walls chatter. Deep holes need peck drilling. Sharp internal corners are impossible with a round cutter, so we either leave a tool radius or add a relief. That radius is often the difference between a part that machines well and one that fights back.

Automotive and EV work is where non-standard geometry shows up most often. Engine brackets, motor mounts, sensor housings, suspension links and battery pack fixtures all change between revisions. None of them exist in a catalog, and all of them have to fit an existing assembly.

A typical job is a small run of machined housings for a test mule. The first version proves the packaging, the second moves a connector 6 mm, and the third gets a thicker flange. Each revision is a new program, but the fixture carries over, so the cost per revision falls fast.

Materials in this sector are mostly 6061-T6 for brackets, 7075 for loaded links, and 17-4PH for parts that see heat or corrosion. Finishes are usually anodizing or black oxide, with laser marking for traceability where the customer needs a part number on the surface.

Motorsport and EV programs also care about weight. A machined pocket that removes 40 g from a bracket is real work, but it can mean more setups and a longer cycle. Worth doing only when the mass sits high on the vehicle or moves with the suspension.

Machining is a subtraction process, so it wastes material by definition. A part that starts as a 6 kg block and finishes at 400 g is a poor fit. Die casting or forging a near-net shape first, then machining the critical faces, usually costs less once volume passes a few thousand pieces.

Very thin, flat parts are another bad fit. A 0.5 mm stainless shim with tight flatness will warp when the vise releases it. Sheet metal fabrication or laser cutting holds flatness better and costs far less per part.

Parts with no functional surfaces, such as covers, guards and simple spacers, rarely justify machining. If nothing touches anything, a cheaper process will do. Machining earns its place where fit, sealing, wear or balance actually matter.

There is also a size ceiling. Our largest travel is 4,000 × 400 × 150 mm on the big machines, and the 5-axis centers cover smaller envelopes. A part beyond that envelope needs a different approach, not a bigger quote.
