How milling and turning fit into radiator and heat-exchanger production. Written for design and process engineers who need to judge flatness, groove geometry, wall thickness, and material before releasing a drawing.

±0.005 mm tolerance16 five-axis centersRa 0.8–1.6 μm finishesNo MOQ

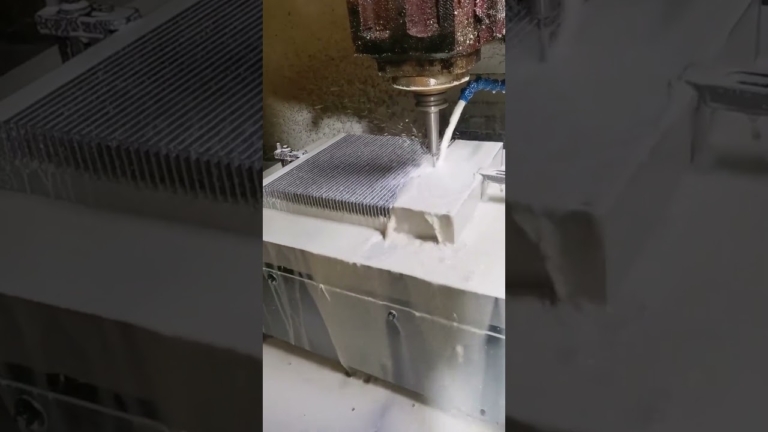

Perforated sheet metal box for radiator prepared for radiator CNC machining
Why it exists

Why radiator cnc machining sits after brazing, not before

A radiator is a stack of tubes, fins, a header plate, and two tanks. Brazing or welding joins them. That joined assembly is not flat, not round, and not symmetric. Machining is what comes next, so the part can actually bolt to a frame and hold coolant.

The machining step usually covers the tank sealing face, the inlet and outlet ports, mounting bosses, overflow fittings, and sometimes the header plate perimeter. On motorsport and heavy-duty cores, it also covers baffle grooves and threaded drain plugs.

Order matters. If a shop mills the tank face before brazing, the brazing heat distorts it again and the seal fails. Cut after brazing and the surface stays where the gauge says it is.

So radiator cnc machining is a finishing operation with a real job: turn a thermally joined, slightly warped assembly into a serviceable pressure part.

  • 1
    Cut after joiningBrazing and welding move metal. Machine the sealing face last.
  • 2
    Fixture on the coreClamp on the tank body or header, never on thin fins.
  • 3
    Check the gasket pathFlatness on the seal groove matters more than overall length.
Geometry

What the cutting tool actually has to hold

The critical callout on most radiator drawings is not bore diameter. It is flatness across the tank flange and parallelism between the two tank faces. A typical gasket needs the flange within 0.10–0.20 mm across its full length. Without that, the gasket crushes unevenly and weeps at the corners.

Port diameters sit in a tighter band. Hose necks usually run ±0.05 mm to ±0.10 mm, and an O-ring groove often needs ±0.05 mm on width with a surface finish around Ra 0.8–1.6 μm so the seal seats without tearing.

Wall thickness is the constraint nobody writes down. Aluminium radiator tanks in production are often 2–3 mm thick, and thin-wall brazed headers can be thinner. A heavy interrupted cut on a 2 mm wall will chatter and spring.

So feeds and speeds get set by wall stiffness, not by the material spec sheet. Light radial passes, sharp tooling, and rigid workholding beat brute force every time.

  • 1
    Flange flatness0.10–0.20 mm across the full gasket path.
  • 2
    Port and groove±0.05 mm typical; finish Ra 0.8–1.6 μm.
  • 3
    Thin walls2–3 mm tanks need light passes and sharp tools.
Process choice

Five-axis, three-axis, or mill-turn: picking by part shape

Most radiator work is not a five-axis problem. A flat tank face with a hose neck on one side can be done on a three-axis mill with a simple angle plate. That is the cheaper path, and we will say so when the drawing allows it.

Five-axis earns its place when ports point in several directions and the part is long. A cross-flow tank with inlet, outlet, drain, and sensor boss at compound angles can be set once and cut in a single cycle. Fewer setups means fewer datum shifts on an assembly that is already distorted.

Mill-turn suits round end tanks, cylindrical filler necks, and threaded fittings. Turning a neck and then milling the flange on the same machine removes a second fixture and the stack-up that comes with it.

The honest limit: if the assembly is longer than 4,000 mm, or the fins cannot take clamp pressure, we discuss cutting the tank as a separate billet part and joining it later.

  • 1
    Three-axisFlat faces, single-direction ports, shortest setup.
  • 2
    Five-axisCompound-angle ports, long tanks, one setup.
  • 3
    Mill-turnRound tanks, necks, threads in one cycle.
Materials

Aluminium, copper, and the brazing problem

Aluminium dominates. 6061 and 6061-T6 machine cleanly, weld and braze predictably, and hold a sealing face well. 5052 and 5083 are common in fabricated tanks because they form and weld easily, though they cut gummier and need sharper tooling and generous coolant.

Copper and brass cores are a different conversation. C110 and C36000 cut fast and leave an excellent finish, but copper grabs small tools and builds heat. Feed rates stay moderate and the tool stays flooded.

Titanium and Inconel appear in exhaust-side heat exchangers and charge-air coolers rather than coolant radiators. They machine slowly, and TC4 (Ti-6Al-4V) work-hardens if the tool rubs instead of cuts.

One warning that saves money: brazing filler can sit exactly where you planned to cut. If the joint runs into the sealing face, the tool hits a hard, inconsistent band. We review the braze map with the drawing before quoting.

  • 1
    6061 / 6061-T6Default for machined aluminium tanks and flanges.
  • 2
    5052 / 5083Easy to form and weld; softer to cut.
  • 3
    C110 / C36000Fast cutting, but keep copper cool and flooded.
Limits

Where machining stops being the right answer

Machining is a subtraction process on a part that was already built by joining. If the design needs hundreds of identical thin-wall cores, die casting the tank and brazing the core is usually cheaper per part than milling every tank from billet.

If the sealing face only needs to be flat within 0.5 mm and the gasket is thick and compliant, a surface grind or a face-mill pass is enough. Chasing ±0.005 mm there adds cost with no functional gain.

If the part is a one-off prototype and the geometry is simple, sheet metal fabrication plus a light facing cut can beat a full machining cycle. We route those jobs to the right cell rather than forcing them onto a mill.

The line we hold: when flatness, groove geometry, or thread position decides whether the unit leaks, machine it. When it does not, do not pay for it.

  • 1
    High volumeCast or die-cast the tank, machine only the seal.
  • 2
    Loose flatness0.5 mm is fine with a compliant gasket.
  • 3
    Simple prototypeSheet metal plus a facing pass may win.
Decision table

Matching machining method to radiator geometry

Use part shape and tolerance demand to pick the cell.

Part featureMethodTypical toleranceWhen it is wrong
Flat tank flange3-axis face millFlatness 0.10–0.20 mmCompound ports on the same face
Compound-angle ports5-axis, one setup±0.05 mm positionShort, single-direction necks
Round end tank + neckMill-turn±0.05 mm on ØSquare tanks with deep pockets
O-ring groove3-axis with form tool±0.05 mm widthGrooves interrupted by braze
Threaded drain plugMill-turn or tapping headClass 6H threadHard braze filler in the hole
Header plate perimeter3-axis, light passes±0.10 mm profileFins used as clamp points
Prototype tank, simpleSheet metal + facingFlatness 0.30 mmLeak-critical seal faces

The trade-off in one line

If the joint decides whether the unit leaks, machine the sealing face, groove, and thread after brazing and pay for the setup. If a thick gasket covers a 0.5 mm face, skip the tight callout and put the money into the core instead.
