3D Printing Prosthetics: Where Printed Parts Stop and Machined Metal Starts

• 1
  Key takeaways
• 2
  Why 3D printing prosthetics parts still need machined metal
• 3
  Interface geometry that decides the process
• 4
  Material selection for printed and machined halves
• 5
  How a prosthetics order runs through the shop
• 6
  Which process for which feature

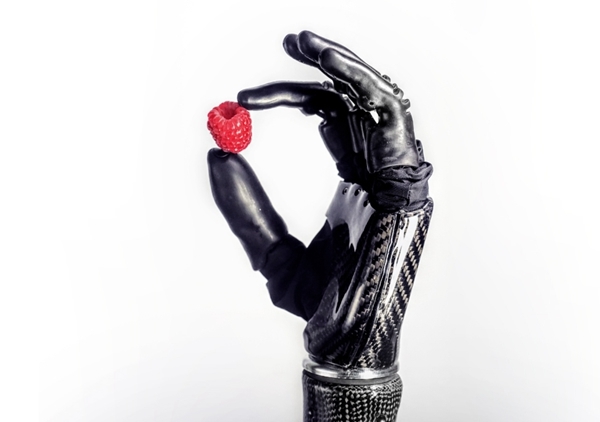

The 2030 market forecast behind this page is simple to state: the global 3D printing prosthetics industry is expected to reach $2.3 billion by 2030, growing at a compound annual rate near 7.7%. That number describes printed sockets, liners, covers and fit models. It does not describe the parts that hold a person's weight.

A below-knee prosthesis carries 1.5 to 3 times body weight during stance. All of it passes through a small stack: socket, adapter, pylon, foot. Printing that stack in resin is possible and it is done in low-load cosmetic builds. It is not what a clinic orders for a walking patient who plans to use the limb daily for five years.

Printing and machining are not competing here. They split by function. The printed part matches the residual limb geometry, which is organic and patient-specific. The machined part defines the mechanical interface, which is standardized. A pyramid receiver is not a shape you fit to a person. It is a shape you fit to a bolt circle.

That is the whole argument for hybrid builds, and it is why a prosthetics workshop ends up sending drawings to a machine shop rather than printing everything in-house.

• 1
  PrintedSocket shell, check socket, cosmetic cover, liner form, test frame
• 2
  MachinedPyramid receiver, clamp ring, pylon adapter, tube clamp, threaded insert seat
• 3
  BothSocket frame with bonded or bolted metal inserts at the load points

The four-hole pyramid receiver is the clearest example. The standard pattern uses a 30 mm bolt circle with four M6 holes, a 12 mm center bore, and a taper that must seat without rocking. Hole position tolerance of ±0.005 mm is what we hold on these features; anything looser and the adapter rocks under load, which shows up as noise and then as cracking.

Threaded inserts are the second deciding feature. A printed thread in PA or PLA strips at low torque. A machined 316L or 7075 insert, bonded into a printed pocket, takes the bolt torque and spreads it into the composite. We machine the insert and the pocket that receives it in the same setup so the bond gap stays consistent.

The third is the tube clamp. Pylon diameter is nominal, but real tubing varies slightly. A clamp ring bored to the nominal size will either slip or need force to close. We bore to the actual tube, usually with a 0.05 to 0.10 mm interference on the closed clamp.

None of these features care about the printer. They care about how the part is held, how the datums are set, and whether the inspection report matches the drawing.

• 1
  Pyramid receiver30 mm bolt circle, 12 mm center bore, seated taper
• 2
  Insert pocketMachined in the same setup as the insert for a consistent bond gap
• 3
  Clamp ringBored to actual tube OD, 0.05–0.10 mm interference when closed

On the printed side, PA and carbon-filled PA are the common choices for socket frames because they take impact without shattering. PEEK appears when the part sits close to skin and needs repeated autoclave cycles. ABS and PC are cheaper and fine for check sockets that only see a fitting session.

On the machined side, 7075 aluminium is the default for adapters when weight matters most. 6061-T6 is easier to anodize and cheaper, and it is what we see on most clinic orders. 17-4PH stainless takes the wear on threads and taper seats better than aluminium, at roughly three times the density. Titanium TC4 (Ti-6Al-4V) is the answer when the patient has a metal sensitivity or when the part is also implanted.

Surface finish matters more than most drawings admit. A taper seat at Ra 0.8–1.6 μm holds and releases cleanly. A rough seat at Ra 3.2 μm galls after a few hundred cycles and then the adapter stops seating true.

Anodizing, electroless nickel and bead blasting are all available. For anything touching skin, we keep the finish specified and documented rather than choosing it on the floor.

• 1
  Printed framePA, carbon-filled PA, PEEK for autoclave, ABS/PC for check sockets
• 2
  Machined adapter7075 or 6061-T6 for weight, 17-4PH for thread wear, TC4 for sensitivity
• 3
  Taper seatRa 0.8–1.6 μm to avoid galling over repeated cycles

A typical order arrives as a STEP file plus a PDF drawing with the critical dimensions marked. If the drawing only shows the printed part, we ask which features are functional and which are cosmetic. That one question saves most of the back-and-forth.

Within 12 hours we return a quotation and a DFM analysis. The DFM notes usually cover three things: whether a wall is too thin to hold a thread, whether a datum is reachable in one setup, and whether a taper can be turned instead of milled. Thin walls under 1.5 mm and threads under M4 come up most often.

Production can start within 24 hours of approval. Standard parts ship in 3 to 5 days. For a clinic replacing a cracked adapter, that window is the whole reason to use a machine shop rather than wait on a printer queue.

Every part gets 100% inspection before shipment: raw material check, in-process monitoring, final dimensional report. Reports go out on request. Our historical late-delivery probability is below 2%.

• 1
  SendSTEP file, drawing with critical dimensions, quantity, material
• 2
  Get backQuotation and DFM analysis within 12 hours
• 3
  Receive3–5 day shipping, inspection report on request
