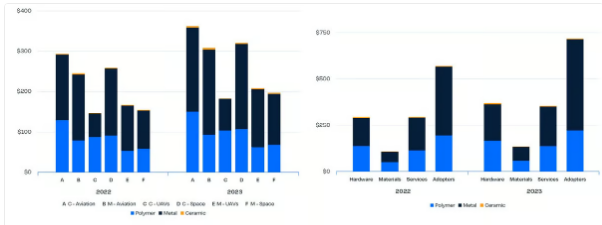

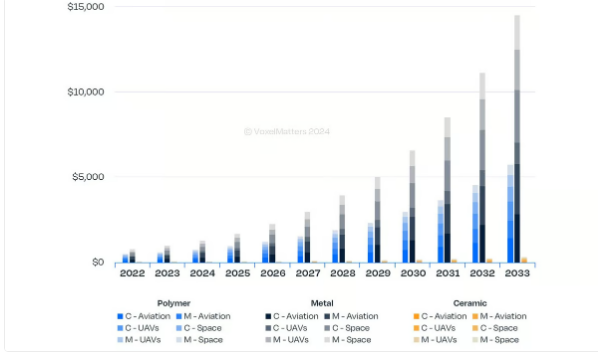

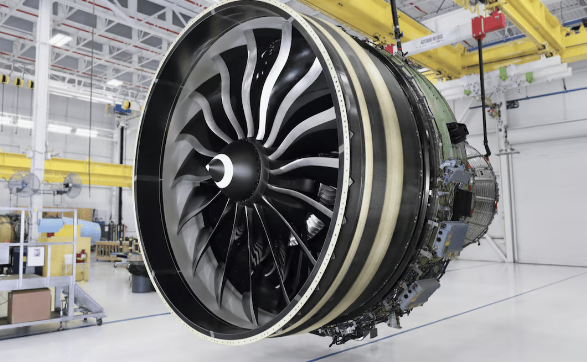

Aerospace buyers spend on three things: printers, feedstock and services. Metal systems and their powder supply pull the biggest share because the parts that justify additive are engine and airframe hardware, not brackets. Titanium, Inconel and aluminum alloys dominate the order books.

The spend is not evenly spread. A small number of high-value programs consume most of it. One qualified fuel nozzle or combustor liner can carry more value than thousands of small fittings that are still cheaper to mill.

That shape matters to a machine shop. When a customer asks about 3D printing in the aerospace industry, they usually mean one of two jobs: a part with internal channels that cannot be cut, or a bracket they want faster and lighter. The first is a real additive case. The second often is not.

Additive service revenue also includes post-processing: stress relief, hot isostatic pressing, support removal and finish machining. Those steps are where most of the cost and lead-time risk sit, and where a supplier's real capability shows.

• 1
  Metal over polymerLoad-bearing aerospace hardware is overwhelmingly metal.
• 2
  Few parts, high valueA small program count drives the majority of revenue.
• 3
  Post-processing dominates costHeat treat, HIP and finish machining decide the final price.

Additive earns its place when geometry is the problem. Conformal cooling channels, swirled fuel paths, lattice-filled brackets and merged assemblies are the classic cases. If you can cut the feature with a ball nose tool and reach it from two directions, additive rarely wins on cost.

Think about the ratio of internal to external surface. A part that is mostly internal volume, like a nozzle with dozens of channels, prints in one operation and skips brazing or welding. A part that is mostly a solid block with a few holes is a milling job every time.

Size is the other boundary. Powder-bed metal systems have build envelopes that limit large airframe structures. When a part exceeds the envelope, you either split it and join it, or you go back to machining from plate and billet.

Material choice follows the same logic. Ti-6Al-4V (TC4), Inconel and 17-4PH are well established in powder form. If your drawing calls for 7075 or 4130, powder availability and post-processing routes get harder to justify.

• 1
  Good fitInternal channels, lattices, merged assemblies, low-volume complex parts.
• 2
  Poor fitSimple prismatic blocks, tight bores, large single-piece structures.
• 3
  Material limitPowder options are narrower than wrought or billet options.

As-built metal surfaces land around Ra 8–12 μm, and dimensional scatter on thin walls can run several tenths of a millimeter. That is fine for internal flow paths but not for a bearing seat. Any face that locates, seals or carries a fastener needs machining after the build.

This is the step engineers underestimate. A printed part is a near-net blank, not a finished part. Add 0.5–1.5 mm of stock on every critical face, then machine it to ±0.005 mm and Ra 0.8–1.6 μm on a five-axis center.

Heat treatment changes the picture again. Stress relief and HIP move the part slightly, so machining stock must be sized for the post-HIP condition, not the as-printed one. Sequence matters: print, stress relieve, HIP, then machine.

Inspection is the last gate. Printed hardware often needs CT scanning to verify internal channels that no touch probe can reach. For machined surfaces, a 100% dimensional check before shipment is the baseline.

• 1
  As-built is roughPlan for Ra 8–12 μm and loose tolerance unless you machine it.
• 2
  Leave stock0.5–1.5 mm on locating, sealing and fastener faces.
• 3
  CT for internalsTouch probing cannot verify closed channels.

Machine time on a metal printer is expensive and scales with build height, not part count. One part or fifty parts in the same envelope cost almost the same to print. That makes additive attractive at low volume and weak at high volume, where a CNC can run unattended for hours.

Powder is a real line item, and unused powder must be sieved and requalified. On titanium and Inconel, powder cost can exceed the machine time. A design that wastes a tall build volume wastes powder too.

CNC cost scales with removed volume and the number of setups. A simple part with one setup and a short cycle is cheap. A part with five setups, thin walls and a 0.4 mm cutter is not.

The crossover usually sits somewhere between 10 and 200 parts, depending on geometry. Below it, additive plus finish machining is often cheaper. Above it, machining from billet wins on unit price, and the gap widens.

• 1
  Additive scales by heightBuild time depends on Z height and layer count, not quantity.
• 2
  Powder is not freeRequalification and waste add to titanium and Inconel cost.
• 3
  CNC scales by volume removedMore setups and deeper pockets raise unit cost.

Start with the drawing and mark every face by function. Locating, sealing and fastener faces get machining stock. Flow-path and non-critical surfaces can stay as-built. That split sets the whole plan.

Choose the build orientation so the critical machined faces sit on a stable datum, not on support material. Supports leave rough witness marks that cost extra cleanup and can shift the datum.

After the build, run stress relief before any cutting. If HIP is required for fatigue life, do it before machining too, so the dimensional shift happens on stock you still have.

Then machine on a five-axis center. One setup with a rotary table handles most aerospace hardware and keeps position error low. Finish with the coating or anodize the drawing calls for, and inspect before shipment.

• 1
  Mark faces by functionDecide what gets stock before you quote.
• 2
  Orient for datumsKeep critical faces off support contact points.
• 3
  Heat treat before cuttingStress relief and HIP move the part.
