An impeller is a set of curved blades arranged around an axis. Each blade has a leading edge, a trailing edge, a hub fillet, and a shroud or a free tip. The surfaces are ruled or lofted, not flat, and the angle changes along the span. That is the whole difficulty. A three-axis spindle can only approach from one direction at a time, so every reorientation adds error and setup time.

CNC machining completes high-precision impeller parts because the tool path is generated from the same CAD surface the inspector will later measure against. There is no pattern, no draft angle added for mold release, and no shrink allowance to guess. If the model says 0.4 mm tip thickness, the cutter can chase 0.4 mm. That direct link between model and metal is the reason machined impellers hold up in low-volume and prototype programs.

The trade-off is time and cost per part. A five-axis roughing pass on a 200 mm titanium wheel can run for hours before the first finishing cut. For a run of 10,000 identical impellers, casting or additive usually wins on unit cost. For 5 to 500 pieces, or for geometry that is still changing, milling is the shorter road.

Most impellers are machined from a solid billet or a near-net forging. The first operation faces the hub and turns the mounting bore so there is a reliable datum. Everything after that is located from that bore and face, which is why we cut it first and cut it accurately. If the bore is off by 0.02 mm, every blade position inherits that error.

The second operation roughs the blade channels. We leave 0.3 to 0.5 mm of radial stock and 0.1 to 0.2 mm on the flanks, then semi-finish before any finishing pass touches the surface. Skipping semi-finish is the most common cause of a scrap wheel. The finishing tool then has to remove a lumpy load, and the wall deflects unevenly.

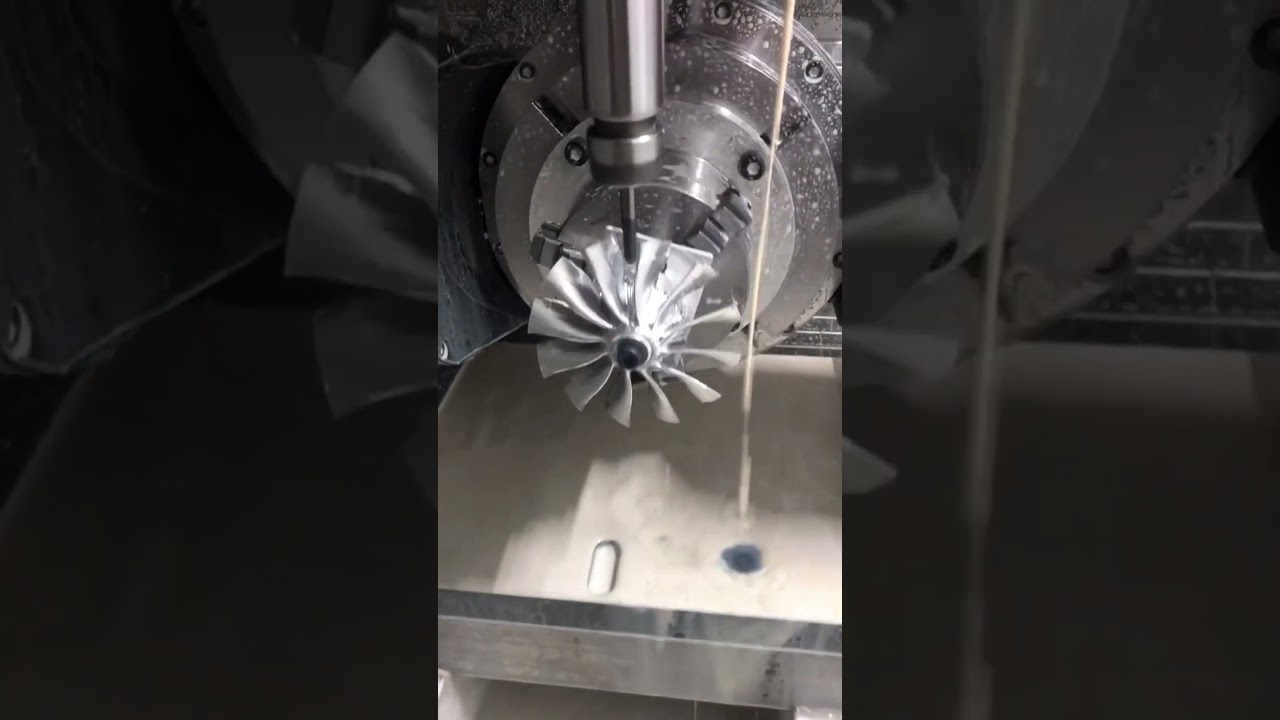

For a closed or shrouded wheel, the shroud is often machined as a separate cap and joined afterward, or the part is split into an open wheel plus a cover. On a Ø400 mm rotary table with a simultaneous five-axis center, we can reach the channel between blades in one continuous pass. On a 500 × 500 × 450 mm compact machine, deep channels may need a longer tool with a smaller shank, which forces lighter cuts.

• 1
  Datum firstFace and bore in operation one; every later setup references them.
• 2
  Semi-finish is not optionalIt evens the load so the finishing tool cuts a predictable chip.
• 3
  Shrouded wheelsSplit them, machine the channels, then join and re-check the bore.

Thin walls fail in two ways: chatter and thermal growth. Chatter shows up as a rippled flank and a rough Ra reading. Thermal growth shows up after the part cools, when the tip has sprung back 0.03 mm thinner than the gauge read while the spindle was still warm. Both are managed with the same levers: lower radial engagement, higher spindle speed within the tool's limit, and a shorter flute length.

For aluminum 6061-T6 we typically run a Ø6 mm carbide ball end mill at 12,000 to 16,000 rpm with 6 to 10 percent radial stepover and a 0.5 to 1.0 mm axial depth on finishing passes. Tip thickness below 1.0 mm gets a support strategy: either a sacrificial web left in place until the last pass, or a soft wax or low-melt fixturing compound that damps the vane.

Stainless 17-4PH and titanium TC4 behave differently. They work-harden, so a rubbing cut is worse than a heavy one. We keep the chip load above 0.02 mm per tooth and avoid dwelling in a corner. Inconel is the slowest of the group; a finishing pass may run at 40 to 60 m/min surface speed with high-pressure coolant aimed at the contact point, not at the whole part.

Fillet radii matter more than most drawings admit. A hub fillet smaller than 1.5 times the cutter radius forces a smaller tool, which lowers stiffness and eats cycle time. If the design can open the fillet to 2 mm or more, the wheel machines faster and holds tolerance better.

Aluminum alloys 6061, 7075, 2024, and 6082 machine cleanly and hold thin sections well. They are the default for prototype impellers and for low-inertia rotors. 7075 gives higher strength but is more prone to stress relief movement after heavy stock removal, so roughing and finishing are usually split across two days or separated by a stress-relief cycle.

Stainless 304 and 316 resist corrosion but gall and smear, so a sharp edge and a generous chip load are mandatory. 17-4PH in the H900 condition machines well and is common for pump and compressor wheels that see moisture. 420 and 440C are used where wear resistance at the wear rings matters, and they are usually hardened after machining, which means the final geometry must account for heat-treat distortion.

Titanium TC4 and TA2 hold strength at temperature but conduct heat poorly. Nearly all cutting heat goes into the tool, not the chip. That shortens tool life and pushes us toward lower speeds and more coolant. Magnesium AZ31B and AZ91D cut fast and light but require chip control and fire-safe handling. Inconel is reserved for hot-section parts where nothing else survives.

The material choice also drives the finishing step. Anodizing adds a few micrometers and can round a sharp leading edge. Hardcoat anodizing adds more and changes the dimension. Electroless nickel is more uniform on complex geometry. We account for the coating thickness in the pre-plate dimension, not after.

A machined impeller is checked on a coordinate measuring machine against the CAD model, with the datum bore and face as the alignment. Blade profiles, tip thickness, and hub fillets are the critical features. We inspect 100 percent of parts before shipment, with reports available on request. For a first article, a full dimensional report maps every blade, not just a sample.

Balance is a separate check. A wheel can be dimensionally perfect and still vibrate if mass is unevenly distributed around the axis. Static balance is enough for low-speed rotors; high-speed impellers may need dynamic balancing on a two-plane rig. We do not promise a balance grade on this page because the required grade comes from the customer's rotor dynamics, not from the machining process.

Surface finish is measured in Ra. Our as-machined range is Ra 1.6–3.2 μm, high-finish work sits at Ra 0.8–1.6 μm, and fine finishing reaches Ra 0.2–0.8 μm. A smoother flank is not always better. Some impellers benefit from a controlled surface that helps the boundary layer; a mirror polish can be the wrong answer for a compressor wheel.

Traceability closes the loop. Material certificates, heat lot numbers, and inspection records travel with the part. For automotive and medical programs, the paperwork is part of the deliverable, not an afterthought. Our quality system is certified to ISO 9001:2015, IATF 16949:2016, ISO 13485:2016, and ISO 27001:2022, and uploads are handled as confidential with an NDA available on request.
