Bending looks simple from the outside. A punch pushes the sheet into a die and a corner appears. Inside the material, three things happen at once. The outer fiber stretches, the inner fiber compresses, and a narrow zone near the neutral axis stays close to its original length. The position of that neutral axis is not the geometric middle of the thickness. It shifts toward the inside of the bend, and how far it shifts depends on the ratio of inside radius to material thickness.

That shift is why the flat pattern is never the sum of the outside dimensions. If you add the flange lengths and cut the blank to that total, the finished part comes out undersized on every leg. The shop has to apply a bend allowance and a bend deduction. For a 90° bend in 6061-T6 at 2 mm thickness with a 2 mm inside radius, the deduction lands in a range of roughly 3.2 to 3.6 mm per bend. Change the radius or the alloy and the number moves.

Springback is the second mechanism. When the punch retracts, the elastic portion of the strain recovers and the angle opens up. High-strength alloys and thick sheets recover more. Aluminum 7075 and 17-4PH stainless open noticeably more than 5052 or 304. Shops compensate in three ways: over-bend the punch angle, coin the bend with high tonnage, or use a bottoming die. Each choice changes tooling cost and cycle time, so it is a real decision, not a default.

Grain direction adds a third variable. Rolled sheet has directional ductility. A bend line running perpendicular to the rolling direction cracks later than one running parallel to it. For tight radii on 5052 or 304, the shop may rotate the nest on the sheet to put the bend across the grain. This costs sheet utilization. On a high-volume bracket, that trade-off matters more than a few cents of material.

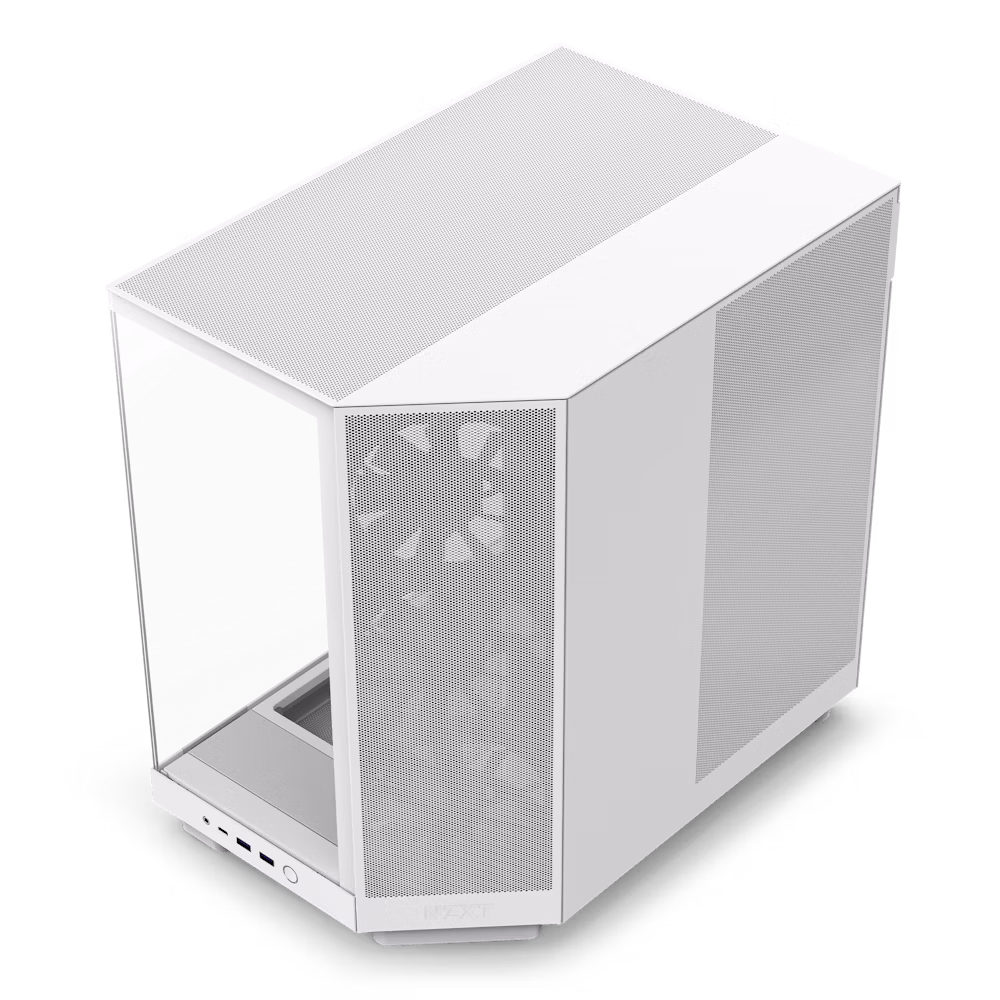

Sheet metal wins when the part is a shell, a bracket, a chassis, or a panel. It wins when wall thickness is fairly uniform, when the geometry is mostly 2D with flanges, and when the part needs to be light and cheap in quantity. A 1.5 mm aluminum enclosure with six bends and a few welded corners is a good fit. So is a stainless cover with a laser-cut gasket groove.

It loses when the part needs deep pockets, thick bosses, or internal channels that cannot be formed from flat stock. A heatsink with 40 mm tall fins is a machining or extrusion job. A manifold with internal cross-drilled passages is machined. If you try to press a deep drawn cup from 6 mm plate, you will fight tearing and wrinkling on every trial.

There is also a tolerance boundary. Formed sheet metal holds ±0.1 mm on a bend-to-bend dimension without much trouble. Push to ±0.05 mm and the shop is chasing springback, tool wear, and material batch variation. At that point, machining the feature or adding a secondary operation is often cheaper than holding the tolerance in the form.

A practical rule: if the critical dimensions are between features that are all formed from one flat blank, sheet metal is fine. If the critical dimensions relate a formed face to a machined bore or a press-fit insert, plan a post-form machining step. Mixing the two in one operation is where quotes get risky.

The chain starts with nesting. A good nest balances sheet utilization against grain direction and bend sequence. Rotating one part to save 4 percent material can put a tight bend along the grain and cause a crack in the field. The nesting software does not know that unless the programmer sets the rule.

Laser cutting or punch comes next. Fiber laser cuts 0.5 to 20 mm carbon steel and thinner stainless and aluminum with a heat-affected zone measured in tenths of a millimeter. The kerf is narrow, but the cut edge on thick plate tapers slightly. On a part that uses the cut edge as a datum, that taper matters. On a cover panel, it does not.

Forming follows. Press brake tooling selection sets the inside radius. A common shop rule is inside radius equals one times thickness for mild steel, but aluminum and stainless need more. If the drawing calls for a sharp inside corner on 3 mm 304, the tool will not produce it without cracking. The shop should flag this in DFM, not after the first article.

Welding, riveting, and hardware insertion close the chain. Spot welding, TIG, and laser welding each leave different distortion. A 300 mm long TIG seam on 1.5 mm aluminum will pull the panel. The fix is stitch welding, a fixture, or a different joint design. Hardware insertion, such as PEM nuts and standoffs, needs a flat surface and enough edge distance, typically 1.5 times the hole diameter.

• 1
  Nest with grain directionRotate parts so tight bends run across the rolling direction.
• 2
  Cut edge is not always a datumLaser kerf taper on thick plate shifts the reference.
• 3
  Weld distortion is predictableStitch or fixture long seams on thin aluminum.
• 4
  Hardware needs edge distancePlan 1.5 × hole diameter minimum to the sheet edge.

A machined part has one setup and one datum. A formed part has a sequence of setups, and each one stacks error. Cut blank length, bend position, bend angle, and springback recovery all add. The final bend-to-bend dimension is a stack, not a single measurement. This is why a shop that holds ±0.005 mm on a mill may only hold ±0.1 mm on a formed bracket.

The stack also explains why the first article matters more than the drawing. Two shops can quote the same drawing and deliver parts that do not interchange because their bend deductions differ by 0.2 mm. On a chassis with eight bends, that difference compounds to over 1.5 mm at the end flange. If your assembly has a fixed mounting pattern, request a first article and measure the formed part, not the flat blank.

Thermal effects are smaller but real. Welding a 2 mm aluminum panel can move an adjacent bend by 0.3 mm over a 400 mm length. The heat is local, but the restraint is global. Pre-setting the part in a fixture and letting it cool clamped reduces the movement. On stainless, the distortion is lower because the thermal conductivity is lower and the heat stays near the weld.

The engineering implication is simple. Put your tight tolerances on machined features, not on formed features. If a mounting hole must be within ±0.05 mm of a boss, machine it after forming. That one secondary operation often costs less than chasing the form tolerance across a production run.

Aluminum 5052 is the default for formed covers because it bends well and resists corrosion. 6061 forms acceptably at a wider radius and machines better for secondary features. 7075 is strong but cracks at tight radii, so designers use it for machined brackets, not formed panels. On the stainless side, 304 is the workhorse, 316L adds corrosion resistance for medical and marine, and 17-4PH is for high-strength parts that still need some formability.

Coating comes after forming in almost every case. Anodizing adds a hard oxide layer that will craze if you bend it after the fact, so bend first and anodize second. Powder coating is thicker, typically 60 to 100 μm, and it rounds sharp edges visually. If a mating face is a locating surface, mask it before coating or the fit will change.

Laser marking is a common finish on sheet metal because it survives anodizing and powder coating. Minimum character height is 1.5 mm for legibility on a textured surface. If your serial number needs to be read by a scanner, plan a flat area and avoid the heat-affected zone near a weld.

The material decision and the forming plan are not separate. Choosing 7075 over 6061 changes the minimum bend radius, the tooling, and the inspection plan. Pick the alloy after you know which features are formed and which are machined.
