Chinese Custom Sheet Metal Fabrication Suppliers: How Engineers Should Evaluate Them

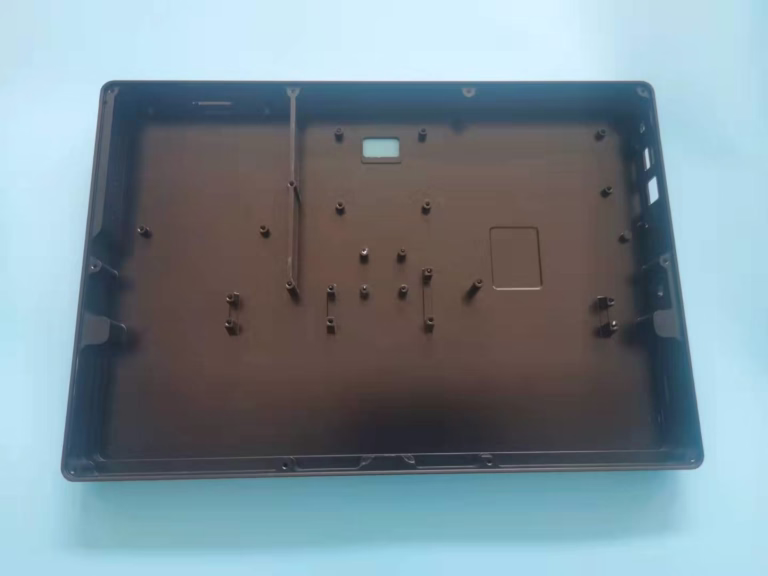

Cut, bend, weld, finish. That is the whole process on paper. In practice every step moves the part, and the tolerance stack at the end is what decides whether the assembly goes together on the line.

Cutting is the most predictable step. Fiber laser handles 0.5–6 mm carbon steel, stainless, aluminum, and copper at good speed with a heat-affected zone of a few tenths of a millimeter. Thicker plate or high-volume blanks move to punching, where tooling cost is amortized over the run. For one-off covers and small brackets, laser plus a press brake is usually the cheapest path.

Forming is where drawings and reality diverge. Air bending springs back; the amount depends on material, thickness, and die opening. A 90° bend in 2 mm 304 stainless might need 88° of ram travel. Bend radius matters too: too tight and the outside fibers crack, especially in 5052 or 7075 aluminum.

Welding and finishing close the loop. TIG on thin stainless causes visible heat tint and pulls the part out of flat. Spot welding, riveting, or clinching avoid that but change the joint design. Anodizing after welding will show a color shift at the weld, so cosmetic parts are often assembled rather than welded.

• 1
  Good fit for sheet metalEnclosures, brackets, mounting plates, busbars, chassis, covers, ducting.
• 2
  Poor fitParts needing ±0.02 mm on three axes, thick bosses, or complex internal channels.
• 3
  Near-net alternativeDie casting or vacuum casting when geometry is 3D and volumes exceed a few hundred.
• 4
  Hybrid routeWeld a sheet metal frame, then machine the critical face on a 5-axis mill.

Cold-rolled steel 1018 and 1045 bend cleanly and take powder coating well. They rust, so any uncoated edge becomes a corrosion site in humid service. Hot-rolled A36 is fine for structural frames where cosmetic appearance does not matter.

Stainless 304 and 316L are the default for medical and food equipment. They work-harden, so tight bend radii need annealing between passes or a larger radius from the start. 316L welds well and keeps corrosion resistance at the joint; 304 is cheaper and adequate for most enclosures.

Aluminum 5052 is the best general-purpose forming alloy. It bends to a tight radius without cracking and resists salt spray. 6061 bends less gracefully and is often chosen for machined plates instead. For heat sinks and stiffening, 6063 extrusion is common.

Copper and brass move into busbars and RF shielding. C110 copper bends easily but is soft; beryllium copper holds spring properties after forming. Titanium sheet is formable at room temperature only to a limited radius, and it is usually specified when weight and corrosion matter more than cost.

• 1
  Powder coatingBest for steel; adds 60–120 μm and hides minor surface marks.
• 2
  AnodizingAluminum only; clear, color, or hardcoat. Mask weld areas if color must match.
• 3
  Electroless nickelUniform on complex shapes; good for wear and EMI shielding.
• 4
  Laser markingAdds part numbers and logos; minimum character height 1.5 mm for legibility.

Sheet metal tolerances are not one number. They depend on the feature. A laser-cut hole position on a flat blank can hold ±0.1 mm. The same hole after two bends may drift to ±0.3 mm because each bend contributes angular error that grows with distance from the bend line.

Bend angle is the usual culprit. Standard press brake work holds ±1° on a good day, ±0.5° with a well-maintained machine and a consistent operator. Over a 300 mm flange, 1° equals roughly 5 mm of end-to-end deviation. If that flange has to meet a mating part, design an adjustment slot instead of fighting the tolerance.

When a sheet metal part needs real precision, the fix is usually machining after forming. Datum faces get milled flat, holes get reamed, and the critical interface lands within ±0.005 mm. That is a machining tolerance, not a sheet metal one, and it belongs on a separate drawing view.

Inspection follows the same logic. Check the flat pattern before bending, check bend angles after forming, and check the critical interface after any machining. Reports are available on request, and every part is inspected before shipment.

• 1
  Flat pattern±0.1 mm on hole position, ±0.2 mm on overall outline.
• 2
  Bend angle±0.5° to ±1°, depending on flange length and thickness.
• 3
  After machining±0.005 mm on milled datums and reamed holes.
• 4
  SurfaceRa 1.6–3.2 μm as formed; Ra 0.8–1.6 μm after fine finishing.

Ask what happens between the laser and the shipping box. A shop that only cuts and bends is a fabricator. A shop that also welds, finishes, machines, and assembles is a manufacturing partner, and you avoid the freight and inspection loops between four vendors.

Check the equipment list against your part. A 4,000 mm press brake and a large-format laser are needed for long enclosures. A Ø400 mm rotary table and simultaneous 5-axis machining matter when a welded frame needs its mounting face milled flat after welding. If the shop cannot show the machine, it is outsourcing that step.

Certifications tell you what systems are in place. ISO 9001:2015 covers general quality management. IATF 16949:2016 is required for automotive production parts. ISO 13485:2016 applies to medical devices. ISO 27001:2022 covers information security, which matters when you send CAD files for an unreleased product.

Finally, look at the quoting process. A supplier that returns a quote with no questions has not read the drawing. Useful feedback looks like this: this bend radius will crack in 5052, move it to 6061 or increase the radius; this weld will warp the flange, add a stiffening rib or switch to rivets; this hole is 0.8 mm from the bend line, it will deform during forming.

• 1
  In-house stepsCutting, forming, welding, finishing, assembly under one roof.
• 2
  TraceabilityMaterial certificates and inspection reports on request.
• 3
  ConfidentialityNDA available; secure file handling for unreleased designs.
• 4
  ResponseQuotation and free DFM analysis within 12 hours.

Robot arms and humanoid platforms use a lot of sheet metal. Battery trays, joint covers, controller enclosures, and sensor brackets are usually 1.5–3 mm aluminum or stainless, laser cut and press-brake formed, then assembled with the machined joint housings. The sheet metal parts are rarely the tight-tolerance items, but they set the mounting positions for everything else, so hole patterns must be consistent from unit to unit.

Automotive and EV work moves to IATF 16949 territory once parts are production-bound. Busbars in C110 copper, motor mounts, underbody shields, and battery module frames are common. Copper busbars are typically laser cut, bent, and then nickel or tin plated. Weld distortion is the main risk on thin-gauge stainless heat shields.

For both industries, the practical pattern is the same. Keep the sheet metal part simple, put the tight tolerances on a machined interface, and let the fabricator tell you early if the design cannot be formed.
