UM600MT Metal 3D Printer: How It Works and When to Use It

• 1
  What the UM600MT metal 3D printer actually does
• 2
  Which metals and part shapes suit this envelope
• 3
  Why build rate varies from 5 to 50 cm³/h
• 4
  Monitoring, scrapers and what they change
• 5
  Where the machine sits in a production chain
• 6
  Metal 3D printing versus CNC machining: how to choose

The UM600MT metal 3D printer is a laser powder bed fusion machine. A recoater lays a thin layer of metal powder across a substrate plate, a laser melts a cross-section of the part, and the plate drops by one layer height. The cycle repeats until the part is complete. It is additive, not subtractive, so geometry that cannot be reached by a cutter becomes possible.

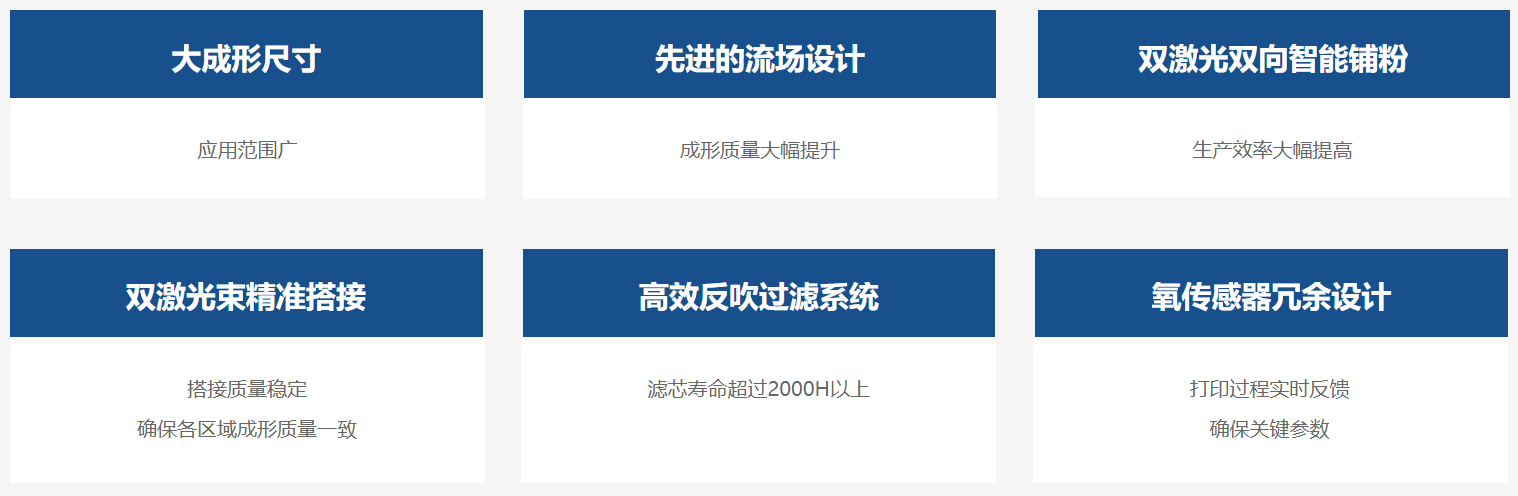

The machine carries two lasers and two galvanometer scanners. Each scanner covers part of the 400 × 600 × 500 mm build area, so two melt zones run in parallel inside one job. Powder is loaded and distributed in both directions, which keeps the recoating stroke productive instead of idling at the end of each pass.

That layout matters for throughput. A single-laser machine of the same envelope would have to scan the entire plate with one beam. The dual-laser configuration splits the work, and the two-direction powder feed keeps the recoater moving. The result is a build rate in the 5–50 cm³/h range, which depends heavily on part shape, part size, material and the chosen print parameters.

Laser power is 500 W per beam. That is enough to melt stainless steel, tool steel, aluminum alloy and titanium alloy powders, and to hold a stable melt pool across the plate. It is not a license to print any geometry — thin walls, unsupported overhangs and tall isolated features still need support strategy and orientation planning.

• 1
  Dual laser, dual scannerTwo melt zones share one build plate, cutting scan time per layer.
• 2
  Bidirectional powder feedThe recoater deposits powder on both strokes, so it does not idle.
• 3
  500 W per beamSufficient for steel, stainless, aluminum and titanium alloys.

The UM600MT handles cast steel, stainless steel, high temperature alloy, aluminum alloy and titanium alloy powders. In practice that covers most of what engineering teams bring to a metal additive job: manifold blocks, brackets, impellers, heat sinks, mold inserts with conformal cooling, and thin-wall housings that would need multiple setups on a mill.

Geometry is where the machine earns its place. Internal channels that curve through a part cannot be drilled. Conformal cooling passages inside a mold insert follow the cavity surface instead of a straight line. Lattice and hollow sections remove weight without removing stiffness. Powder bed fusion builds these in one piece, with no tool access problem.

The envelope is 400 mm × 600 mm × 500 mm, excluding substrate thickness. That is a mid-to-large format. It fits a single part that would otherwise be assembled from several pieces, or a plate of many smaller parts nested together. Nesting is often the cheaper route: one build, one setup, one post-processing batch.

There are limits. Very tall thin ribs can distort as the melt pool cools and the part contracts. Large flat unsupported faces tend to curl at the edges. Sharp internal corners concentrate residual stress and can crack during cutting off the plate. Orientation and support are not afterthoughts; they decide whether the part comes out usable.

• 1
  Good fitConformal cooling, internal channels, lattices, consolidated assemblies.
• 2
  Poor fitTall isolated ribs, large unsupported flats, tight cosmetic surfaces.
• 3
  NestingMany small parts per plate lowers cost per piece.

The 5–50 cm³/h figure is a range, not a spec sheet number. The low end appears when a part has a small cross-section per layer, heavy support volume, or a material that needs slower scanning to stay crack-free. The high end appears with thick solid sections, generous layer heights and a well-oriented part that keeps both lasers busy.

Material changes the number more than most people expect. Aluminum alloy conducts heat away from the melt pool quickly, so parameters shift. Titanium alloy and high temperature alloys are slower to melt cleanly and often need tighter parameter windows. Stainless steel sits in the middle and is the most forgiving of the common metals.

Layer height and part orientation are the two levers an engineer controls most directly. A part laid flat with a large footprint per layer builds faster than the same part standing on end. Rotating a part to reduce support volume usually saves more time than any parameter tweak, because support is scanned and then removed by hand.

For planning, treat the range as a starting bracket and confirm with a test build. If the part is a one-off prototype, a slower build is acceptable. If the part is heading toward production, the build rate needs to be measured on the actual geometry before anyone quotes a cycle time.

• 1
  Raises rateThick sections, larger layer height, flat orientation, low support volume.
• 2
  Lowers rateSmall cross-sections, dense supports, crack-sensitive alloys.

The UM600MT supports CCD real-time monitoring and optional app-based remote print monitoring. Real-time monitoring lets an operator catch a recoating defect or a raised edge before it becomes a scrapped build. Remote monitoring is useful for long jobs that run overnight, when nobody is standing at the machine.

The scraper is a wear item and a process variable. A ceramic scraper suits most jobs and resists abrasion from hard powders. A rubber scraper is gentler on the powder bed and is used where a stiff blade would drag or damage delicate structures. High speed steel scraper is available as an option for specific materials.

None of this replaces the basics. Powder must be dry and free of agglomerates. The substrate plate must be level and clean. The chamber atmosphere must be controlled so oxygen stays low enough that the melt pool does not oxidize. Most build failures trace back to one of those three, not to the laser.

Post-processing is part of the machine's real cost. Every build needs stress relief before the part is cut from the plate, support removal, and usually a surface finish operation. A printed part off the plate is near-net shape, not a finished part.

• 1
  CCD monitoringCatches recoating faults and raised edges during the build.
• 2
  Scraper choiceCeramic, rubber or high speed steel, matched to powder and geometry.

A metal 3D printer rarely ships a finished part on its own. The usual chain is: print near-net, stress relieve, cut from the plate, then machine the critical interfaces. The printed body gives you geometry that cannot be cut. The CNC step gives you the tolerances and surface finish that a bearing bore or a sealing face needs.

That combination is why additive and subtractive sit in the same shop at GreatLight. A 400 × 600 × 500 mm printed blank can move to a 5-axis machining center for datum establishment and finishing. The machining center holds ±0.005 mm and can reach Ra 0.8–1.6 μm on the finished faces, so the printed part inherits machined accuracy where it matters.

For low-volume complex parts, this beats machining from bar in both time and cost. A manifold with internal channels might take several setups and long cycle times on a mill, with a real risk of tool breakage in deep pockets. Printed and then finished, the channel geometry is free and only the interfaces need cutting.

For simple prismatic parts, the opposite is true. A bracket with straight holes and flat faces is faster and cheaper on a 3-axis mill. Printing it adds stress relief, support removal and finishing steps for no geometry gain. The process choice should follow the feature list.

• 1
  Print then machineNear-net additive body, CNC finished interfaces.
• 2
  Machine onlyPrismatic parts with reachable features and no internal channels.
